Glass clamp 6-12.76 mm 90° oval 82x45x30 mm pin AISI 304 satin
Description

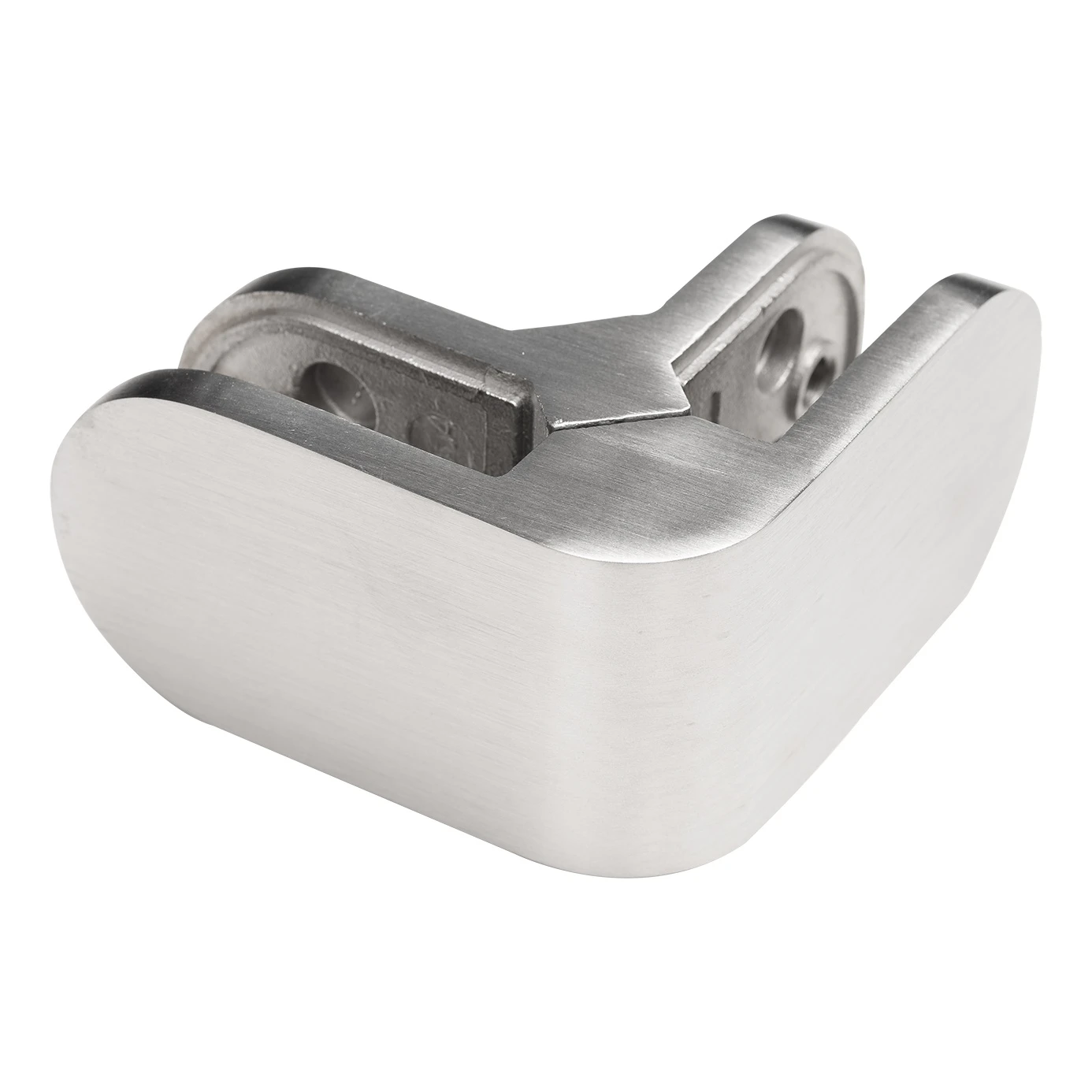

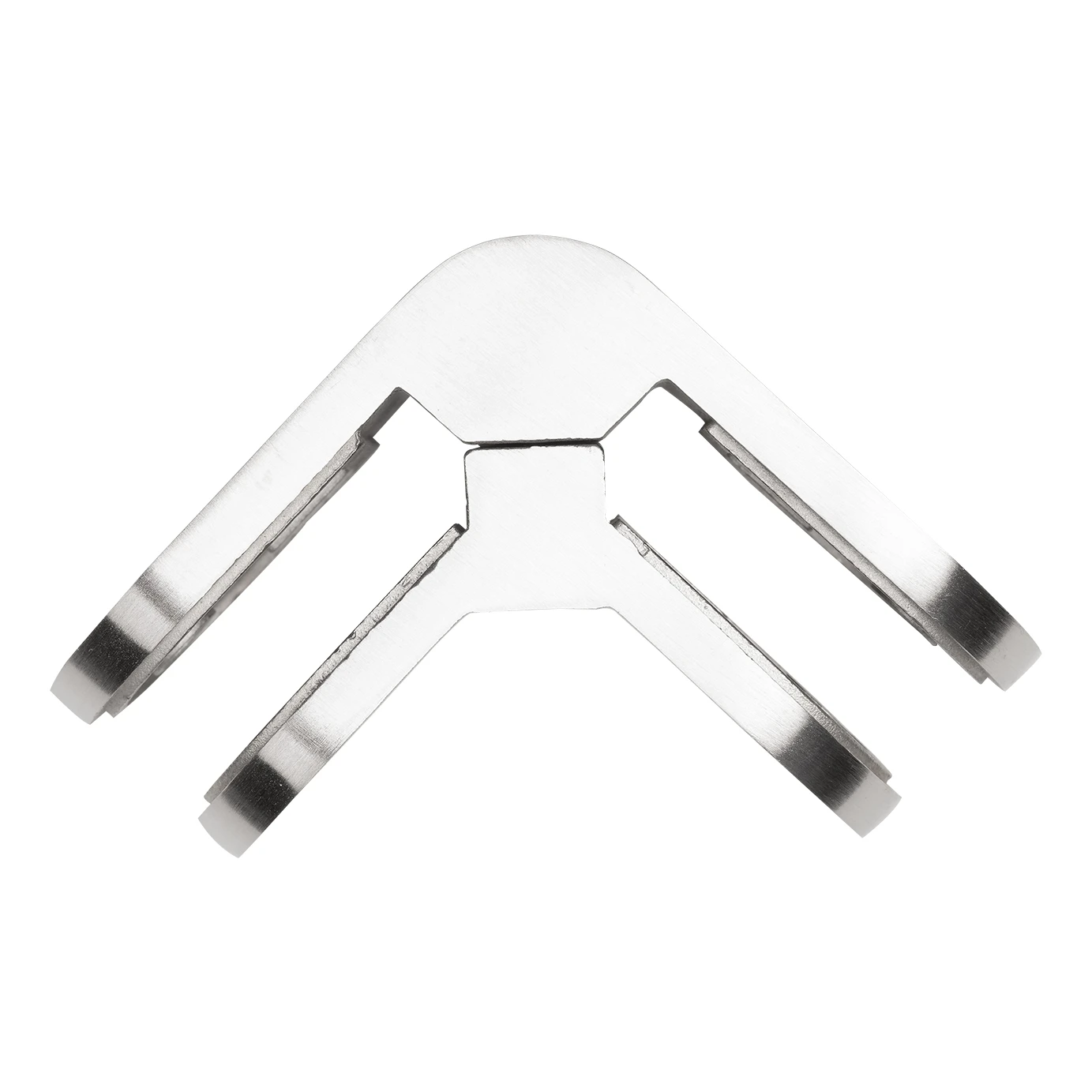

90° Corner Glass Clamp Oval AISI 304 Satin – Glass 6–12.76 mm
90° corner glass clamp in an elegant oval design, intended for the rigid connection of two panels of toughened or laminated glass at a right angle. An ideal structural component for balcony, terrace and interior balustrades — wherever a durable and aesthetically pleasing corner joint between glass panels is required.
Manufactured from AISI 304 stainless steel with a satin finish, the clamp combines excellent corrosion resistance with a modern, understated appearance. Thanks to the use of AISI 304 grade, the product is suitable for both indoor and outdoor applications — on balconies, terraces and around swimming pools.
Technical Specifications
- Connection type: 90° (corner)
- Shape: oval
- Length (L): 82 mm
- Height (H): 45 mm
- Width: 30 mm
- Supported glass thickness: 6–12.76 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.72 kg
- Volume: 302.58 cm³
- Security feature: locking pin
- EAN: 5901289671163
Design and Installation

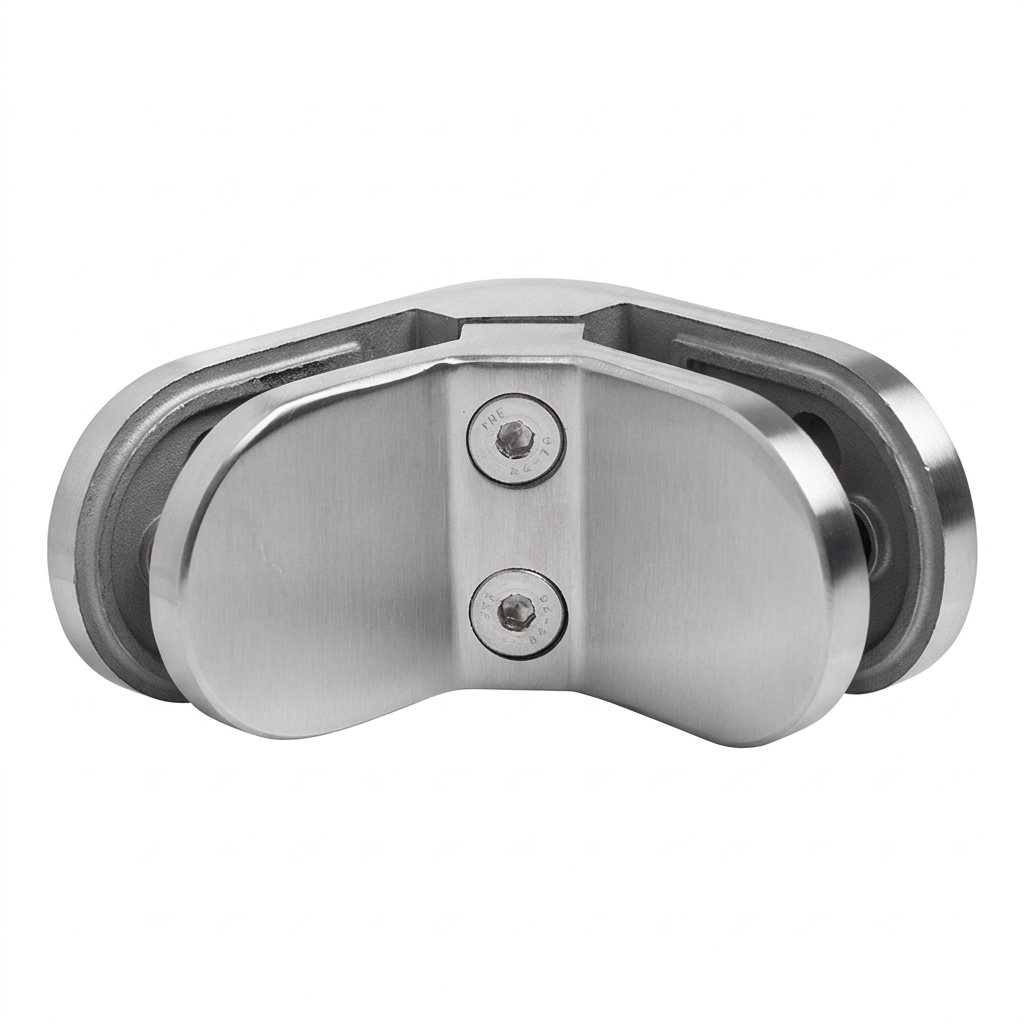

The clamp is fitted with Allen (hex) screws, which allow precise clamping adjustment without the need to disassemble the entire fitting. The locking pin provides additional protection against uncontrolled displacement of the glass panel, which is critical for the safety of the balustrade structure.
Installation requires the use of rubber gaskets, which must be selected to match the thickness of the glass being fitted. Gaskets are not included in the set — they are available as separate accessories. Two sets of gaskets are required per clamp.
Applications and Benefits
- Joining two panels of toughened or laminated glass at 90°
- Glass infill panels for balcony, terrace and interior balustrades
- Provides structural rigidity to the corner of a balustrade
- Effectively stabilises glass panels and prevents them from slipping out
- Elegant oval finish enhancing the visual appeal of the entire balustrade
- Universal glass thickness range 6–12.76 mm — one clamp for multiple configurations
- Clamping adjustment without disassembly — saving time on site
This clamp is one of the key components in a glass balustrade system. Selecting the right clamp affects not only the strength and safety of the structure, but also its final appearance. The oval shape of this model provides a soft, contemporary line at the corner finish — highly valued in architectural projects with demanding aesthetic requirements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-12,76 |
