Glass clamp 6-10.76 mm 50x40x26 mm pin AISI 316 system 42.4 mm satin
Description

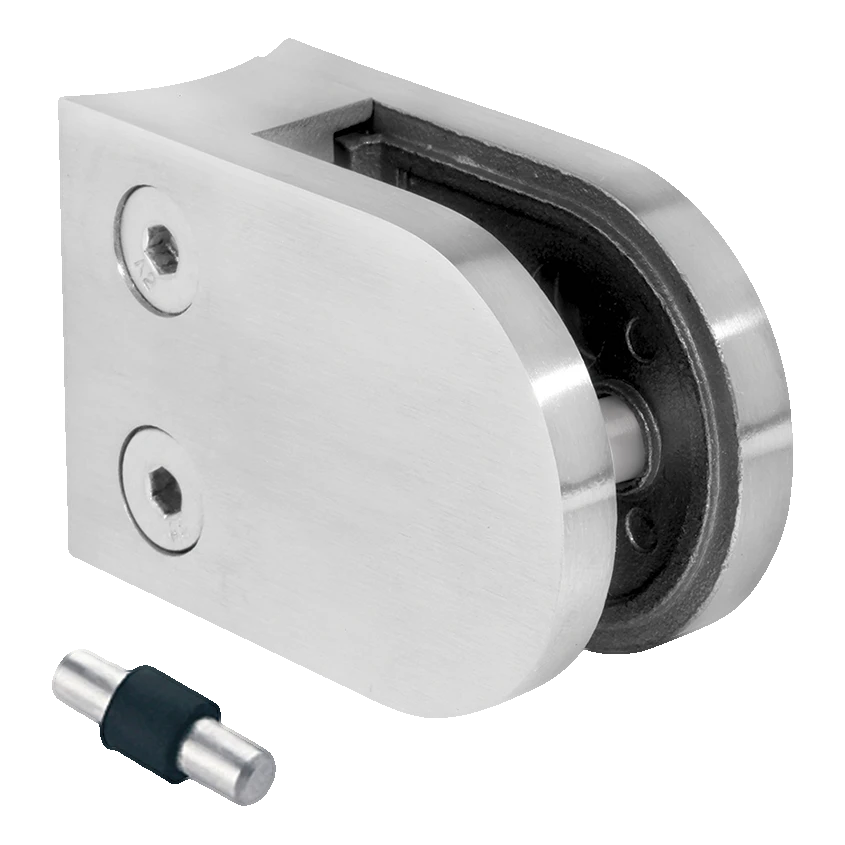

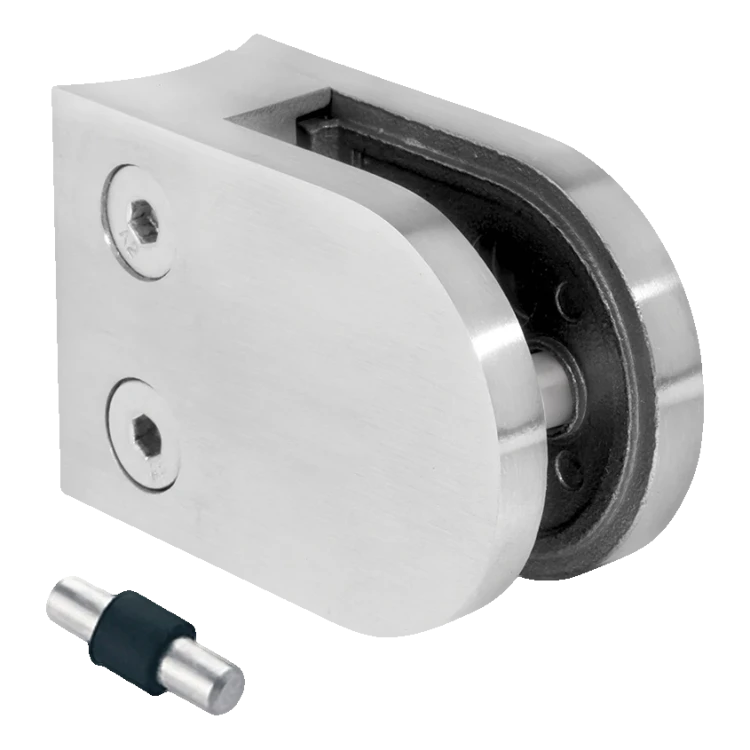

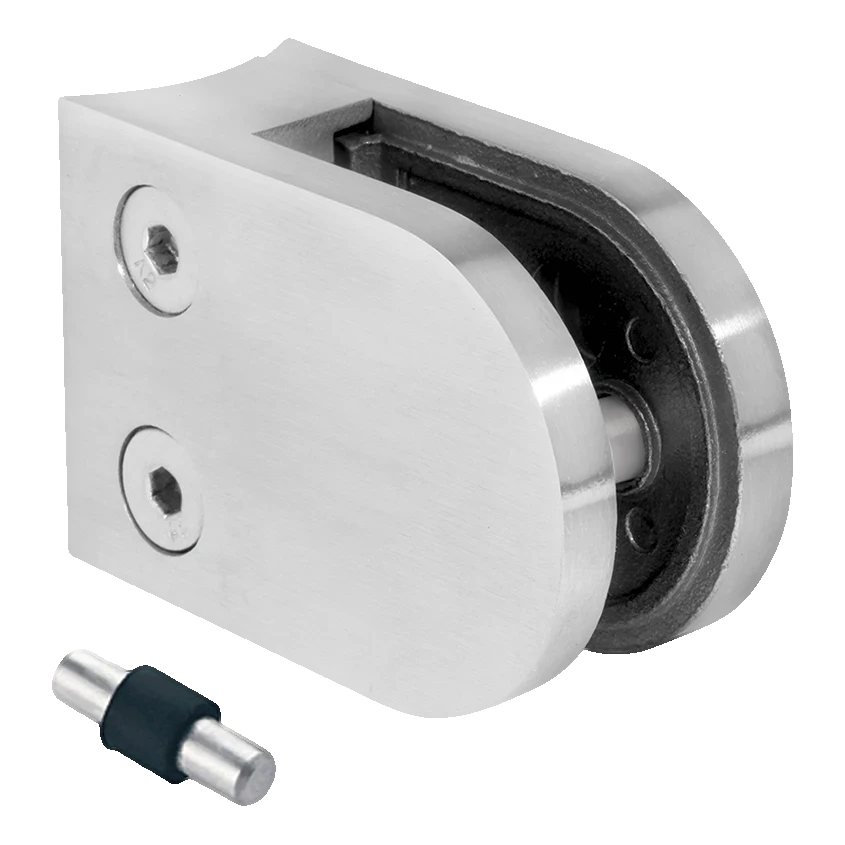

Stainless Steel AISI 316 Glass Clamp – ø42.4 mm Tube, Satin Finish
Stainless steel AISI 316 glass clamp designed for mounting glass panels onto circular tubes with a diameter of ø42.4 mm. The satin finish provides an elegant, contemporary appearance and excellent resistance to weathering — an ideal solution for glass balustrades, fencing, and balcony or terrace enclosures.
The clamp accommodates glass thicknesses from 6 to 10.76 mm, covering both single-layer toughened glass and laminated safety glass (VSG). The clamp is secured by threading it onto the tube, while two Allen screws allow precise adjustment of the glass clamping pressure without the need to disassemble the entire fitting. A mounting pin is included to facilitate installation.

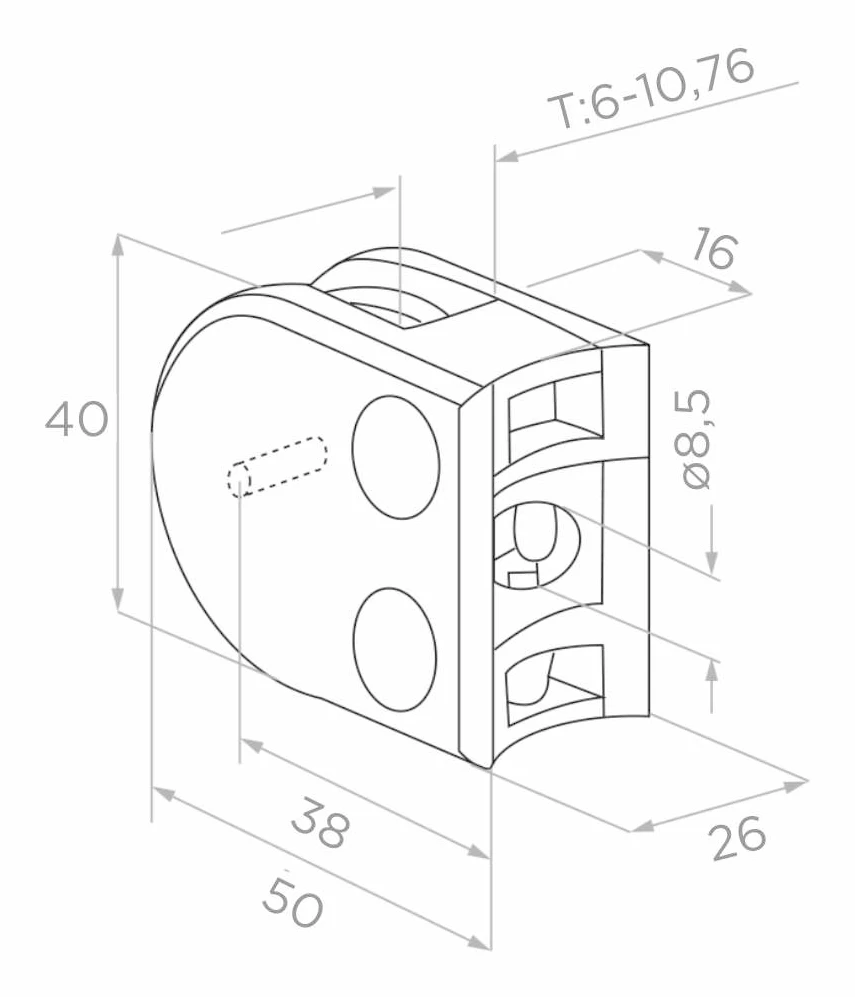

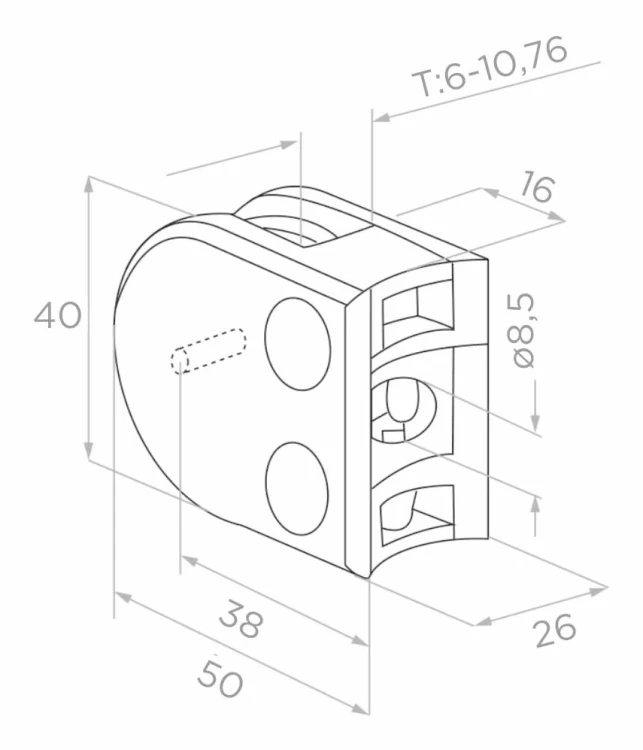

Dimensions and Technical Specifications
- Material: stainless steel AISI 316
- Finish: satin
- Height (H): 40 mm
- Length (L): 50 mm
- Depth: 26 mm
- Clamping part width: 38 mm
- Glass thickness: 6–10.76 mm
- Mounting hole diameter: ø8.5 mm
- Mounting tube diameter: ø42.4 mm
- Weight: 0.17 kg
- Volume: 52 cm³
- EAN: 5901289670500
Important Installation Information
The clamp requires the use of rubber gaskets — the appropriate gasket thickness must be selected to match the glass being installed. Rubber gaskets are available as separate accessories. The Allen screws allow for quick and convenient clamping adjustment, significantly speeding up installation on larger projects.
AISI 316 stainless steel (also known as acid-resistant or marine-grade steel) guarantees high corrosion resistance, including in marine and industrial environments. It is the optimal choice for outdoor installations exposed to water, salt, and atmospheric pollutants.
Technical data
| Finish | Satin |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
| Material | AISI 316 |
