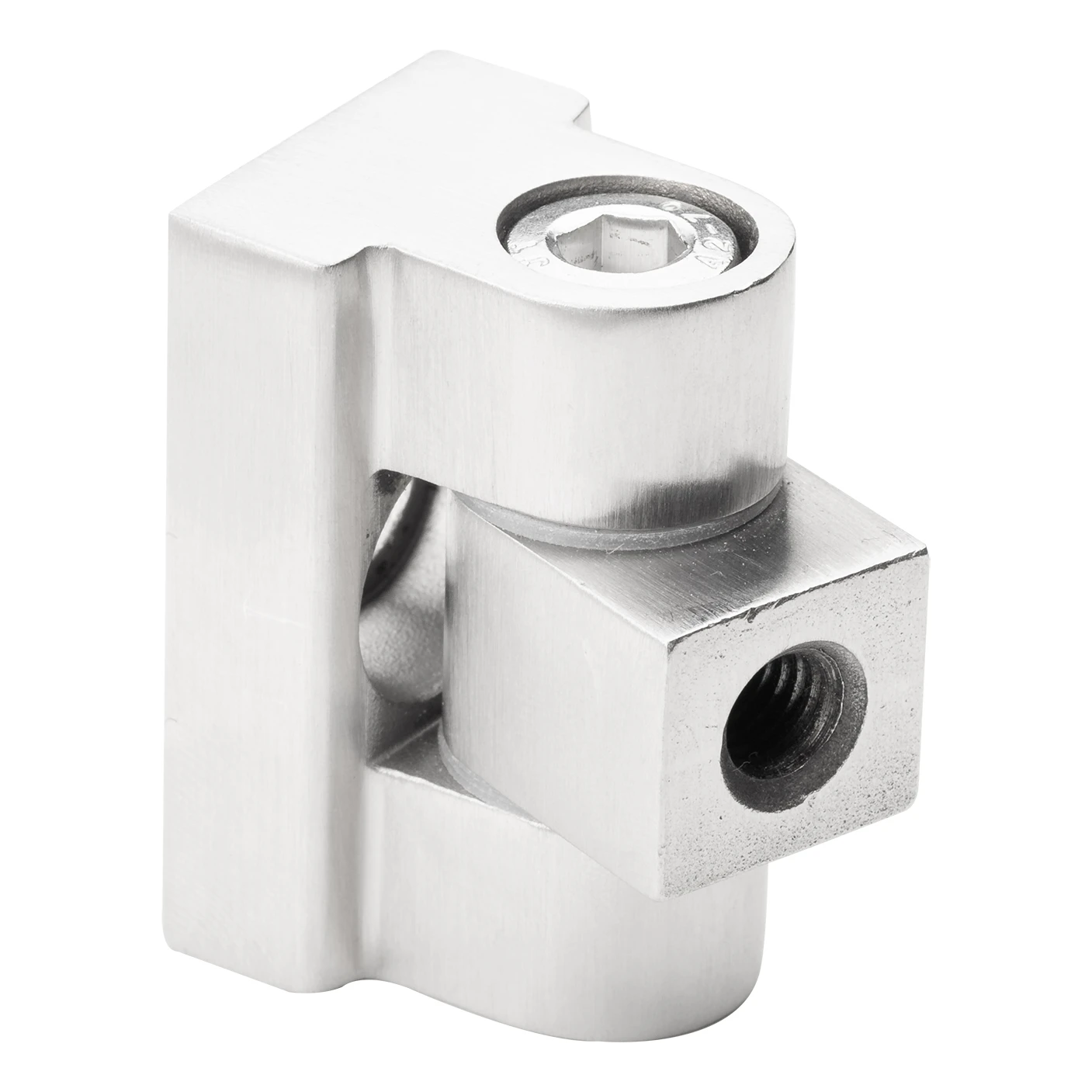

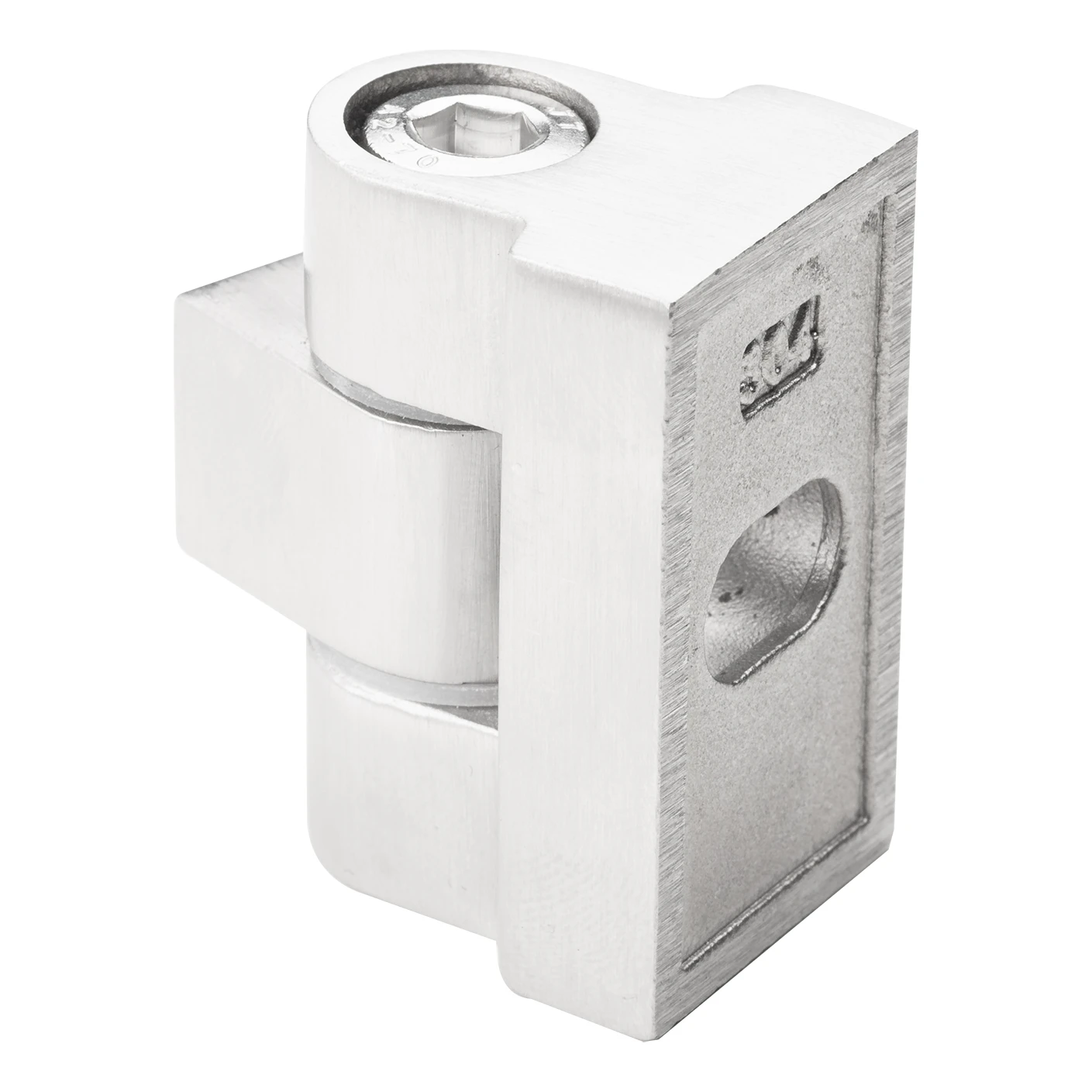

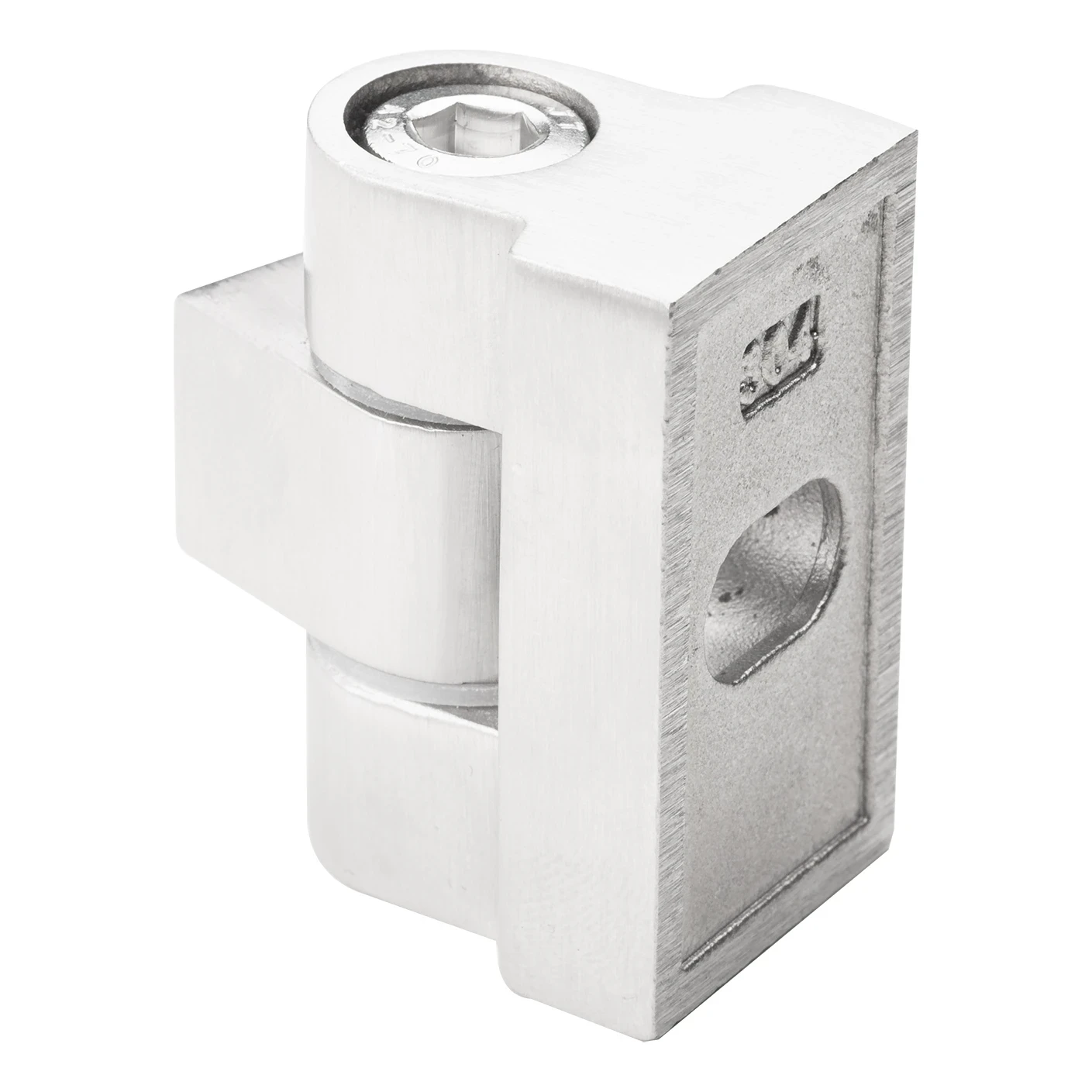

180° Glass Clamp Hinge 45 x 45 x 26 mm AISI304, Satin
Description
180° Glass Clamp Hinge AISI 304 – 45×45×26 mm, Satin
180° glass clamp hinge made of AISI 304 stainless steel with satin finish — a precision connecting element designed for glass balustrade systems mounted on tubes with 42.4 mm diameter. Thanks to the full 180° rotation range (2 × 90°), it enables smooth angle adjustment of glass panels, significantly facilitating installation on non-standard construction shapes.
Solid construction and corrosion resistance
The hinge is made of AISI 304 stainless steel, which guarantees high mechanical strength and excellent corrosion resistance — even in high-humidity environments such as swimming pools, terraces or balconies. The satin surface finish effectively masks fingerprints and minor soiling, maintaining an elegant, modern appearance throughout the service life.
Installation is carried out by screwing (thread M8), which ensures high connection strength whilst enabling easy disassembly without specialist tools. This is an important advantage for installation teams who can efficiently adjust glass panel positioning during the installation stage.
Technical specification
- Material: AISI 304 stainless steel
- Finish: satin
- Opening angle: 180° (2 × 90°)
- Tube diameter: 42.4 mm (R 21.2 mm)
- Glass thickness: from 6 mm to 10.76 mm
- Base dimensions (L × H × W): 45 × 45 × 26 mm
- Swivel eye dimensions (L × H × W): 24.5 × 18 × 15 mm
- Assembly depth (reference dimension): approx. 40.1 mm
- Mounting thread: M8
- Pin hole diameter: ø8.2 / ø8.5 mm
- Screw head counterbore diameter: ø13.5 mm
- Slotted hole in base: 13.5 × 9 mm
- Chamfers: 2×C0.5 on eye, C1 on threaded holes
- Surface roughness: Ra 1.6 / Ra 3.2
- Weight: 0.16 kg
- EAN: 5903313205153
Application and compatibility
The hinge is designed to work with glass clamps for thickness from 6 to 10.76 mm, covering both single tempered panes and VSG laminated glass. Mounted on tubes with 42.4 mm diameter, it performs excellently in glass balustrade systems, handrails and architectural glazing. The slotted hole in the base allows precise adjustment of the mounting position.

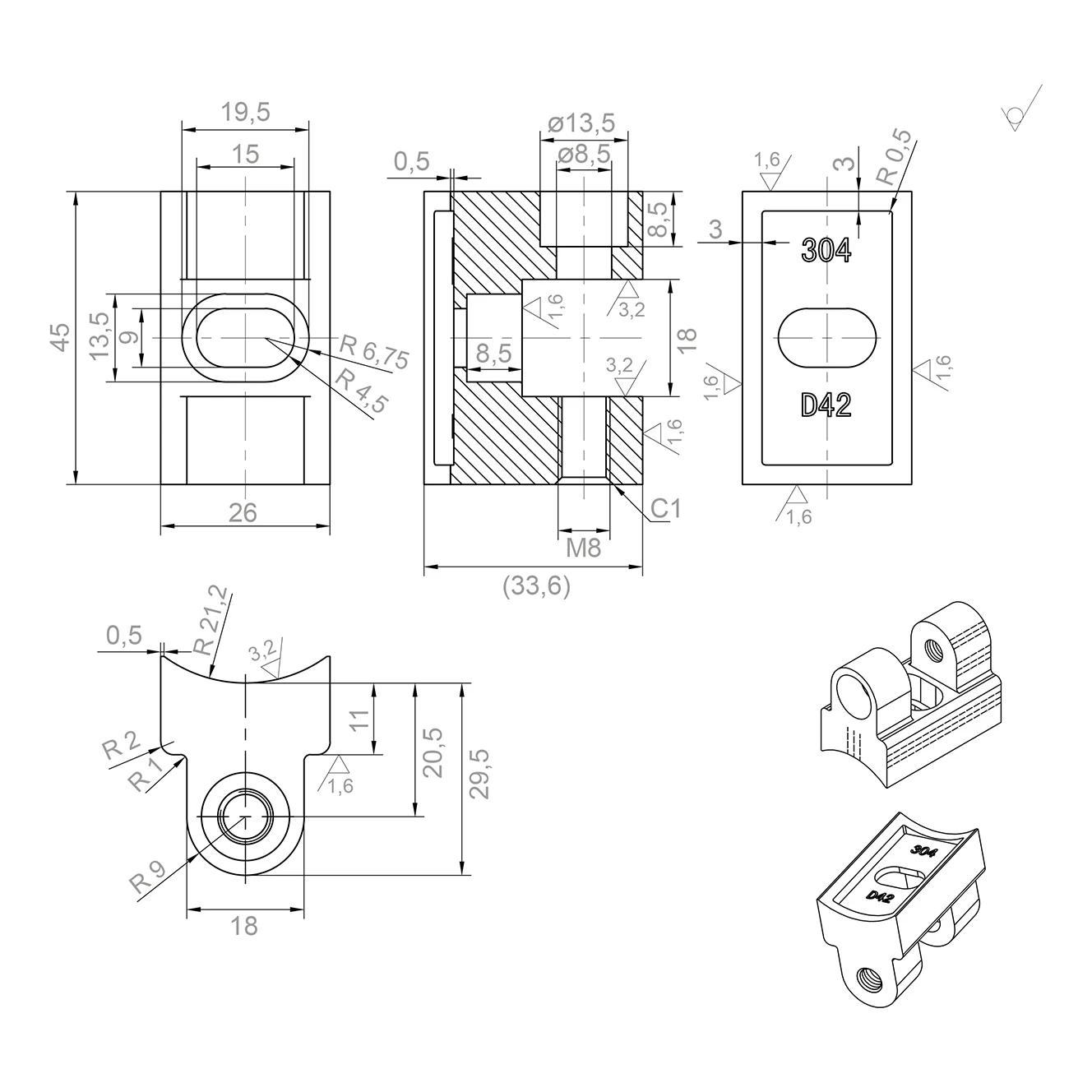

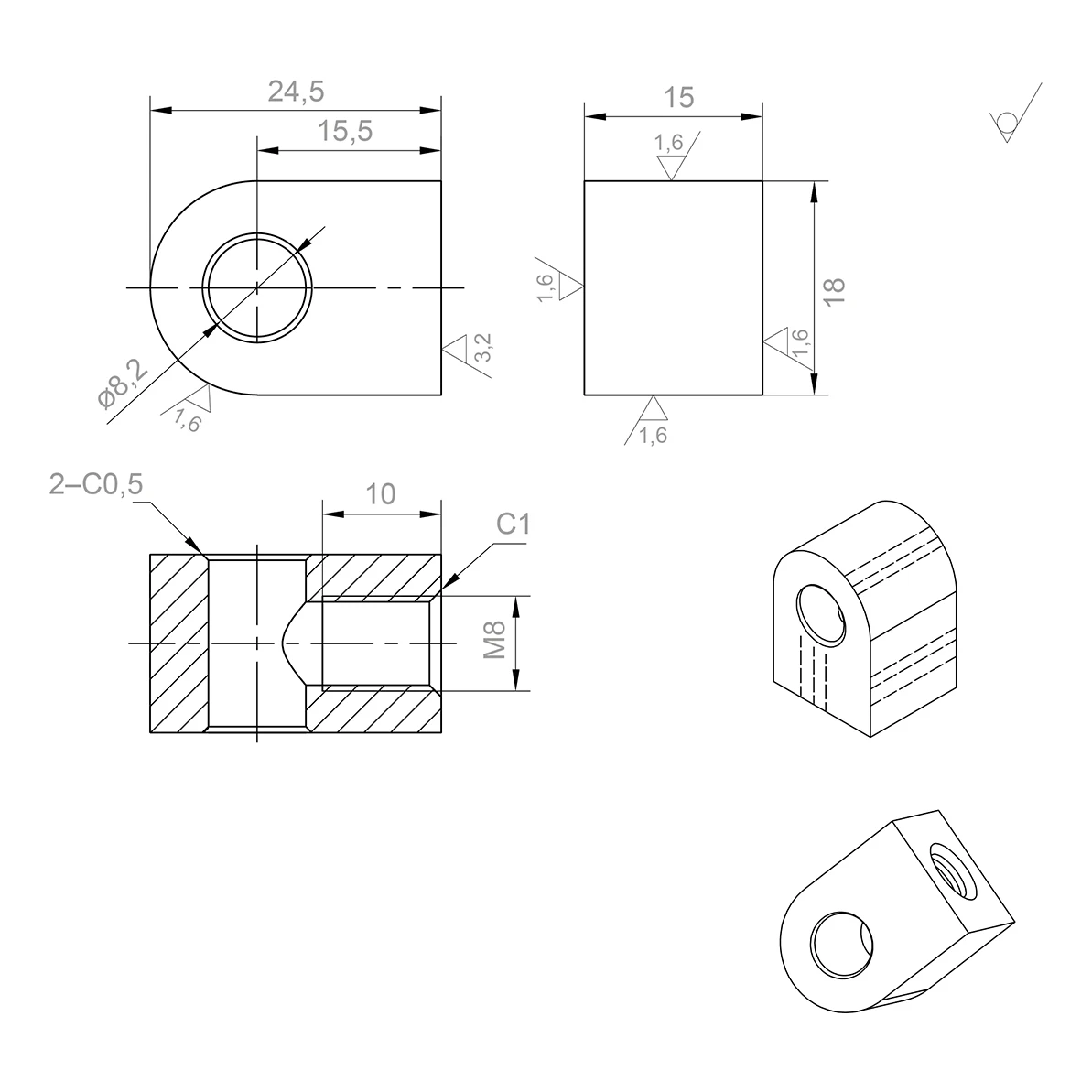

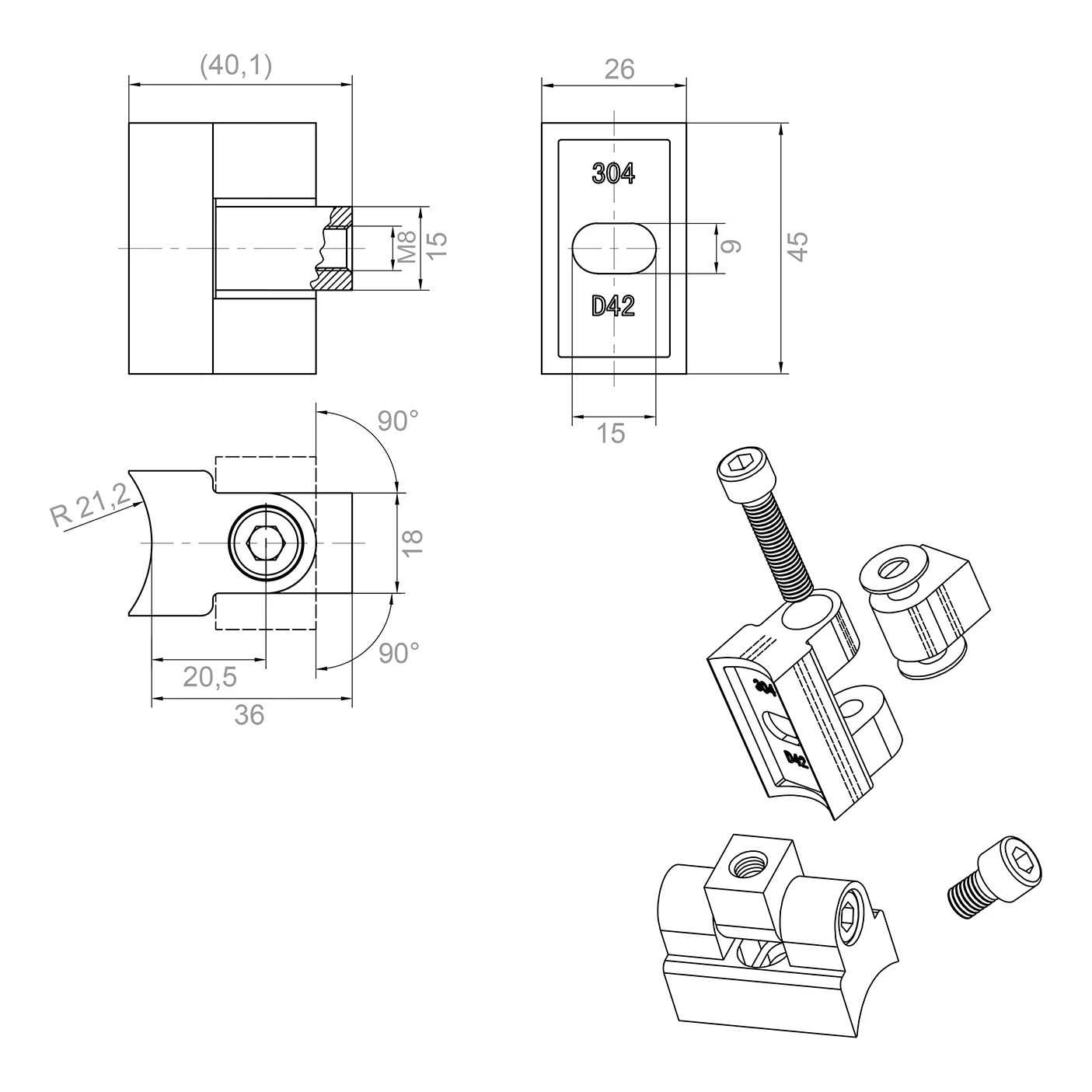

Dimensional drawings
Technical data
| Material | AISI 304 |
| Finish | Satin |
