Glass clamp 6–10.76 mm square 90° pin 53x45x26 mm AISI 304 satin
Description

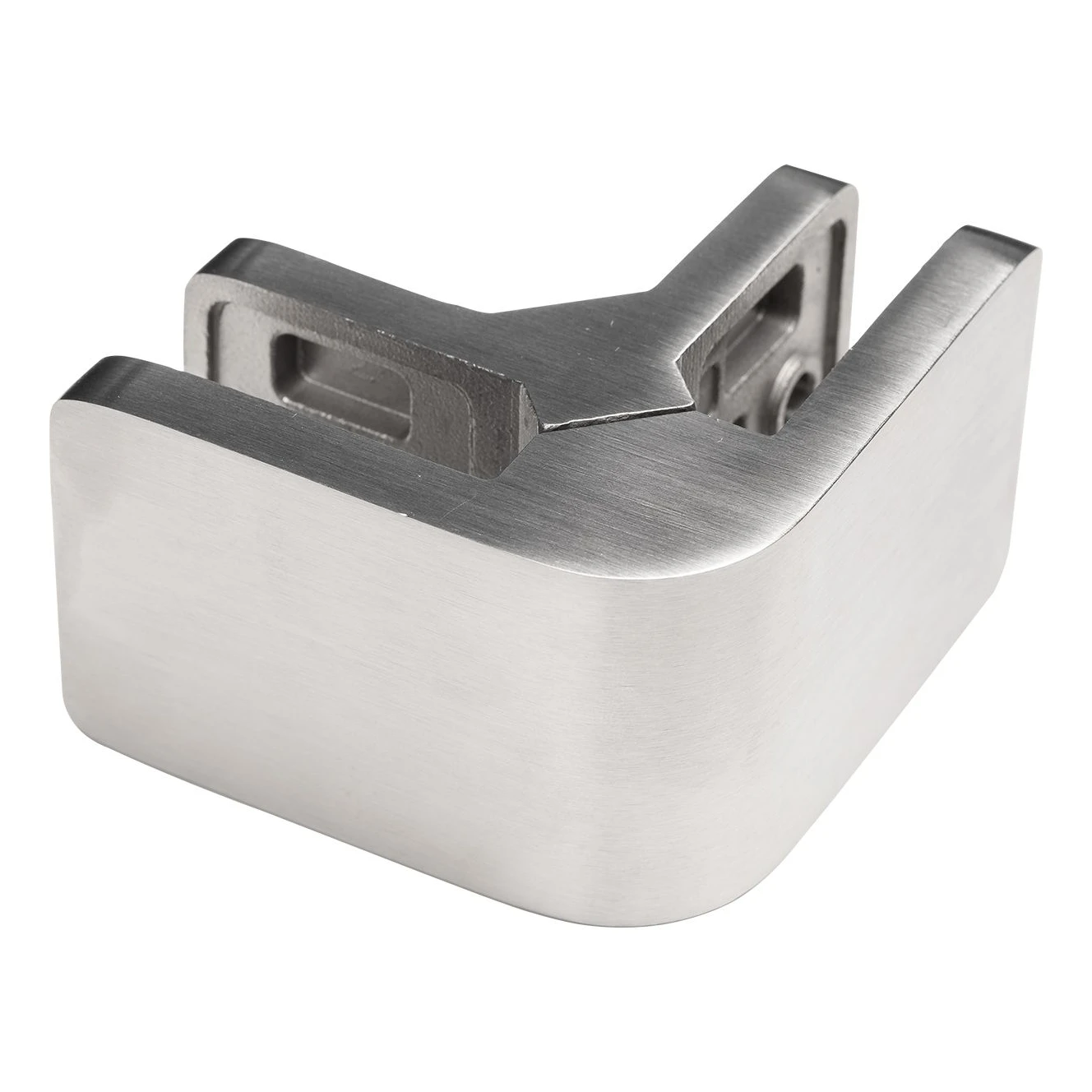

Corner Glass Clamp 90° Square 53×45 mm – AISI 304 Stainless Steel, Satin Finish

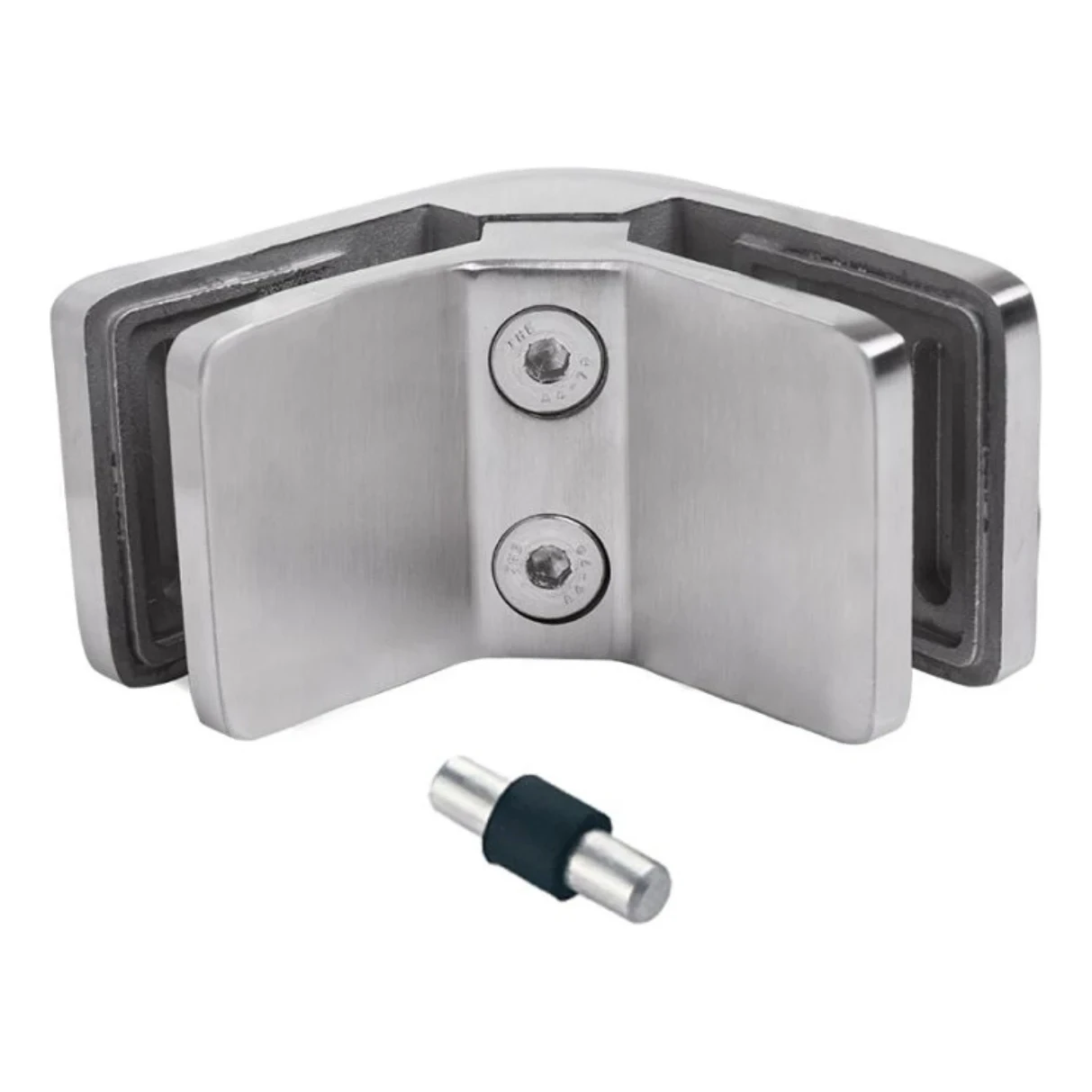

The 90° corner glass clamp measuring 53 × 45 × 26 mm is a professional solution for joining two glass panels at a right angle in glass balustrades and glazed enclosures. Made from AISI 304 stainless steel with a satin finish, it provides long-lasting corrosion resistance and a sleek, contemporary appearance. The clamp is compatible with toughened and laminated glass ranging from 6 to 10.76 mm in thickness, covering the most commonly used configurations in construction.
The clamp is supplied complete with a securing pin with a rubber sleeve, which stabilises the position of the glass panel and prevents it from accidentally slipping out. The clamp body consists of two halves tightened by 2×M6 Allen screws, enabling precise adjustment of the clamping force without the need to fully disassemble the fitting.
Technical Specification
- Type: 90° corner clamp (glass-to-glass)
- External dimensions: 53 × 45 mm
- Width (depth): 26 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Glass thickness: 6–10.76 mm (toughened or laminated)
- Fixing: 2 × M6 – Allen screws
- Securing pin: included
- Weight: 0.46 kg
- EAN: 5903313207898
Structural Function and Safety

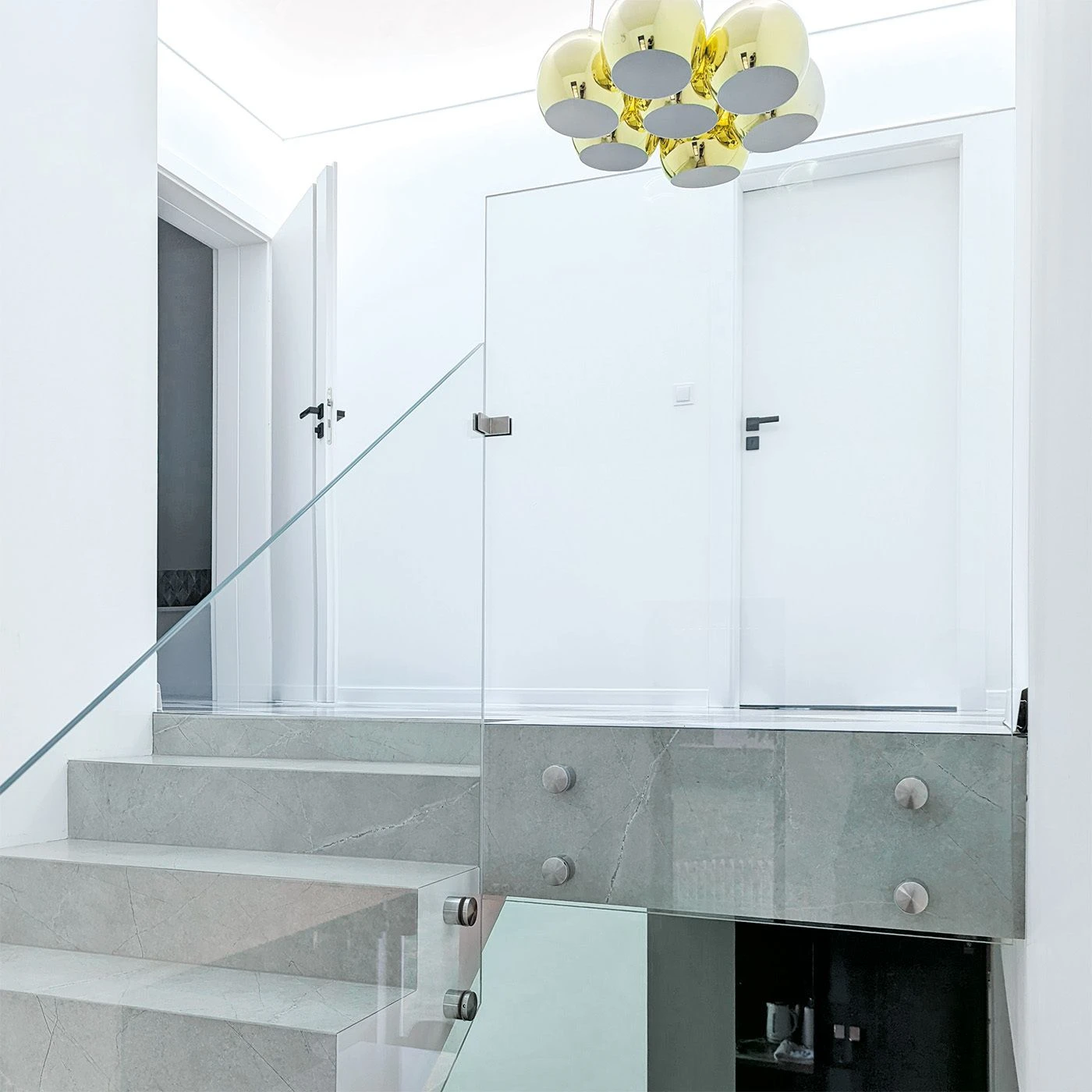

The corner clamp is a key component affecting the stability and safety of a glass balustrade. By joining two panels at 90°, it effectively prevents the glass from shifting, stiffens the structure and significantly reduces the risk of damage during use. Installing this clamp eliminates the need for additional frames or profiles, enabling the creation of minimalist, frameless balustrade solutions on balconies, terraces, staircases and in public buildings.
The satin finish of AISI 304 stainless steel provides not only corrosion protection but also an elegant appearance. Thanks to its neutral colouring and subtle sheen, the clamp complements modern glass and stainless steel balustrades perfectly.
Detailed Dimensions from Technical Drawings

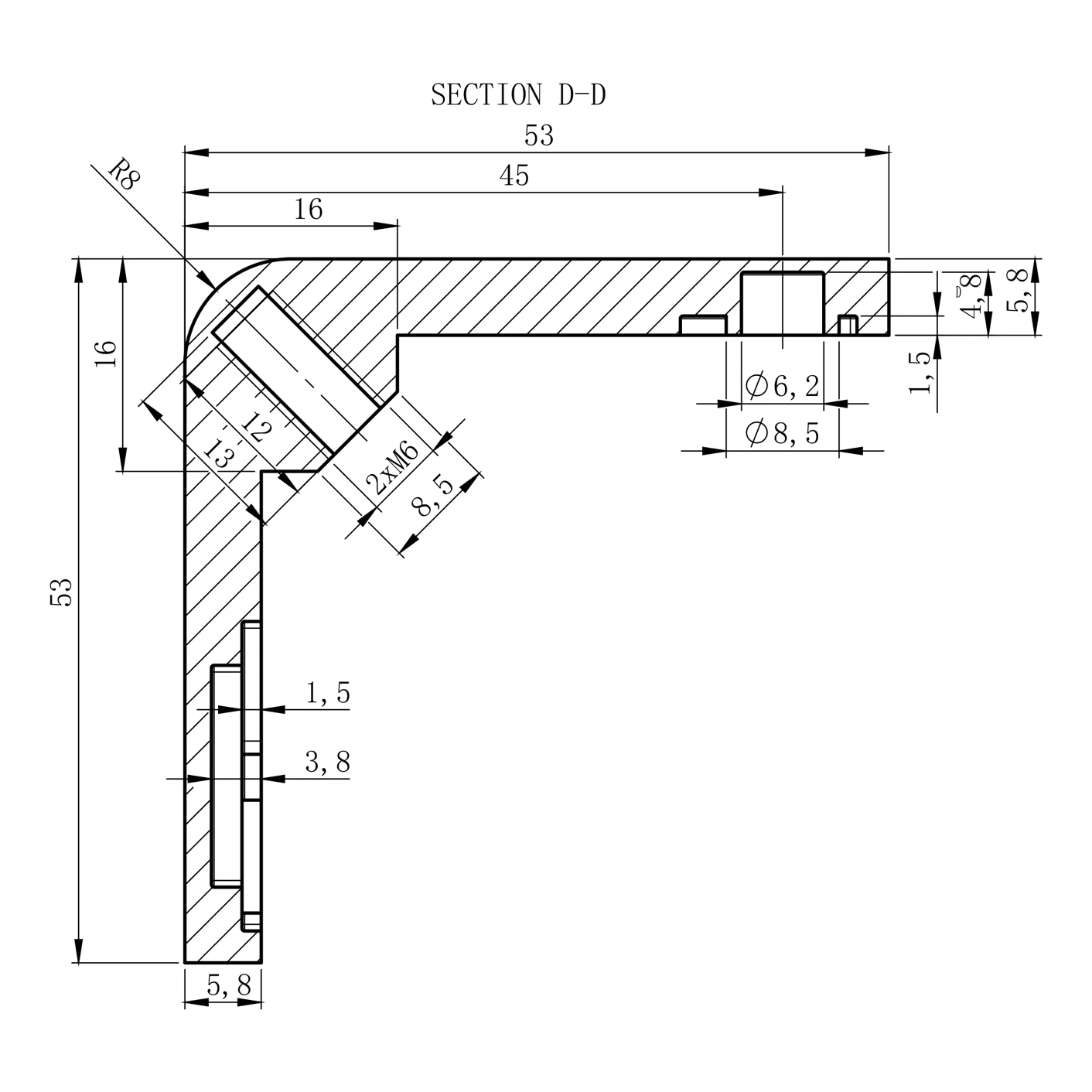

Clamp body (section D-D):
- External arm length: 53 mm
- Internal arm length: 45 mm
- Arm thickness: 5.8 mm
- External corner radius: R8
- Mounting hole diameter: ⌀6.2 mm
- Counterbore diameter: ⌀8.5 mm
- Mounting threads: 2 × M6
- Thread depth: 8.5 mm

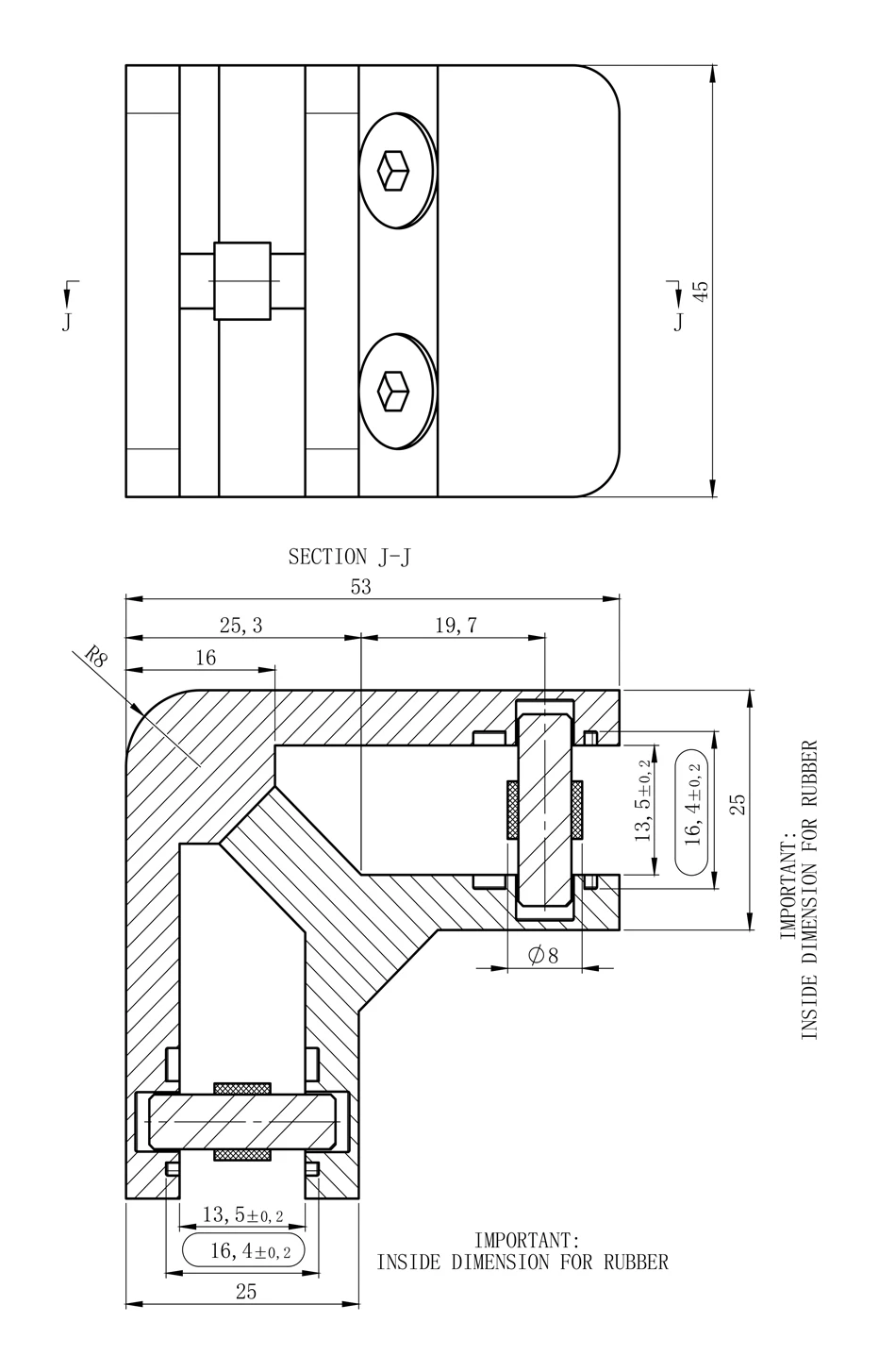

Glass slot (section J-J):
- Internal slot width (for gasket): 16.4 ±0.2 mm
- Slot width between metal jaws: 13.5 ±0.2 mm
- Total jaw assembly thickness: 25 mm
- Securing pin diameter: ⌀8 mm

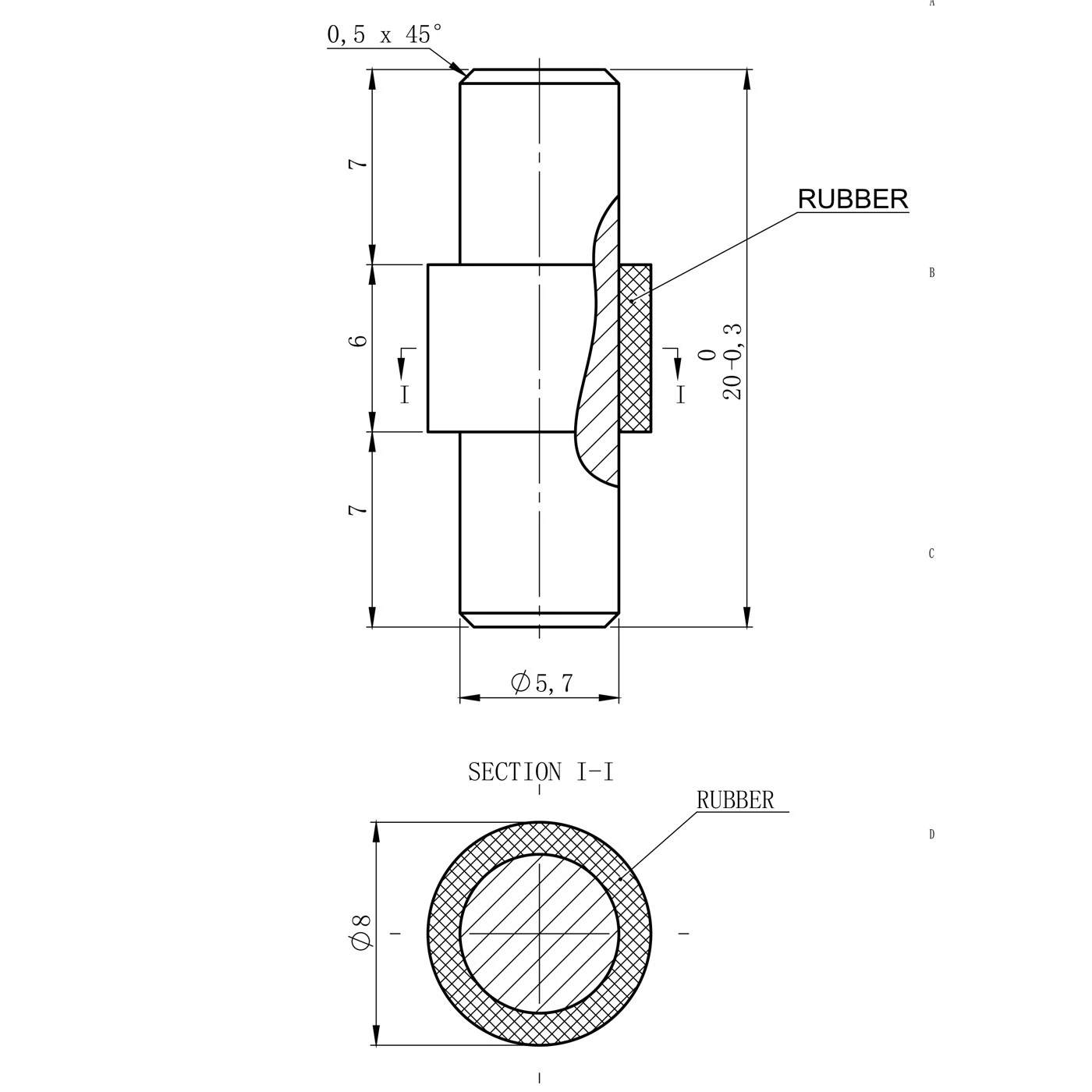

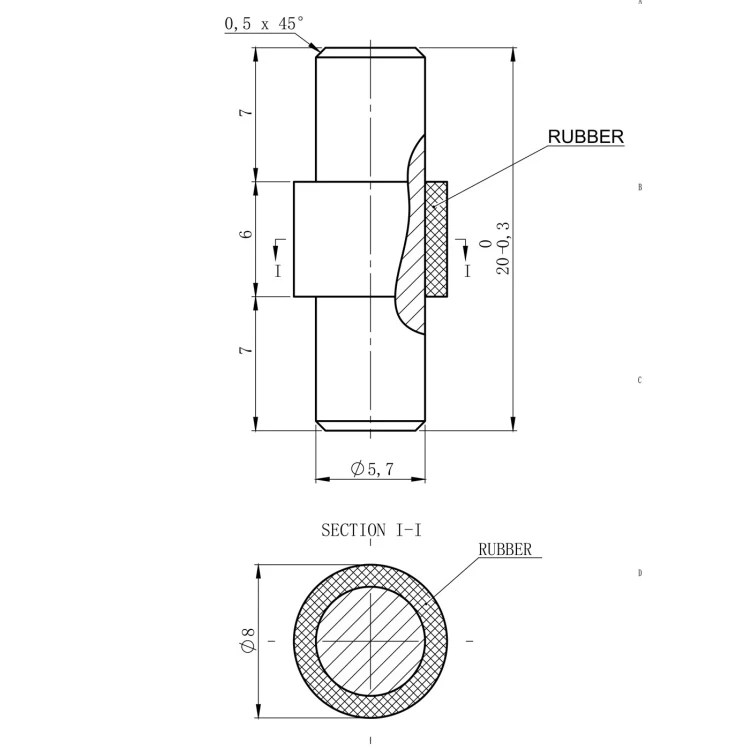

Securing pin:
- Overall length: 20 mm (tolerance: 0 / −0.3 mm)
- Pin shaft diameter: ⌀5.7 mm
- Rubber outer diameter: ⌀8 mm
- Length breakdown: top 7 mm + centre 6 mm (rubber) + bottom 7 mm
- Chamfer: 0.5 × 45°

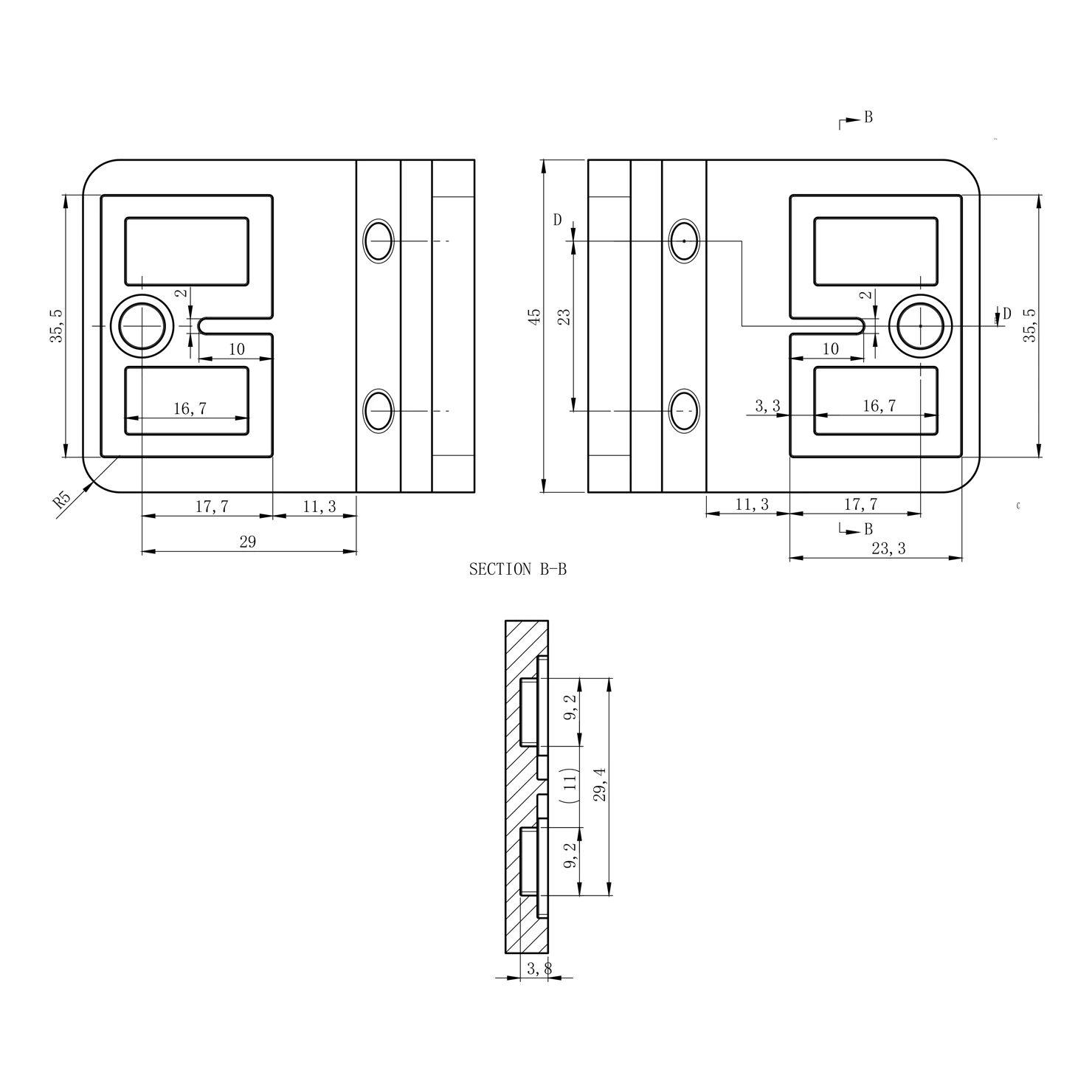

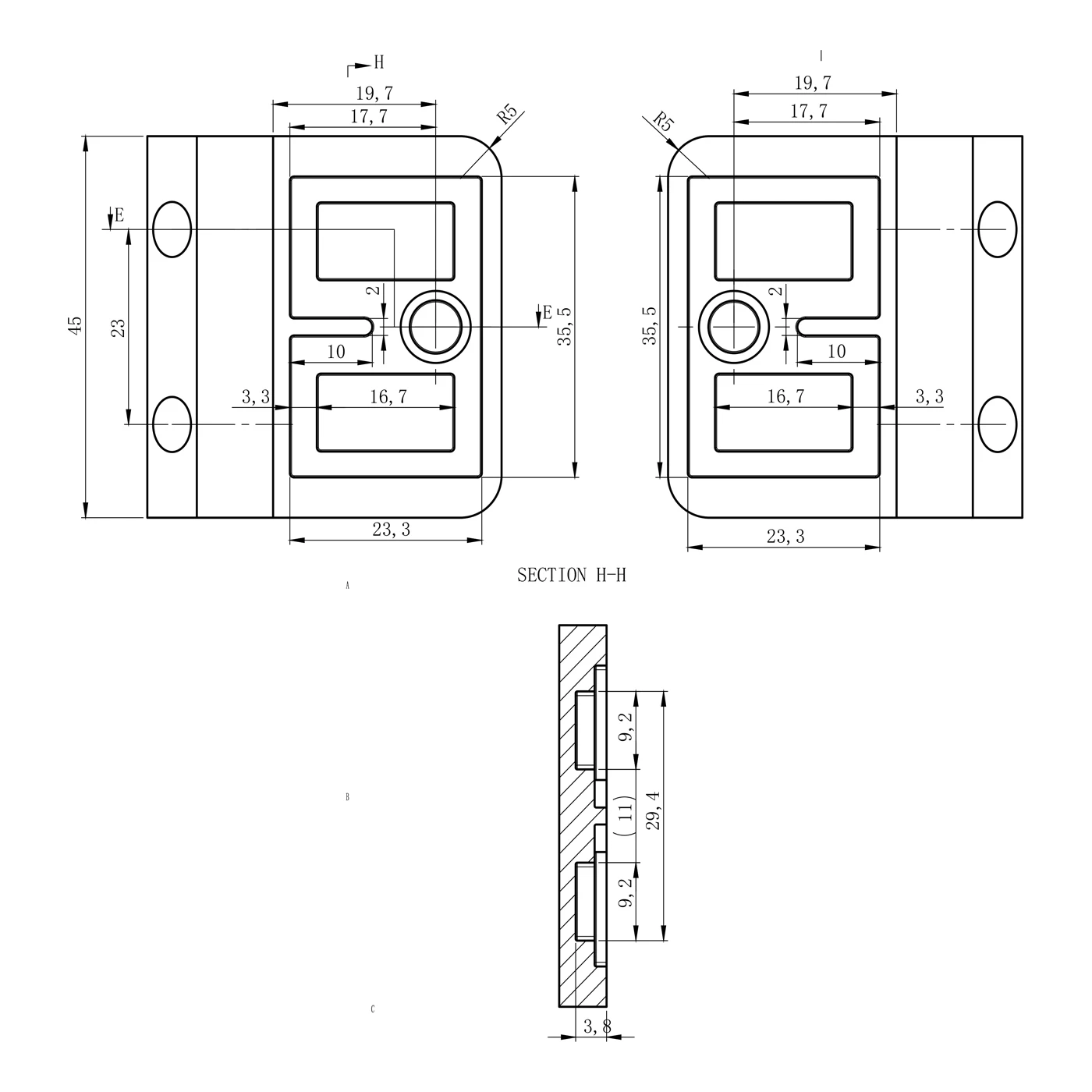

Rubber gasket seats (internal views):
- Gasket seat width: 17.7 mm
- Seat height: 35.5 mm
- Internal rib width: 16.7 mm
- Seat corner radius: R5
- Clamp half thickness: 3.8 mm
- Mounting hole spacing: 23 mm
Compatibility and Installation
The clamp is designed for glass thicknesses from 6 mm to 10.76 mm – both toughened and laminated. Depending on the chosen panel thickness, appropriate rubber gaskets must be selected to ensure a perfect fit and secure retention of the glass within the clamp. Installation requires 2 sets of rubber gaskets, available as separate accessories.
- Allen screws allow clamping force adjustment without disassembling the fitting
- Rubber gaskets are selected to match the specific thickness of the glass being installed
- The securing pin stabilises the panel and prevents it from slipping out

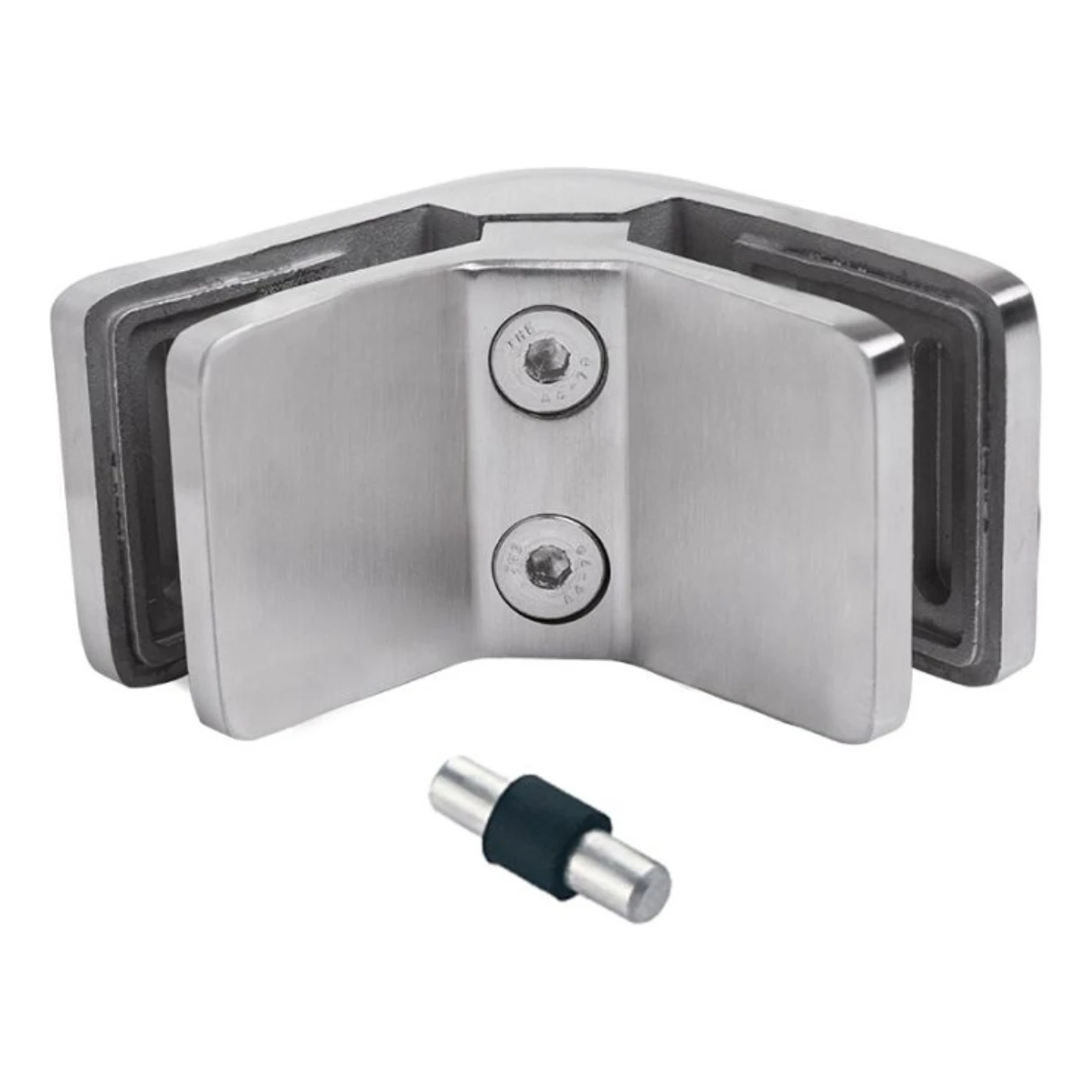

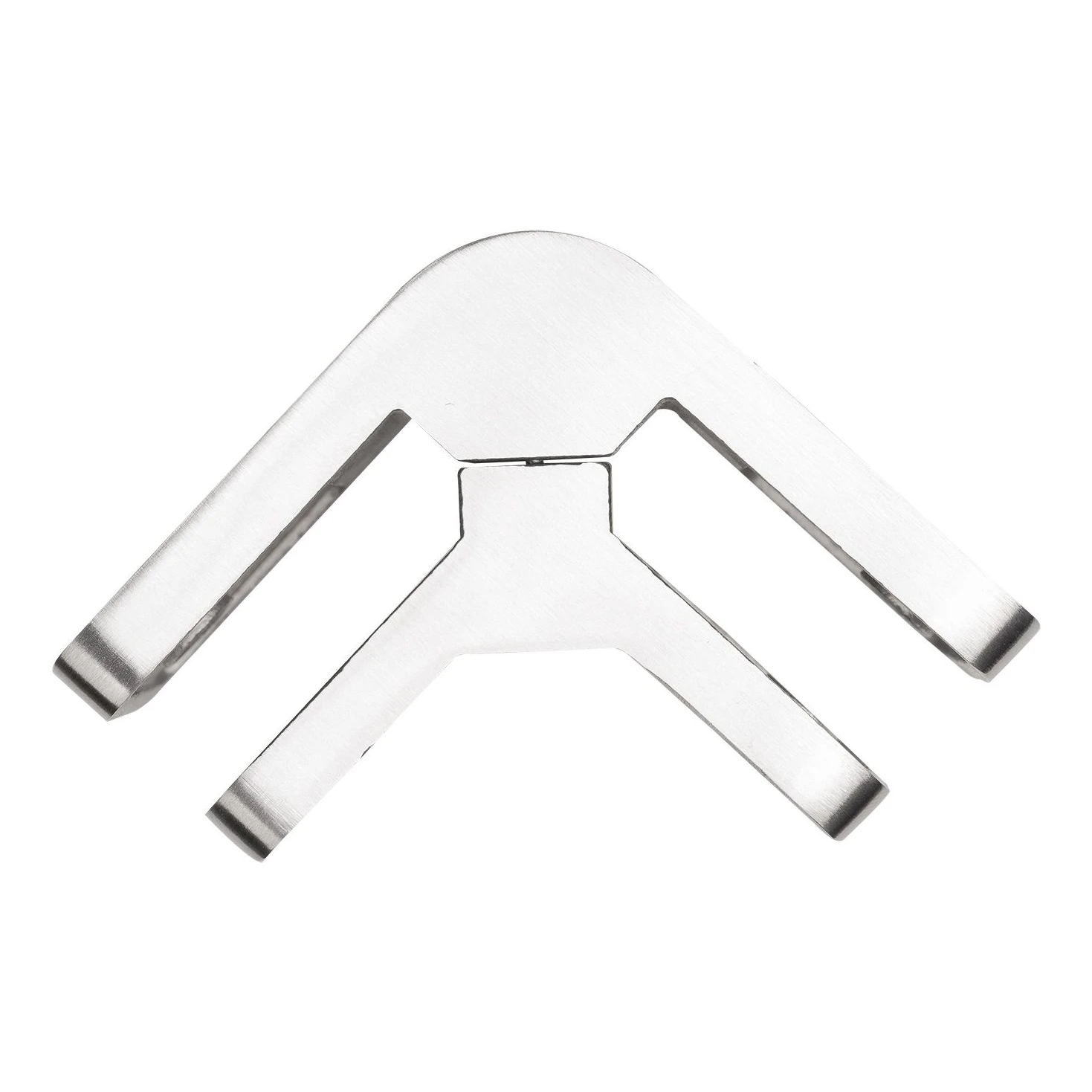

Product View
Technical data
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
| Material | AISI 304 |
| Finish | Satin |
