Glass clamp 45x45x26 mm, glass 6-10.76 mm, AISI 316, flat system, satin
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.18 kg
Description

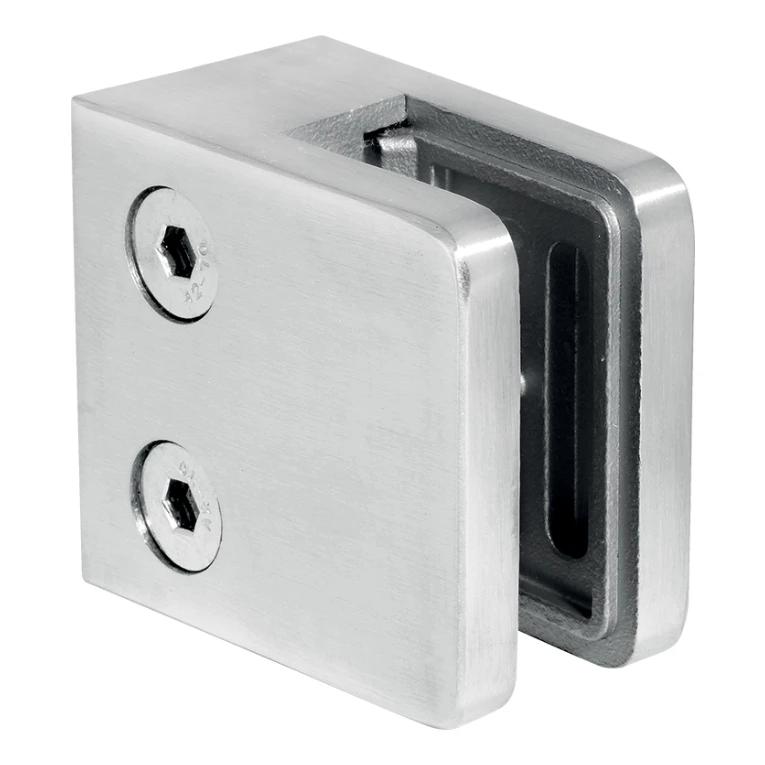

Glass Clamp 45x45x26 mm – AISI 316 Stainless Steel, Flat Surface Mounting
A rectangular glass clamp in AISI 316 stainless steel with a satin finish, designed for mounting on flat surfaces. The compact construction measuring 45 × 45 × 26 mm provides secure fixing for glass panes with a thickness of 6 to 10.76 mm — suitable for both toughened and laminated glass.
Features and Benefits
- Material: AISI 316 stainless steel — high corrosion resistance, suitable for demanding environments
- Finish: satin — an attractive, matt appearance resistant to fingerprints
- Mounting: bolted to a flat surface using two Allen screws
- Mounting hole diameter: O8.5 mm
- Internal rubber inserts protect the glass from damage and ensure a stable hold

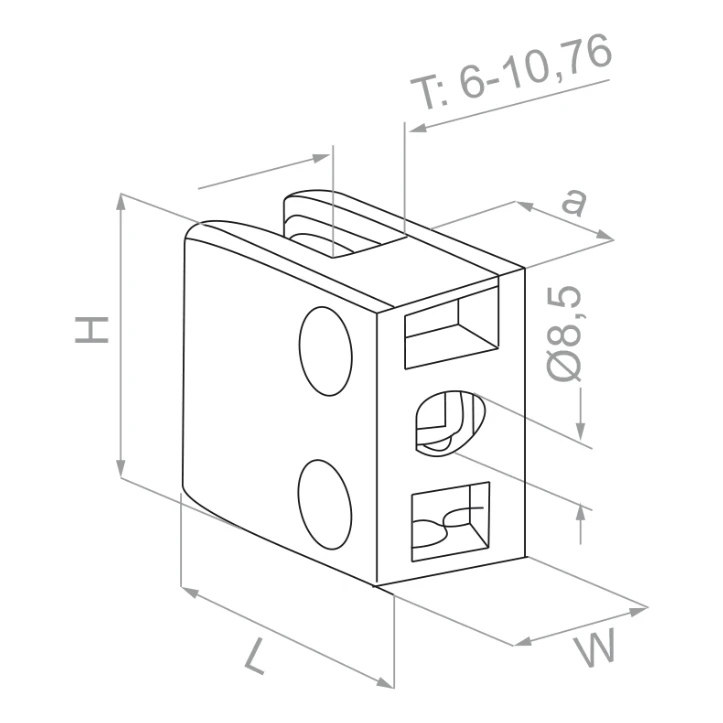

Technical Specifications
- Length (L): 45 mm
- Height (H): 45 mm
- Width (W): 26 mm
- Glass thickness (T): 6–10.76 mm
- Hole diameter: O8.5 mm
- Material: AISI 316
- Weight: 0.18 kg
- Volume: 56.7 cm3
- EAN: 5901289670180
Applications
This clamp is intended primarily for indoor use — glass balustrades, partitions and decorative panels mounted on flat wall or post surfaces. For outdoor balustrades, the use of additional glass support brackets is recommended, or alternatively clamps from the K2 series, which feature a built-in glass retention mechanism to prevent the pane from slipping out.
Additional Information
- Requires the use of rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen screws allow clamping pressure adjustment without removing the clamp
- AISI 316 stainless steel ensures durability in high-humidity environments — suitable for installation in wet areas, outdoor settings and around swimming pools
Loading...
Technical data
| Material | AISI 316 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
