PSG

Glass clamp 6-12.76 mm 90° square 72x45x30 mm pin AISI 304 satin

Go to Product feedback

Corner glass clamp 90° square in AISI 304 steel with a satin finish, for glass panels 6–12.76 mm. Includes securing pin. Dimensions 72×45×30 mm, weight 0.66 kg.

Go to full description
with VAT without VAT
Price €16.39
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] uchwyty-do-szkla #124

  • Material AISI 304
  • Finish Satin
  • Mounting System Flat
  • Glass Thickness [mm] 6-12,76

Description

90° Corner Glass Clamp Square AISI 304 Satin 72×45 mm

90° corner glass clamp in a square profile — a reliable solution for joining two panels of toughened or laminated glass at a right angle. Manufactured from AISI 304 stainless steel with a satin finish, this clamp is ideal for balcony and terrace balustrades as well as interior glazed structures. The set includes a securing pin that prevents the glass panel from accidentally sliding out of the clamp.

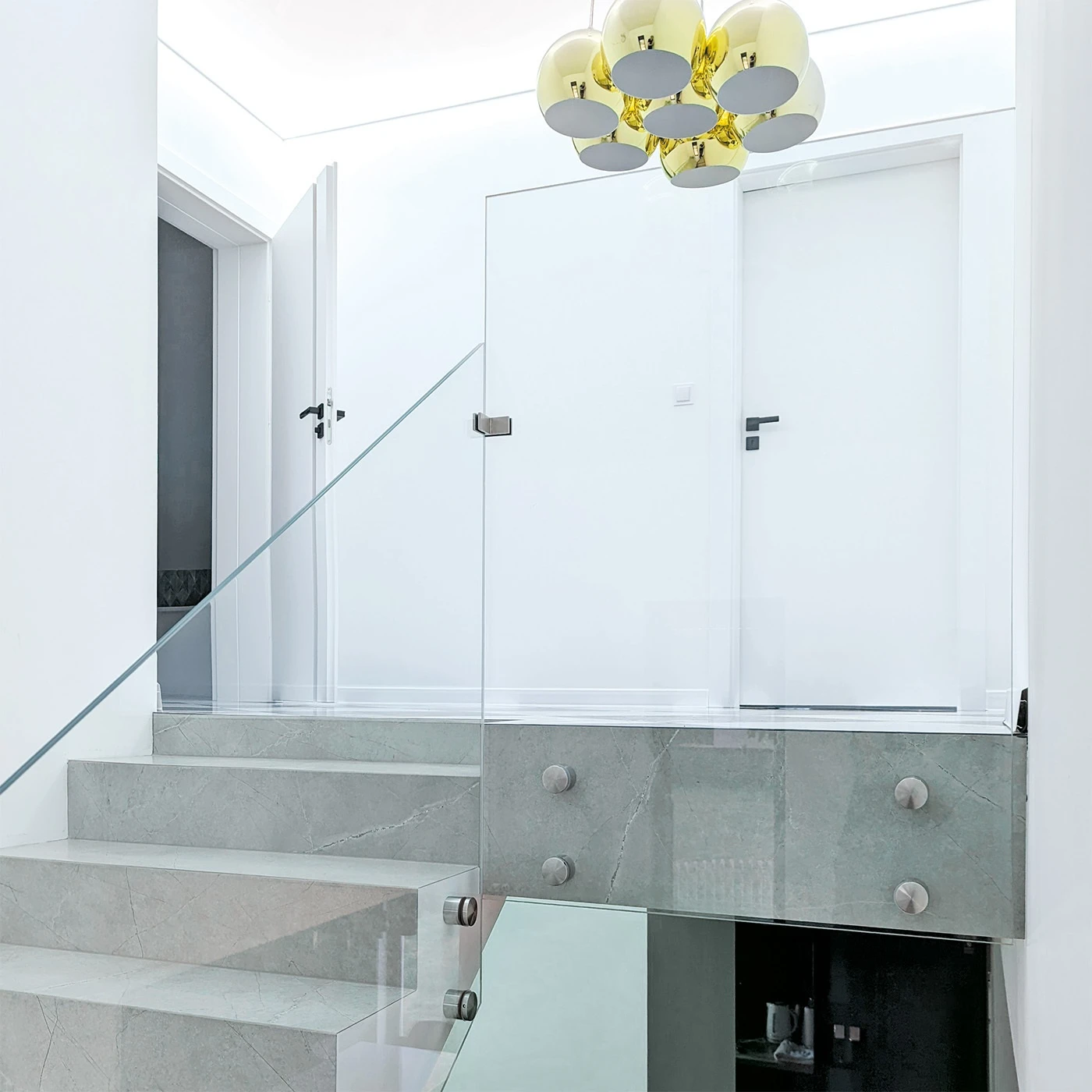

Glass balustrade on stairs with point-fixed clamps — application example
Glass balustrade on stairs with point-fixed clamps — application example

Professional Applications

The clamp is designed for glass panels with a thickness of 6 mm to 12.76 mm, accommodating both single-layer toughened glass and multi-layer laminated glass (VSG). The 90° corner design enables the construction of balustrades at the corners of balconies, terraces, staircases and mezzanines. Thanks to AISI 304 stainless steel, the clamp maintains its durability and appearance in both interior and exterior environments.

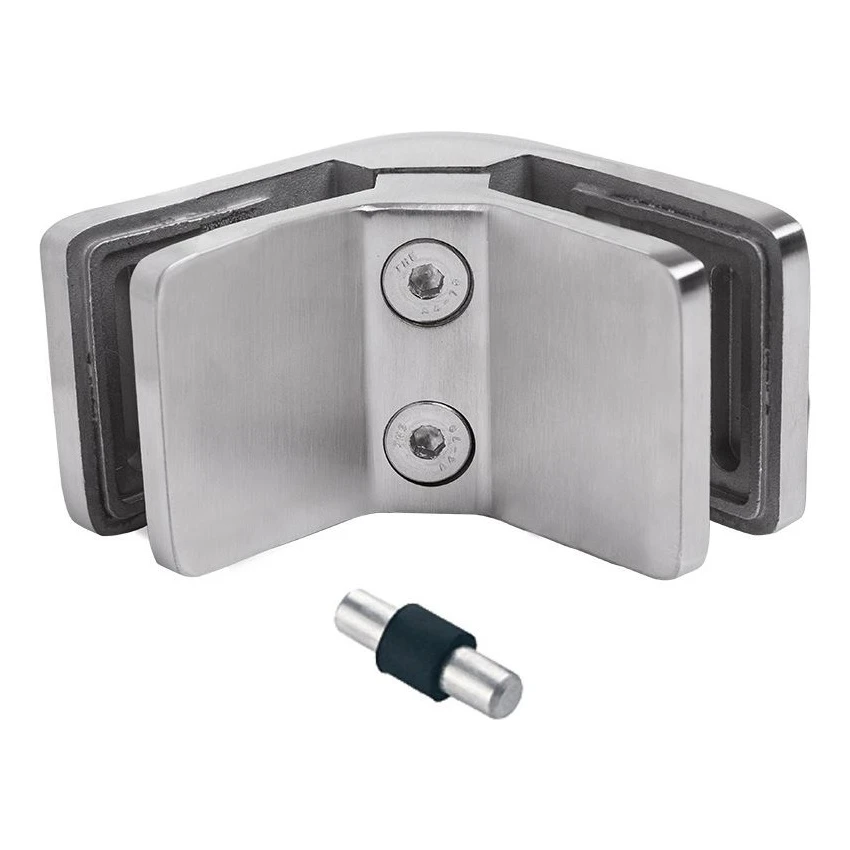

90° corner glass clamp — front view showing Allen screws and securing pin
90° corner glass clamp — front view showing Allen screws and securing pin

Design and Adjustment

The clamp is fitted with Allen screws that allow precise adjustment of the clamping pressure on the glass panel without the need to disassemble the entire fitting. The included securing pin stabilises the glass and prevents accidental displacement — a critical feature for structural safety. The clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass being installed. Gaskets are available as separate accessories.

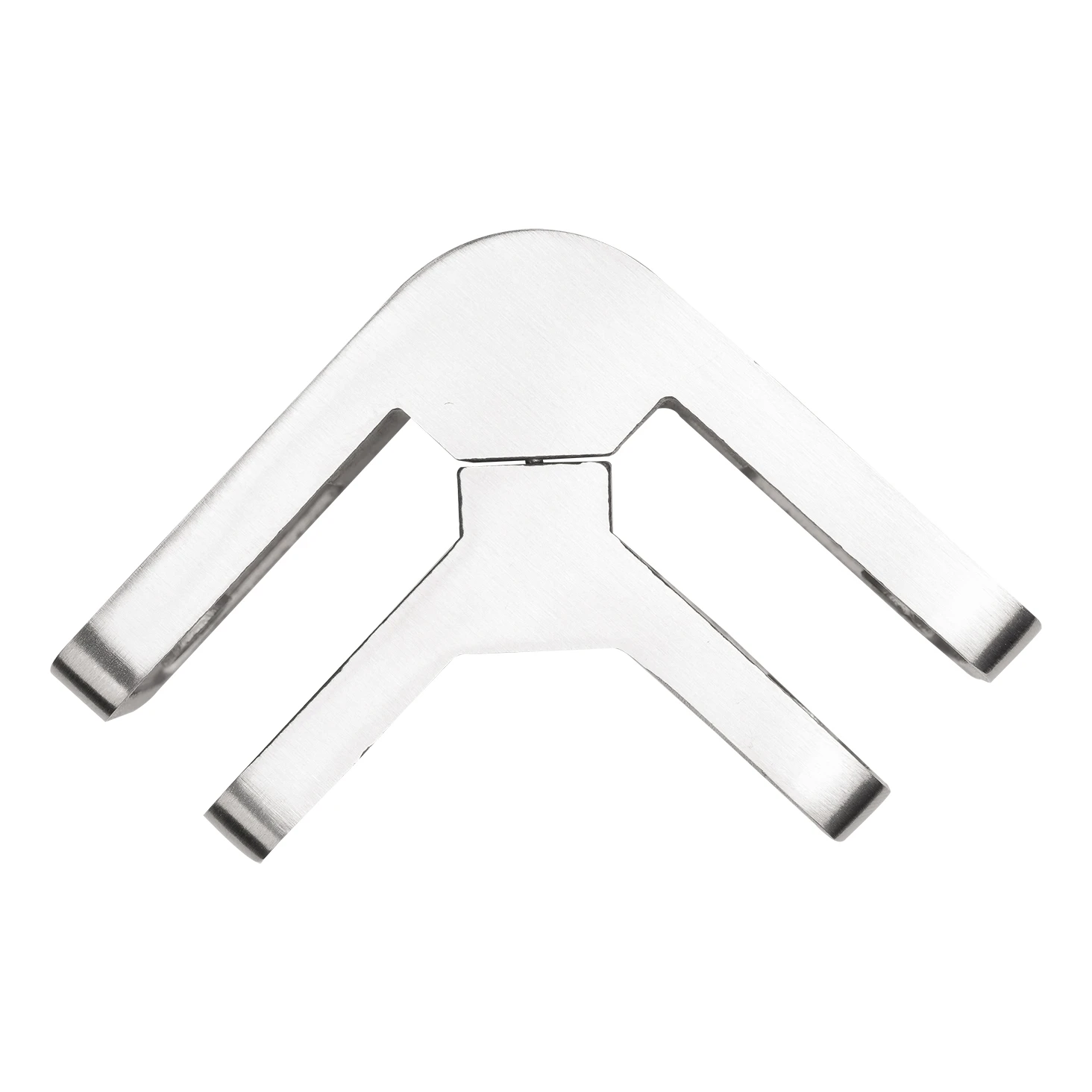

90° corner glass clamp — top view, butterfly shape
90° corner glass clamp — top view, butterfly shape

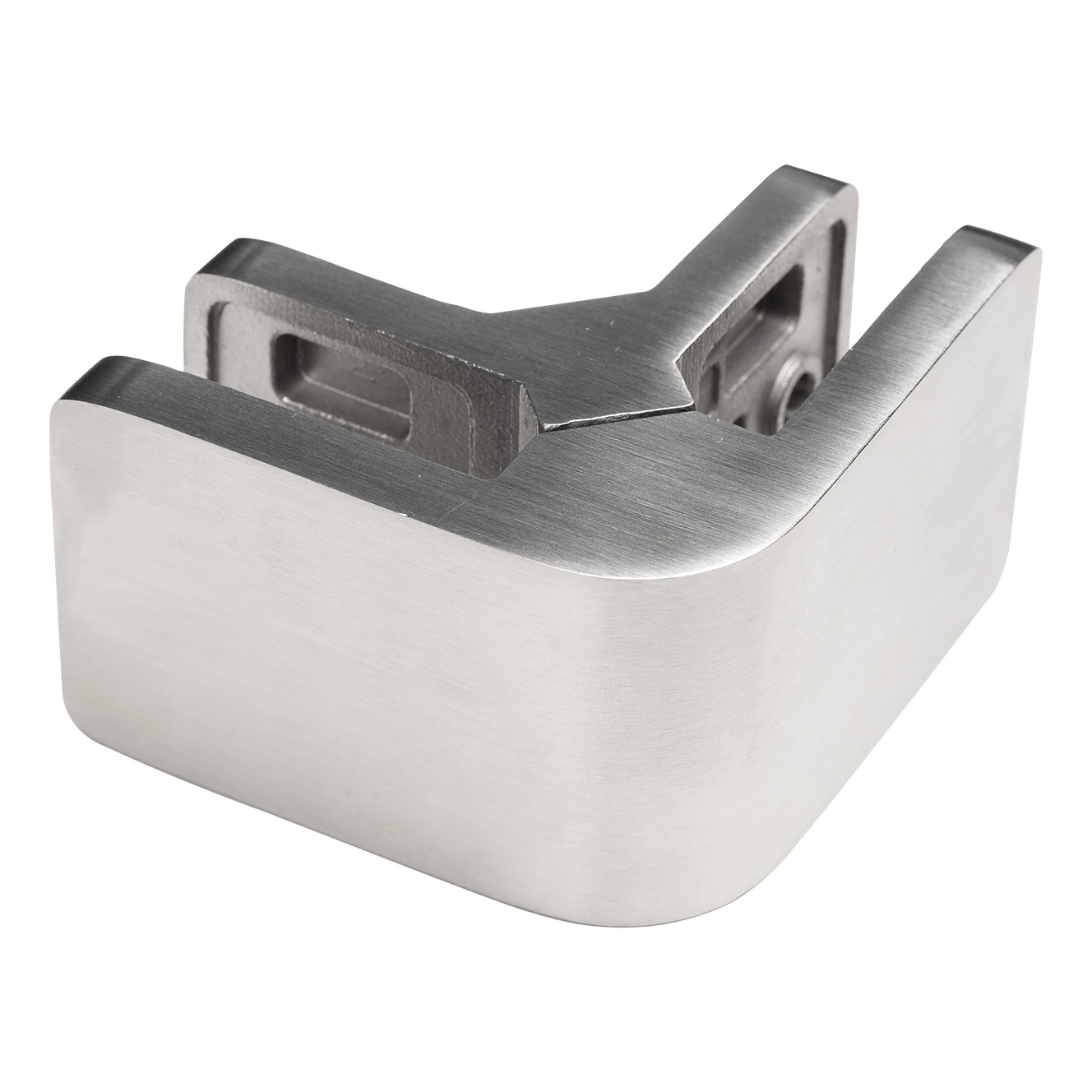

90° corner glass clamp — perspective view showing the fixing socket
90° corner glass clamp — perspective view showing the fixing socket

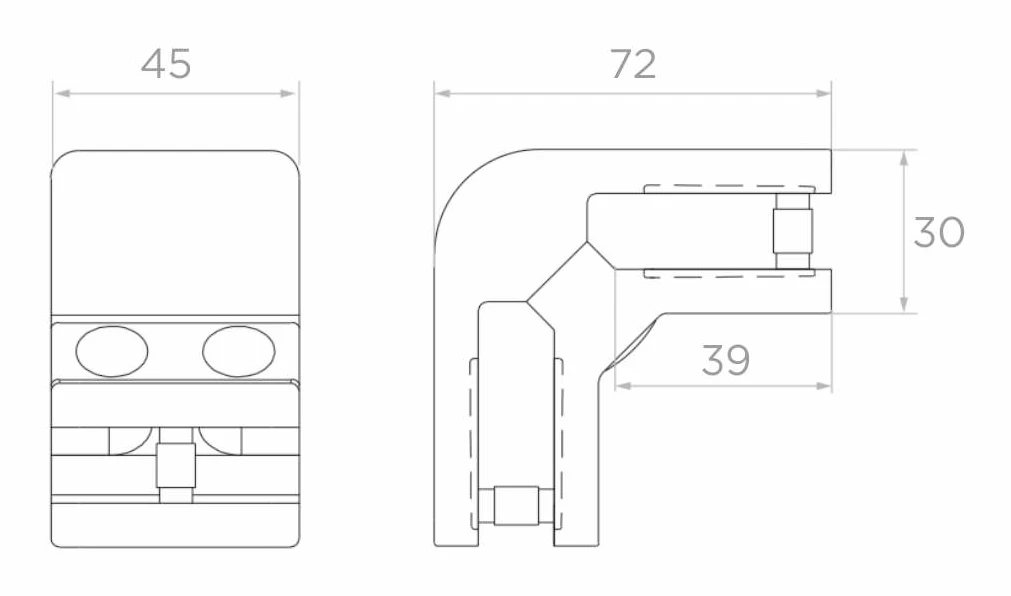

Dimensional drawing of the 90° corner glass clamp with dimensions 72×45×30 mm
Dimensional drawing of the 90° corner glass clamp with dimensions 72×45×30 mm

Dimensions and Technical Specifications

  • Type: 90° corner clamp, square profile
  • Material: AISI 304 stainless steel
  • Finish: satin
  • Glass thickness: 6–12.76 mm
  • External arm length (L): 72 mm
  • Height (H): 45 mm
  • Width (profile thickness): 30 mm
  • Internal arm length: 39 mm
  • Weight: 0.66 kg
  • Volume: 233.28 cm³
  • Included: securing pin
  • Required accessories: rubber gaskets (selected to match glass thickness, sold separately)
  • EAN: 5901289671170

Benefits for Installers

  • Universal glass thickness range of 6–12.76 mm — one clamp suitable for many panel types
  • Allen screw clamping adjustment without disassembly — quick on-site correction
  • Securing pin included — additional protection against the glass panel sliding out
  • AISI 304 stainless steel with satin finish — corrosion resistance and a sleek, modern appearance
  • Adds rigidity to the structure and stabilises the glass panel at balustrade corners
