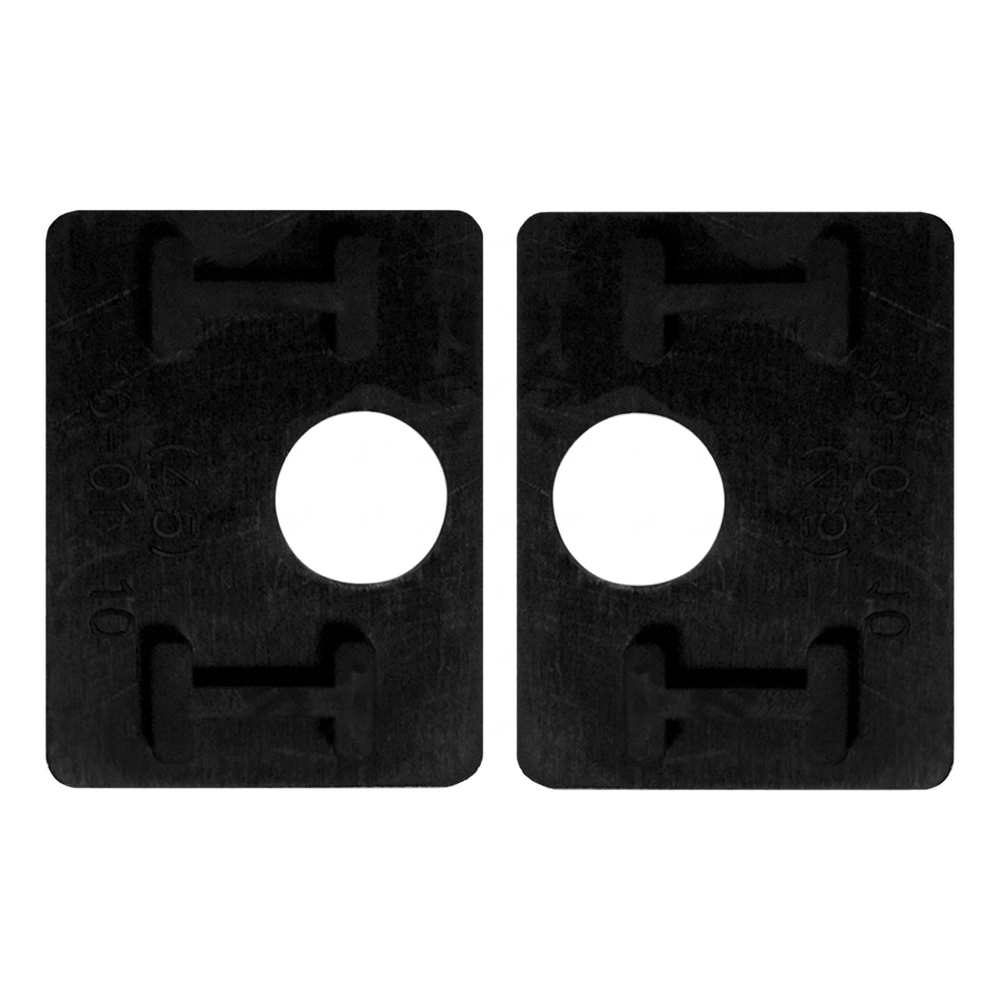

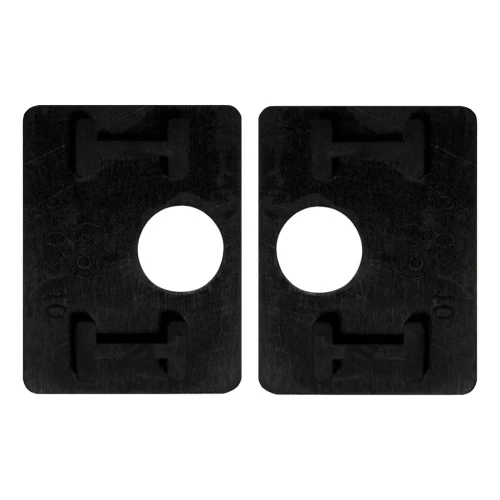

PSG pressure gasket 8.76 mm for point-fixed glass fittings 52K2 / 90K5 / 18K5
Description
PSG pressure gasket 8.76 mm for point-fixed glass fittings 52K2 / 90K5 / 18K5
PSG pressure gasket designed for glass of 8.76 mm thickness, used in glass balustrades with point-fixed fittings. The seal is mounted between the glass panel and the fixing bracket — effectively immobilises the glass, prevents it from shifting and dampens vibrations whilst eliminating metal-to-glass contact. Dedicated to fittings from groups 52K2, 90K5 and 18K5.
Sold as a set of 2 pieces — a pair of gaskets sufficient to secure one fixing point (one on each side of the panel). Thanks to precise fitting to the bracket sockets, installation is quick and requires no additional cutting or forming.
Technical Parameters
- Manufacturer: PSG
- Application: glass of 8.76 mm thickness
- Compatibility: point fittings from groups 52K2, 90K5, 18K5
- Material: rubber
- Colour: black
- Quantity per set: 2 pcs.
- Set weight: 0.005 kg
- EAN: 5901289670630
Application
The pressure gasket is an essential mounting component in point-fixed glass balustrade systems. Placed on both sides of the glass panel in the ball joint bracket, it ensures even pressure and protects the glass edges from mechanical damage. Regular replacement of seals during balustrade servicing guarantees maintaining the stability and safety of the entire structure.
Technical data
| Material | Plastic |
