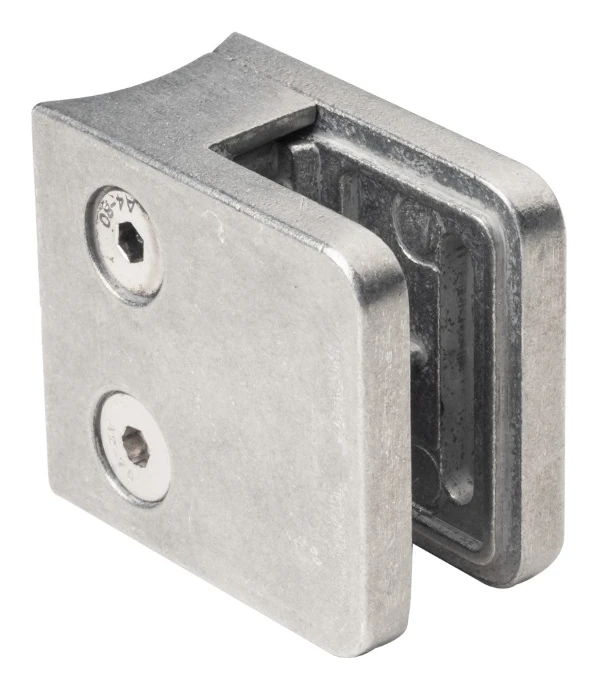

Glass bracket 45x45x26 mm glass 6-10.76 mm zamak system 42.4 mm raw
Description
Glass Clamp 45x45x26 mm – AISI 304 Stainless Steel, 48.3 mm Post, Satin
Rectangular glass clamp 45×45×26 mm in satin-finish AISI 304 stainless steel. Designed for securing glass panels with a thickness of 6–10.76 mm to tubular posts with a diameter of 48.3 mm. Screw-mounted for a stable and aesthetically pleasing fixing of glass panels in balustrades and partitions.
Key Features
- Material: AISI 304 stainless steel — high corrosion resistance
- Surface finish: satin — elegant, matt appearance
- Fixing method: screw-mounted onto a 48.3 mm diameter post
- Glass thickness: 6–10.76 mm — compatible with single and laminated panes
- Two Allen screws provide secure clamping of the glass panel
- Rubber inserts protect the glass from damage at the fixing point
Additional Information
- The clamp requires rubber gaskets — select the appropriate gasket thickness to match the glass being fitted
- Rubber gaskets are available as separate accessories
- Allen screws allow clamping pressure adjustment without removing the clamp

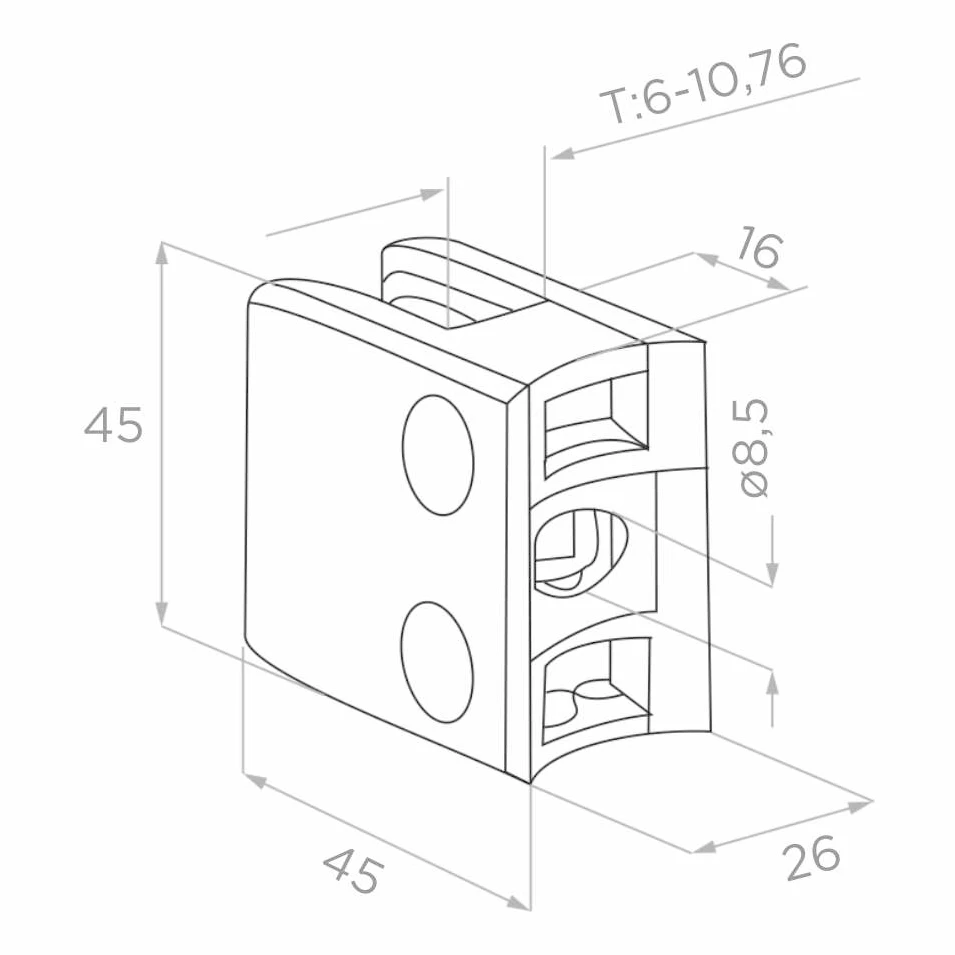

Dimensions and Technical Specifications
- Length (L): 45 mm
- Height (H): 45 mm
- Width: 26 mm
- Glass slot depth: 16 mm
- Mounting hole diameter: O8.5 mm
- Glass thickness range (T): 6–10.76 mm
- Post diameter: 48.3 mm
- Weight: 0.16 kg
- Volume: 56.7 cm3
- EAN: 5901289670142
This clamp is well suited to projects requiring fast and repeatable fixing of glass panels to tubular posts. The compact 45×45 mm body and screw-fixing method allow precise clamping adjustment, which is particularly important with laminated glass where thickness may vary within the 6–10.76 mm range. The satin finish complements other components in stainless steel balustrade and glazing systems.
Technical data
| Material | Zamak |
| Finish | Raw |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
