Glass clamp 6-10.76 mm 45x45x26 mm AISI 316, system 42.4 mm satin
Description

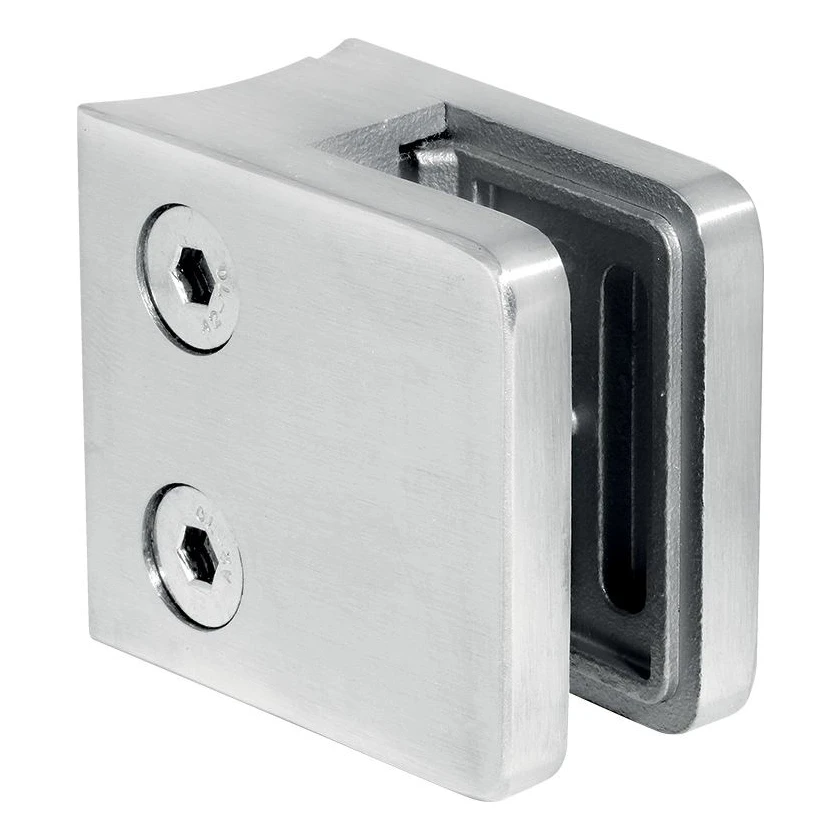

Rectangular Glass Clamp 45×45 mm – AISI 316 Stainless Steel, Satin Finish, Ø42.4 mm Tube
A rectangular glass clamp 45×45×26 mm crafted from AISI 316 stainless steel with a satin finish. Designed for mounting on a tube with a diameter of Ø42.4 mm, it is ideally suited for glass balustrade systems in both interior and exterior applications. The screw-on design ensures a secure and durable fixing to the post.
Versatile Application and Easy Installation
The clamp accommodates glass thicknesses from 6 to 10.76 mm, making it compatible with both single-pane glazing and laminated glass (VSG). Two Allen screws allow precise adjustment of the clamping pressure without the need to fully disassemble the clamp — a significant advantage when servicing or correcting the glass position on site.
AISI 316 stainless steel (acid-resistant) provides excellent corrosion resistance, making this clamp suitable for both indoor and outdoor use. For exterior balustrades, the use of additional glass support brackets is recommended, or alternatively the K2 series clamp, which features a built-in safety retention system.

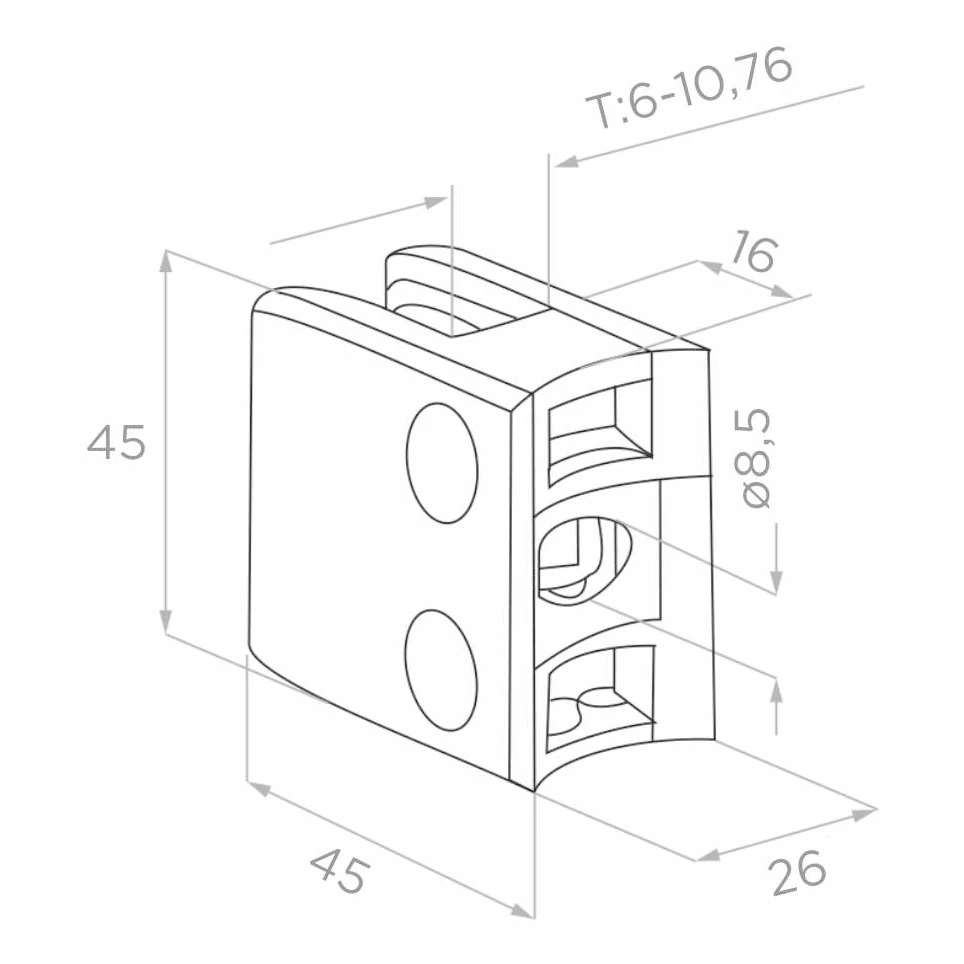

Dimensions and Technical Specifications
- Height (H): 45 mm
- Length (L): 45 mm
- Width: 26 mm
- Glass thickness: 6–10.76 mm
- Mounting hole diameter: Ø8.5 mm
- Mounting tube diameter: Ø42.4 mm
- Material: AISI 316 stainless steel
- Surface finish: satin
- Fixing method: screw-on to tube
- Weight: 0.16 kg
- Volume: 56.7 cm³
- EAN: 5901289670173
Installation Information
The clamp requires the use of rubber gaskets to protect the glass from direct contact with metal and to ensure an even distribution of clamping pressure. The gasket thickness should be selected to match the thickness of the glass being installed. Rubber gaskets are available as separate accessories.
Technical data
| Material | AISI 316 |
| Finish | Satin |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
