C-channel rail for self-supporting sliding gates 80x80x27.5x5 mm 6000 mm

Ceownik szyna do bram 80x80x27,5x5 mm, długość 6000 mm - 60.080 000-216 (1)

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 60.132 kg

Price / pcs.: £87.89 87.89

excl. shipping costs

quantity pcs.

product unavailable

add to wish list

Rating:

Vendor: PSG

Product code: 000-216

recommend to a friend

Description

Steel C-Channel 80×80 mm for Self-Supporting Sliding Gates – 6000 mm

Steel C-channel 80×80 mm is a robust structural component designed for the construction of self-supporting sliding gates. The rail serves as a guide track supporting the gate leaf, working in conjunction with the rollers of the running trolleys. The 6000 mm length allows standard driveway gate projects to be completed without the need to join sections.

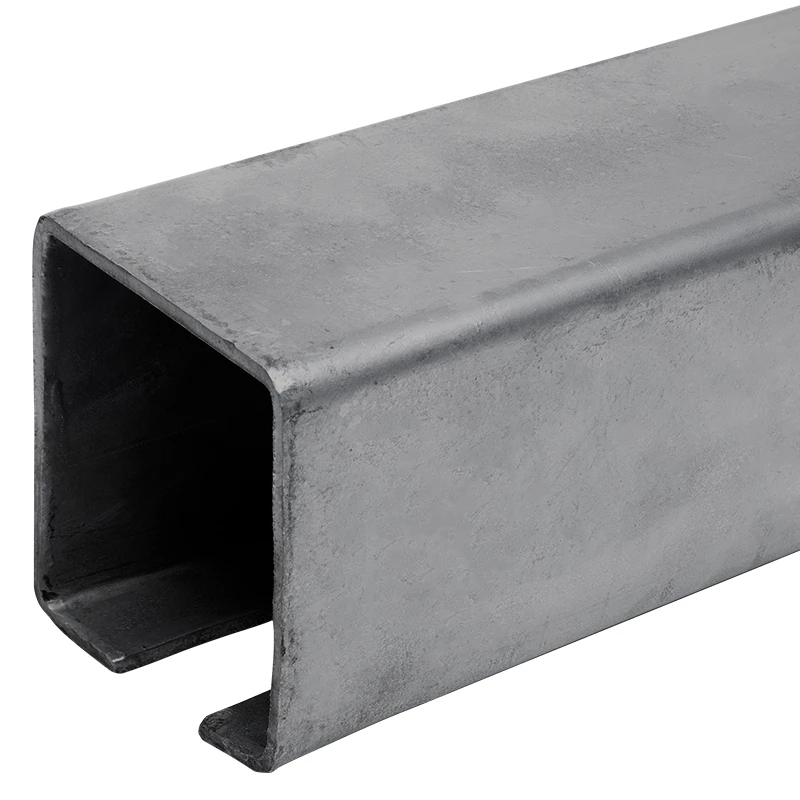

Steel C-channel 80x80 mm for sliding gates – perspective view

The C-channel profile features a solid construction with a wall thickness of 5 mm, ensuring high load capacity and resistance to mechanical deformation under the weight of the gate. The lower flanges with lips measuring 27.5 mm in width guarantee stable guidance along the trolley rollers, minimising play and vibration during gate leaf movement.

Technical Specifications

Technical drawing of 80x80 mm C-channel cross-section with dimensions

External cross-section: 80 × 80 mm
Wall thickness: 5 mm
Lower lip width: 27.5 mm
Length: 6000 mm
Material: uncoated steel
Weight: 60.132 kg

Application and Installation

The C-channel is fitted to the lower section of the self-supporting sliding gate leaf, where it acts as the running rail working in conjunction with the trolleys. The bare steel surface without a protective coating allows for further processing — powder coating, hot-dip galvanising, or any other anti-corrosion treatment suited to the conditions of the specific installation. For installation companies, this means complete flexibility in selecting the final surface protection, tailored to the project requirements and the expectations of the end client.

Ładowanie tabeli porównawczej...

Ładowanie galerii...

Technical data

Running System Type	Rolling system
Rail Size	80x80x5

Safety
