Nylon rack for sliding gates L1000x18 mm up to 600 kg
Description

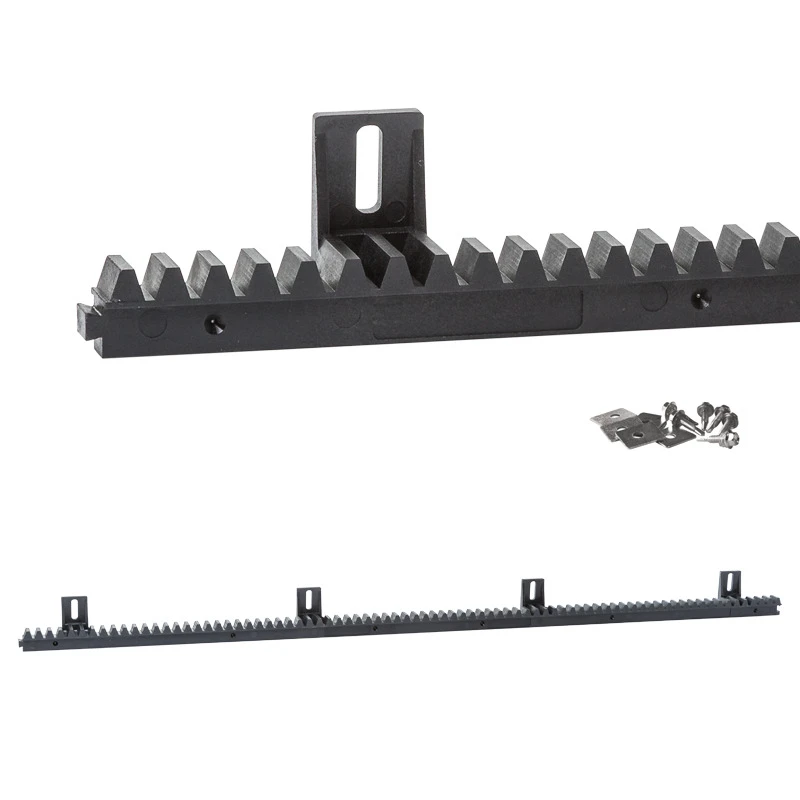

Nylon Rack Rail L1010 × 18 mm for Sliding Gates (up to 600 kg)
Plastic rack rail with a steel core designed for self-supporting sliding gate drives. A proven solution combining quiet operation with high durability — suitable for gates weighing up to 600 kg.
The steel core provides rigidity and structural durability, while the plastic coating significantly reduces noise during drive operation. This is particularly important in installations near residential buildings and other settings where acoustic comfort matters.
Included in the set are self-drilling screws with washers, so no additional fixings are required for installation. The rail features four mounting brackets with adjustment slots, allowing precise positioning and secure fixing to the gate.
Wide compatibility — the rail is compatible with drives from FAAC, CAME, NICE, BFT, BENINCA and other operators using a module 4 tooth pitch.

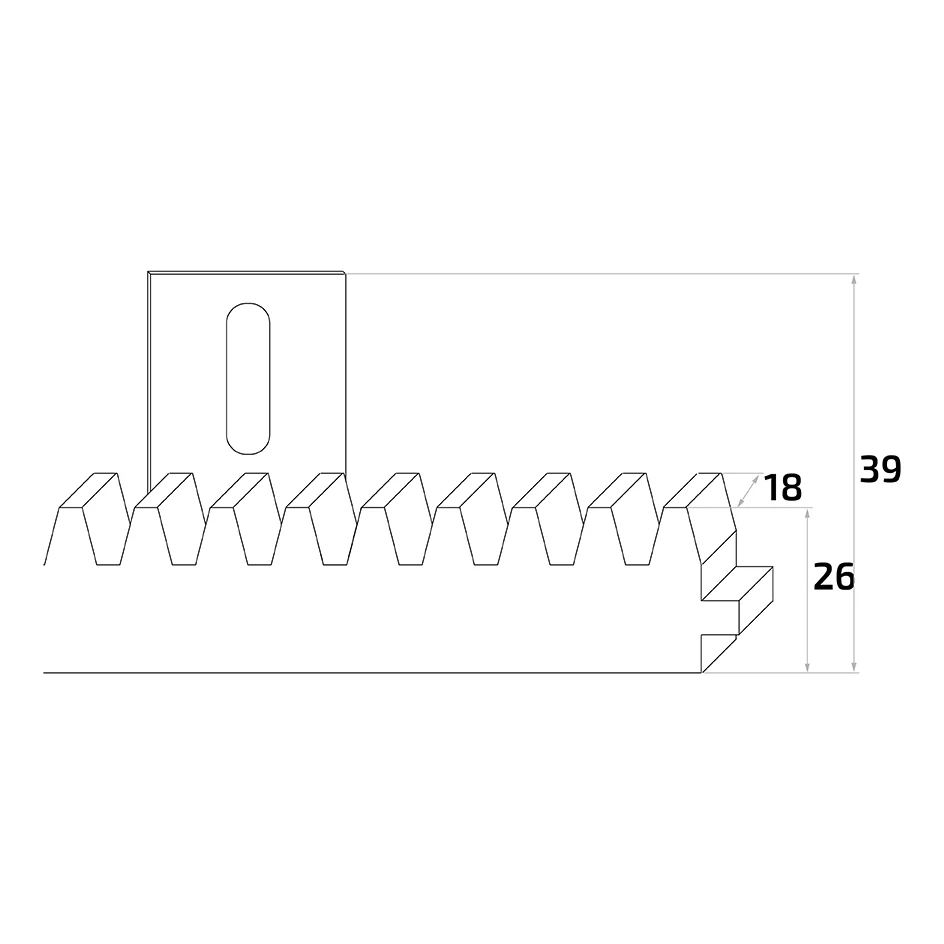

Technical Specifications
- Length: 1010 mm
- Tooth width: 18 mm
- Overall height: 39 mm (tooth 26 mm + base)
- Tooth module: 4
- Load capacity: up to 600 kg
- Construction: steel core with plastic coating
- Weight: 0.96 kg
- Fixing: 4 mounting brackets + self-drilling screws included
Why choose this? Plastic rack rails are an increasingly popular choice among sliding gate installers. Compared to steel racks, they offer significantly quieter operation, are resistant to corrosion, and require no lubrication. Thanks to the adjustable mounting brackets, installation is quick and requires no welding or drilling of additional holes.
A product by PSG. EAN: 5901289675178.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | Plastic |
