Trolley Pack 80 (10-roller) + KIT accessories for self-supporting sliding gates
Description

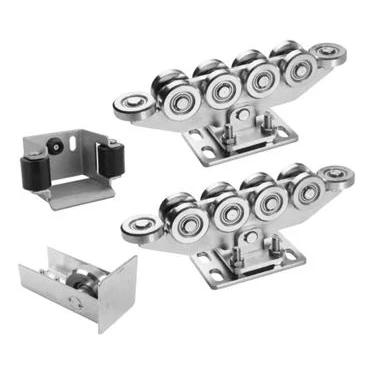

Sliding Gate Trolley Package 80 – Complete Set with Accessories
Complete running gear set for heavy cantilever sliding gates – a ready-made solution that saves time on sourcing individual components and ensures full compatibility between all parts. In one package you receive two 10-roller running trolleys, a guide bracket and a guide roller – all matched to an 80×80×5 mm rail.
Set contents: two 80 running trolleys (10-roller) – 2 pcs., guide bracket – 1 pc., guide roller – 1 pc. All components are galvanised, providing excellent corrosion resistance and a long service life in outdoor conditions.

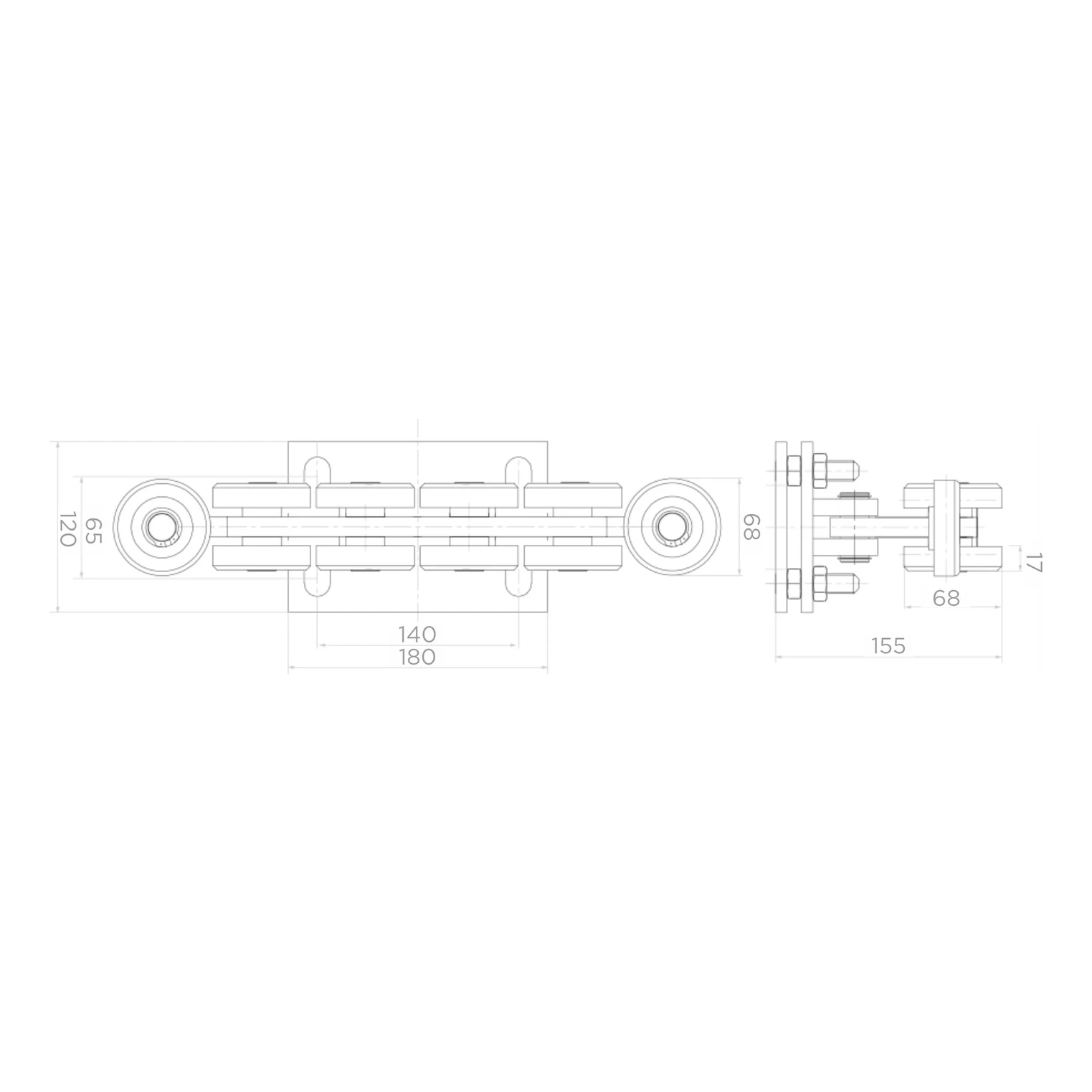

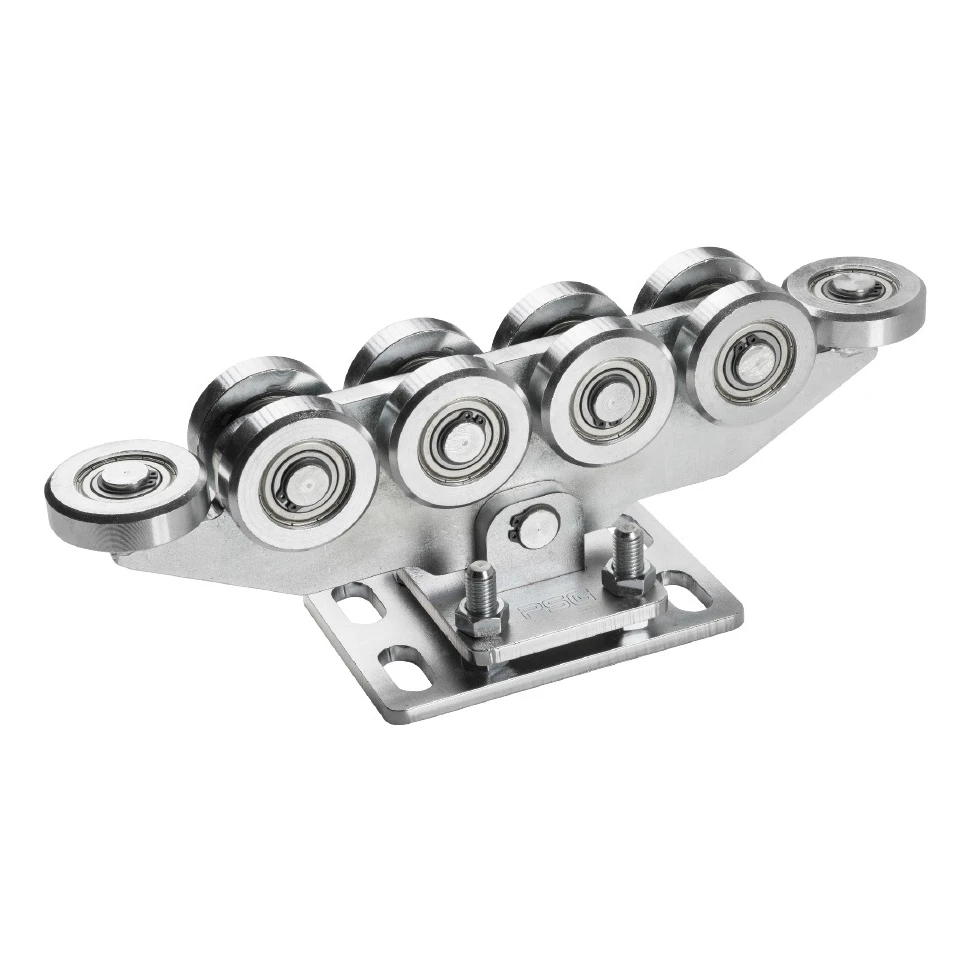

80 Running Trolley – 10-Roller
A trolley designed for heavy cantilever sliding gates. Fitted with 10 steel rollers (including two horizontal rollers), ensuring smooth and quiet operation even under heavy loads. The swivel design connects the trolley to the base via a pivot pin, allowing it to automatically adjust to the rail profile.
The trolley height can be precisely adjusted using bolts, making it easy to level the gate during installation. The maximum load capacity of a single trolley is 1,200 kg, and the use of steel rollers guarantees durability and reliability for years of use. The trolley is designed for an 80×80×5 mm rail.

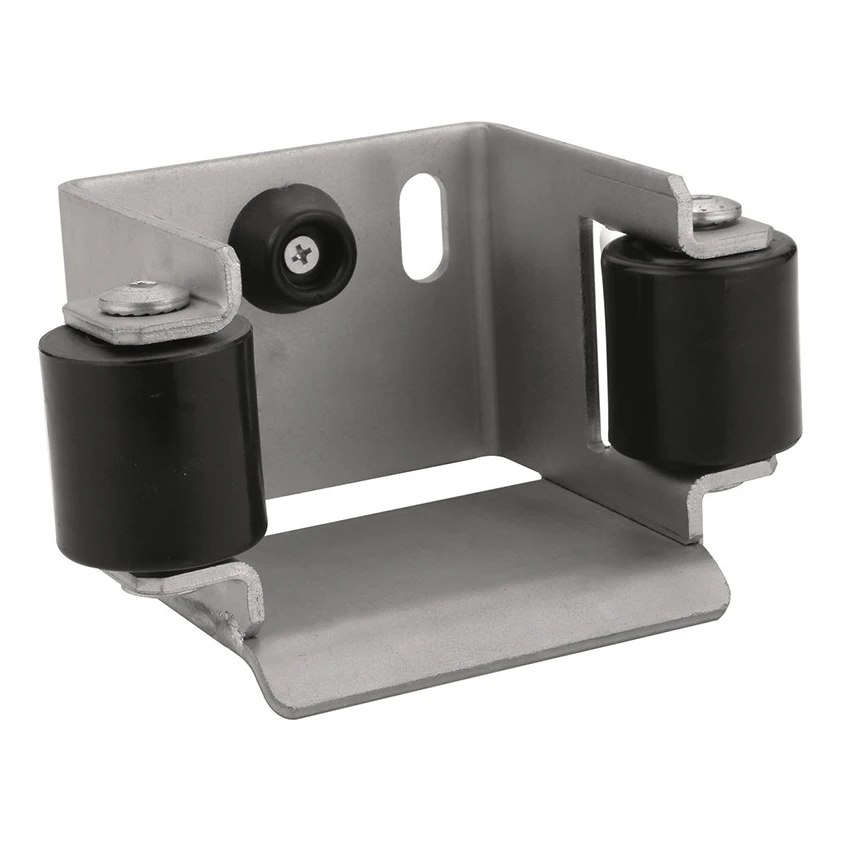

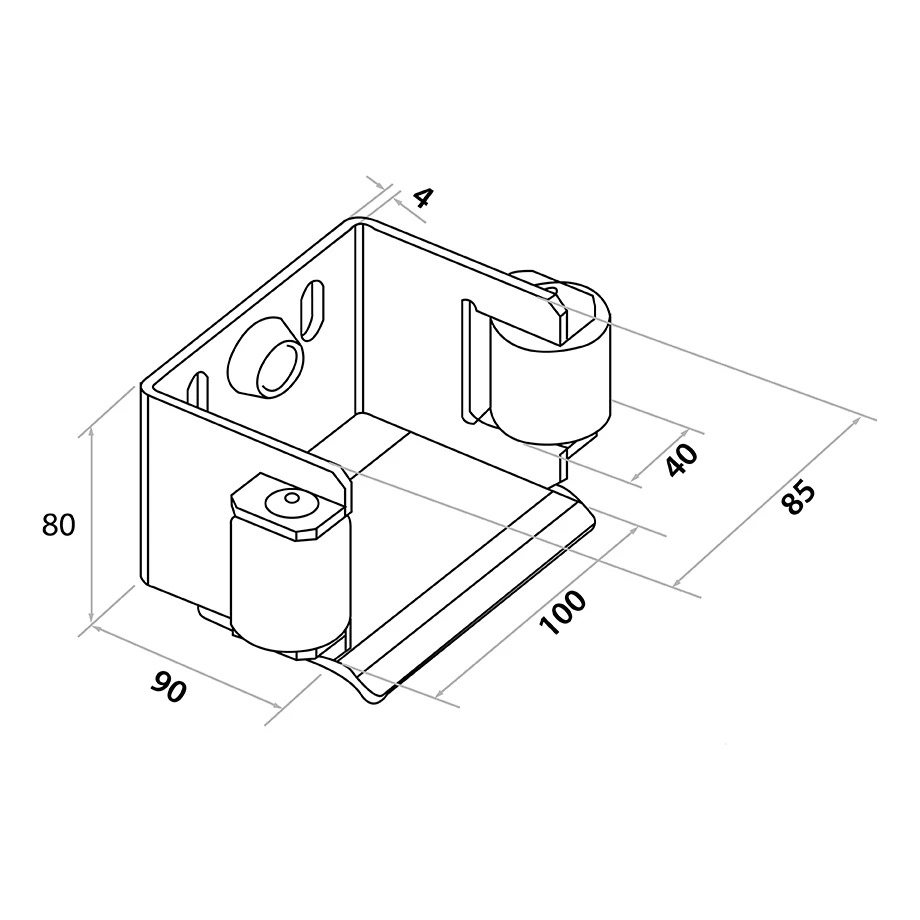

Guide Bracket
A steel component that stabilises the gate when closed. It plays a key role in distributing the gate's weight across a greater number of support points, which significantly extends the service life of the running trolleys. The bracket is fitted with two plastic guide rollers (88 mm spacing) that gently guide the gate into the closed position. The rear face features two mounting holes and a rubber buffer to absorb impact. Designed for an 80×80 mm rail.

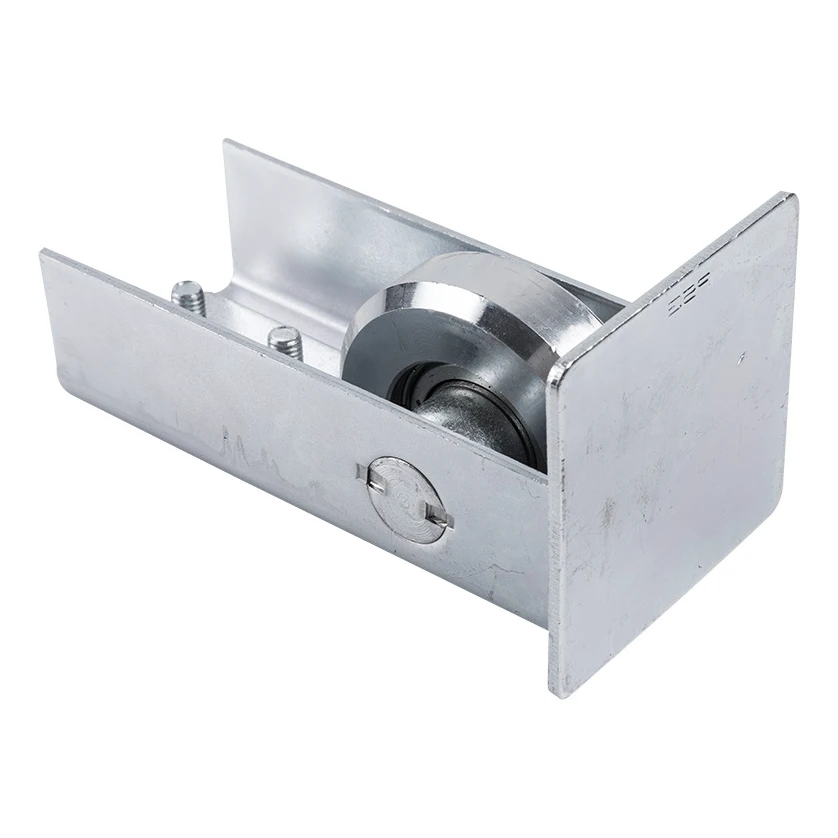

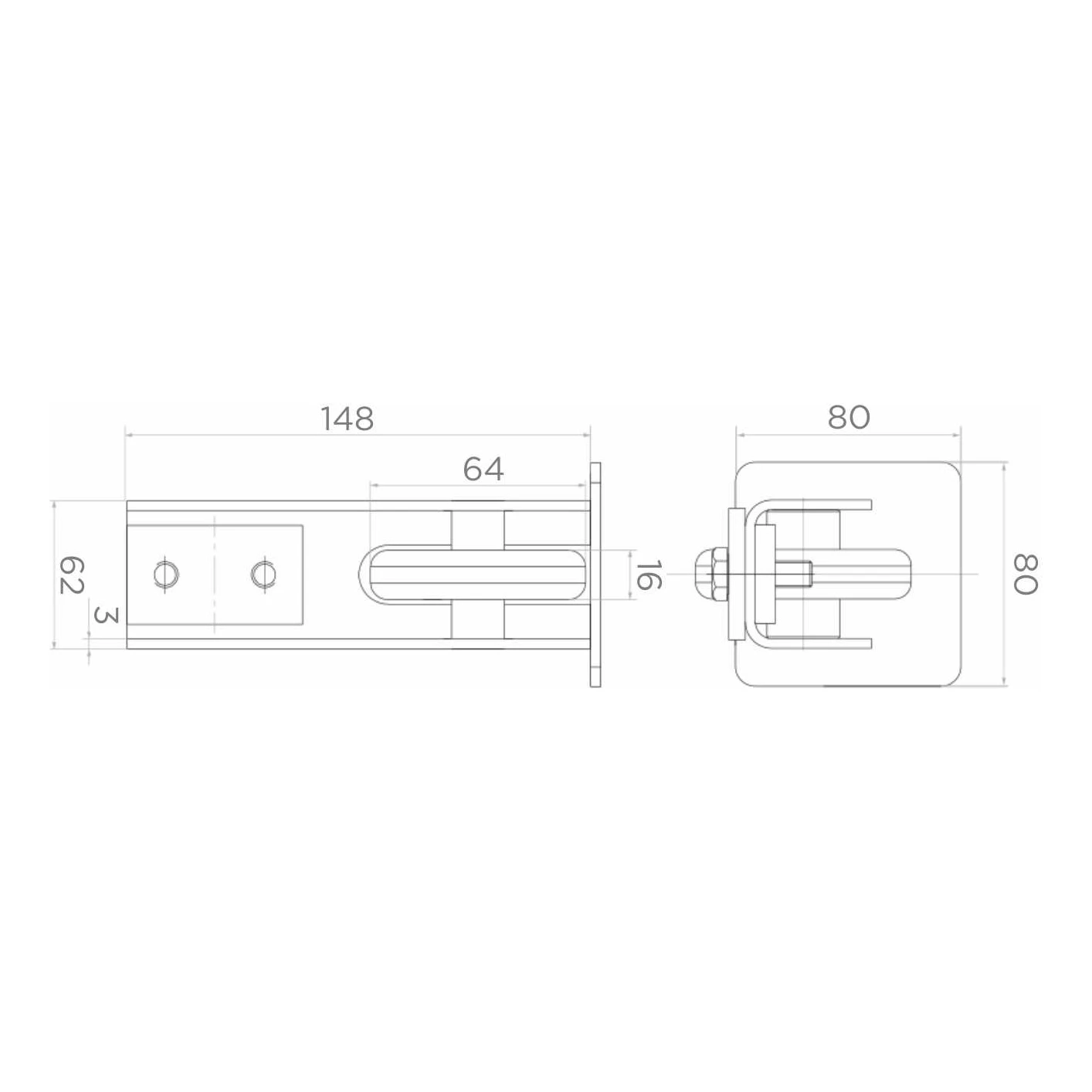

Guide Roller
A steel component mounted at the beginning of the cantilever sliding gate rail. Using a guide roller extends the service life of the running trolleys and protects the rail from dirt, snow and ice. Mounting bolts are included. The roller fits an 80×80×5 mm rail.
Set Specifications
- Compatibility: 80×80×5 mm rail
- Maximum trolley load capacity: 1,200 kg
- Number of rollers per trolley: 10 (including 2 horizontal)
- Guide roller spacing on bracket: 88 mm
- Finish: hot-dip galvanised
- Set weight: 22.92 kg
- EAN: 5903313203562
- Set components: 80 running trolley (10 rollers) – 2 pcs. (60.007.10), guide bracket (with rollers) – 1 pc. (60.019), guide roller – 1 pc. (60.011.80), mounting bolts – full set
Why choose the set? By purchasing the package, you receive fully compatible components selected for a single rail system. There is no need to source trolleys, the guide bracket and roller separately – saving you time and eliminating the risk of selecting mismatched components.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Rail Size | 80x80x5 |
| Product Type | Package / KIT with accessories |
| Roller Material | Steel |
| Number of Rollers [szt.] | 10 |
| Trolley Construction | Swivel |
| Max. load capacity [kg] | 1200 |
| Running System Type | Rolling system |
