PSG

Trolley 80 steel rollers

Go to Product feedback

Steel sliding gate trolley with 9 bearing rollers, load capacity 1000 kg, compatible with 80×80×5 mm rail.

Go to full description
with VAT without VAT
Price €69.17
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] wozki #111

  • Rail Size 80x80x5
  • Product Type Single trolley
  • Roller Material Steel
  • Number of Rollers [szt.] 9
  • Trolley Construction Fixed
  • Max. load capacity [kg] 1000
  • Running System Type Rolling system

Description

Sliding Gate Trolley 80 – 9-Roller Steel Carriage for Sliding Gates 1000 kg

The 80 sliding gate trolley with 9 steel rollers is a robust running component designed for professional sliding gate systems. Thanks to its 9 bearing-mounted roller design, it ensures quiet, smooth gate operation even at maximum loads of up to 1000 kg. It is a reliable solution for installers working on industrial and residential sliding gates with heavy gate leaves.

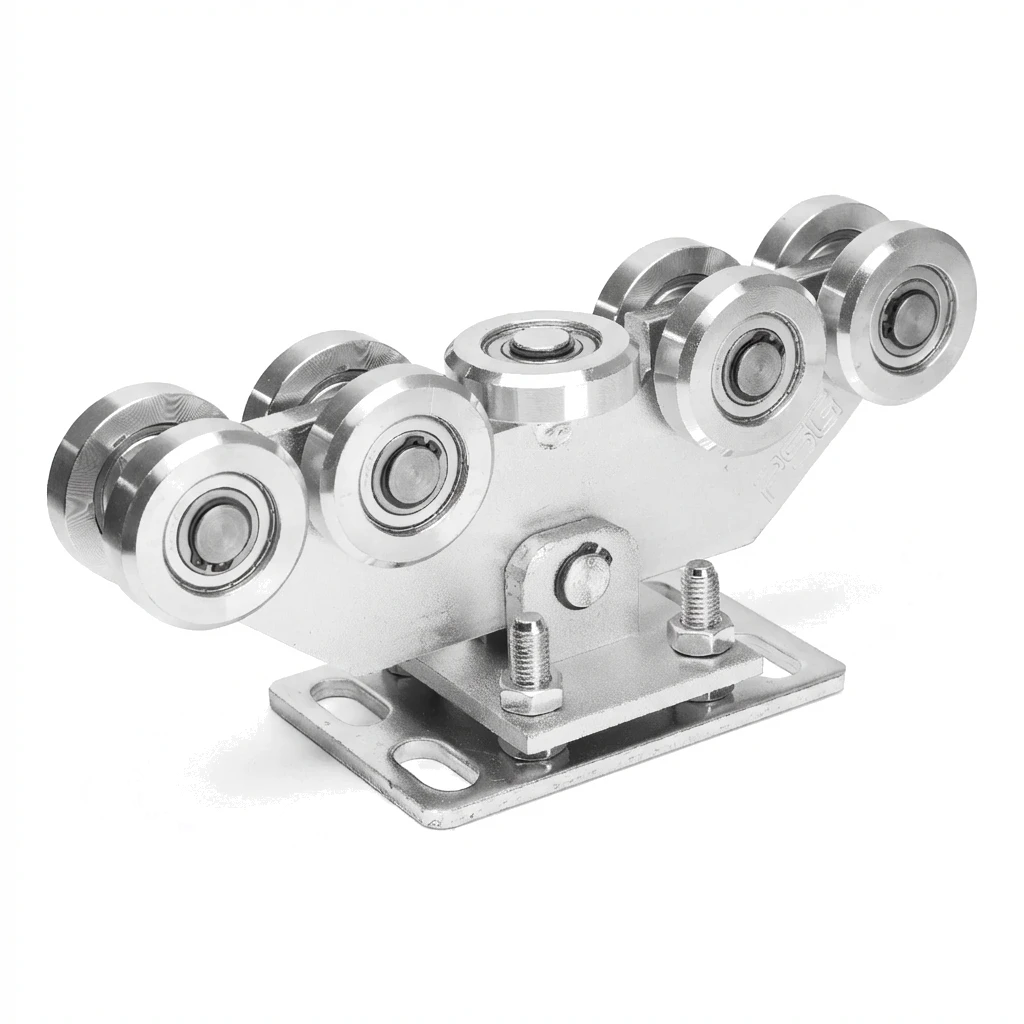

Sliding gate trolley 80 – 9-roller steel carriage, product view
Sliding gate trolley 80 – 9-roller steel carriage, product view

The trolley is compatible with a running rail measuring 80×80×5 mm and is mounted using a base plate with fixing holes and adjustment bolts. The arrangement of 9 steel rollers distributes the load evenly, resulting in a longer service life for the entire running mechanism and reduced rail wear. The adjustment system allows for precise alignment of the gate relative to the rail, shortening installation time and eliminating the need for subsequent corrections.

Technical Specifications

  • Type: 9-roller sliding gate trolley
  • Roller material: steel
  • Running rail: 80×80×5 mm
  • Maximum load capacity: 1000 kg
  • Trolley weight: 9.04 kg
  • EAN: 5901289674614

Overall Dimensions

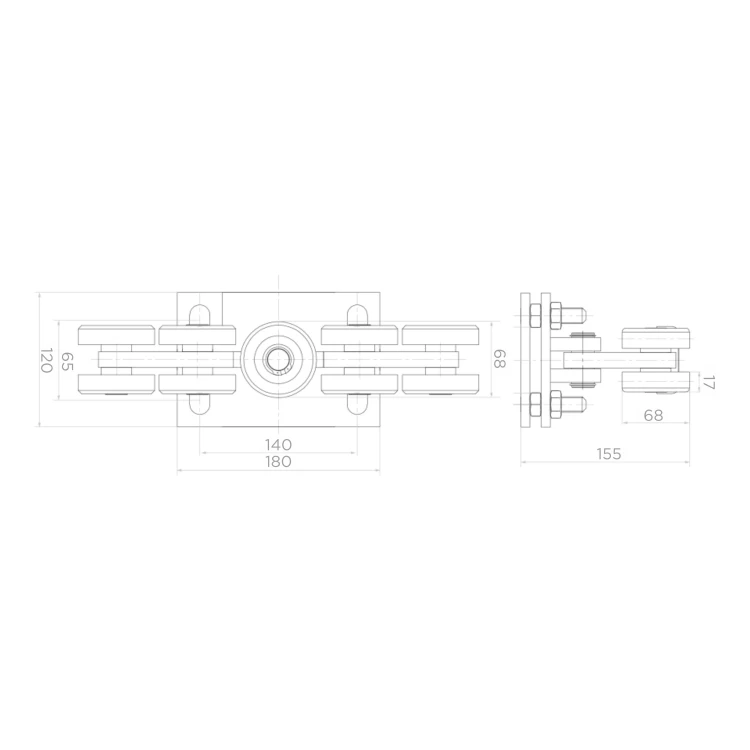

Sliding gate trolley 80 – technical drawing with dimensions
Sliding gate trolley 80 – technical drawing with dimensions
  • Total width (top view): 180 mm
  • Roller spacing (top view): 140 mm
  • Depth (top view): 120 mm
  • Roller axle spacing: 65 mm
  • Total height: 155 mm
  • Height of roller section: 68 mm
  • Height of mounting base: 17 mm
  • Roller profile width: 68 mm

The solid steel construction and high load capacity make this trolley the optimal choice for installation companies handling large-format sliding gate projects — both on industrial premises and private properties with heavy gate leaves.
