Trolley 80/10 steel rollers
Leave feedback on the product
10-roller running trolley for self-supporting sliding gates, load capacity 1200 kg. Steel rollers with ball bearings, galvanised components. Swivel pin, screw height adjustment.
Product code: 000-238
Product features
[PIM] wozki #111
- Rail Size 80x80x5
- Product Type Single trolley
- Roller Material Steel
- Number of Rollers [szt.] 10
- Trolley Construction Swivel
- Max. load capacity [kg] 1200
- Running System Type Rolling system
Description

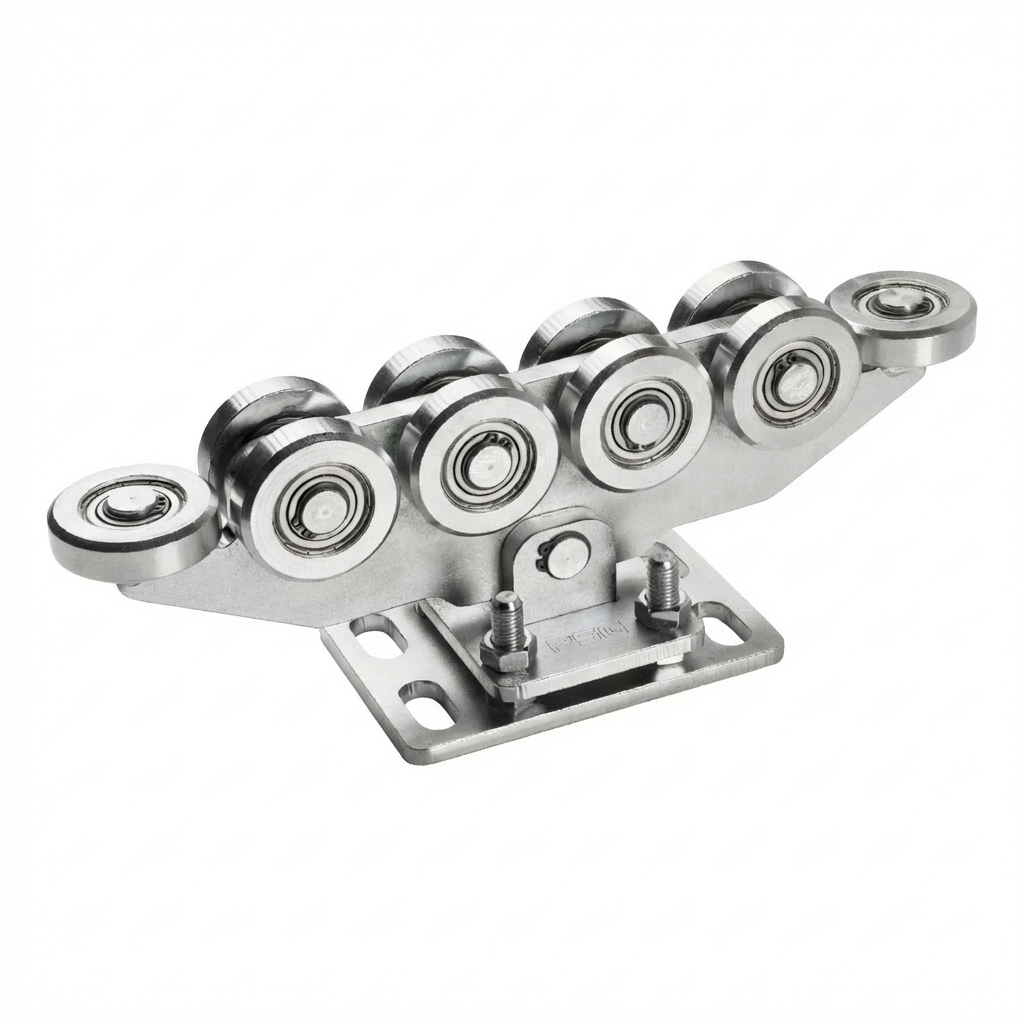

Running Trolley 80/10 for Sliding Gates – 10 Steel Rollers, 1200 kg
The Running Trolley 80/10 is a heavy-duty, 10-roller load-bearing component designed for heavy self-supporting sliding gates. Thanks to its articulated construction, the trolley automatically adapts to the rail profile, ensuring smooth and quiet gate operation even under significant load — up to a maximum of 1200 kg.
The construction comprises 8 vertical rollers and 2 horizontal rollers, which stabilise the gate along the guide axis and eliminate lateral play. The trolley is connected to the mounting base via a pivot pin, allowing free adjustment to any unevenness in the running track. Height adjustment is carried out using bolts — enabling precise alignment of the gate relative to ground level without the need for additional shims.
All rollers are fitted with ball bearings, which ensure low rolling resistance and a long service life. The steel components are zinc-plated, protecting them against corrosion and making them suitable for outdoor use.
Technical Specifications
- Maximum load capacity: 1200 kg
- Number of rollers: 10 (8 vertical + 2 horizontal)
- Roller material: steel
- Compatible rail: 80 × 80 × 5 mm
- Corrosion protection: zinc plating
- Height adjustment: bolt-operated
- Base connection: pivot pin
- Weight: 9.96 kg

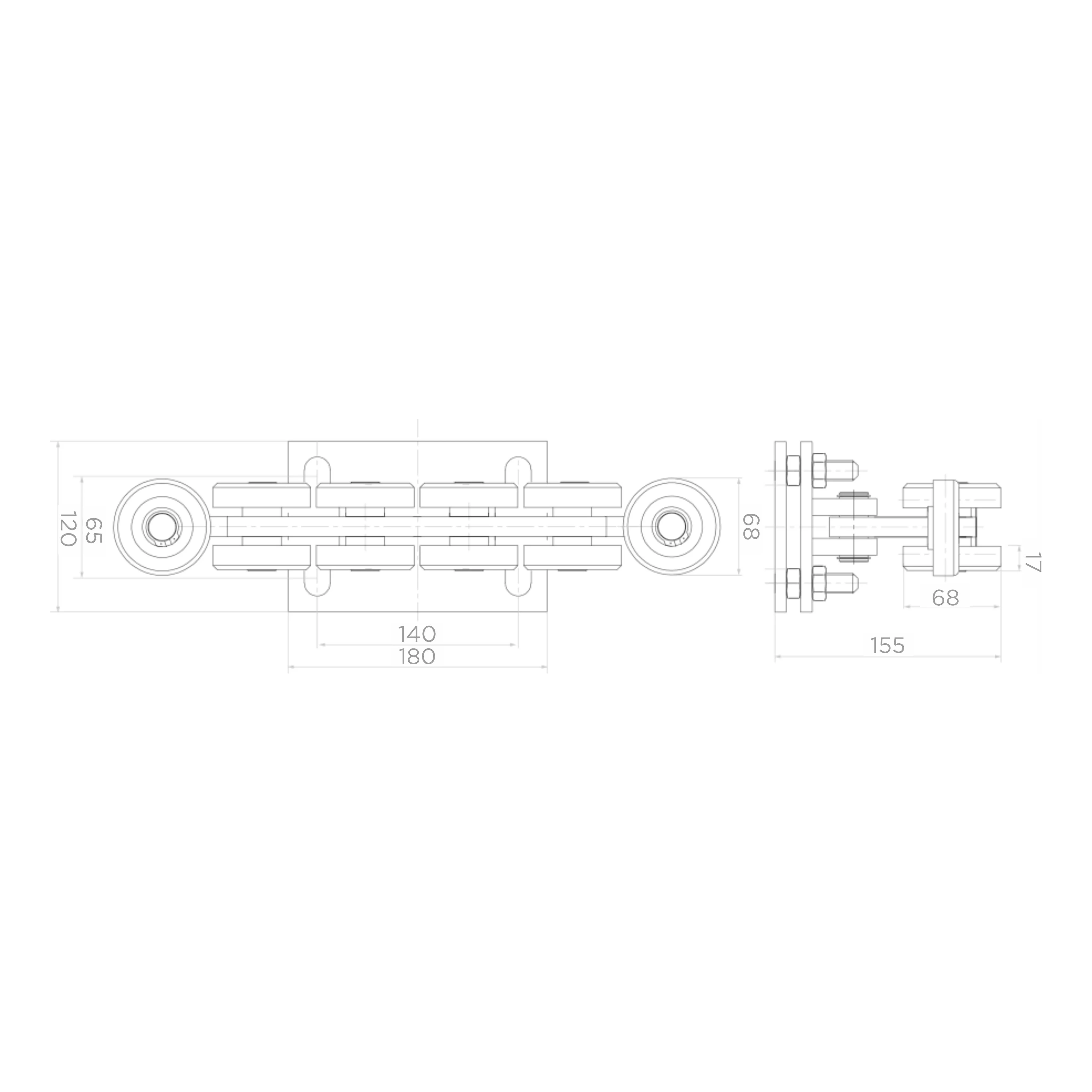

Dimensions
- Overall width (with rollers): 120 mm
- Roller spacing (centre to centre): 65 mm
- Mounting base length: 140 mm
- Overall trolley length: 180 mm
- Overall height: 155 mm
- Depth (with horizontal rollers): 68 mm
- Mounting base height: 17 mm
The 80/10 trolley is designed for professional installations of heavy self-supporting sliding gates. It is equally suited to industrial premises and private properties where reliability and durability of the running mechanism are essential. A set of two trolleys forms a complete load-bearing assembly for a single gate.
