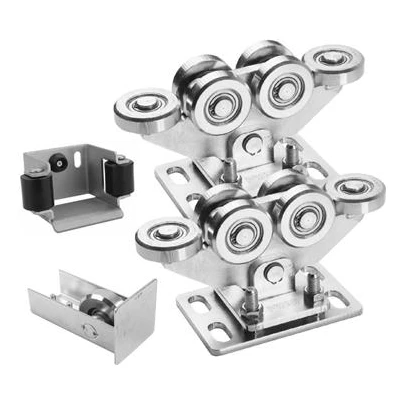

Sliding Gate Trolley Package 80 – 6-Roller Set with Accessories
Complete running gear set for cantilever sliding gates comprising two 6-roller trolleys, a guide bracket and a guide roller. The set is designed for an 80×80×5 mm rail and provides a load capacity of up to 800 kg per trolley, making it the ideal solution for heavier gates with a full leaf surface.
The inclusion of the guide bracket and guide roller distributes the load across a greater number of components, extending the service life of the running trolleys and ensuring smooth, trouble-free gate operation over the long term. All components in the set are galvanised, guaranteeing corrosion resistance in outdoor conditions.

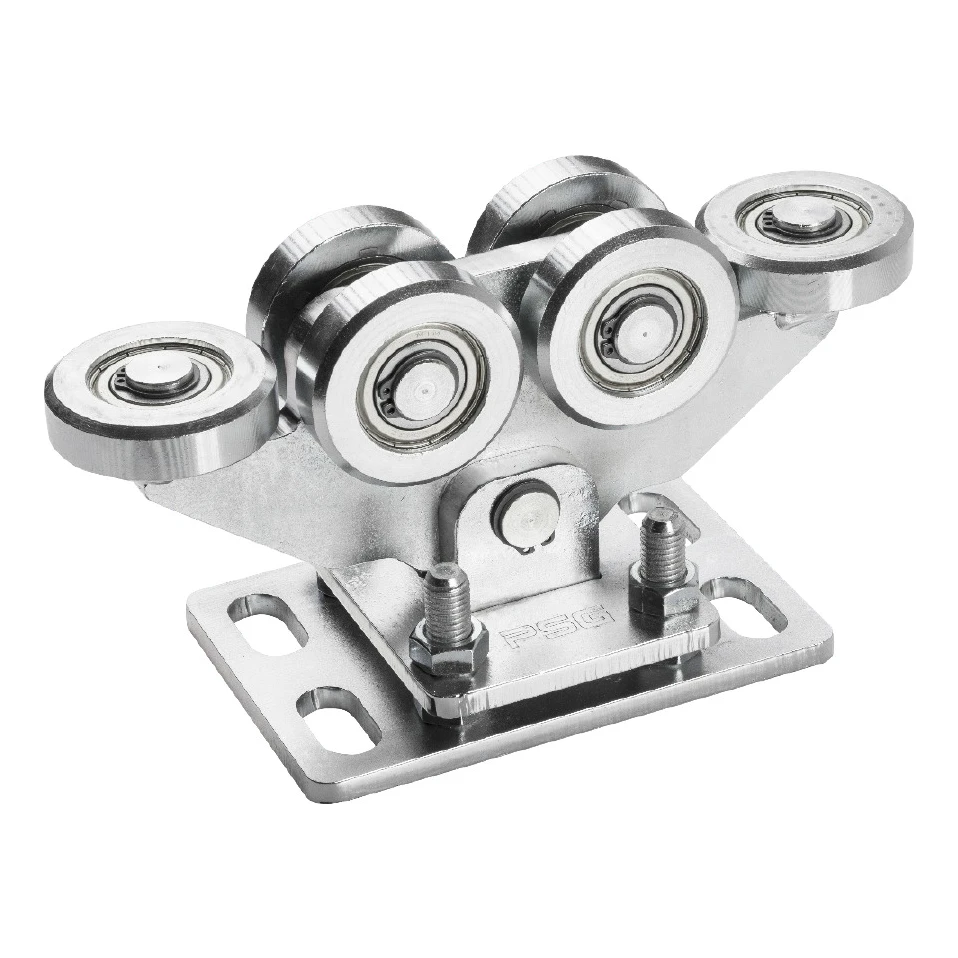

The running trolley with 6 steel rollers (including two horizontal rollers) forms the heart of the sliding system. The swivel construction, connected to the base via a pivot pin, allows for automatic self-alignment to the gate rail, eliminating stress and ensuring even weight distribution.
Height adjustment is carried out using bolts, enabling precise positioning of the gate relative to the ground and the guide rail. This makes installation quick, and any subsequent positional correction is straightforward and requires no disassembly.
- Maximum trolley load capacity: 800 kg
- Number of rollers: 6 pcs (4 vertical + 2 horizontal)
- Roller material: steel
- Designed for rail: 80×80×5 mm
- Finish: galvanised
- Quantity in set: 2 pcs
Running trolley dimensions:
- Base length: 180 mm (mounting pitch 140 mm)
- Width: 120 mm (roller spacing 65 mm)
- Height: 68 mm
- Depth including fixing elements: 155 mm
- Pivot pin height: 17 mm

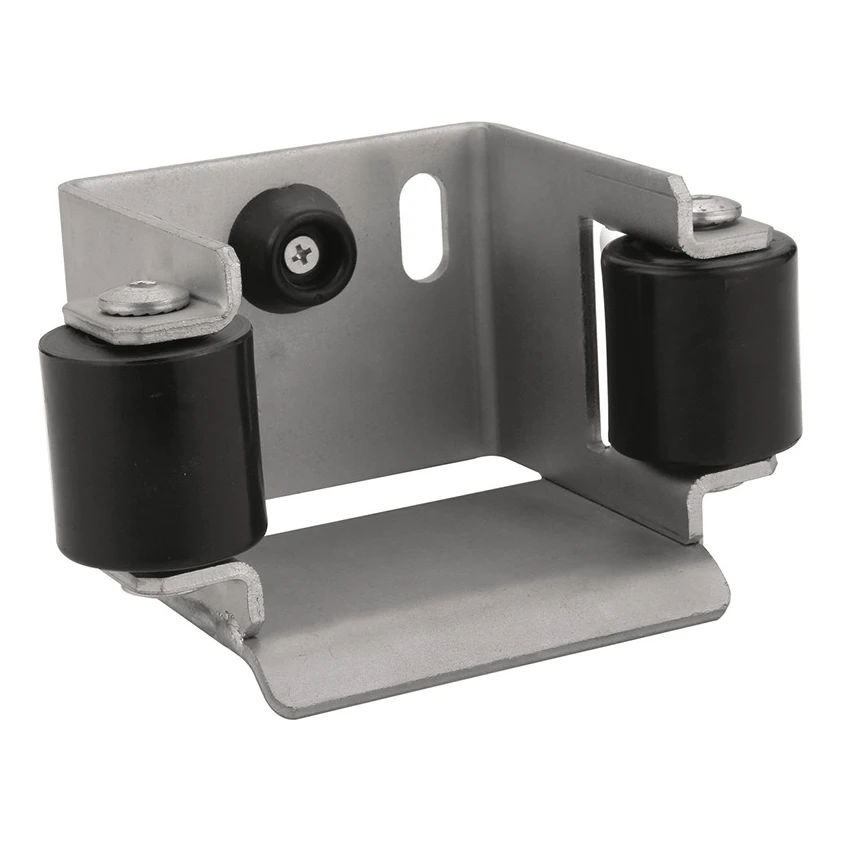

The guide bracket stabilises the gate when closed and guides it onto the correct track via two plastic rollers. The roller spacing is 88 mm, ensuring precise guidance of the 80×80 mm rail with appropriate working clearance.
The rear face features two mounting holes and a rubber buffer, which absorbs the impact of the gate in the closed position, protecting the structure and reducing noise.

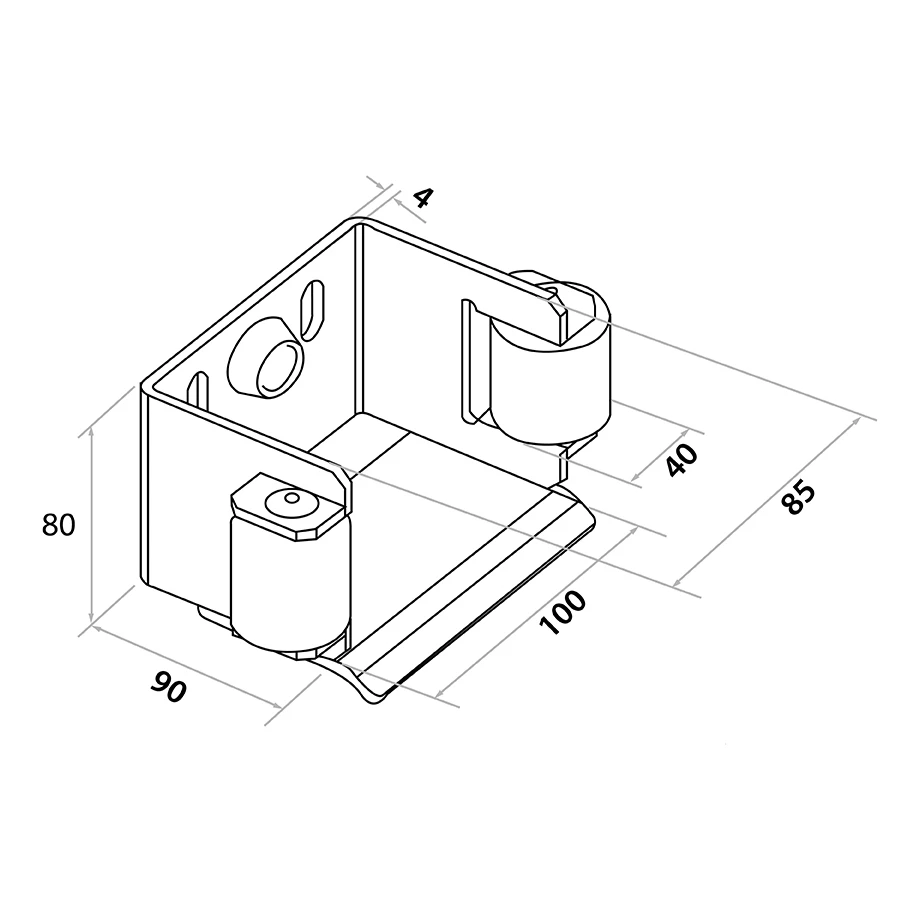

- Bracket dimensions: 100 × 90 × 85 mm
- Internal width: 80 mm
- Sheet thickness: 4 mm
- Spacing between rollers: 88 mm
- Rollers: plastic
- Designed for rail: 80×80 mm
- Finish: galvanised
- Quantity in set: 1 pc

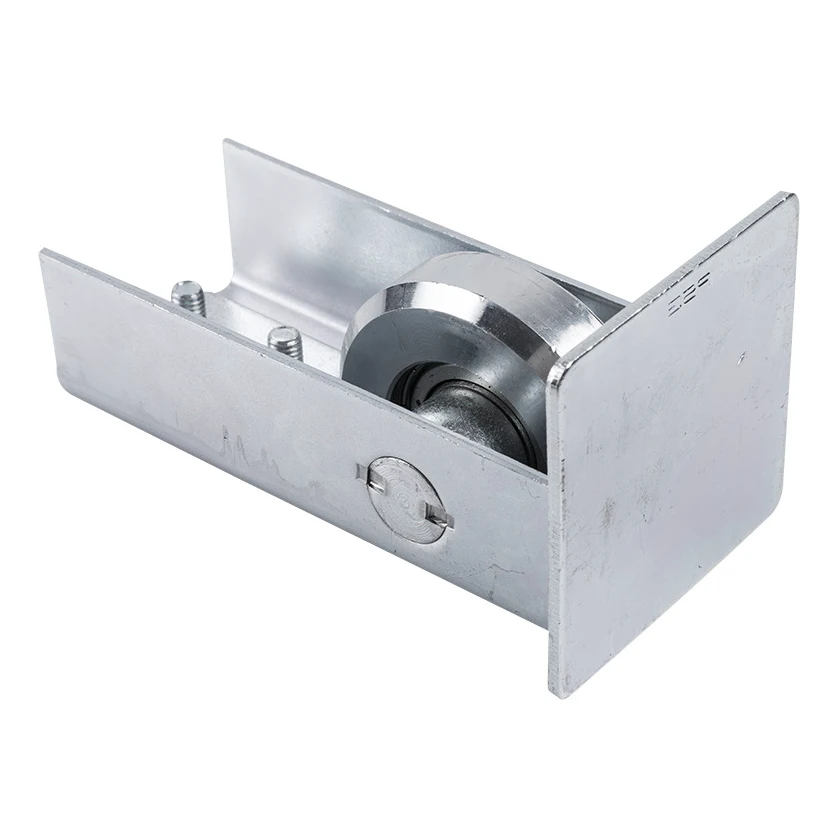

The guide roller is mounted at the leading end of the cantilever sliding gate rail. Its primary function is to smoothly guide the rail onto the running trolleys during gate closure, which significantly extends the service life of the trolley rollers. It also provides protection against accumulated snow and ice in the running track.

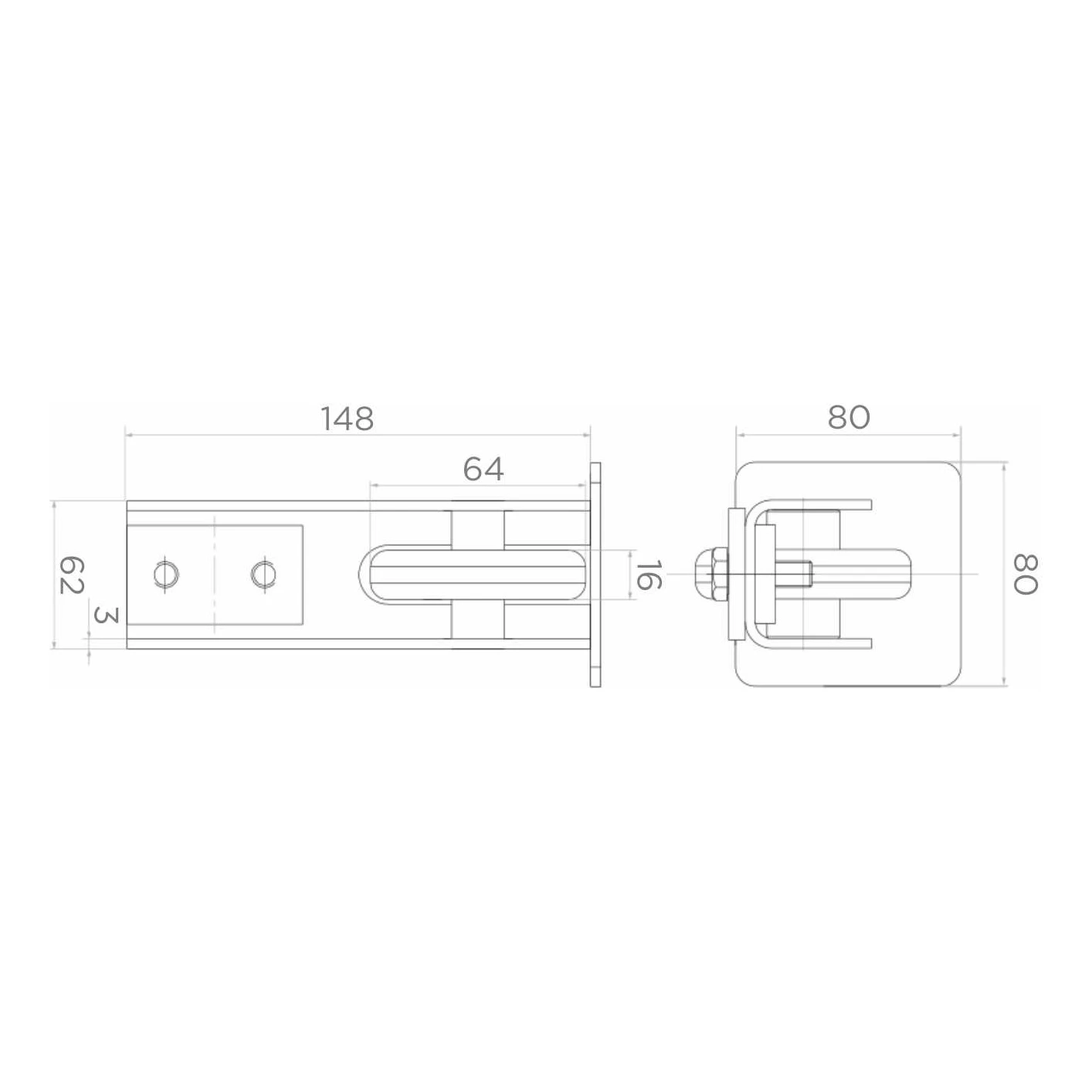

- Dimensions: 148 × 62 mm
- Housing width: 80 mm
- Sheet thickness: 3 mm
- Height including roller: 16 mm
- Mounting pitch: 64 mm
- Designed for rail: 80×80×5 mm
- Finish: galvanised
- Mounting bolts: included
- Quantity in set: 1 pc
- Running trolley 80 (6-roller, steel): 2 pcs
- Guide bracket with guide rollers: 1 pc
- Guide roller with mounting bolts: 1 pc
The complete package allows a cantilever sliding gate to be commissioned without the need to order individual components separately — one stock item, full functionality.
Set specifications:
- Compatibility: 80×80×5 mm rail
- Maximum load capacity per trolley: 800 kg
- Set weight: 16.6 kg
- EAN: 5903313203548
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Rail Size | 80x80x5 |
| Product Type | Package / KIT with accessories |
| Roller Material | Steel |
| Number of Rollers [szt.] | 6 |
| Trolley Construction | Swivel |
| Max. load capacity [kg] | 800 |
| Running System Type | Rolling system |
