Running carriage for self-supporting sliding gates 80/6 steel rollers
Description

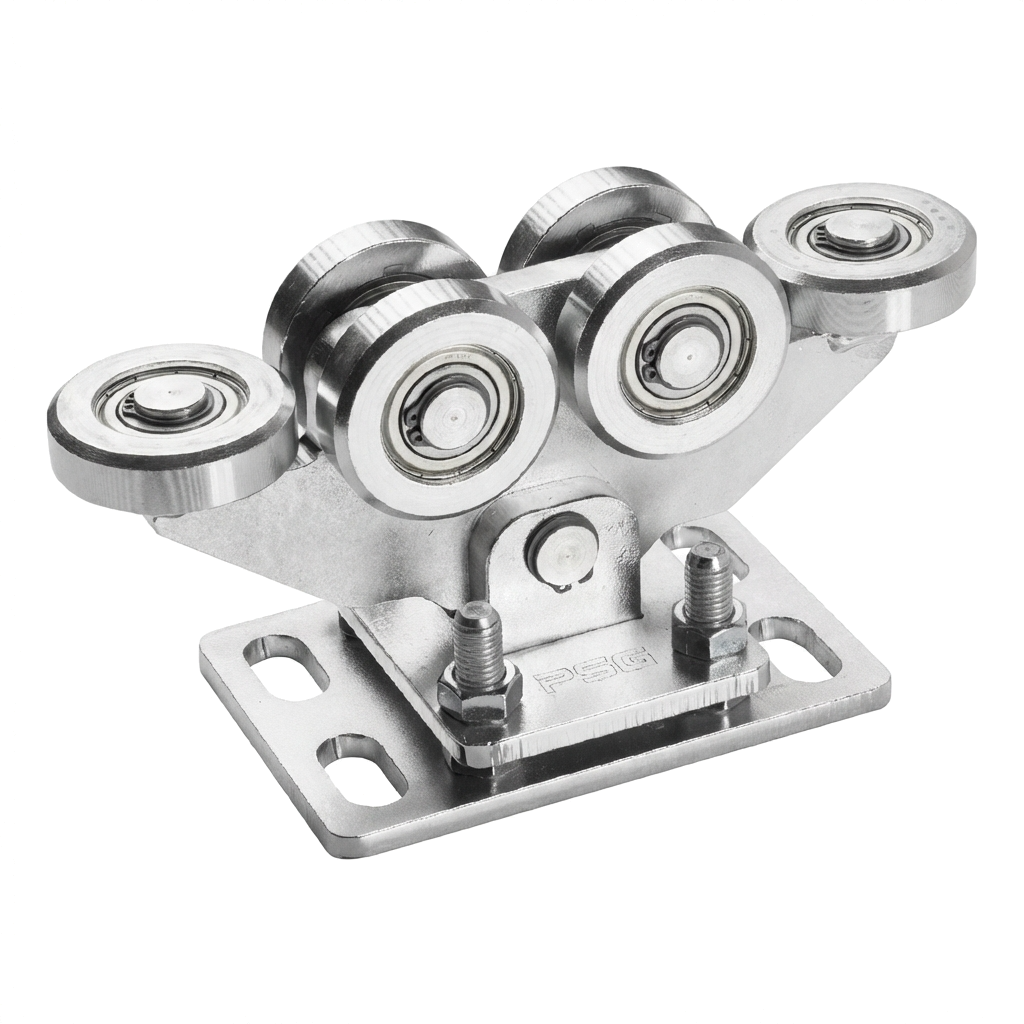

Running Trolley 80 for Sliding Gate – 6 Steel Rollers, 800 kg
The Running Trolley 80 with six steel rollers is a robust load-bearing component designed for self-supporting sliding gates. Thanks to its pivoting construction, the trolley automatically adjusts to the gate rail, ensuring smooth and quiet operation even under heavy loads. Height adjustment via screws allows precise gate alignment during installation.
The trolley is fitted with 6 rollers – including two horizontal rollers – which stabilise the gate during sliding and minimise lateral play. The connection to the mounting base is made via a pivot pin, allowing the trolley to tilt and compensate for any unevenness in the running track. The construction is galvanised, providing corrosion resistance and long service life in outdoor conditions.
The product is designed for heavier solid-infill gates, where high load capacity and stable guidance are required. With a maximum load rating of 800 kg, the trolley is suitable for both industrial installations and large residential driveway gates.
Technical Specifications
- Maximum load capacity: 800 kg
- Number of rollers: 6 (including 2 horizontal rollers)
- Roller material: steel
- Running rail: 80×80×5 mm

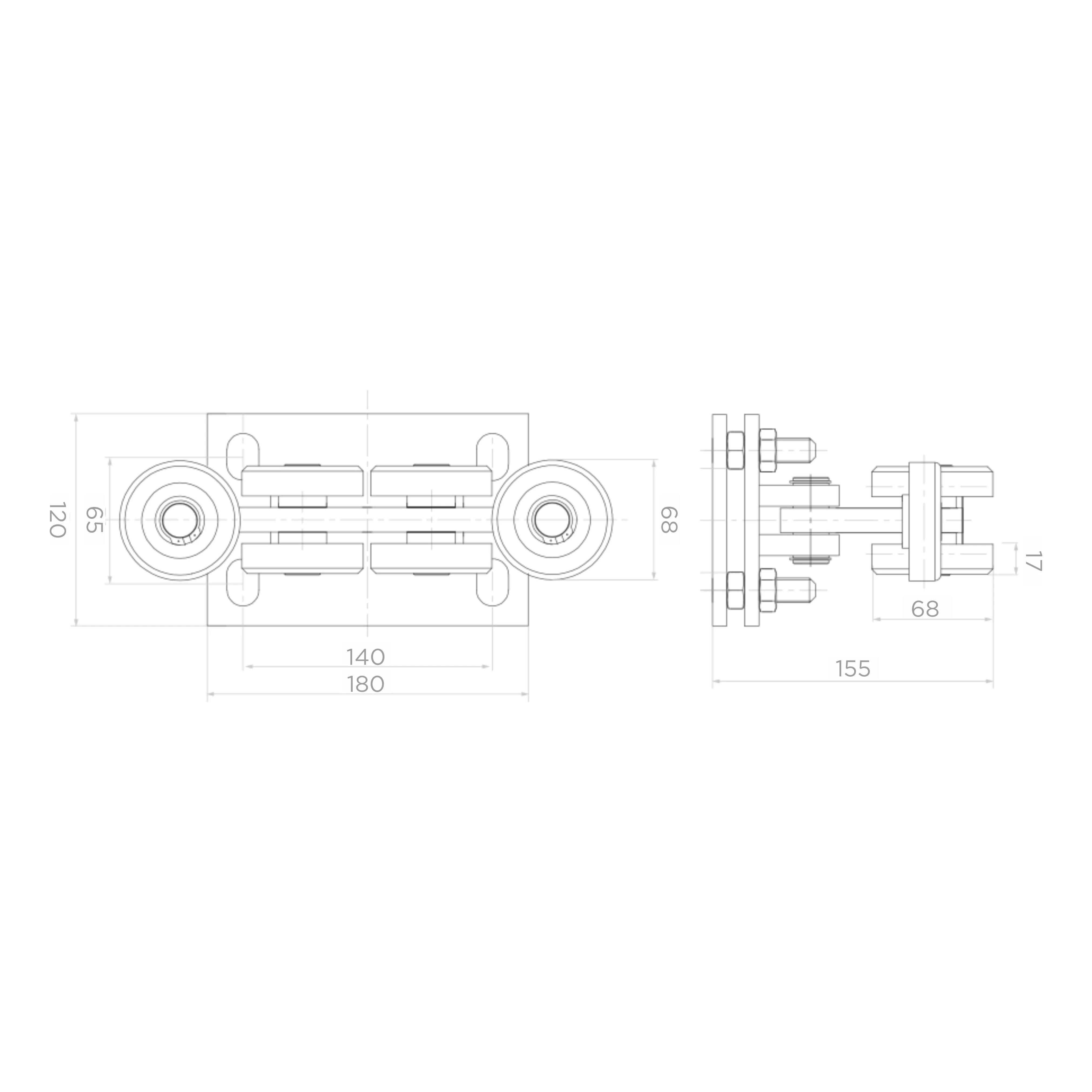

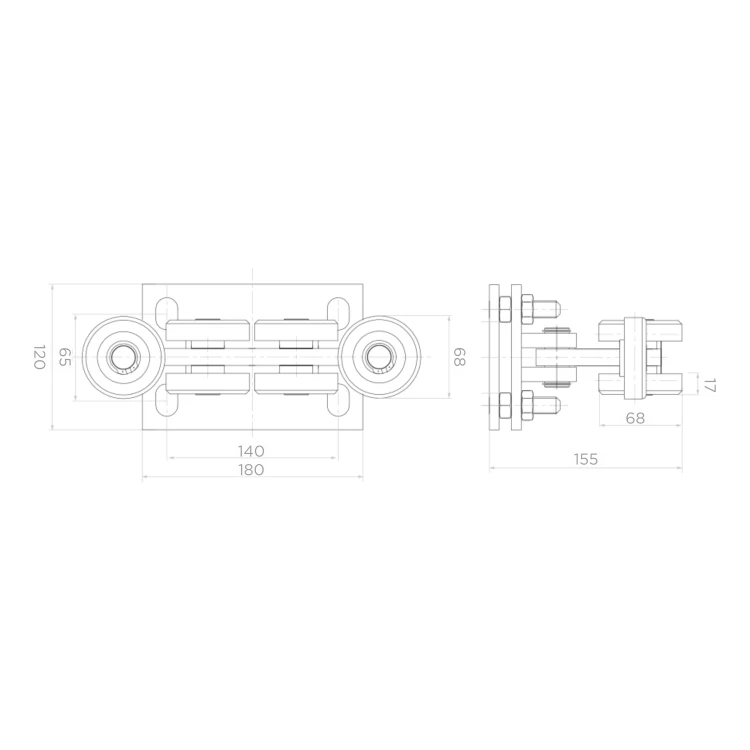

- Overall dimensions (W × D × H): 180 × 155 × 120 mm
- Main roller spacing: 140 mm
- Roller diameter: 65 mm
- Trolley height: 155 mm
- Weight: 6.82 kg
- Finish: galvanised
- Height adjustment: screw-type
- Construction: pivoting – pin connection to base
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 6 |
| Trolley Construction | Swivel |
| Max. load capacity [kg] | 800 |
| Rail Size | 80x80x5 |
| Running System Type | Rolling system |
