Dromet ring expansion anchor PSRe M14x145/37 galvanised
0
Description
Dromet PSRe M14×145/37 galvanised ring expansion anchor for concrete
The PSRe M14×145/37 ring anchor by Dromet is a steel mechanical fastener designed for the permanent fixing of structures in non-cracked concrete. It proves reliable wherever secure fastening is essential — when installing mounting profiles, steel structures for photovoltaic systems, mesh platforms, handrails, machinery and other facility equipment. Thanks to holding the European Technical Approval ETA 05/0242, the CE certificate and the national approval AT-15-7574/2008, the anchor meets the formal requirements necessary for professional construction projects.
The ring design ensures even expansion within the mounting hole, resulting in high load capacity and repeatable installation. The anchor is made of structural steel with anti-corrosion protection in the form of electrolytic zinc plating, which protects the fastener against corrosion in indoor and outdoor conditions of moderate environmental aggressiveness.

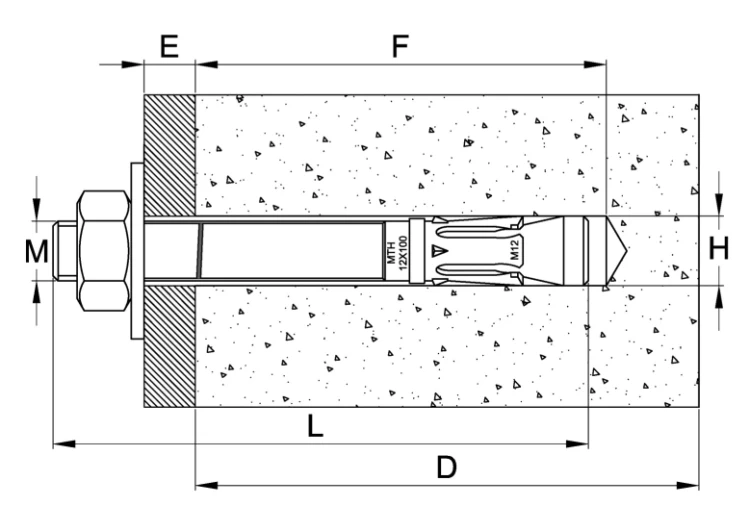

Technical parameters
- Designation: PSRe 14x145/37
- Thread: M14
- Drilling diameter (Ø): 14 mm
- Total length (L): 145 mm
- Thickness of the fixed element (E): 37 mm
- Anchoring depth (F): 100 mm
- Hole depth (D): 150 mm
- Material: structural steel, electrolytic zinc plating
- Design: ring type with nut and washer
- Weight: 0.18 kg
- EAN: 5902706889970
- Sales unit: piece
Approved mounting substrates
- Non-cracked concrete of at least class B20 (C16/20)
- Natural stone with a dense structure
- Solid brick
Installation recommendations
- Drill the mounting hole perpendicular to the substrate surface
- After drilling, clean the hole of dust and debris
- Insert the anchor into the hole using light hammer taps
- Use a torque wrench to tighten the nut
- After expansion, the washer under the nut must be firmly pressed against the fixed element
- Installation parameters comply with the AT-15-7574/2008 approval — they must not be exceeded
Certificates and approvals
- European Technical Approval ETA 05/0242
- CE certificate
- National technical approval AT-15-7574/2008
The Dromet PSRe M14×145/37 ring anchor is a proven, certified fastener for professional applications — both in photovoltaic structures and general construction. Sales unit: 1 piece.
Technical data
| Thread type | M14 |
| Length [mm] | 145 |
