Trolley 80/8 steel rollers
Description

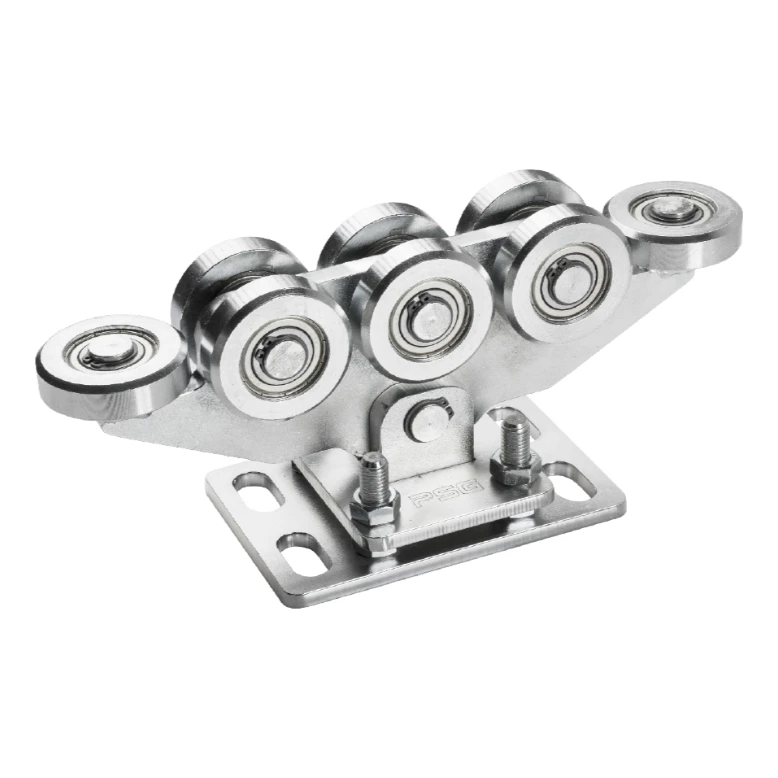

Sliding Gate Trolley 80/8 Steel – 8 Rollers for Sliding Gates 1000 kg
The 80/8 sliding gate trolley is a robust, 8-roller load-bearing component designed for suspended sliding gates. Thanks to its eight steel rollers on bearings, it ensures smooth and quiet gate leaf travel even under heavy loads — the maximum load capacity is 1000 kg. It is a reliable solution for professional installations of industrial and residential sliding gates.
The trolley body is galvanised, providing excellent corrosion resistance and long-lasting performance in outdoor conditions. The trolley is permanently bolted to the base plate, which features mounting holes for secure and quick installation. The arrangement of 8 rollers distributed symmetrically ensures even load distribution and stable gate guidance along the track.
The trolley is designed for use with an 80×80×5 mm track rail — the standard profile used in high-load sliding gate systems. The compact design and precision-engineered rolling components make installation straightforward and operation maintenance-free.
Technical Specifications
- Type: 80/8 sliding trolley for suspended gates
- Number of rollers: 8
- Roller material: steel
- Maximum load capacity: 1000 kg
- Track rail: 80×80×5 mm
- Corrosion protection: galvanising
- Weight: 8.5 kg

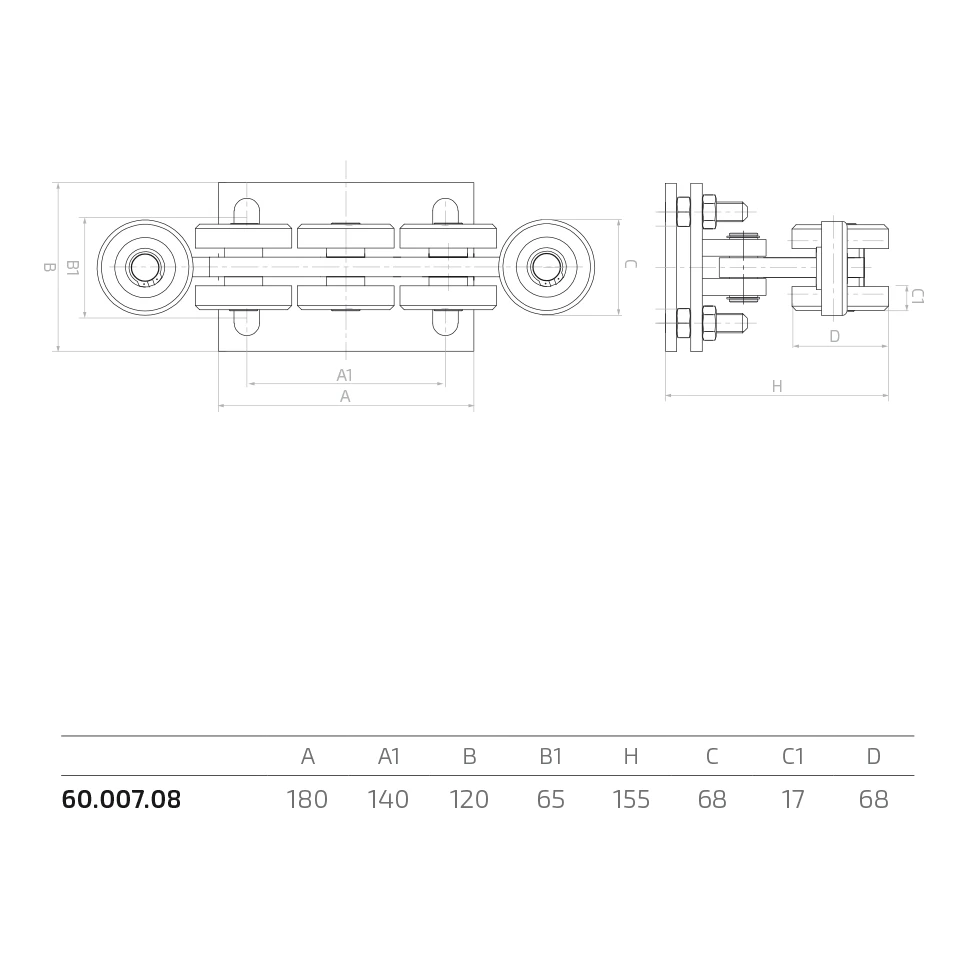

Dimensions
- Overall length (A): 180 mm
- Longitudinal mounting centres (A1): 140 mm
- Overall width (B): 120 mm
- Lateral mounting centres (B1): 65 mm
- Overall height (H): 155 mm
- Roller height (C): 68 mm
- Base plate thickness (C1): 17 mm
- Roller diameter (D): 68 mm
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 8 |
| Trolley Construction | Fixed |
| Max. load capacity [kg] | 1000 |
| Rail Size | 80x80x5 |
| Running System Type | Suspended system |
