Sliding gate carriage 80 for sliding gate with 5 steel rollers adjustable
Description
5-Roller Sliding Gate Trolley – Steel, 550 kg
5-roller sliding gate trolley for self-supporting sliding gates — a robust running component designed for heavy-duty gates. Thanks to its swivel construction, the trolley automatically adjusts to the position of the rail, eliminating stress caused by uneven ground and ensuring smooth, trouble-free gate operation for many years of use.
Construction and operating principle

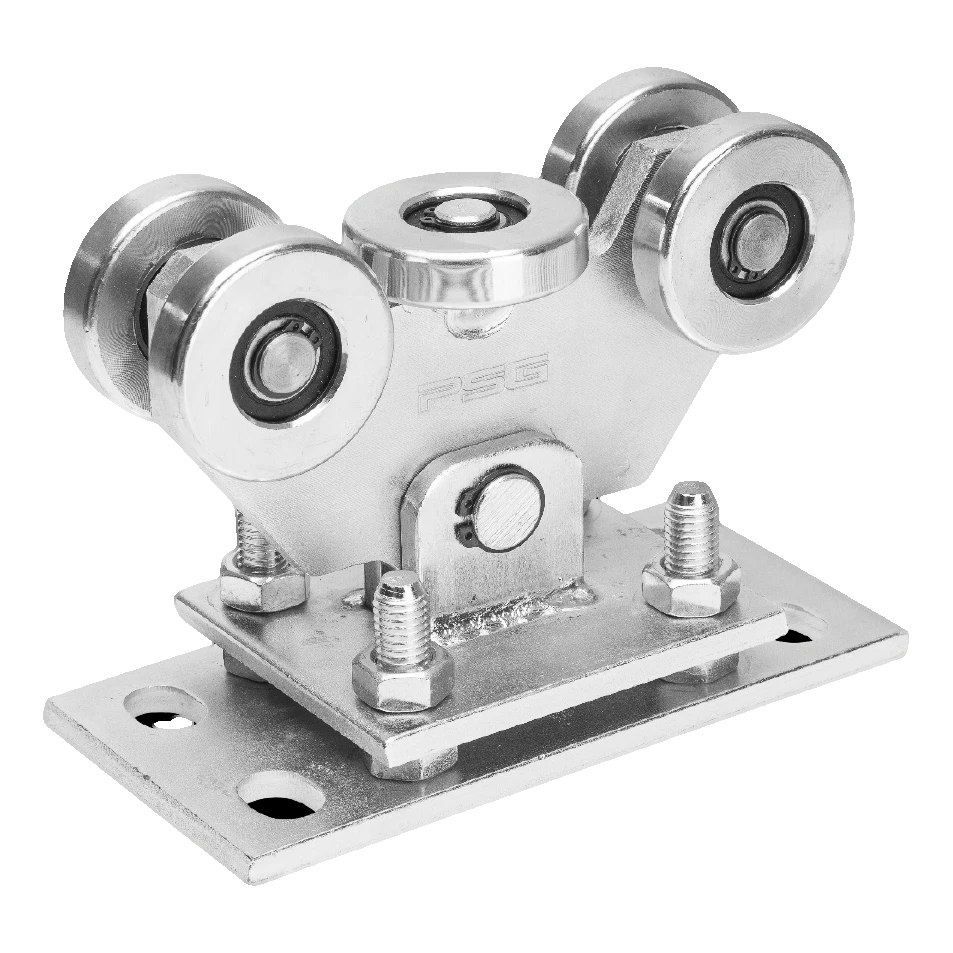

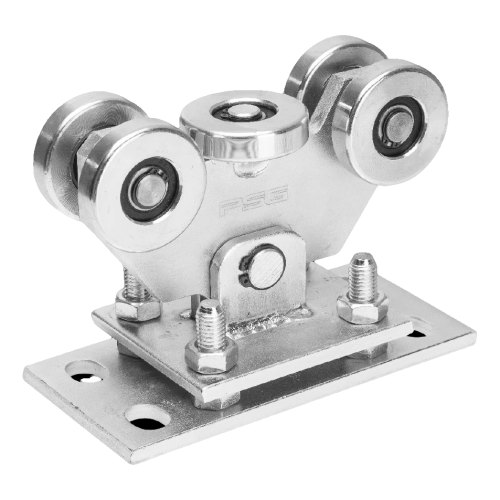

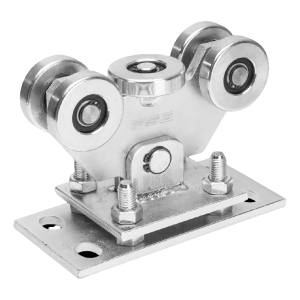

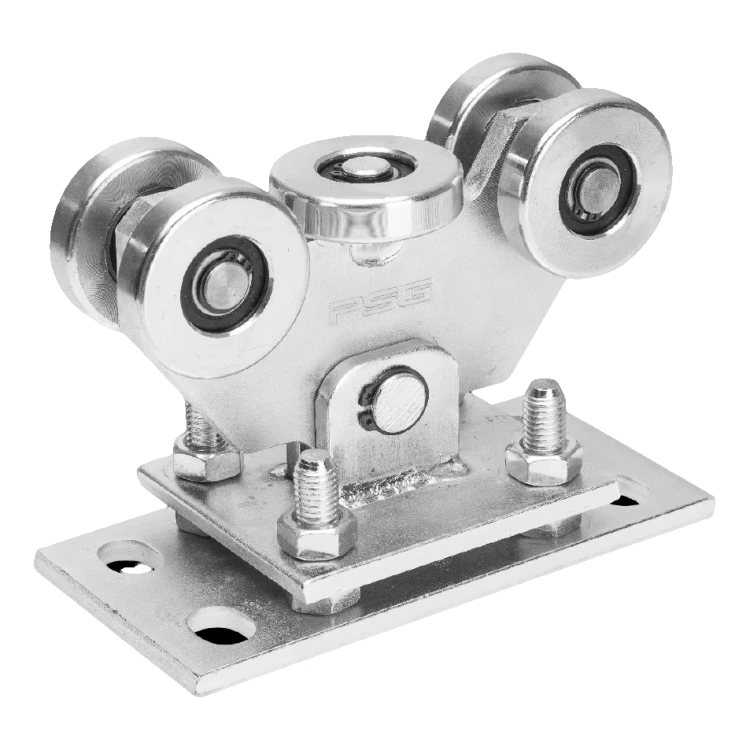

The trolley is fitted with 5 steel rollers — four vertically mounted load-bearing rollers and one horizontal guide roller. This arrangement provides stable support for the gate rail both from below and from the side, resulting in quiet operation and minimal wear of the running components. The trolley body is connected to the base plate via a swivel pin, allowing the entire roller assembly to tilt and compensate for any installation deviations. Height adjustment is carried out using bolts locked with counter-nuts, enabling precise alignment of the rail relative to the gate posts without the need for shims.
The trolley is designed for a rail with a profile of 80 × 80 × 5 mm and carries loads of up to 550 kg, making it a suitable solution for medium and large gates — in both residential and industrial settings.

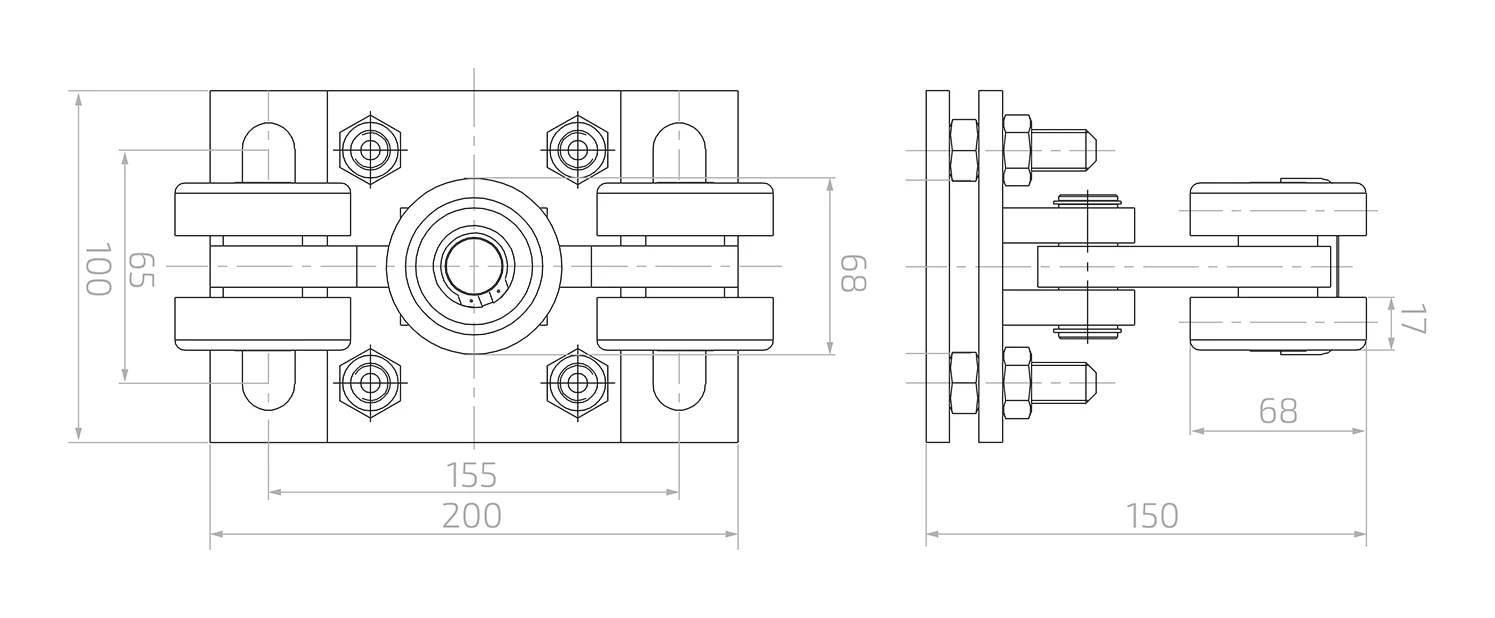

Dimensions and technical specifications
- Maximum load capacity: 550 kg
- Number of rollers: 5 (4 vertical load-bearing + 1 horizontal guide)
- Roller material: steel
- Surface finish: zinc-plated
- Rail: 80 × 80 × 5 mm profile
- Base plate dimensions: 200 × 100 mm
- Mounting hole spacing (longitudinal): 155 mm
- Mounting hole spacing (transverse): 65 mm
- Roller diameter: 68 mm
- Roller width: 17 mm
- Roller assembly width: 68 mm
- Overall trolley height: 150 mm
- Weight: 5.5 kg
- EAN: 5901289674652
Benefits for the installer
- Swivel construction compensates for installation inaccuracies and uneven ground
- Height adjustment via bolts — quick and precise rail levelling
- Slotted holes in the mounting plate allow positional correction of the trolley after anchoring
- Zinc coating provides corrosion resistance in outdoor conditions
- Bearing-mounted steel rollers guarantee long service life and quiet operation
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Trolley Construction | Swivel |
| Max. load capacity [kg] | 550 |
| Rail Size | 80x80x5 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 5 |
| Running System Type | Rolling system |
