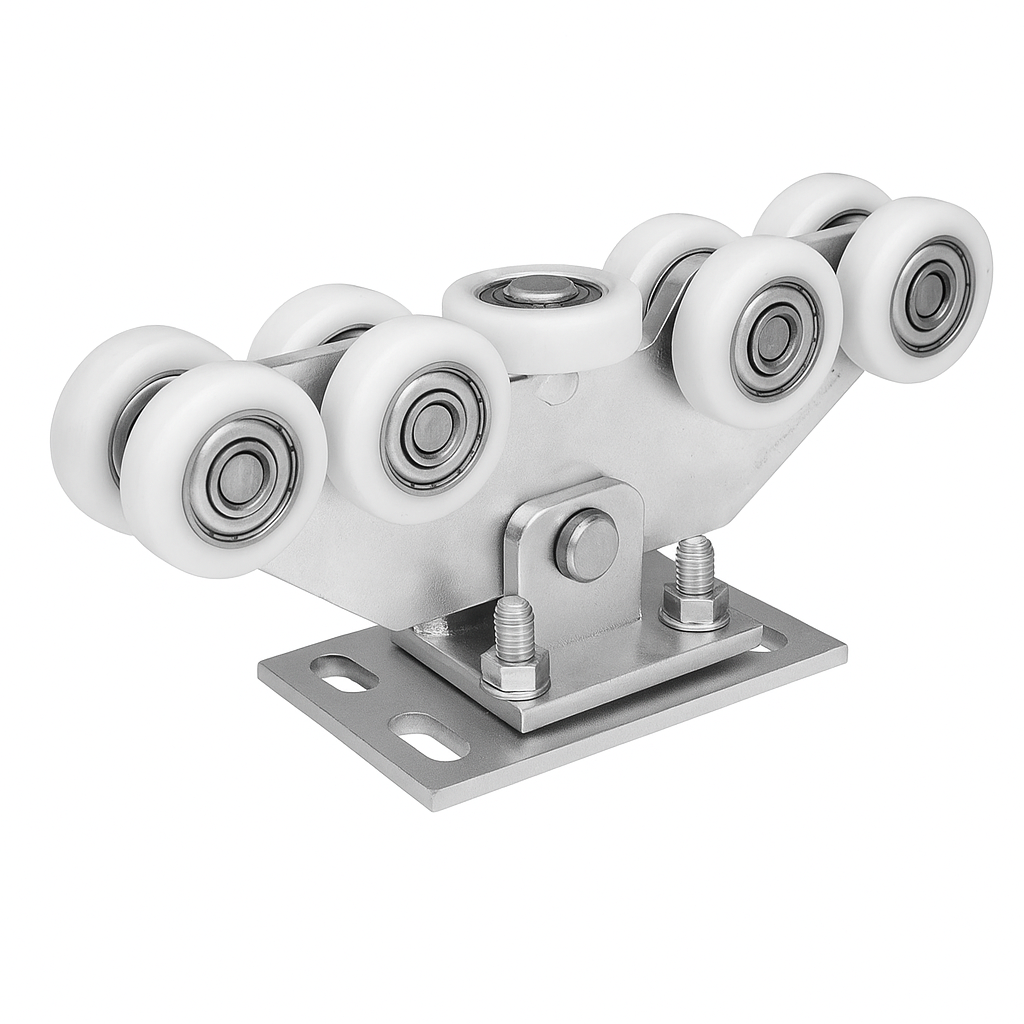

Sliding Gate Carriage 80 – 9-Roller Plastic Wheel Trolley
The sliding gate carriage 80 with 9 plastic rollers is a reliable running component designed for sliding gates guided on an 80×80×5 mm track. The nine-roller design ensures quiet and smooth gate operation, which is particularly important in commercial premises and multi-family residential developments. The rollers are mounted on ball bearings, guaranteeing minimal rolling resistance and a long service life even under intensive use.
The steel, hot-dip galvanised frame provides excellent resistance to corrosion and adverse weather conditions. The mounting plate features slotted holes that allow the carriage position to be adjusted relative to the gate, making it easy to align the gate leaf precisely during installation. A maximum load capacity of 600 kg makes this carriage suitable for heavy industrial and estate gates.

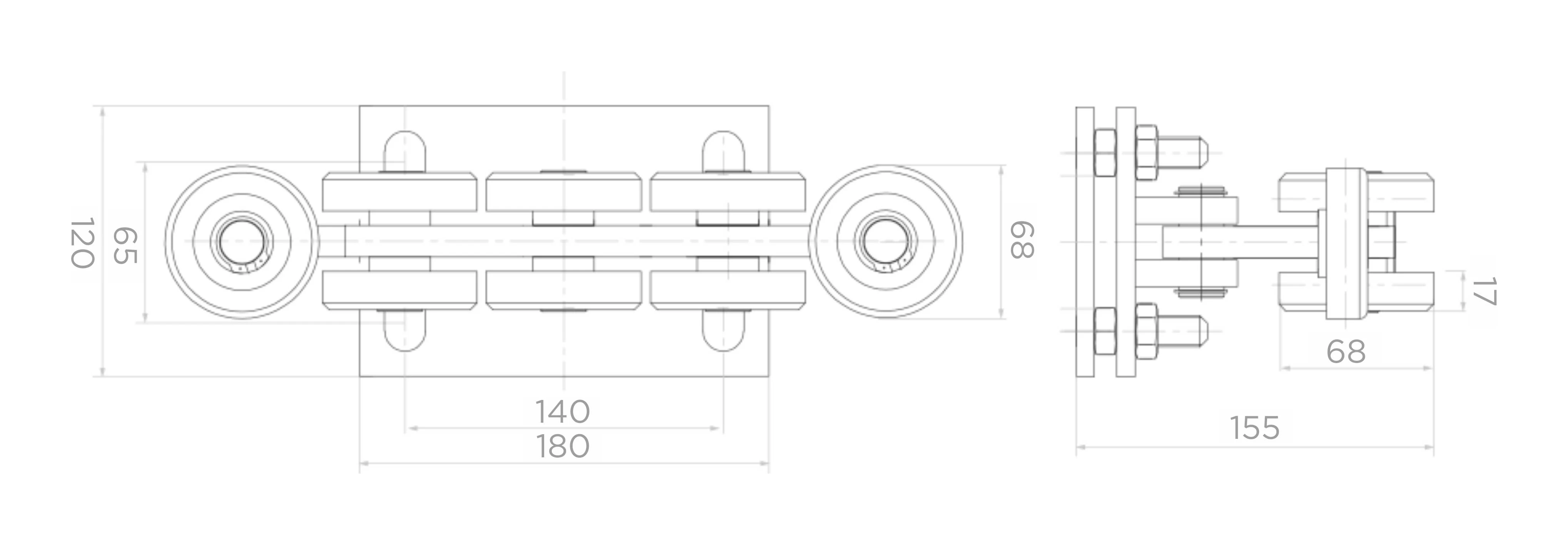

Dimensions and Technical Specification
- Type: 9-roller gate carriage
- Compatible track: 80×80×5 mm
- Roller material: plastic
- Maximum load capacity: 600 kg
- Total height (H): 155 mm
- Mounting base width: 180 mm
- Internal base spacing: 140 mm
- Total height including base: 120 mm
- Roller section height: 65 mm
- Depth (lateral): 155 mm
- Roller section width: 68 mm
- Base height: 17 mm
- Weight: 7.26 kg
- Volume: 7,984.38 cm³
- EAN: 5901289674621
Application and Installation
The sliding gate carriage 80 is designed for professional self-supporting and track-guided sliding gate systems. The slotted holes in the mounting plate allow precise adjustment of the carriage position, reducing installation time and simplifying track alignment. The use of plastic rollers eliminates metallic operating noise — the gate moves quietly and evenly, with no vibrations transmitted to the fence structure.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Single trolley |
| Roller Material | Plastic |
| Number of Rollers [szt.] | 9 |
| Trolley Construction | Fixed |
| Max. load capacity [kg] | 600 |
| Rail Size | 80x80x5 |
| Running System Type | Rolling system |
