End Caps for Balustrade Tubes, Handrails and Rods
This End Caps category covers 33 finishing elements for the open ends of balustrade tubes, square profiles, rods and handrails. Most are AISI 304 stainless steel, with AISI 316 and aluminium options. They suit installers and builders fitting balcony, terrace, stair and glass balustrades, indoors and outdoors.
What you will find in this category

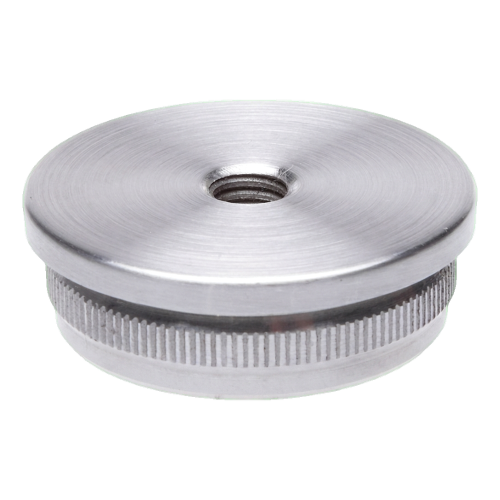

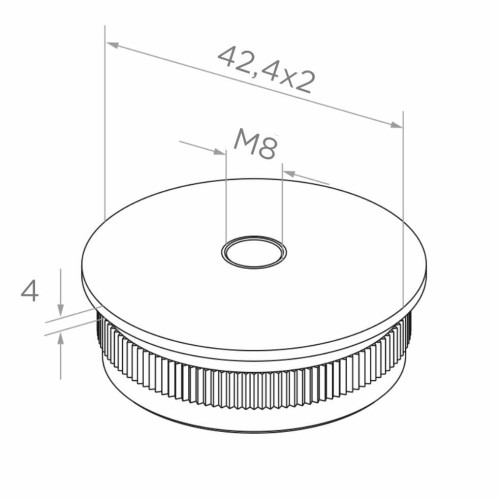

- Convex push-in and push-fit caps: for tubes Ø42.4 mm and 48.3 mm with 2 mm wall, some with a central M8 thread.

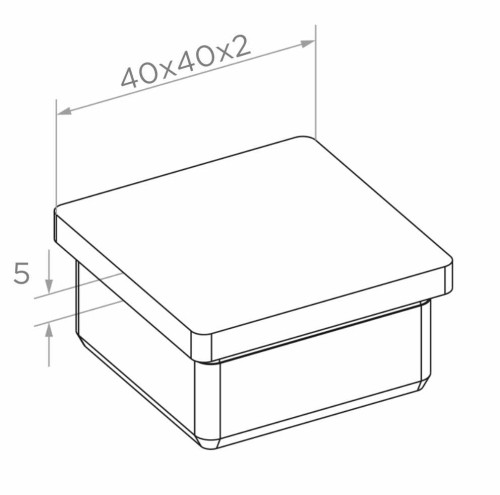

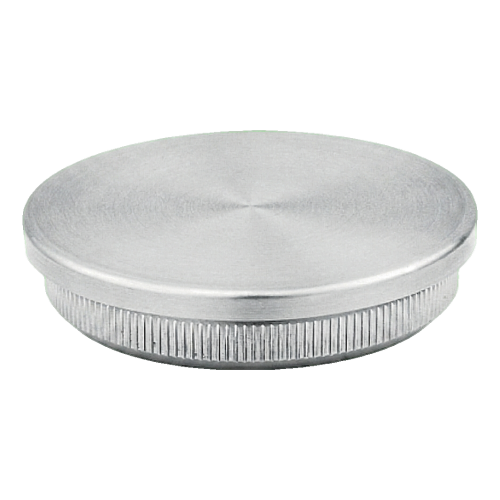

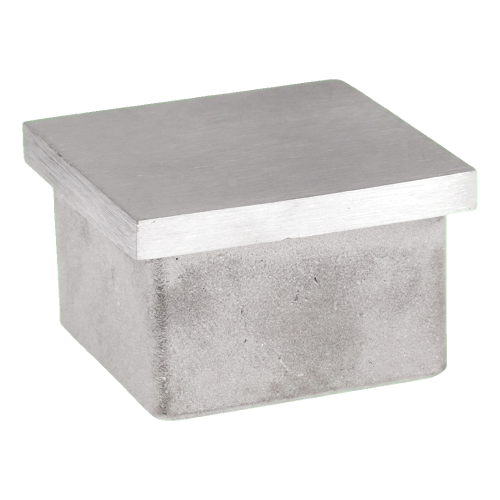

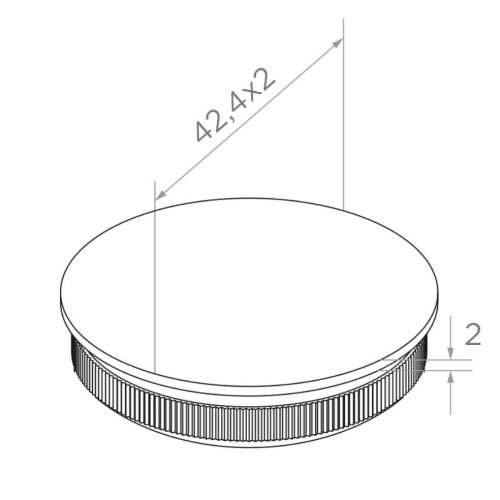

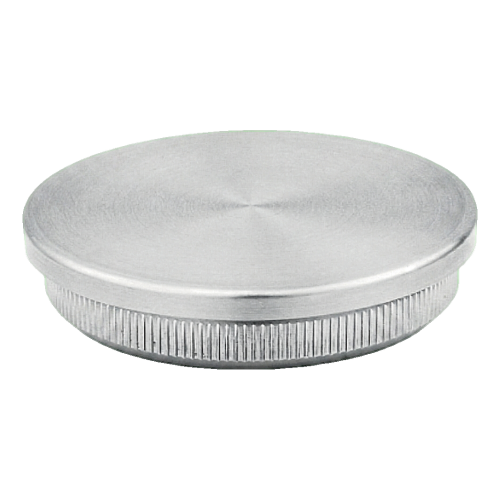

- Flat push-in and drive-in caps: for Ø42.4 mm and 48.3 mm tubes, plus 40x40 mm profile with M8 thread.
- Ellipsoidal caps: push-fit domed caps for 42.4 mm and 48.3 mm tubes, dome height 22-30 mm.

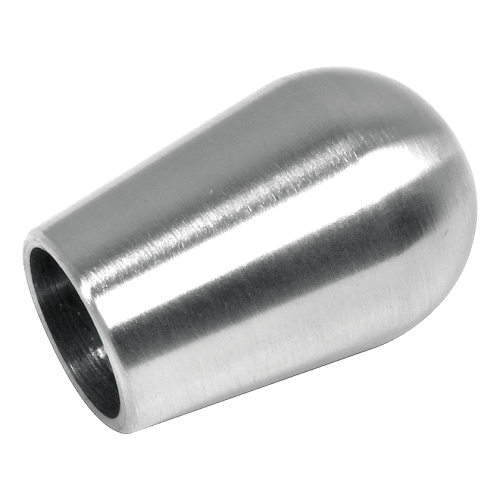

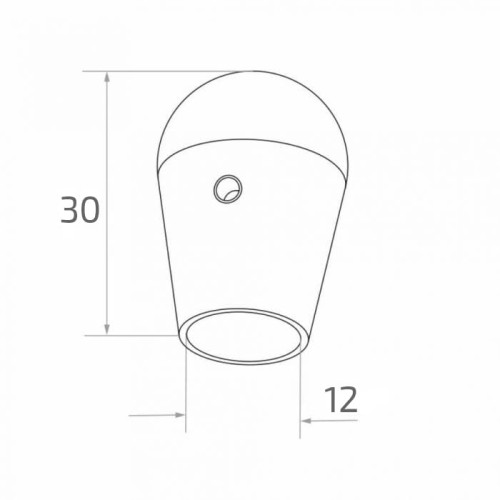

- Rod end caps: round for Ø10, 12, 14 and 16 mm, oval Ø12 mm, and square 10x10 and 12x12 mm.

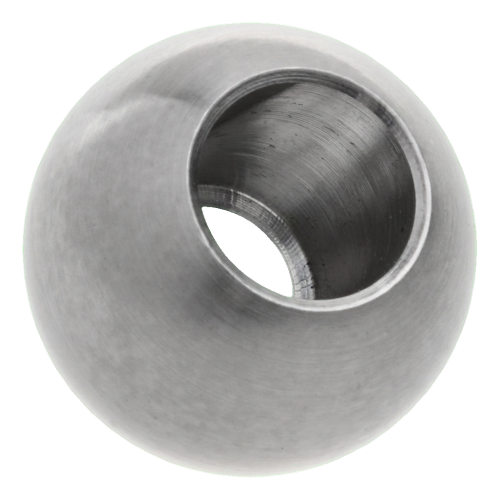

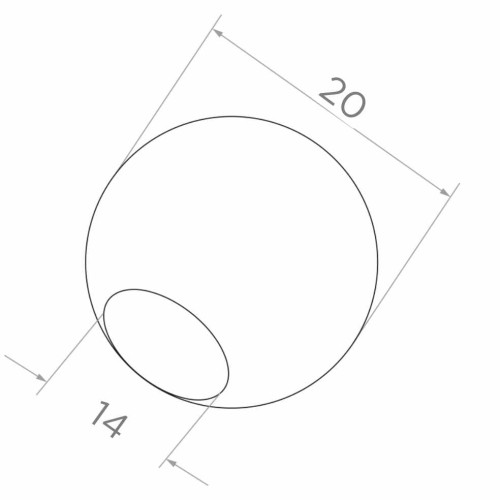

- Balustrade balls: glue-in balls Ø20 mm and Ø25 mm, plus a Ø20 mm corner insert ball with two Ø12 mm holes at 90°.

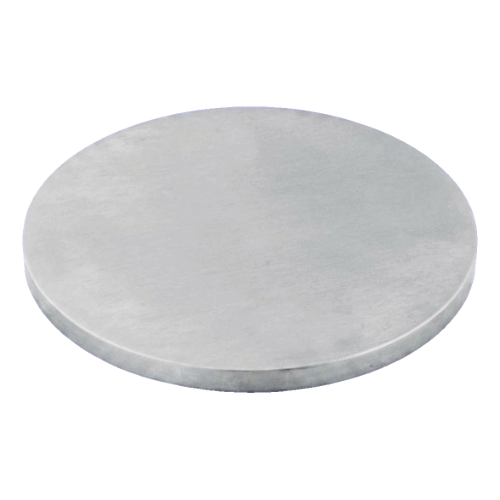

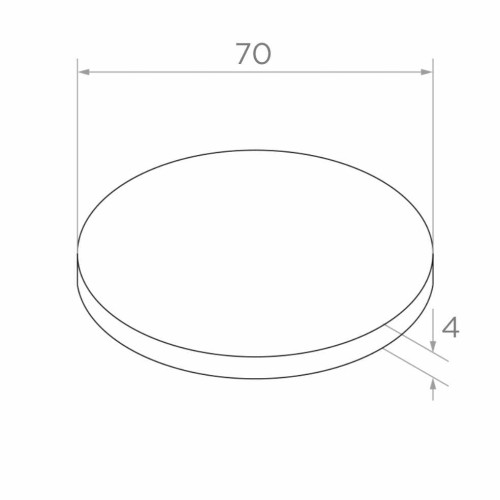

- Welding end caps: flat, 4 mm thick, for tubes Ø50 mm and Ø70 mm.
- Kozza aluminium caps: flat glue-in, sold as a set of 2 for Ø40 mm round aluminium handrail.
How to choose
- Tube or rod size: match the outside diameter or cross-section and the 2 mm wall thickness listed for the cap.
- Material: AISI 304 is the most common choice, AISI 316 is available for selected sizes, and aluminium suits the Kozza handrail.
- Fixing method: choose push-in, anaerobic adhesive, grub screw or welding to suit the job.
- Shape and height: flat caps sit low, convex heads are 4-8 mm high, and ellipsoidal domes reach 22-30 mm.
- Finish: most caps are satin, and some are polished. Match the finish of the tube.
Typical applications
Push-in caps close handrail and post tubes on balcony, terrace and stair balustrades. They also protect the tube interior from precipitation and corrosion. Rod caps and balls finish balustrade rods, and welding caps close larger tubes. Kozza caps finish aluminium handrails on glass balustrades.
Frequently asked questions
Do push-in caps need adhesive?
Convex push-in caps have a knurled stem that seats in the tube without adhesive. Rod end caps and balls are bonded with anaerobic adhesive. The oval Ø12 mm rod cap uses a grub screw.
Which caps are available in AISI 316?
Two products: a convex push-in cap for Ø42.4 mm tube and a Ø12 mm rod end cap. Both have a satin finish.
Are the Kozza caps sold as a pair?
Yes. Each Kozza set contains 2 pieces, one for each end of a Ø40 mm aluminium handrail.
Not sure which cap fits your tube or rod? Contact technical support for help with selection.
