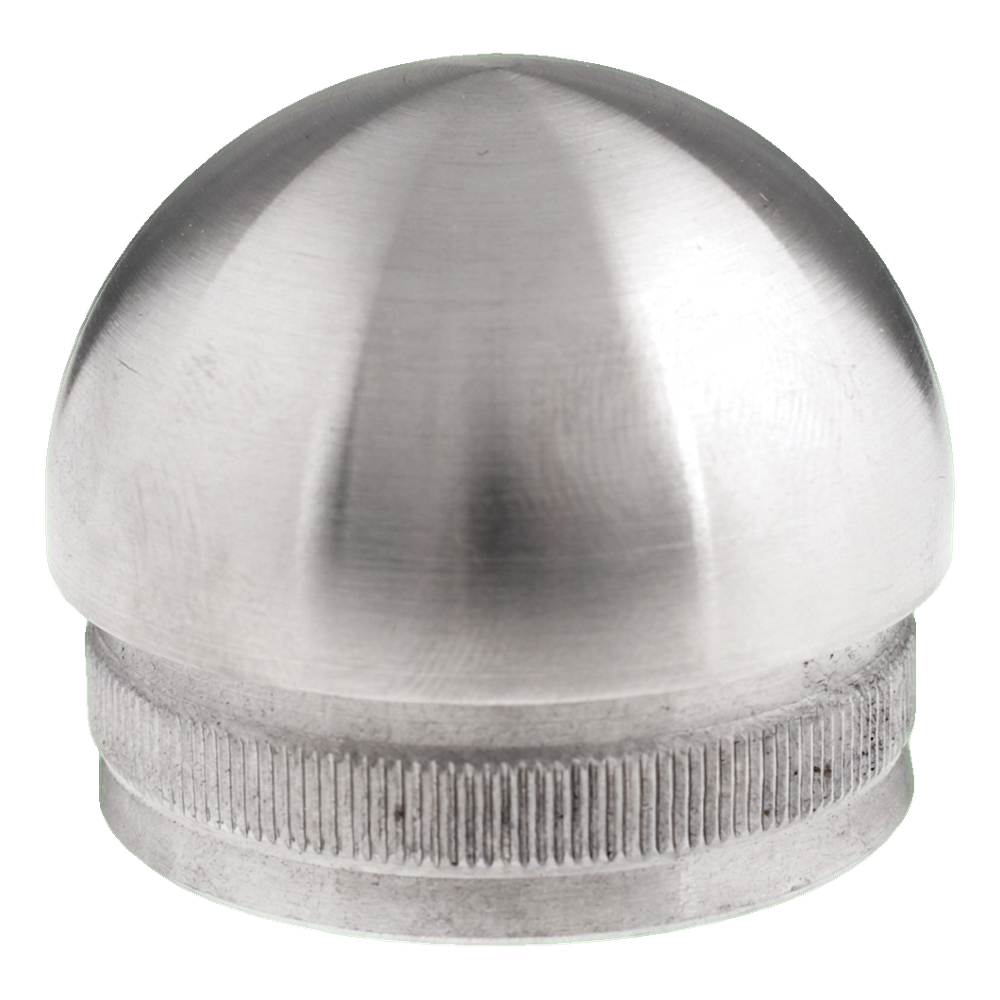

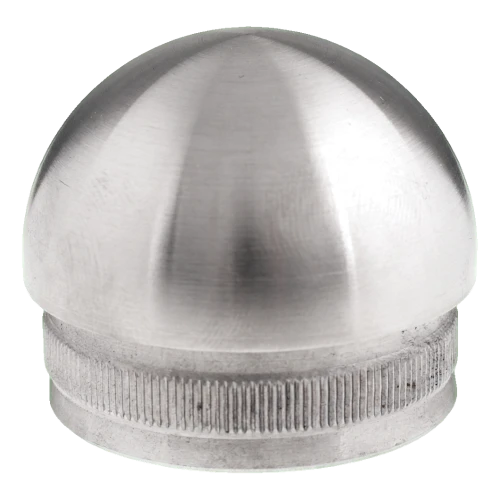

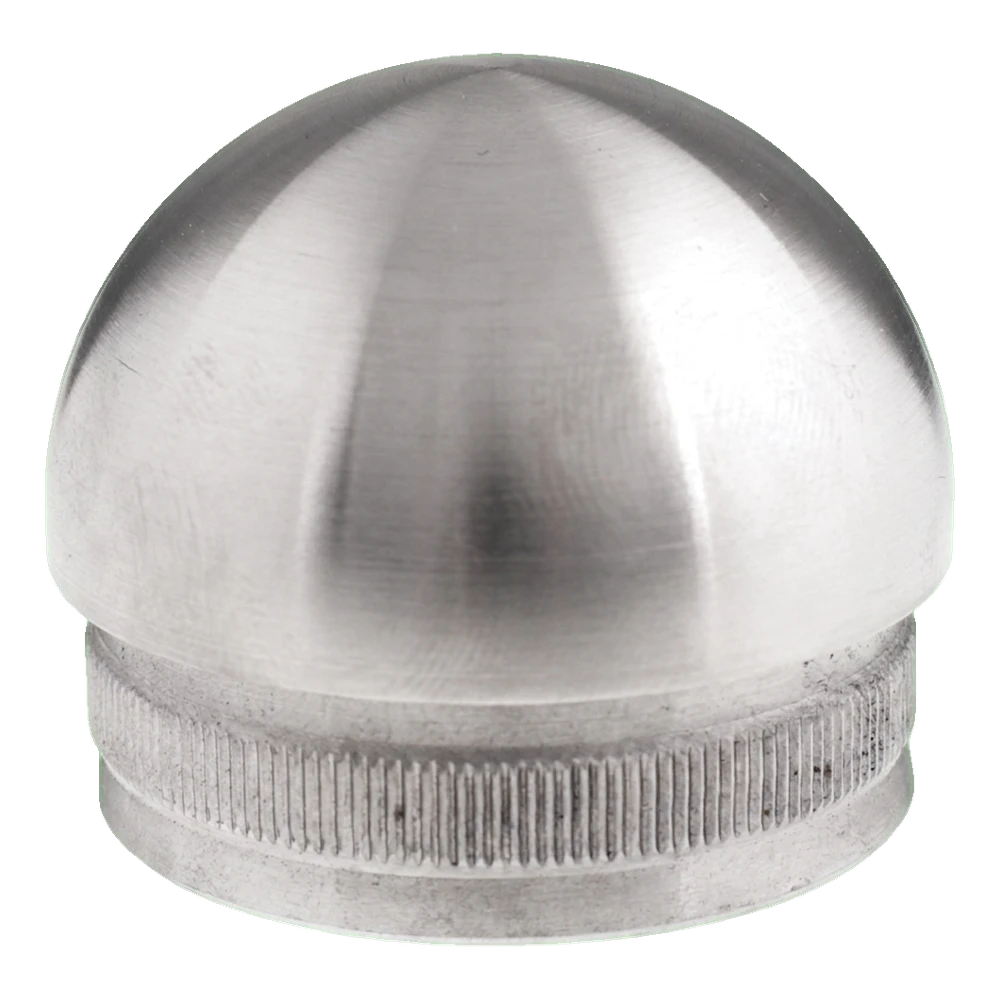

Ellipsoidal push-in end cap for 48.3 mm tube, stainless steel AISI 304 satin
Description
Ellipsoidal push-in end cap for 48.3 mm tube, stainless steel AISI 304 satin
Ellipsoidal push-in end cap is an aesthetic and durable finishing for tubes with diameter ø 48.3 × 2 mm, intended for balustrades, handrails and stainless steel posts. Installation involves simply pushing the end cap into the open end of the tube — the knurled stem ensures secure and stable seating without the need for gluing or welding. This makes installation quick and requires no additional tools, resulting in time savings on-site.
The ellipsoidal dome shape gives the finish an elegant, rounded profile that perfectly complements modern stainless steel balustrade systems. The satin surface is fingerprint-resistant and easy to keep clean.

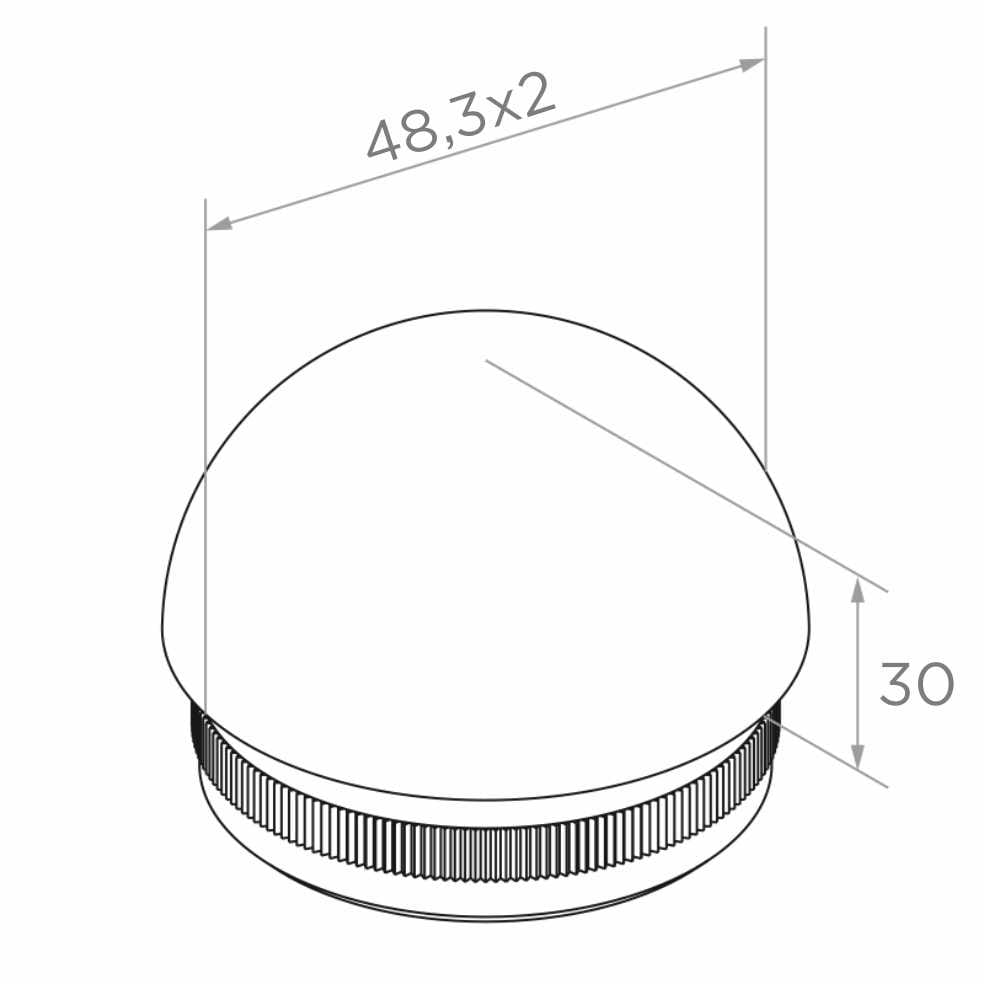

Technical parameters
- Type: ellipsoidal push-in end cap
- Application: tube diameter ø 48.3 × 2 mm
- Dome height: 30 mm
- Overall dimensions: 48 × 27 mm (width × height)
- Material: stainless steel AISI 304
- Surface finish: satin
- Installation: push-in (knurled stem)
- Weight: 0.11 kg
- EAN: 5901289672597
Application
The end cap is dedicated to balustrade and handrail systems made from round tube ø 48.3 mm with 2 mm wall thickness. It provides aesthetic closure for open ends of posts and handrails, whilst protecting the tube interior from moisture and contamination. An ideal finishing element for both internal and external installations — AISI 304 steel provides high corrosion resistance under standard atmospheric conditions.
Technical data
| Material | AISI 304 |
| Mounting System | 48.3 mm |
