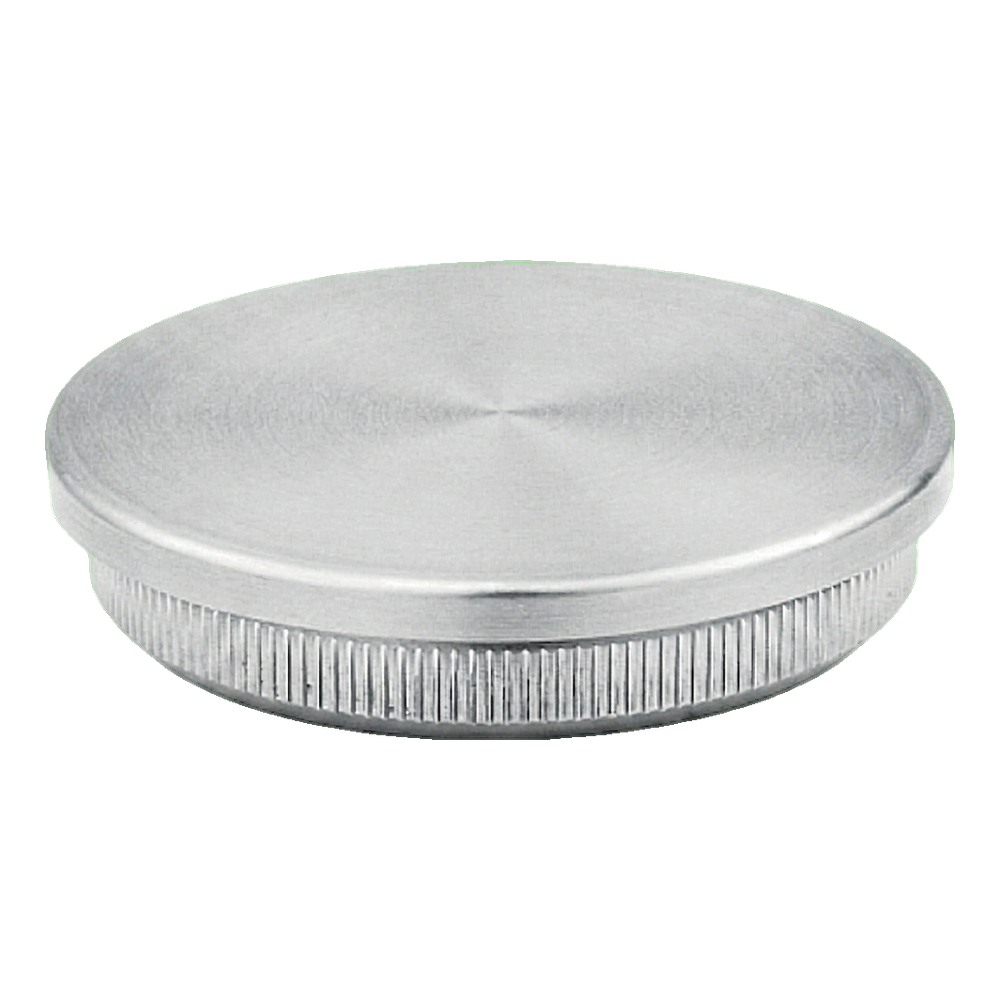

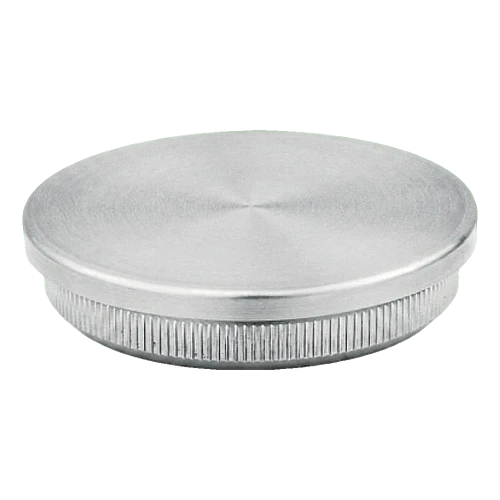

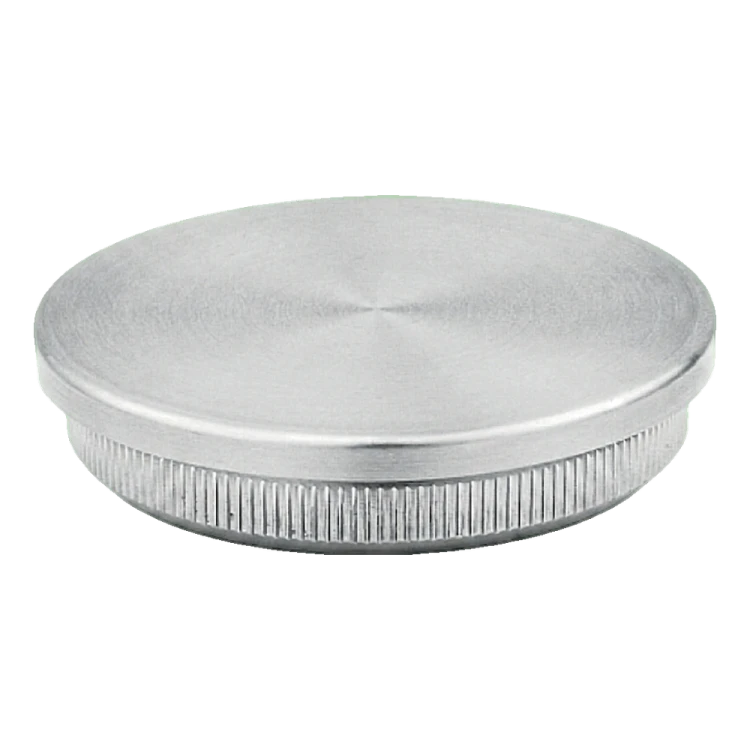

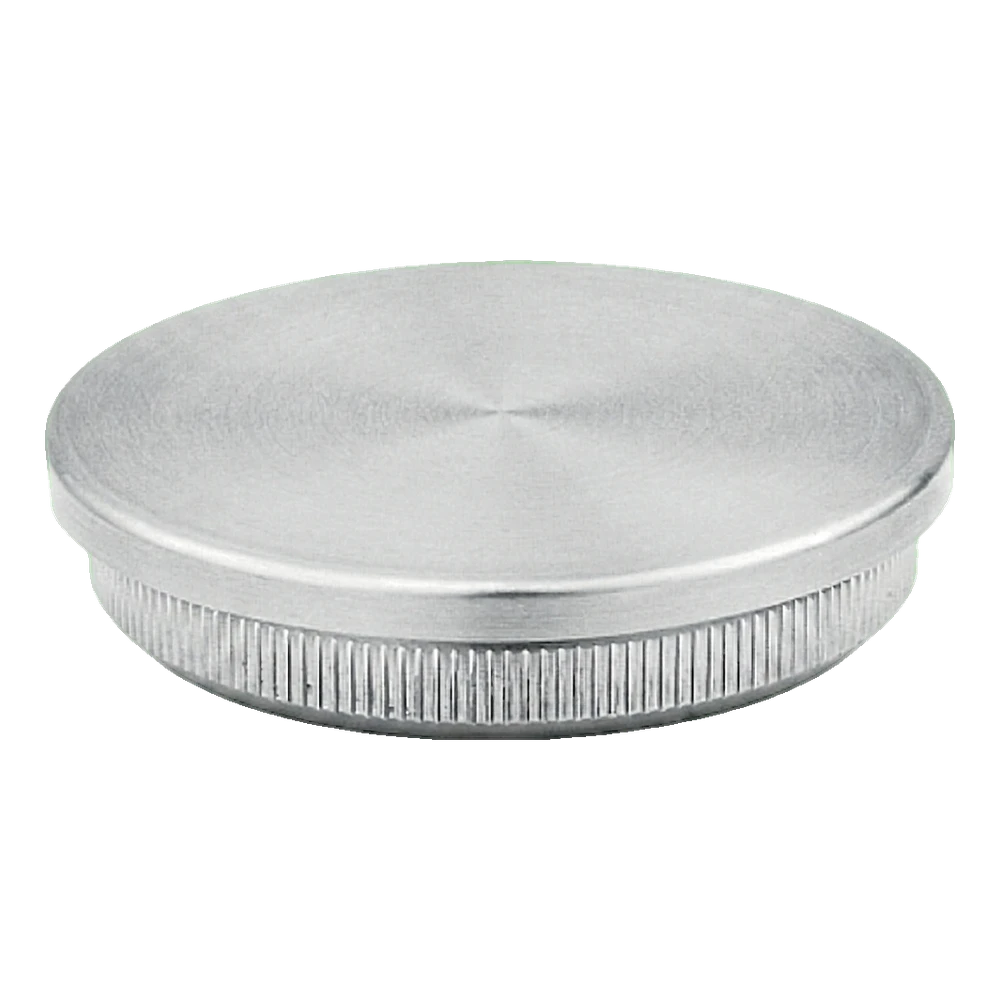

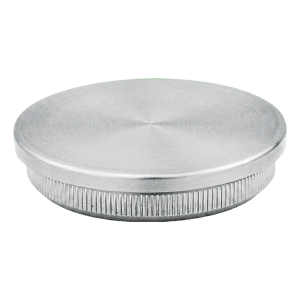

Flat push-in end cap for handrail tube 48.3 mm, stainless steel AISI 304 satin
Description
Flat push-in end cap for handrail tube 48.3 mm, stainless steel AISI 304 satin
Flat push-in end cap is a finishing element designed for stainless steel handrail tubes with external diameter 48.3 mm and wall thickness 2 mm. Mounted by pushing into the tube interior, it effectively conceals openings and protects the structure from rainwater ingress, contamination and corrosion. Thanks to its flat, satin-finished surface, it provides aesthetic, professional finishing for balcony, terrace and stair handrails.
Made from stainless steel AISI 304 with satin finish, the end cap features high corrosion resistance and weather resistance — performs excellently both indoors and outdoors. The knurled mounting edge ensures secure, stable seating in the tube without requiring additional fastening elements.

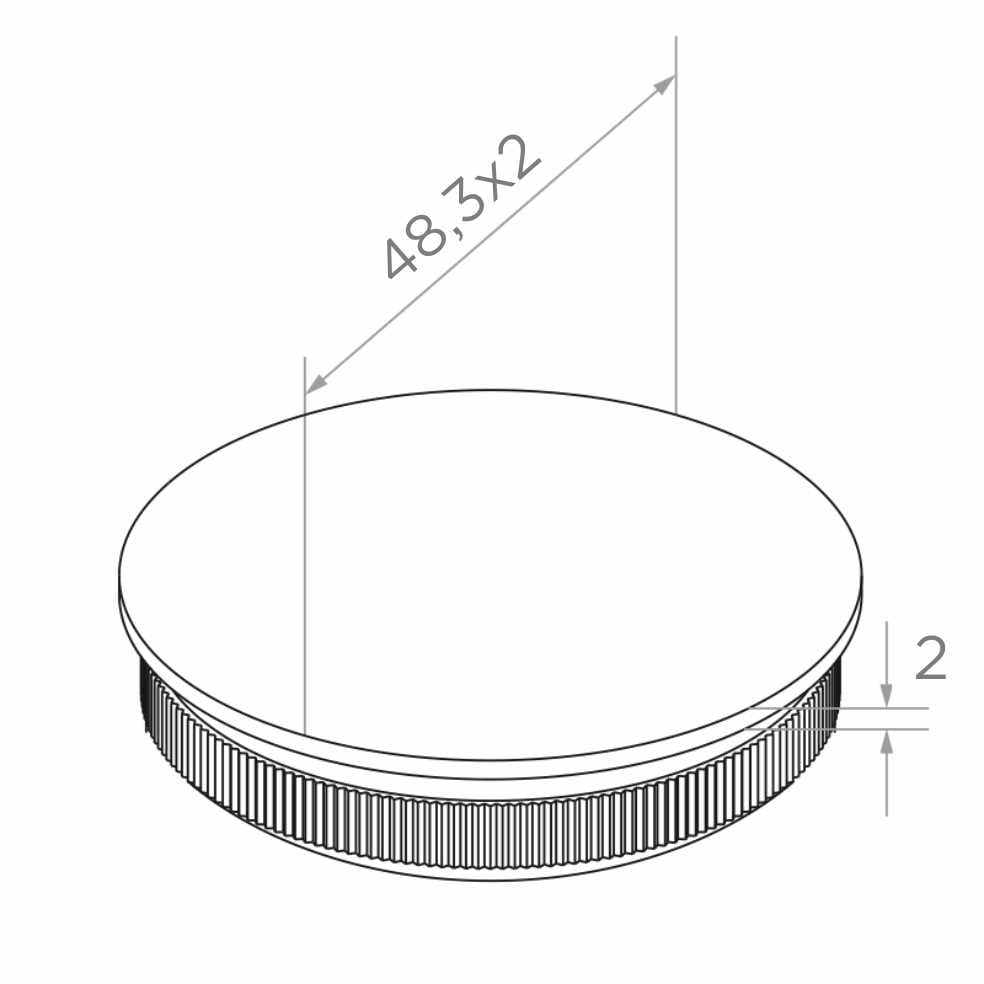

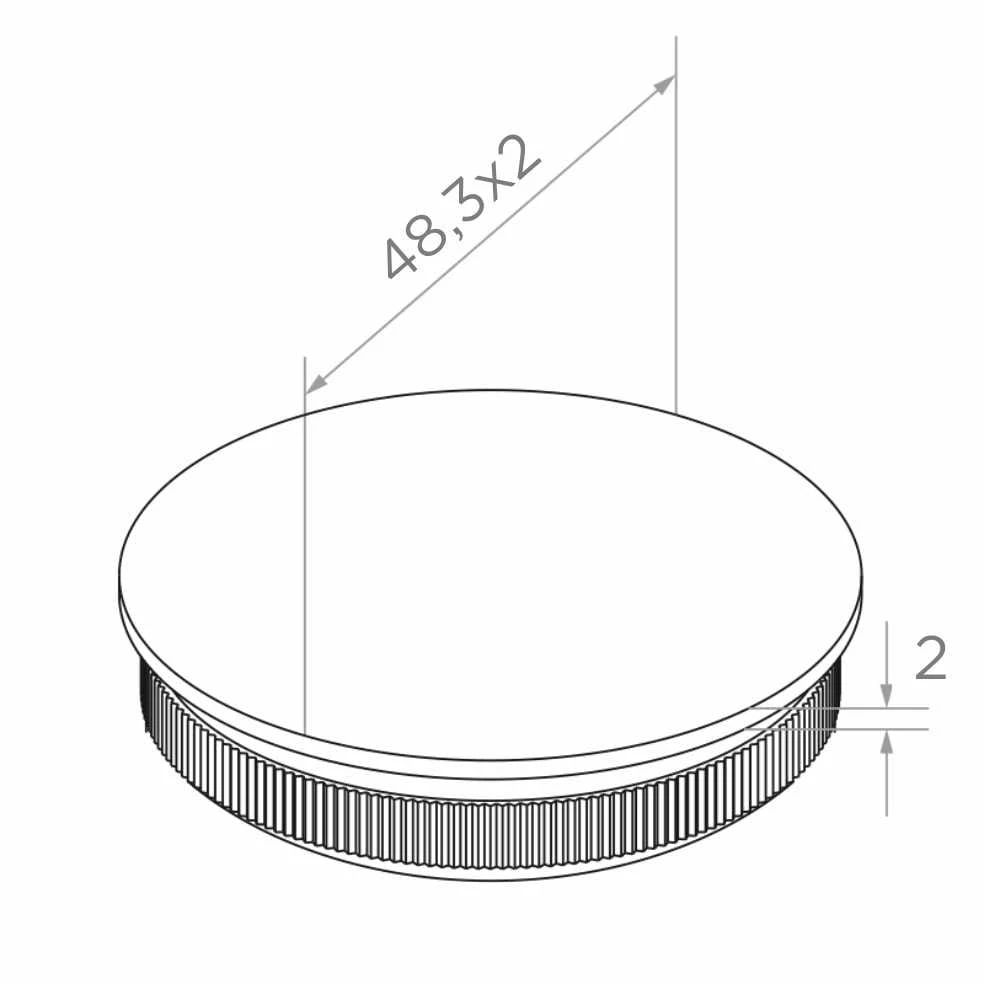

Dimensions and technical data
- Type: flat push-in end cap
- Tube system: Ø 48.3 × 2 mm (external diameter × wall thickness)
- Flange thickness: 2 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.088 kg
- EAN: 5901289672573
Application
The end cap is designed for finishing open ends of tubes in stainless steel handrail systems. It finds application in balcony, terrace and stair handrails — in both residential and commercial buildings. Quick installation by push-in mounting saves time on site, which is a significant advantage when executing larger installation projects.
Technical data
| Material | AISI 304 |
| Mounting System | 48.3 mm |
