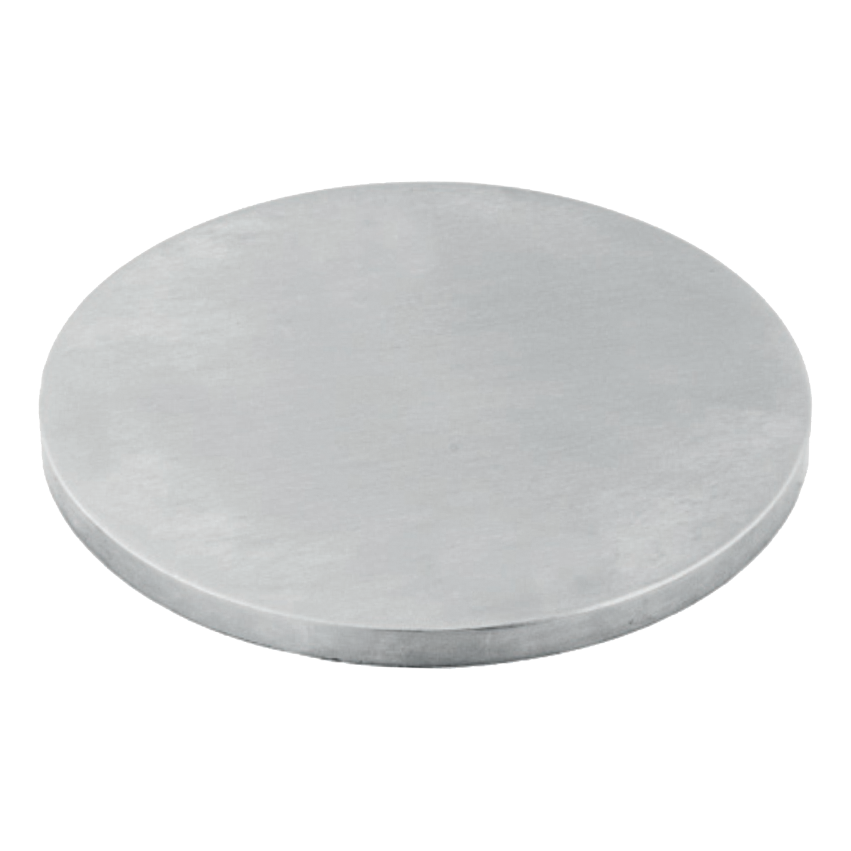

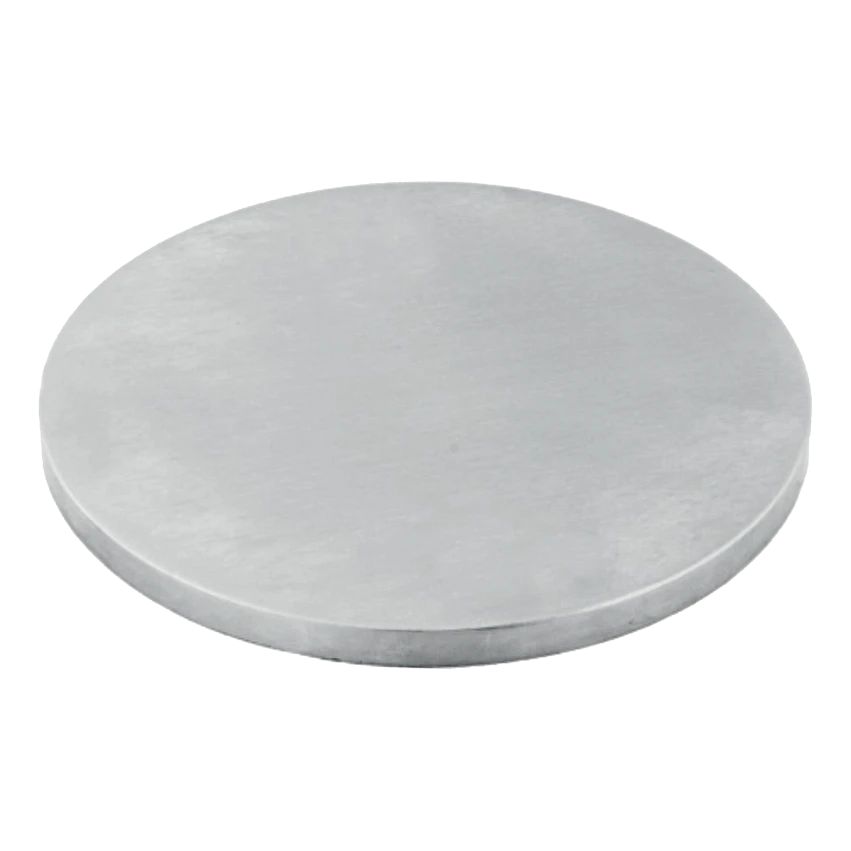

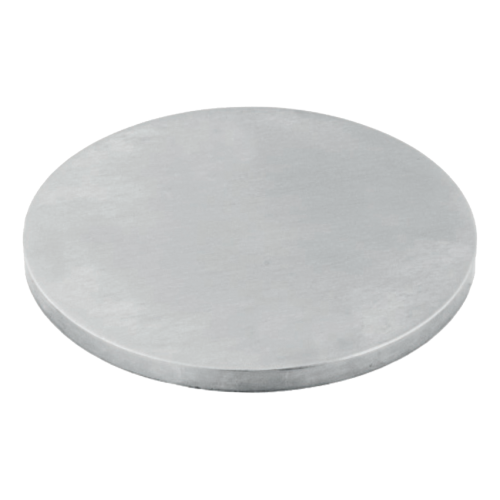

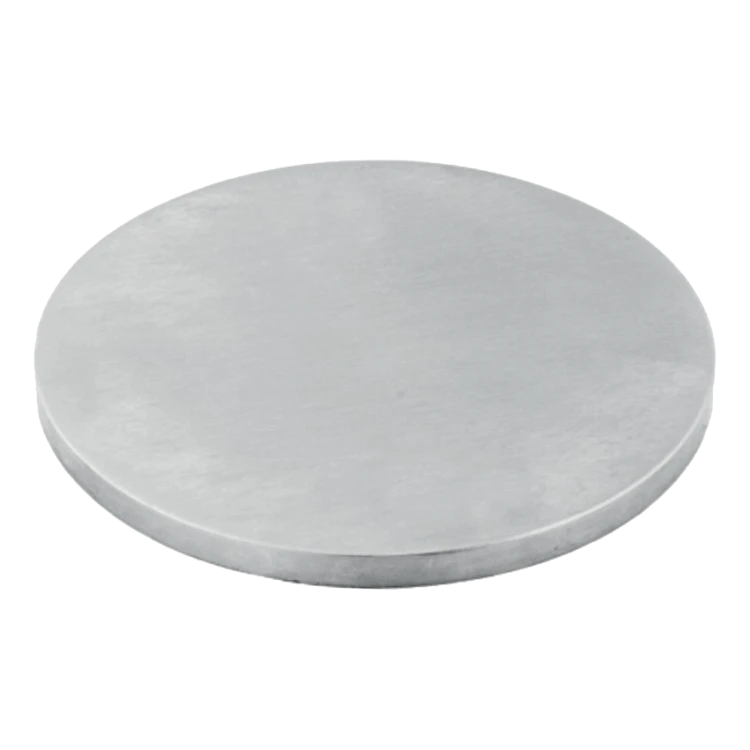

Flat welding end cap 50mm dia AISI 304 – satin
0
Description
Flat welding end cap 50mm dia AISI 304 – satin
Flat welding end cap 50mm dia in stainless steel AISI 304 is an aesthetic and durable finishing element used in the production of stainless steel balustrades and handrails. The satin surface gives the end cap an elegant, matt appearance that perfectly complements other balustrade construction elements. The end cap is designed for welding to 50mm diameter tube, ensuring a permanent and sealed closure of the profile.
Thanks to the use of AISI 304 alloy, the product features high resistance to corrosion and atmospheric factors, enabling installation both inside buildings and outdoors. The universal disc shape means the end cap fits a wide range of tubes and balustrade posts with 50mm diameter.

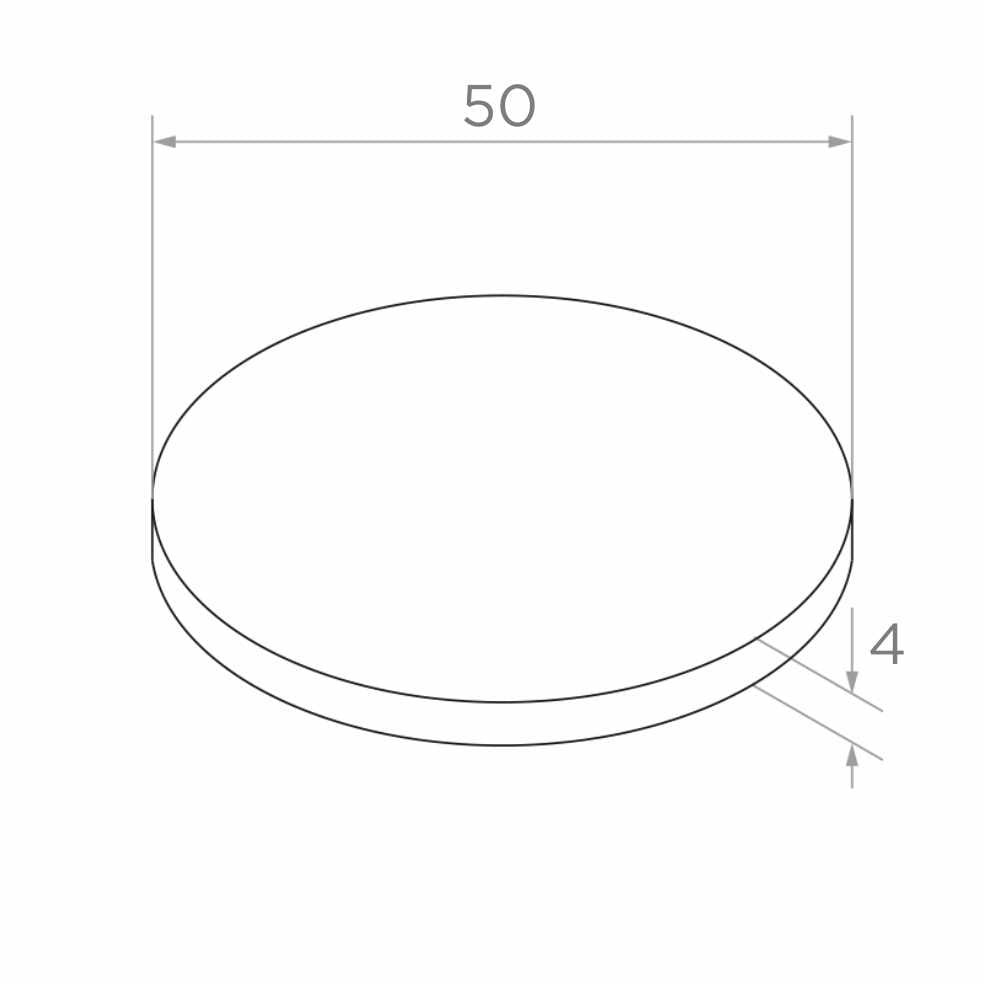

Technical parameters
- Diameter: 50mm
- Thickness: 4mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Purpose: welding to 50mm dia tube
- Weight: 0.065kg
- Application: balustrades, stainless steel handrails
- EAN: 5901289673976
Application
The flat end cap 50mm dia is an essential finishing element when installing stainless steel balustrades and handrails. Welded to the end of a tube or post, it provides an aesthetic closure of the profile whilst protecting the interior of the tube from moisture and contaminants. It works well in both internal installations (staircases, mezzanines, shopping centres) and external ones (balconies, terraces, entrance steps).
Technical data
| Material | AISI 304 |
