Glue-in balustrade ball fi 20 mm, hole 14 mm, stainless steel AISI 304 satin
Description
Glue-in balustrade ball fi 20 mm, hole 14 mm, stainless steel AISI 304 satin

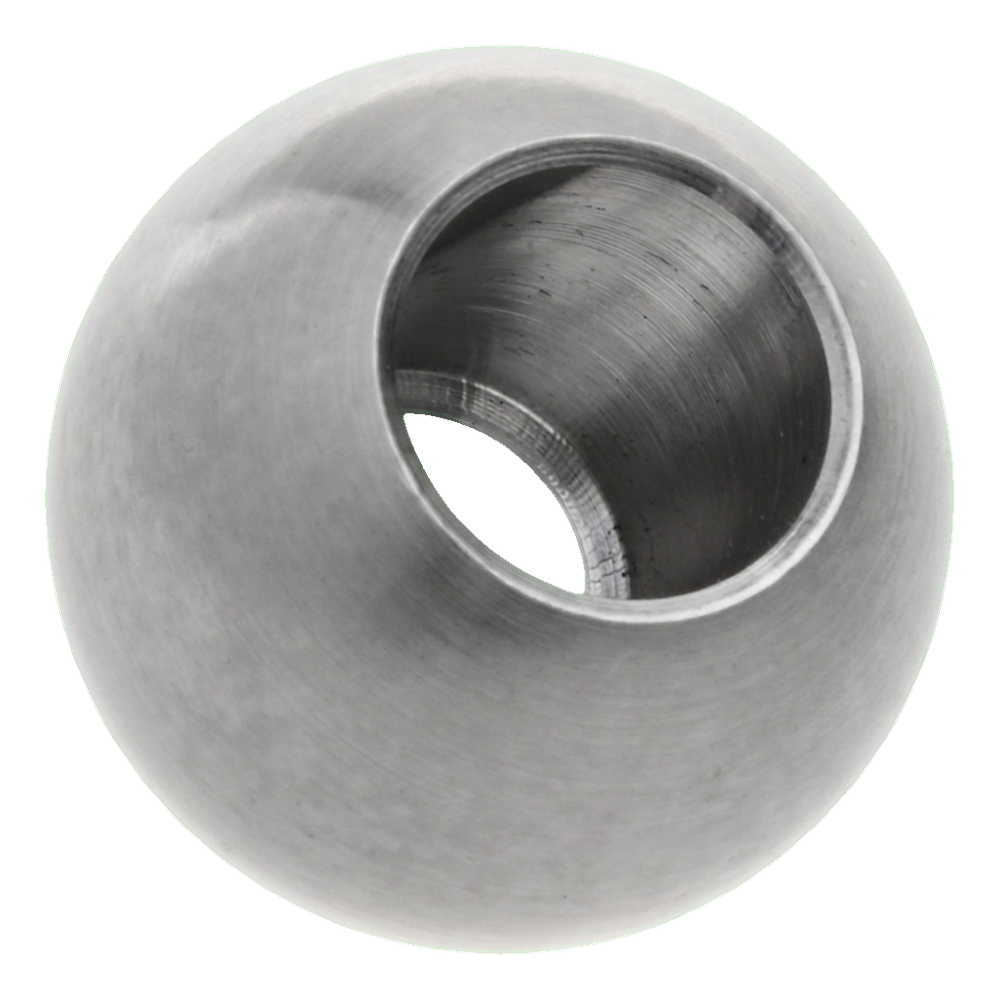

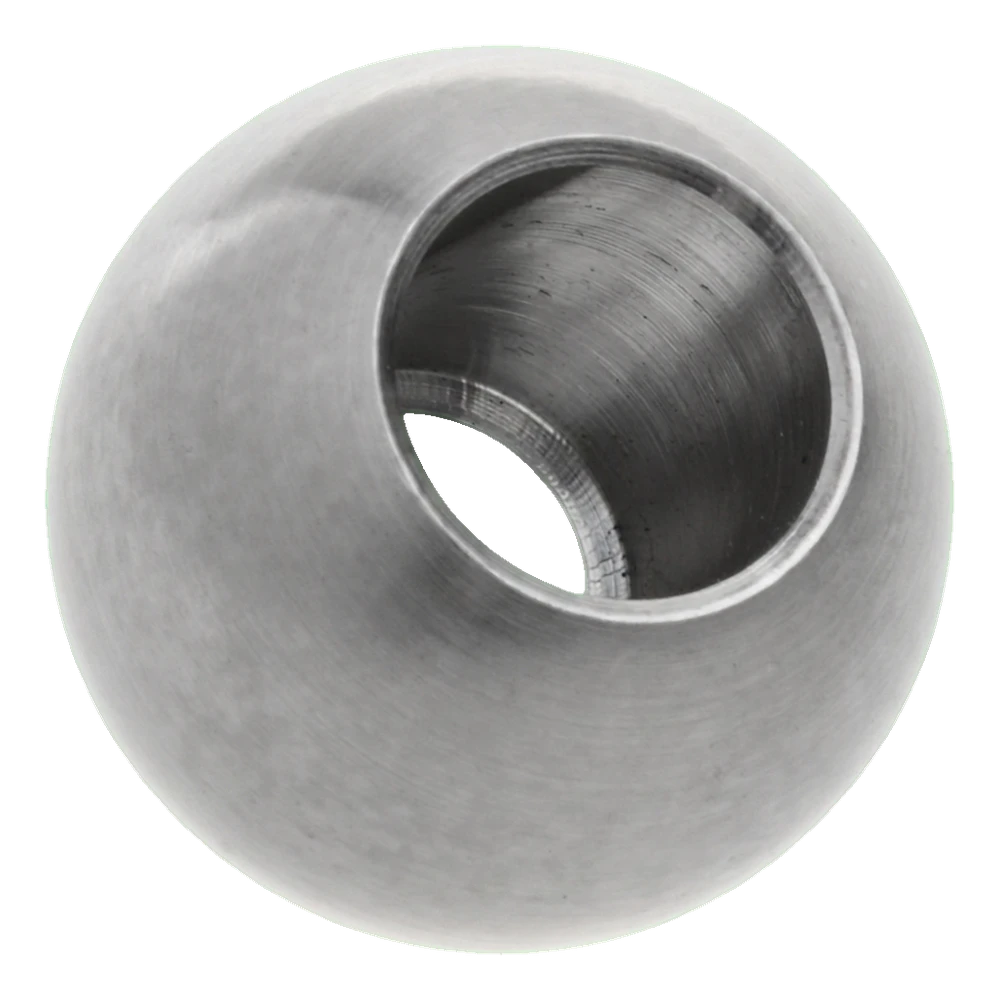

Glue-in ball fi 20 mm is a decorative finishing element designed for stainless steel balustrades. It aesthetically finishes open tubular profiles, eliminating sharp edges and protecting the tube interior from contamination. Thanks to its universal design and satin finish, it perfectly complements the most popular balustrade systems on the market.
The ball has a non-through hole with a diameter of 14 mm, matched to standard balustrade posts and bars. Installation is carried out by gluing with anaerobic adhesive — this ensures a permanent, clean and aesthetic connection without visible mechanical joints. Quick and repeatable installation allows for reduced completion time on projects.
Technical specification
- Ball diameter: 20 mm
- Hole diameter (non-through): 14 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Type: universal
- Installation method: gluing (anaerobic adhesive)
- Weight: 0.018 kg
- Overall dimensions: 20 × 20 × 20 mm
- EAN: 5901289672849

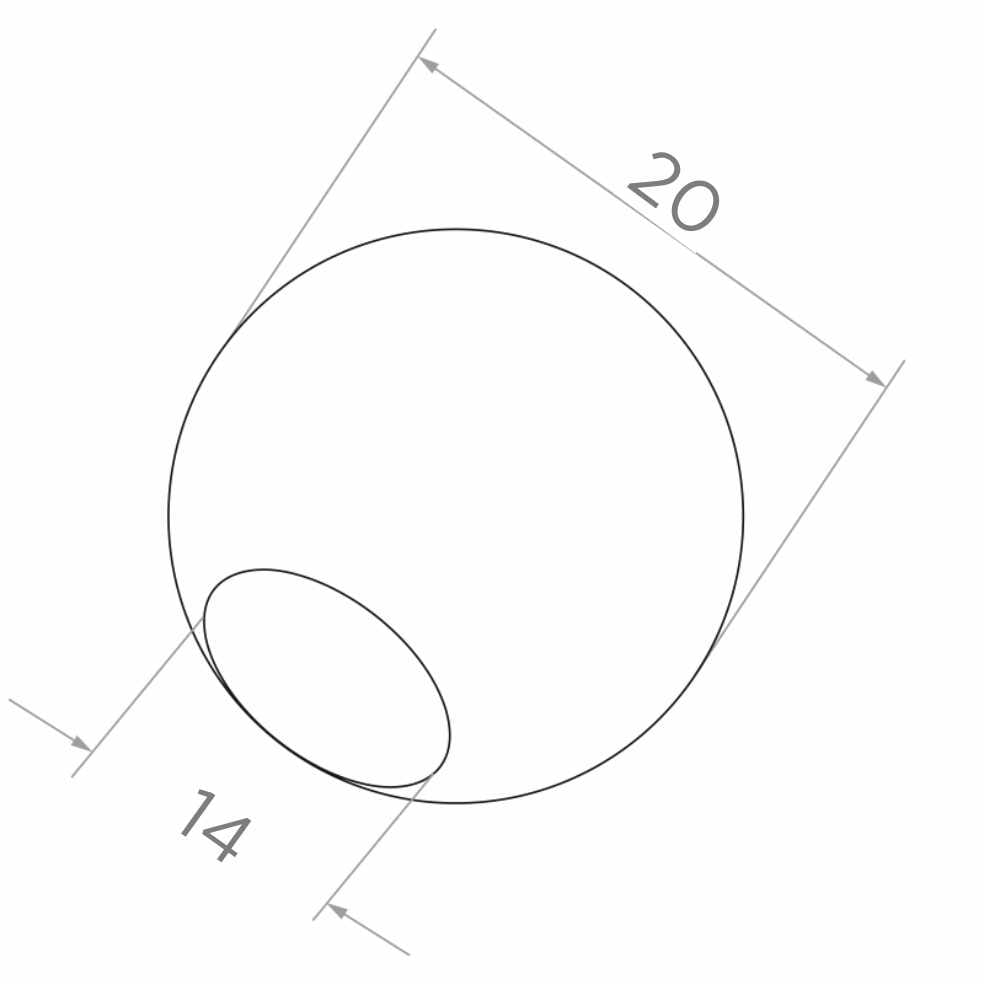

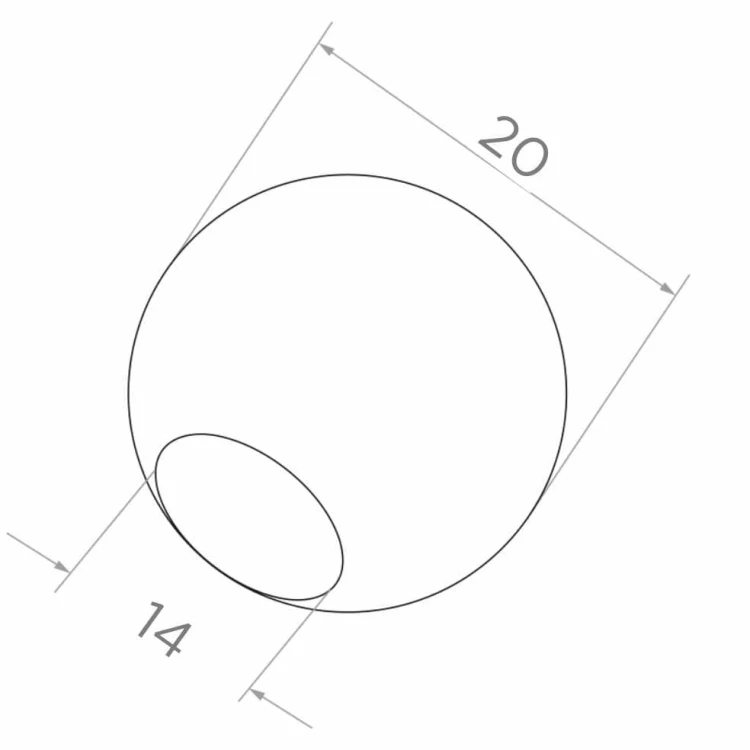

Dimensions on technical drawing
- Ball external diameter (D): 20 mm
- Mounting hole diameter (d): 14 mm
The product — made from high-grade stainless steel AISI 304, resistant to corrosion and atmospheric conditions. The satin surface finish provides a consistent, matt appearance that is easy to keep clean. The ball is suitable for both internal and external balustrades — on staircases, terraces, balconies or ramps.
Technical data
| Material | AISI 304 |
