Flat push-in end cap for 40x40 mm profile with M8 thread, AISI 304 satin
Description

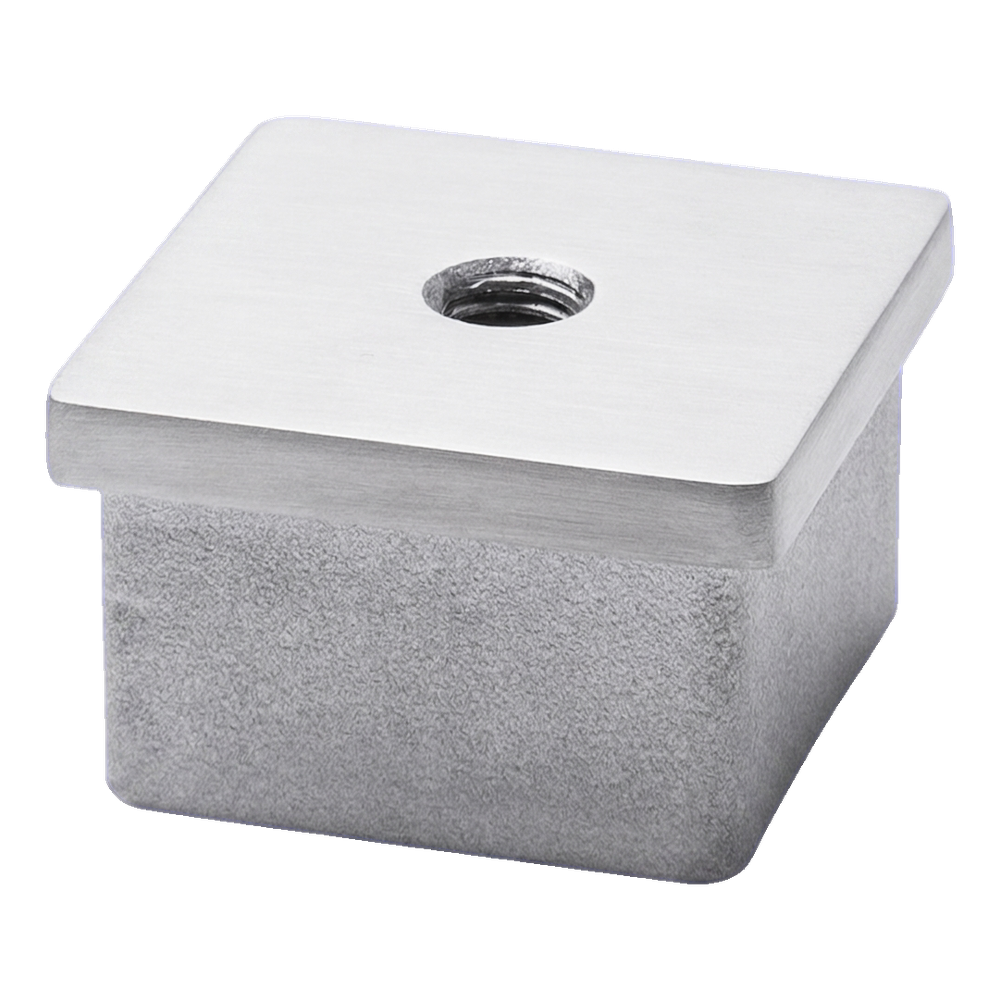

Flat push-in end cap for 40x40 mm profile with M8 thread, AISI 304 satin
Flat push-in end cap provides an aesthetic and durable finish for square stainless steel profiles 40×40 mm. The central M8 thread enables secure mounting of additional elements, such as handrail brackets or decorative balls. Made from AISI 304 steel with satin finish, the end cap perfectly complements other stainless steel balustrade elements and ensures a consistent, professional appearance of the construction.
The end cap is designed for assembly by pushing into the profile and securing with anaerobic adhesive. The adhesive bonds on contact with metal and hardens after compression and cutting off the oxygen supply — this makes the connection permanent, invisible and resistant to vibrations. This solution significantly speeds up the work of assembly teams and eliminates the need for additional fastening elements.
Applications and benefits
- Finishing stainless steel balustrade handrails — provides aesthetic, professional appearance
- Protection of profile interior against water and contamination, which increases corrosion resistance and extends construction life
- M8 thread allows mounting of decorative or functional elements directly on the end cap
- AISI 304 material — end cap designed for indoor applications

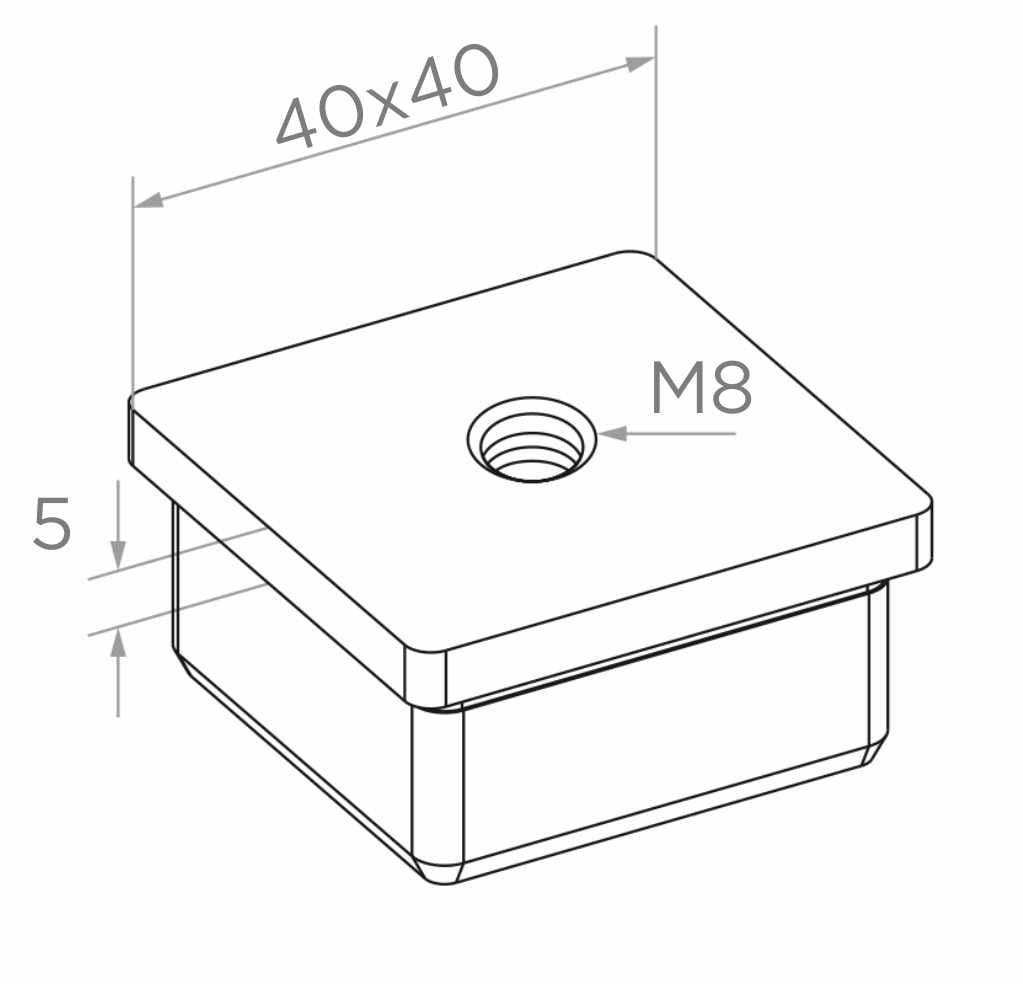

Technical parameters
- Type: flat push-in end cap, square
- External flange dimensions: 40×40 mm
- Profile wall thickness: 2.0 mm
- End cap height (H): 4 mm
- Flange thickness: 5 mm
- Central thread: M8
- Material: stainless steel AISI 304
- Surface finish: satin
- Assembly: push-fitting + anaerobic adhesive
- Weight: 0.075 kg
- EAN: 5901289672733
Thanks to precise matching to 40×40 mm profiles with 2 mm wall thickness, the end cap provides clean, sealed handrail finishing — without grinding or additional processing on site. The wide range of stainless steel end caps enables selection of the appropriate variant for every balustrade configuration.
Technical data
| Material | AISI 304 |
