Convex push-in balustrade end cap 48.3 mm – stainless steel AISI 304 satin
0
Description

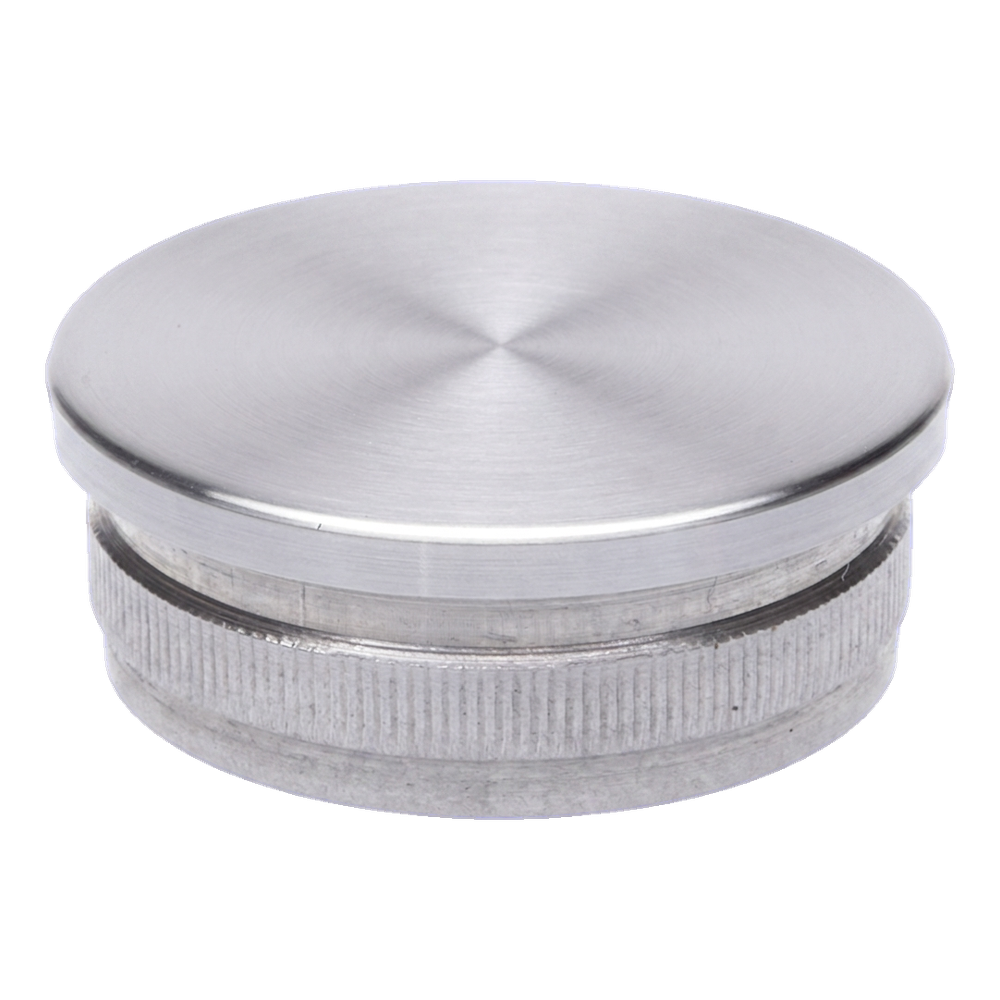

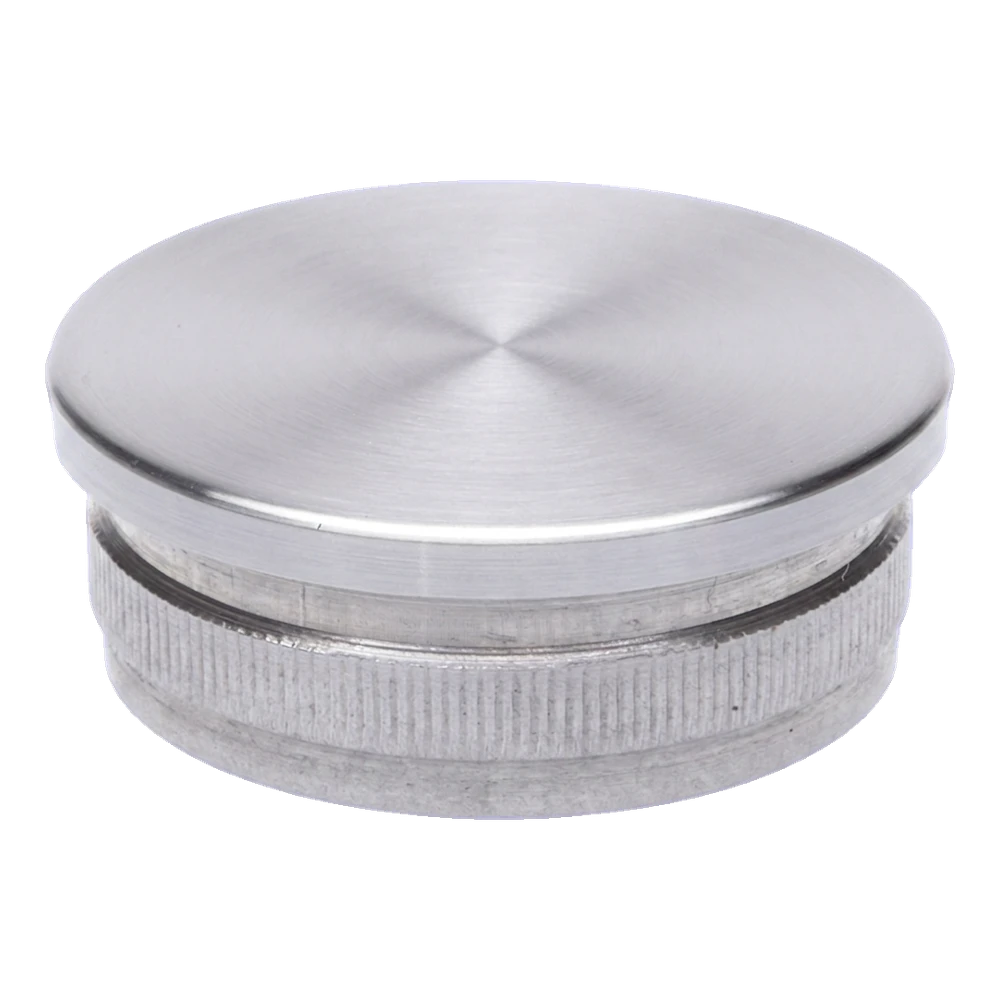

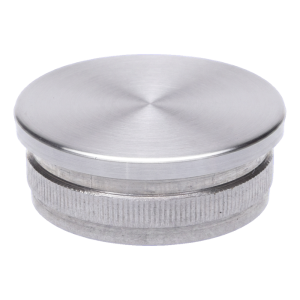

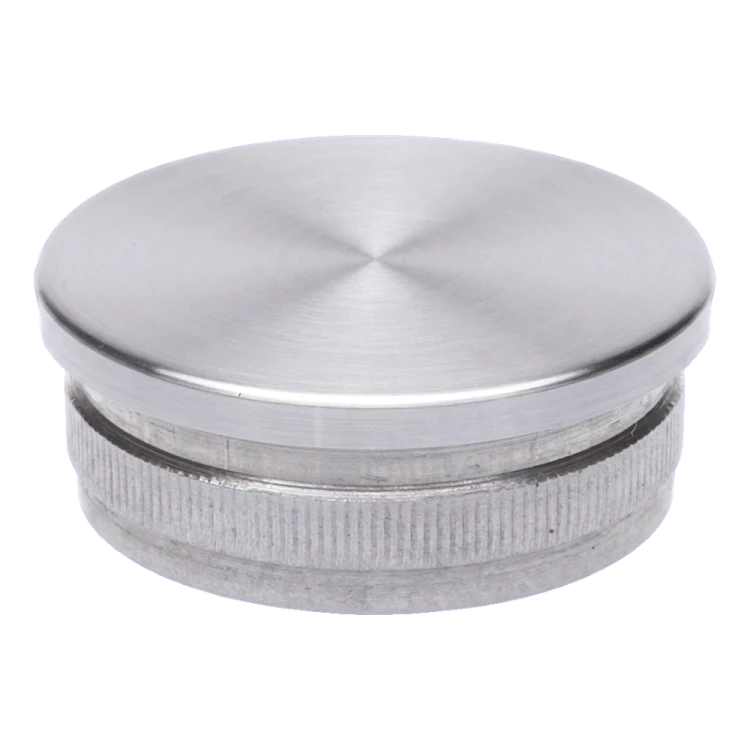

Convex push-in balustrade end cap 48.3 mm – stainless steel AISI 304 satin
Convex push-in end cap for round tubes with diameter 48.3 × 2 mm — an aesthetic finishing element designed for closing the ends of handrails and balustrade posts. Thanks to the knurled fitting section, installation is carried out by push-in method — without additional tools, adhesives or welding. The end cap provides a neat, safe closure of the profile, eliminating sharp edges and protecting the tube interior from contamination and moisture.
Made from stainless steel AISI 304 in satin (brushed) finish, which guarantees a uniform appearance with the remaining balustrade elements. AISI 304 steel ensures high corrosion resistance, making the end cap suitable for both internal applications and outdoor use.

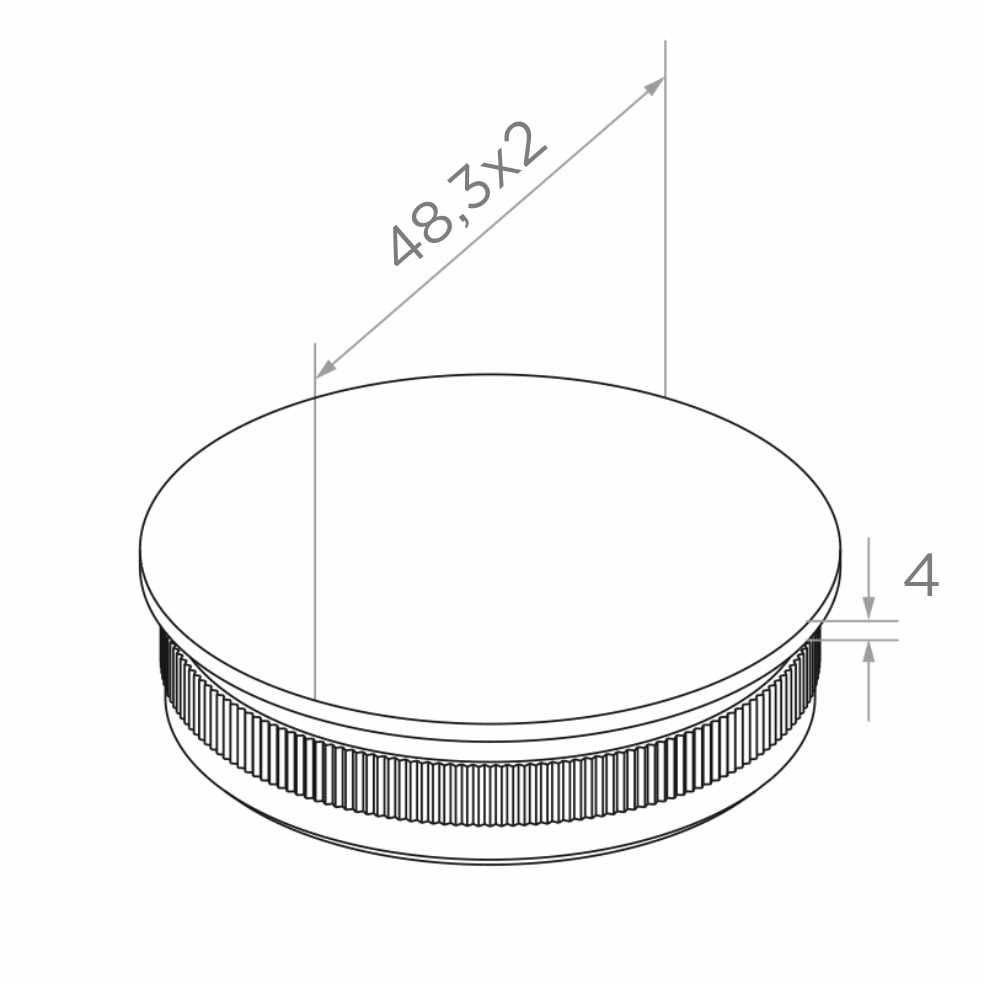

Technical parameters
- Type: convex (flat) push-in end cap
- Application: round tube Ø 48.3 × 2 mm
- Collar height: 4 mm
- Designation: H3
- Material: stainless steel AISI 304
- Surface finish: satin (brushed)
- Weight: 0.05 kg
- EAN: 5901289672528
Installation and application
The end cap is installed by pushing the knurled fitting section into the tube interior. Knurling ensures permanent and secure fitting without the possibility of accidental displacement. The element is dedicated to balustrade systems based on Ø 48.3 mm tubes — one of the most commonly used standards in stainless steel balustrades. It is ideal as a finish for top handrails, vertical posts and other structural elements of internal and external balustrades.
Technical data
| Material | AISI 304 |
| Mounting System | 48.3 mm |
