Corner insert ball fi 20 mm for AISI 304 stainless steel balustrades satin
Description

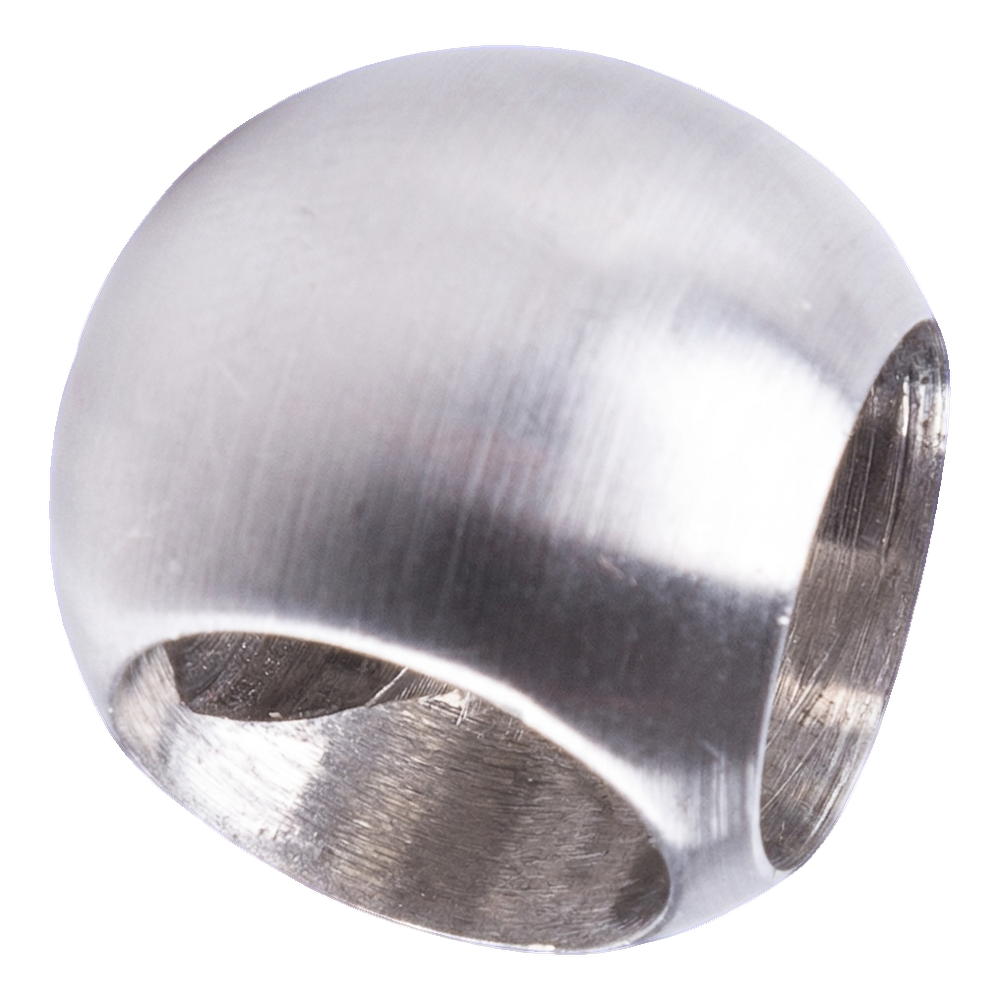

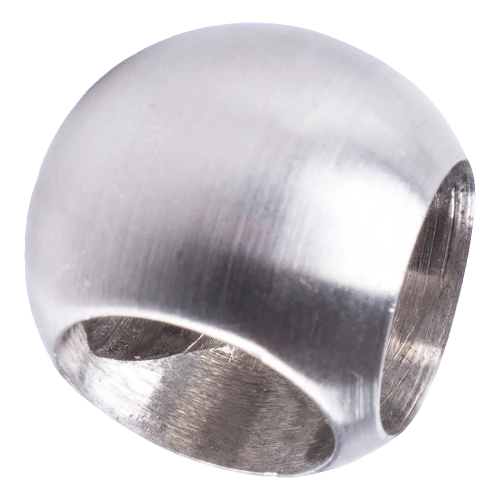

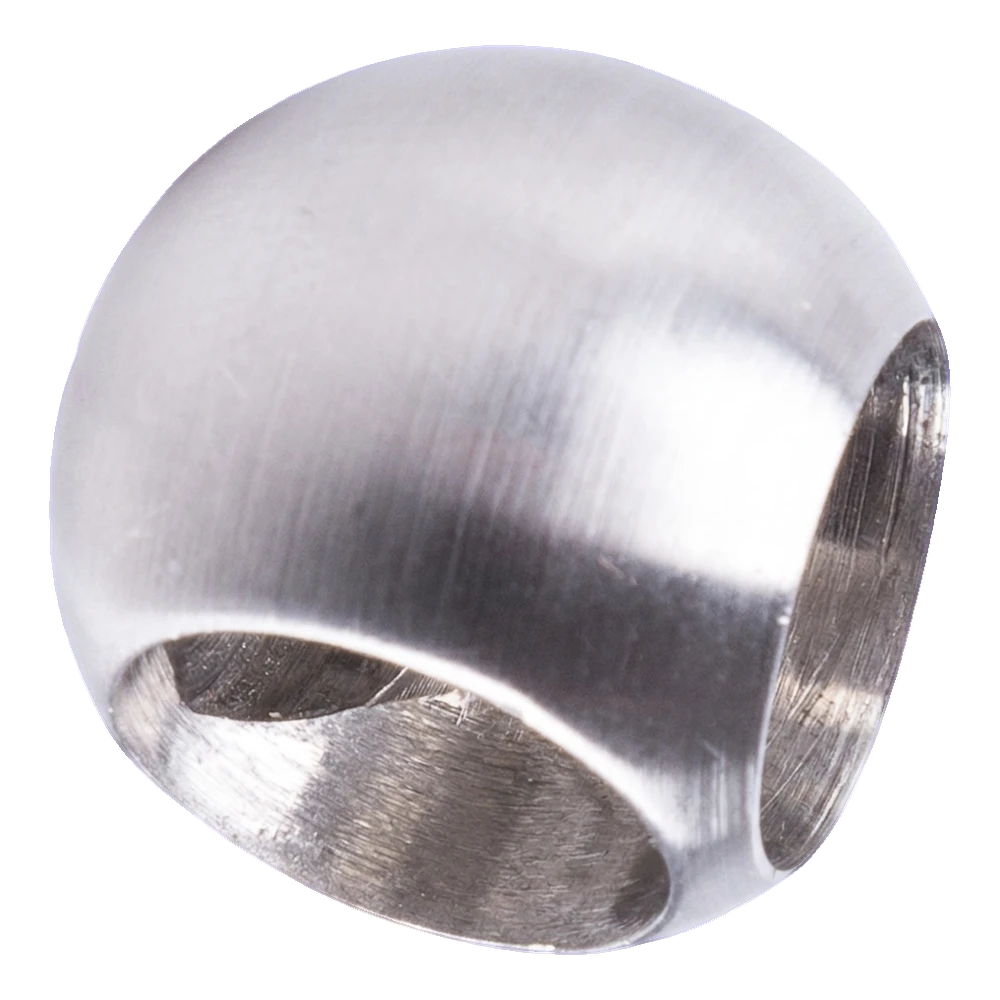

Corner insert ball fi 20 mm for AISI 304 stainless steel balustrades satin
Corner insert ball fi 20 mm is a decorative finishing element designed for stainless steel balustrades. With two holes positioned at a 90° angle, it performs perfectly as a corner connector, giving the balustrade an aesthetic and professional appearance. The ball terminates sharp edges of tubes, eliminating dangerous construction elements whilst simultaneously protecting openings from contamination.
Made from AISI 304 stainless steel in satin (brushed) finish, it ensures high corrosion resistance and an elegant, understated appearance that complements modern balustrades perfectly. Installation is carried out using the insertion method with anaerobic adhesive, which guarantees a permanent and clean connection without the need for welding — this accelerates construction work and eliminates heat treatment marks on the element's surface.

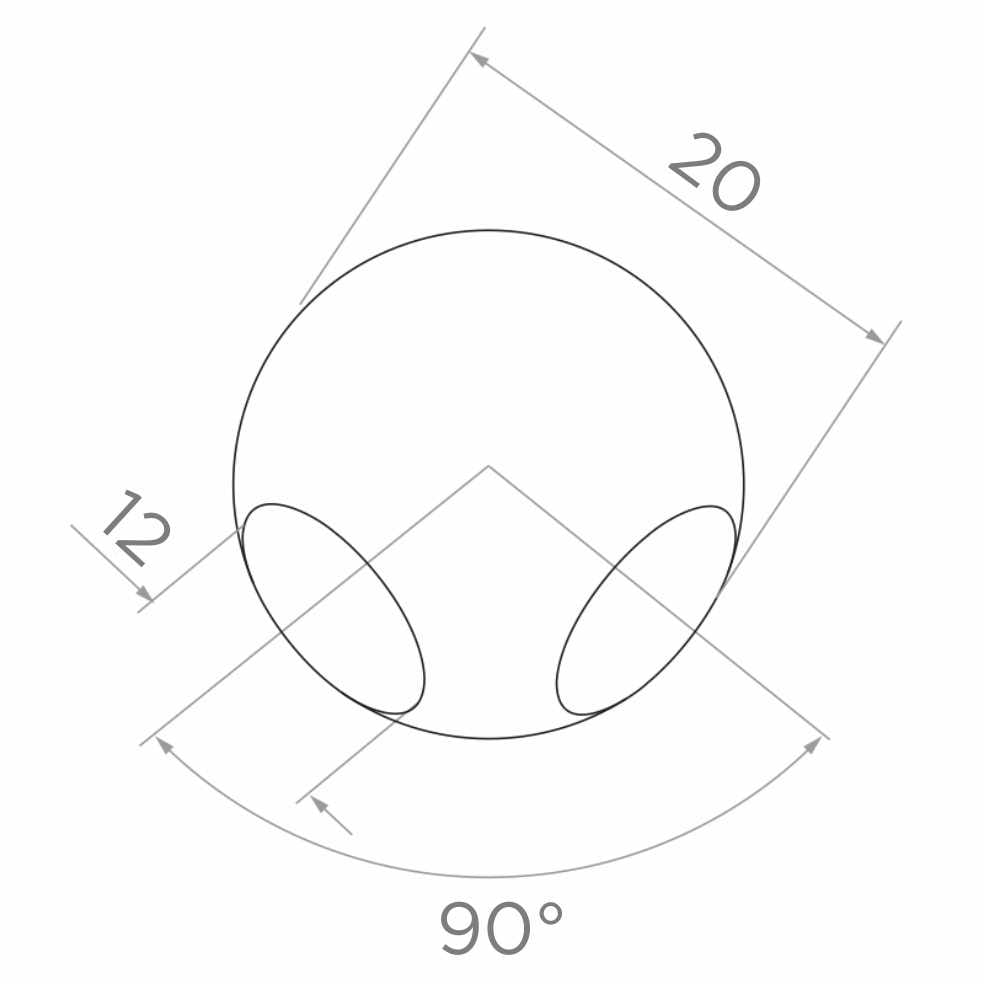

Dimensions and technical specification
- Ball diameter: 20 mm
- Hole diameter: 12 mm (non-through)
- Number of holes: 2
- Angle between holes: 90°
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Application: corner connector for balustrades
- Installation method: insertion (anaerobic adhesive)
- Weight: 0.016 kg
- EAN: 5901289672856
The corner ball is a universal element — it fits tubes and rods with a diameter of 12 mm, making it compatible with the most popular steel balustrade systems available on the market. Appropriate selection of finishing details, such as balls, end caps and connectors, allows the balustrade to be given a cohesive character and enhances the aesthetic qualities of the entire installation.
Technical data
| Material | AISI 304 |
