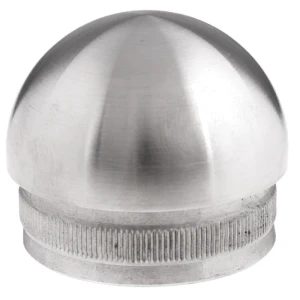

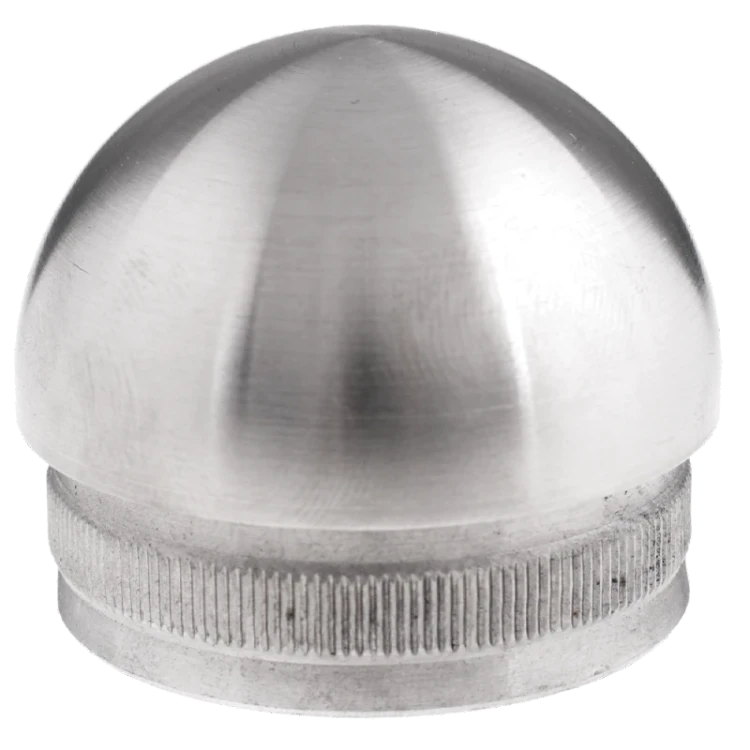

Ellipsoidal push-fit end cap for 42.4 mm balustrade tube – AISI 304 stainless steel satin finish
Description
Ellipsoidal push-fit end cap for 42.4 mm balustrade tube – AISI 304 stainless steel satin finish
Ellipsoidal push-fit end cap is a decorative finishing element designed for balustrade tubes with a diameter of 42.4 mm and wall thickness of 2 mm. Installed by pushing into the tube interior, it provides aesthetic and durable closure of open ends of stainless steel balustrades — for balconies, terraces and staircases.

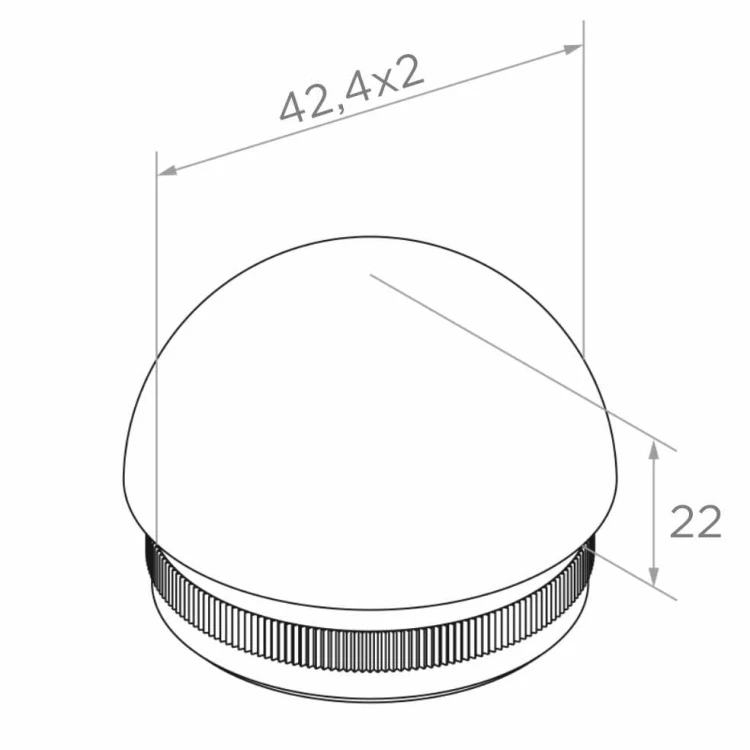

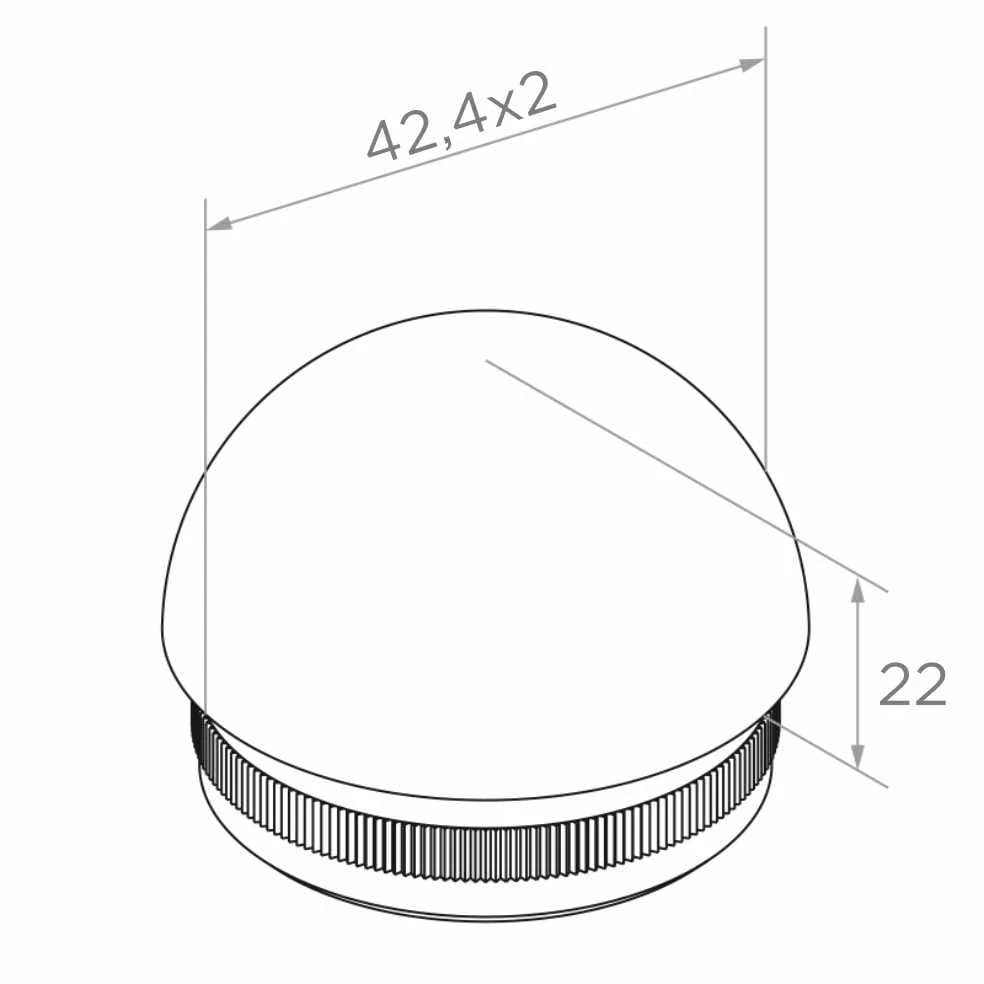

Dimensions and technical parameters
- External diameter: 42.4 mm
- Tube wall thickness: 2 mm
- Visible height (dome): 22 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.09 kg
- Tube system: 42.4
- EAN: 5901289672580
Function and application
The end cap serves a dual purpose — it conceals openings in balustrade tubes whilst simultaneously protecting the tube interior from atmospheric precipitation and corrosion. The characteristic ellipsoidal shape (convex dome) gives the balustrade a professional, modern appearance. Thanks to the push-fit installation, it requires no welding or gluing — simply press the end cap into the tube interior, which significantly reduces installation time on site.
Durability and resistance
Construction from AISI 304 stainless steel guarantees high corrosion resistance and weather resistance, making the end cap suitable for both internal and external applications. The satin surface finish harmoniously complements standard elements of stainless steel balustrade systems, maintaining aesthetics for years.
Technical data
| Material | AISI 304 |
| Mounting System | 42.4 mm |
