Convex Push-in End Cap for Balustrade Tubes Ø42.4 mm AISI 316 Satin
Leave feedback on the product
Convex push-in end cap for balustrade tubes Ø42.4 mm. AISI 316 stainless steel, satin finish. Height 8 mm, tube wall thickness 2 mm. Weight 0.055 kg. For internal and external balustrades.
Product code: 001-085
Product features
[PIM] zaslepki #137
- Material AISI 316
- Mounting System 42.4 mm
Description
Convex Push-in End Cap for Balustrade Tubes Ø42.4 mm AISI 316 Satin

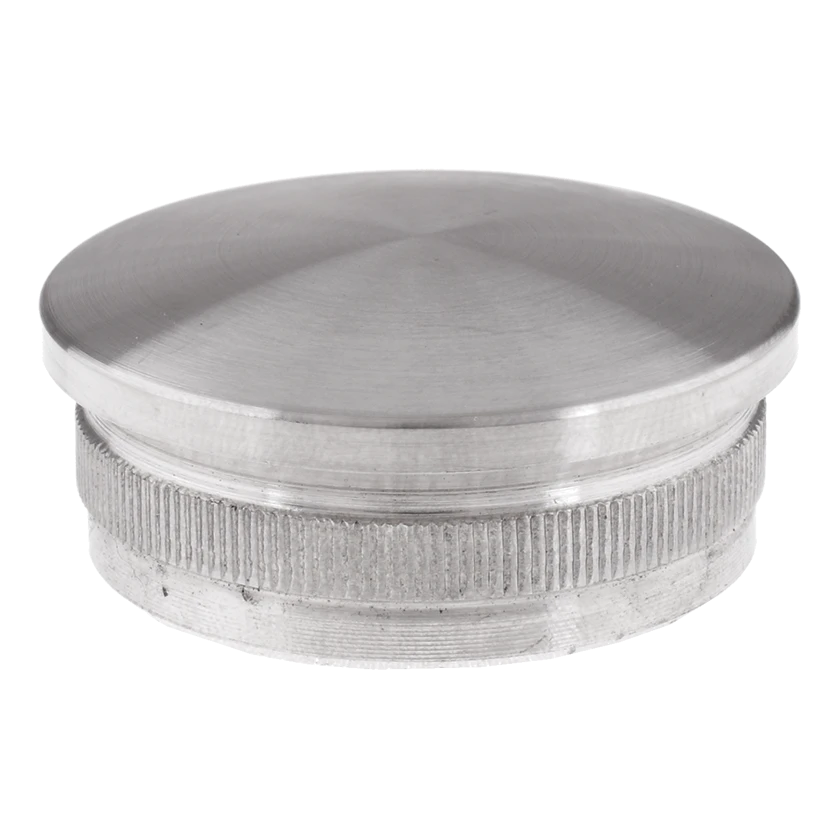

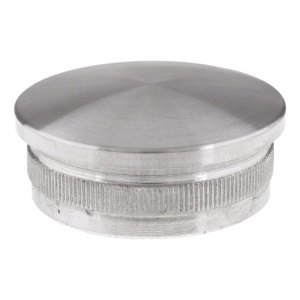

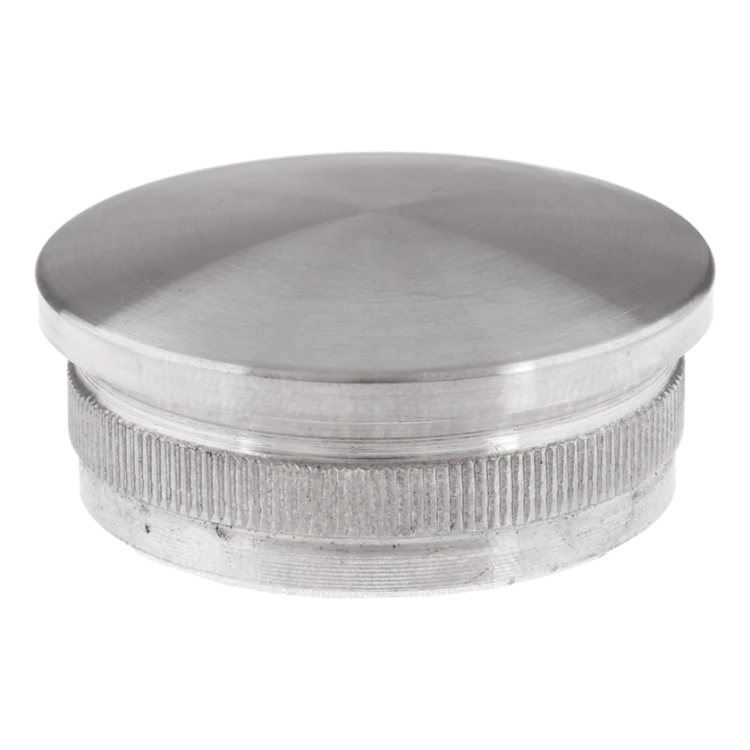

Convex push-in end cap is a finishing element designed for balustrade tubes with a diameter of Ø42.4 mm. It conceals the tube opening, protects its interior from atmospheric precipitation and corrosion, whilst giving the balustrade an aesthetic, professional appearance. Installation involves pushing the end cap into the tube interior — the knurled surface of the stem ensures secure and permanent seating without the need for additional connections.
Made from AISI 316 stainless steel with a satin finish, the end cap performs excellently in balcony, terrace and stair balustrades — both internal and external. AISI 316 grade guarantees enhanced corrosion resistance compared to the popular AISI 304, making it an optimal choice particularly in environments exposed to moisture and salinity (proximity to sea, swimming pools).
Technical Data

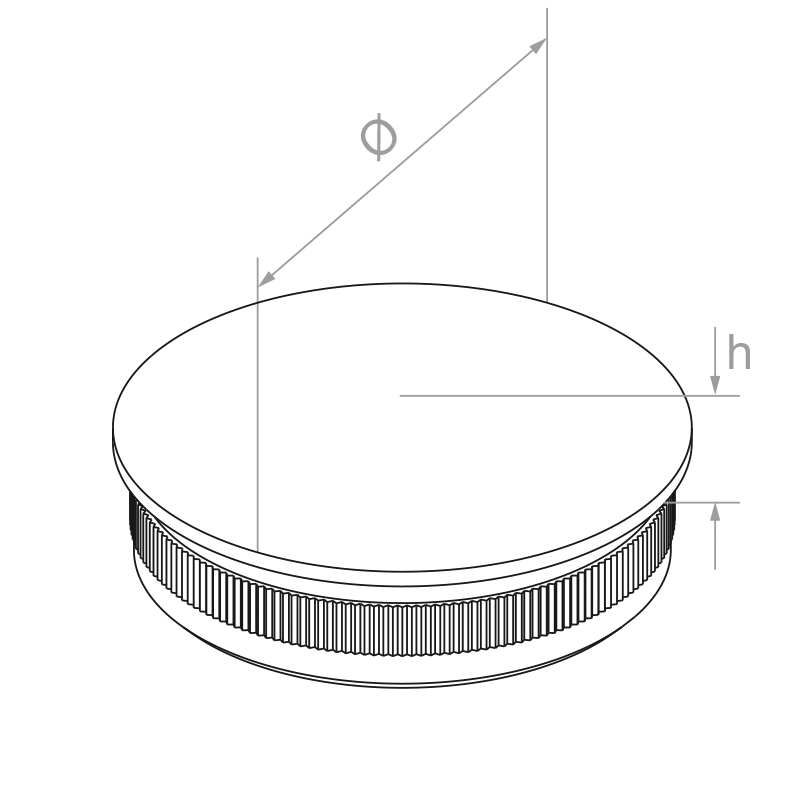

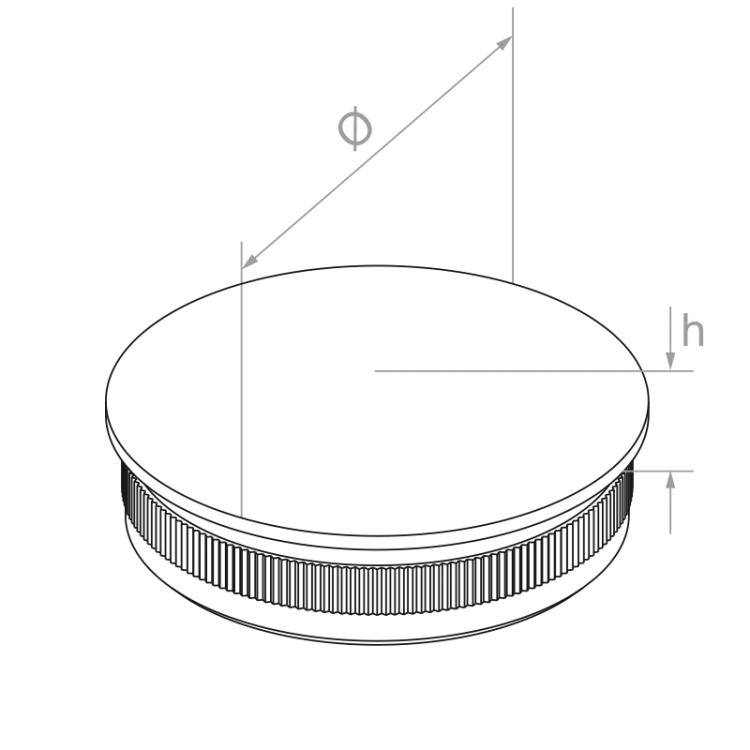

- Type: convex push-in end cap
- Tube system: Ø42.4 mm
- Tube wall thickness: 2 mm
- End cap height (h): approx. 8 mm
- Material: AISI 316 stainless steel
- Surface finish: satin
- Weight: 0.055 kg
- EAN: 5901289672467
Application
The end cap is designed for stainless steel balustrade systems based on round tubes Ø42.4 mm. It finds application as top or bottom finishing of posts, handrail termination and concealing open tube ends in balcony, terrace, stair and internal balustrades. The flat, convex upper surface fits into the minimalist styling of modern stainless steel balustrades.
