Push-in end cap for square profile 40×40×2 mm – stainless steel AISI 304 satin
Description

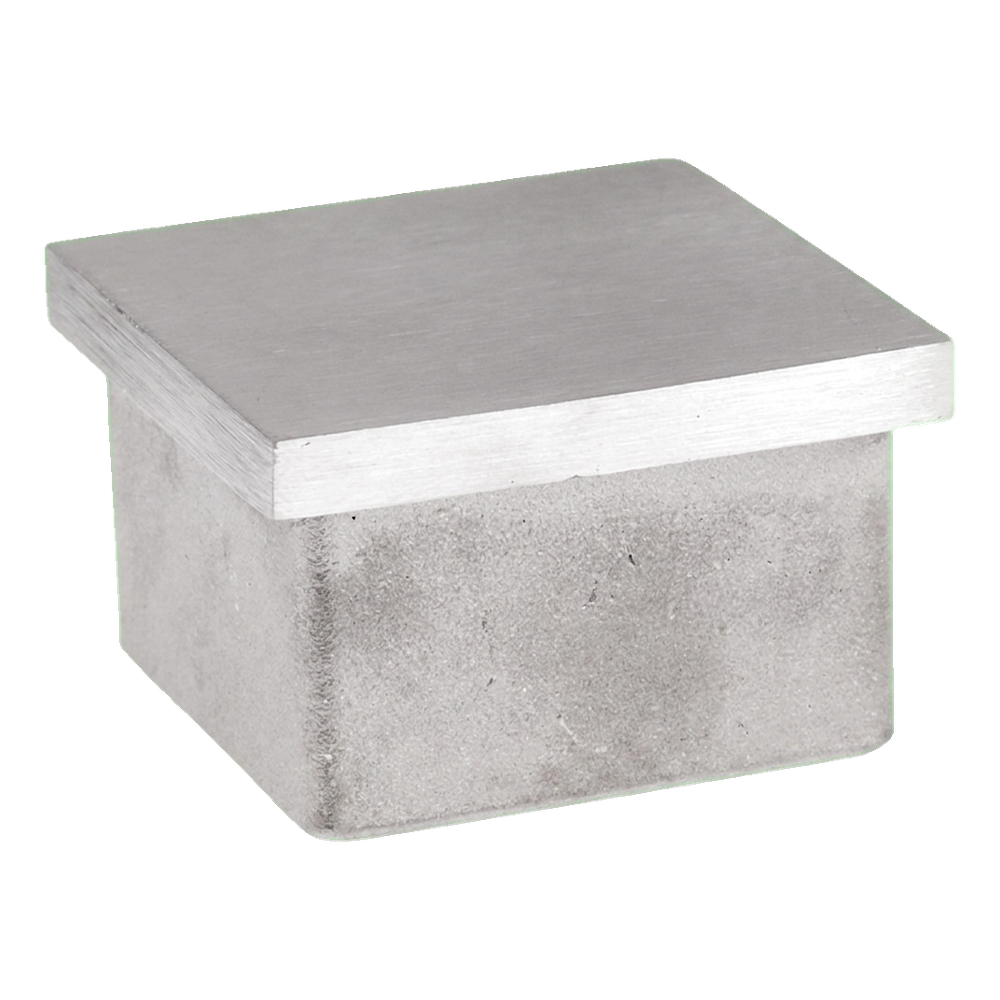

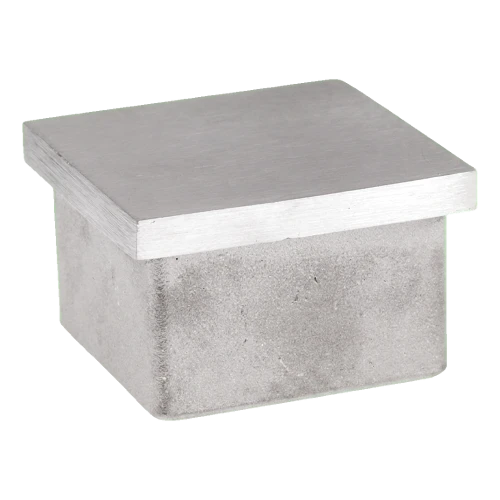

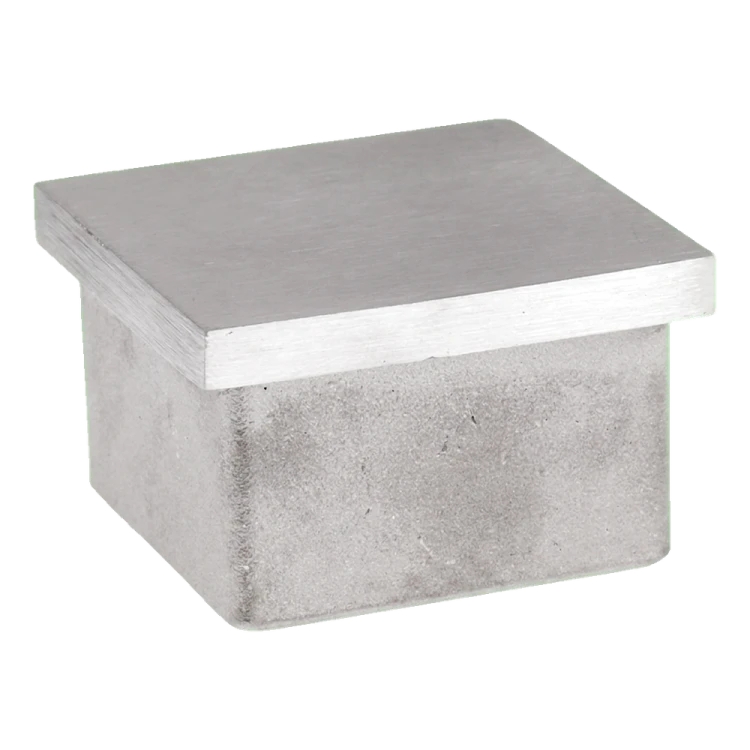

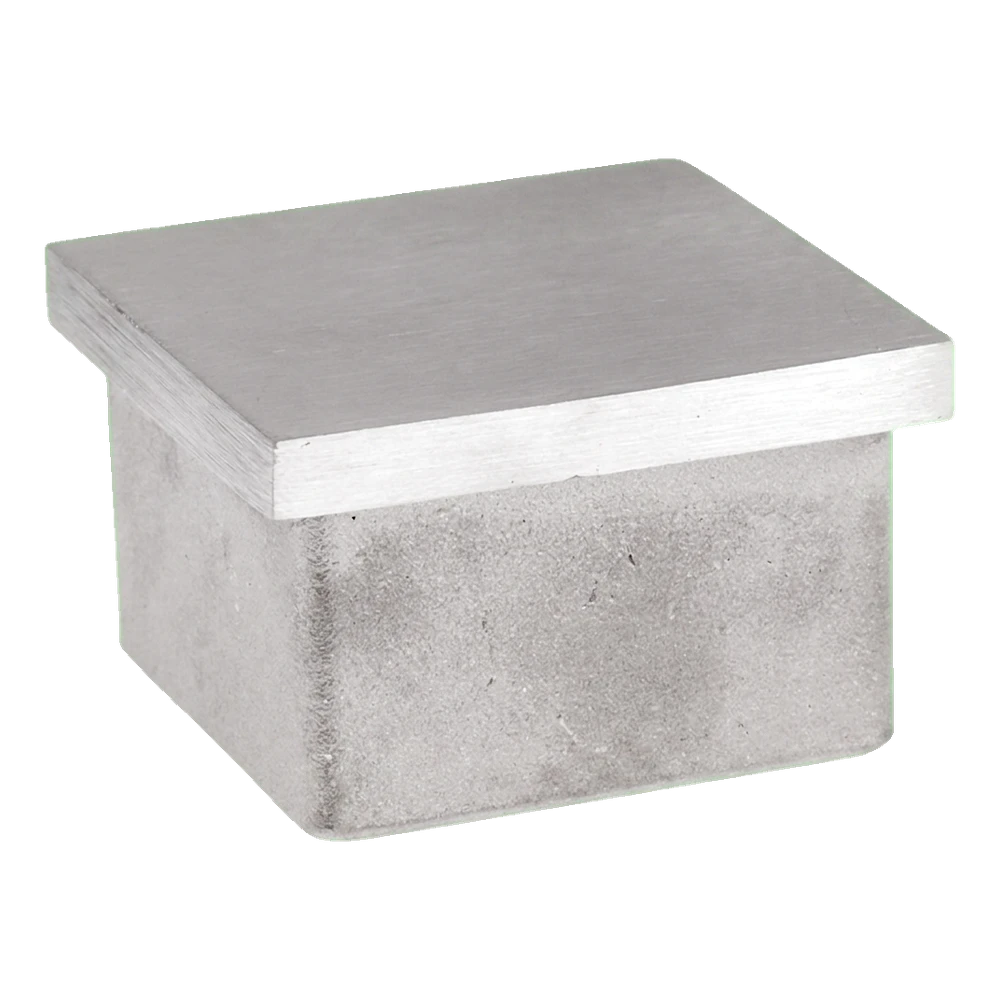

Push-in end cap for square profile 40×40×2 mm – stainless steel AISI 304 satin
End cap with flat head designed for square profile 40×40×2 mm — aesthetic and durable finishing for handrails of stainless steel balustrades. The end cap mounted by pushing into the profile ensures quick and secure installation without the need for additional connectors. Made from stainless steel AISI 304 with satin finish, it perfectly complements stainless steel balustrade systems visually and provides long-lasting corrosion resistance.
For achieving a permanent and inseparable connection, we recommend additionally using anaerobic adhesive, which bonds under contact with metal and hardens after oxygen supply is cut off.

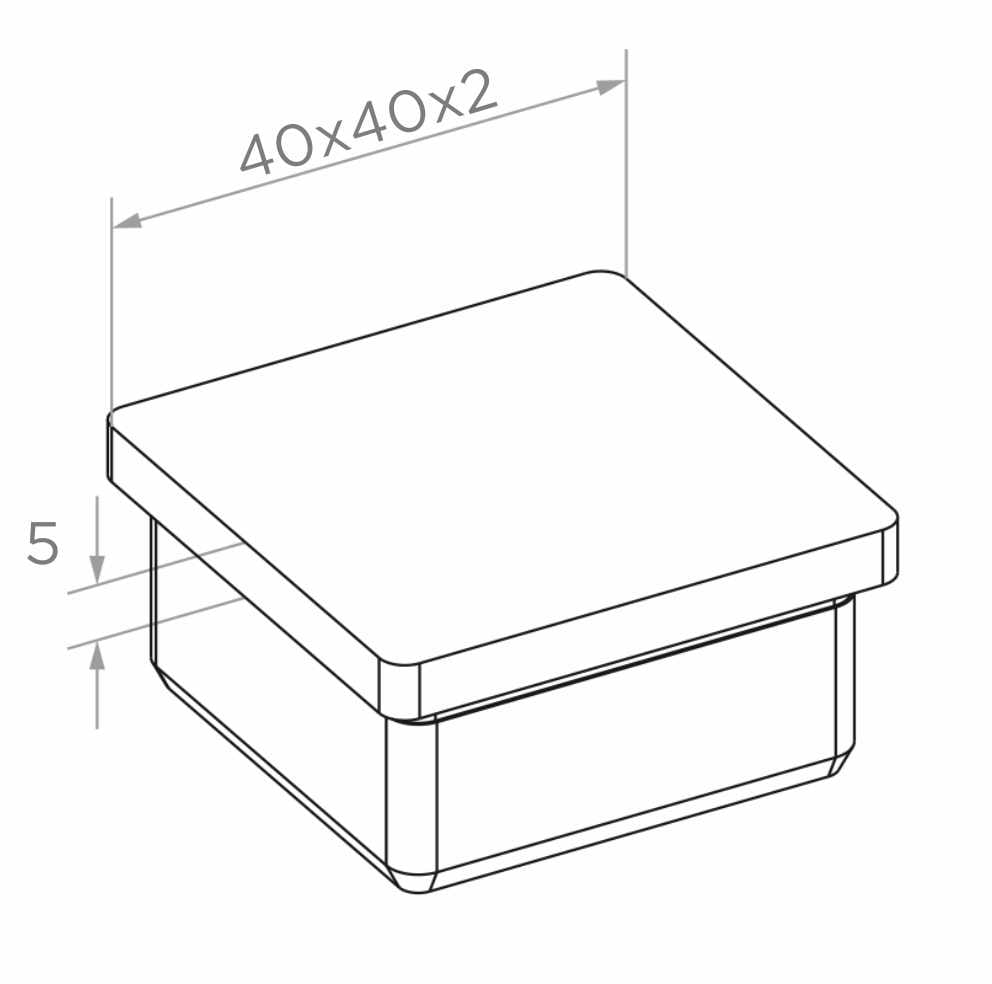

Technical specifications
- Type: push-in end cap with flat head
- Fits profile: 40×40×2 mm (square)
- System: 40×40
- Head height (H): 5 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.08 kg
- EAN: 5901289672603
Application
The end cap provides aesthetic finishing for handrails and posts of stainless steel balustrades made from 40×40 mm square profiles. Thanks to push-in mounting, installation is quick and requires no additional tools — a rubber hammer is sufficient. The satin finish eliminates the need for additional treatment after installation and ensures uniform appearance with other elements of the balustrade system.
Technical data
| Material | AISI 304 |
