Mounting Triangle, Adjustable 15-30 Degrees - 980x371x850mm

Mounting triangle, adjustable - 15-30 horizontal - 980x371x850 PV-09-08

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 1.4 kg

Price / pcs.: £13.87 13.87

excl. shipping costs

* Packaging options:

Piece
Package: 50 pieces
Package: 200 pieces
Package: 500 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: Synerga

Product code: PV-09-08

recommend to a friend

Description

Mounting triangle, adjustable 15-30 level - 980x371x850

Mounting triangle, adjustable - 15°-30° level, Aluminium 6060, with dimensions 980x371x850 with M10 hole for mounting photovoltaic panels.

The adjustable mounting triangle, also known as a mounting bracket, is an essential component for installing photovoltaic systems on roofs with low pitch angles and on flat roofs. It is possible to adjust the angle of the photovoltaic panels, and the proper selection of this angle is crucial for the correct and efficient operation of the photovoltaic installation.

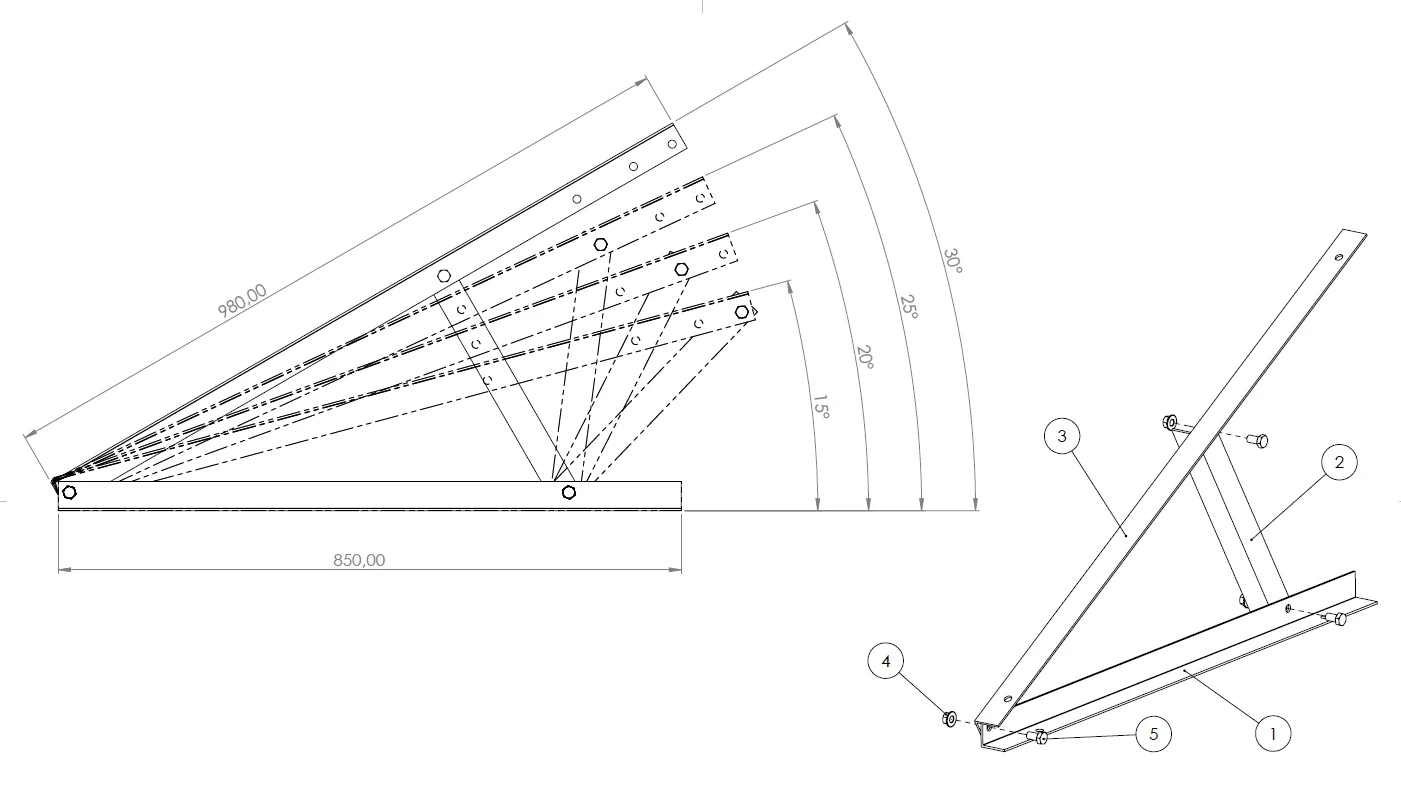

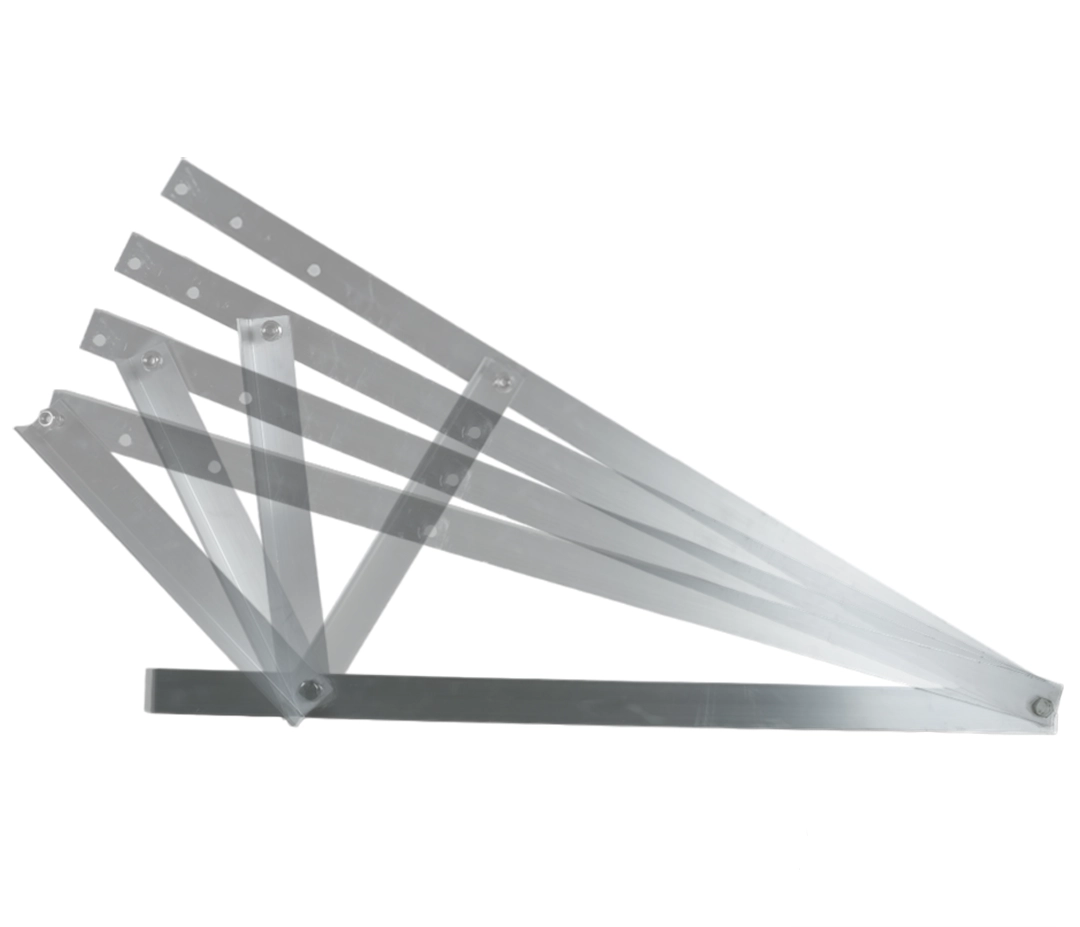

The triangle allows angle adjustment of 15°, 20°, 25° and 30° for easy customisation.

Triangles made from 40×40×3mm angle bar. The product is manufactured from aluminium 6060, guaranteeing lightweight construction, resistance to mechanical overload and resilience to adverse environmental conditions.

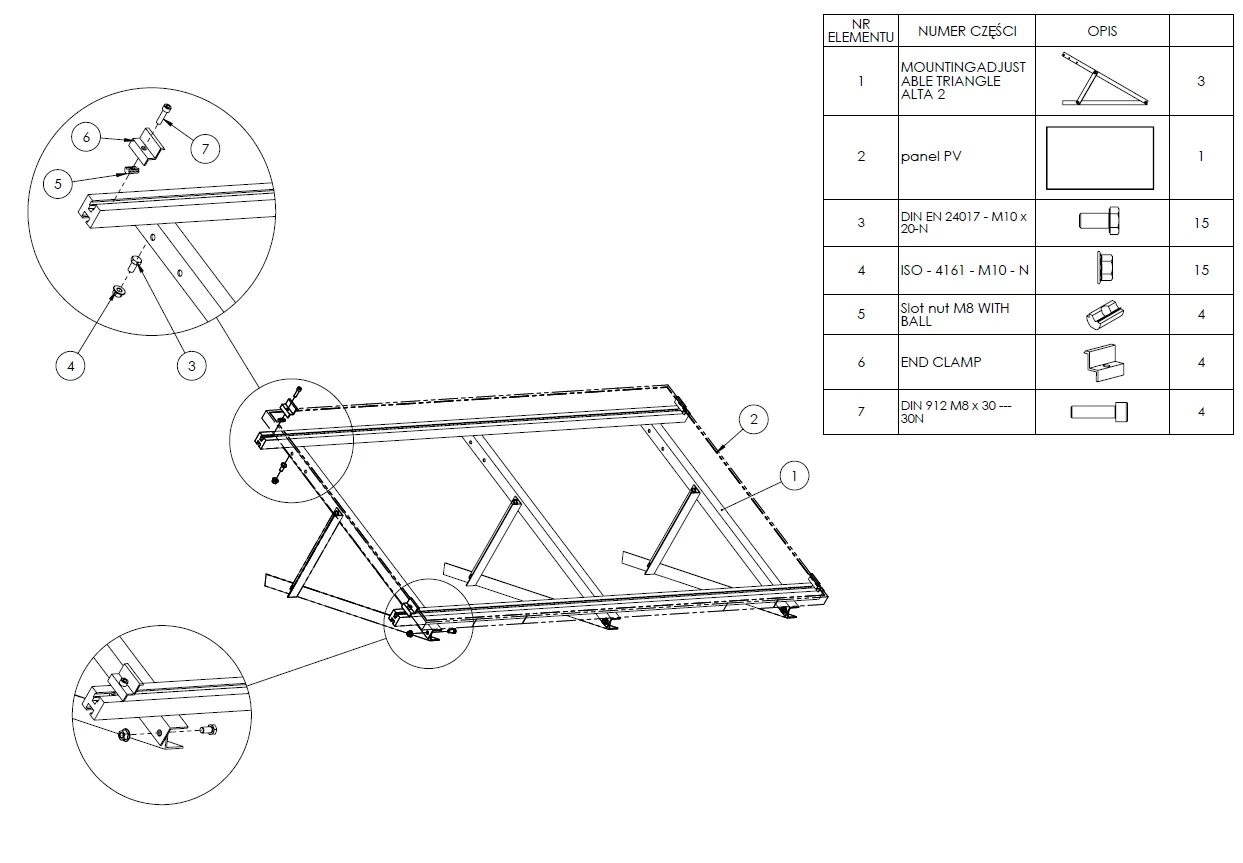

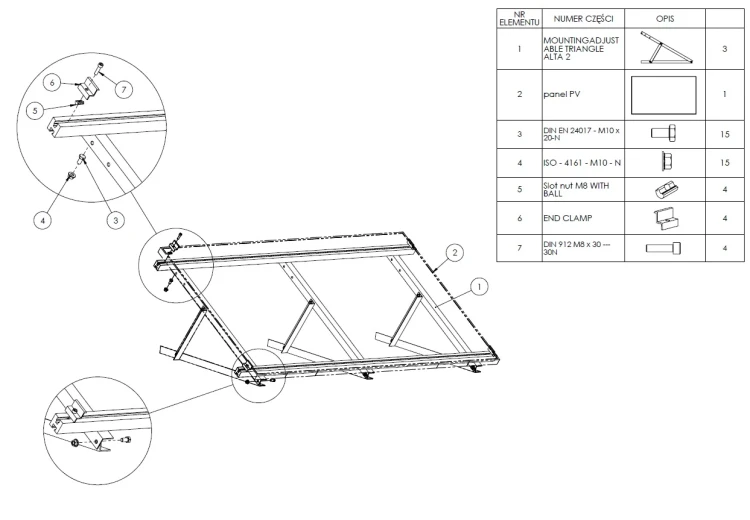

Integral parts of the triangles are connecting elements, M10 DIN 933 hexagonal bolt and M10 DIN 6923 flanged nut.

Note: All necessary connecting elements are supplied as standard.

Ładowanie tabeli porównawczej...

Ładowanie galerii...

Technical data

Material	Aluminium 6060
Angle	Adjustable
Panel orientation	Horizontal

Safety
