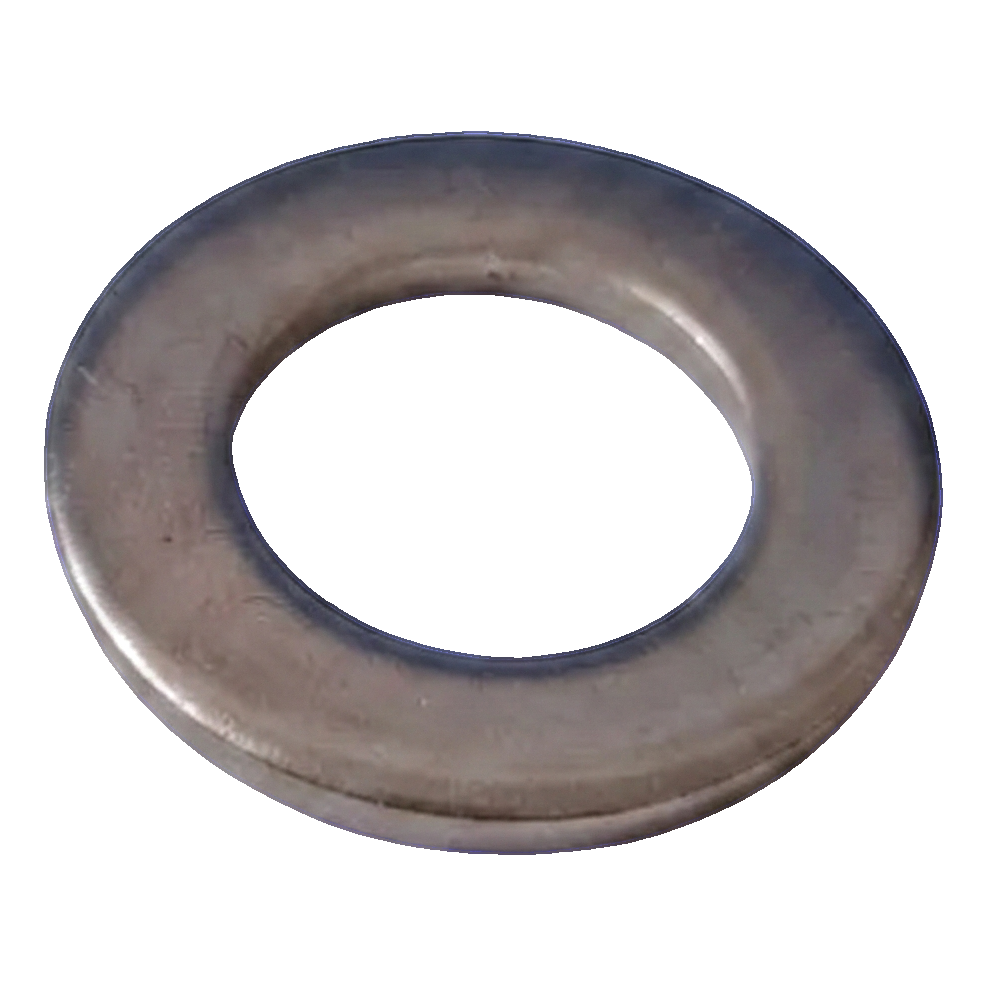

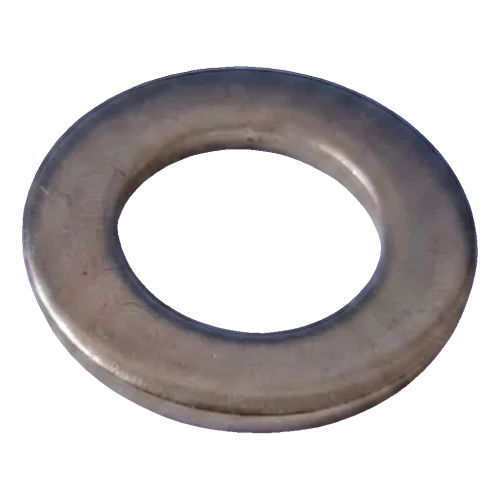

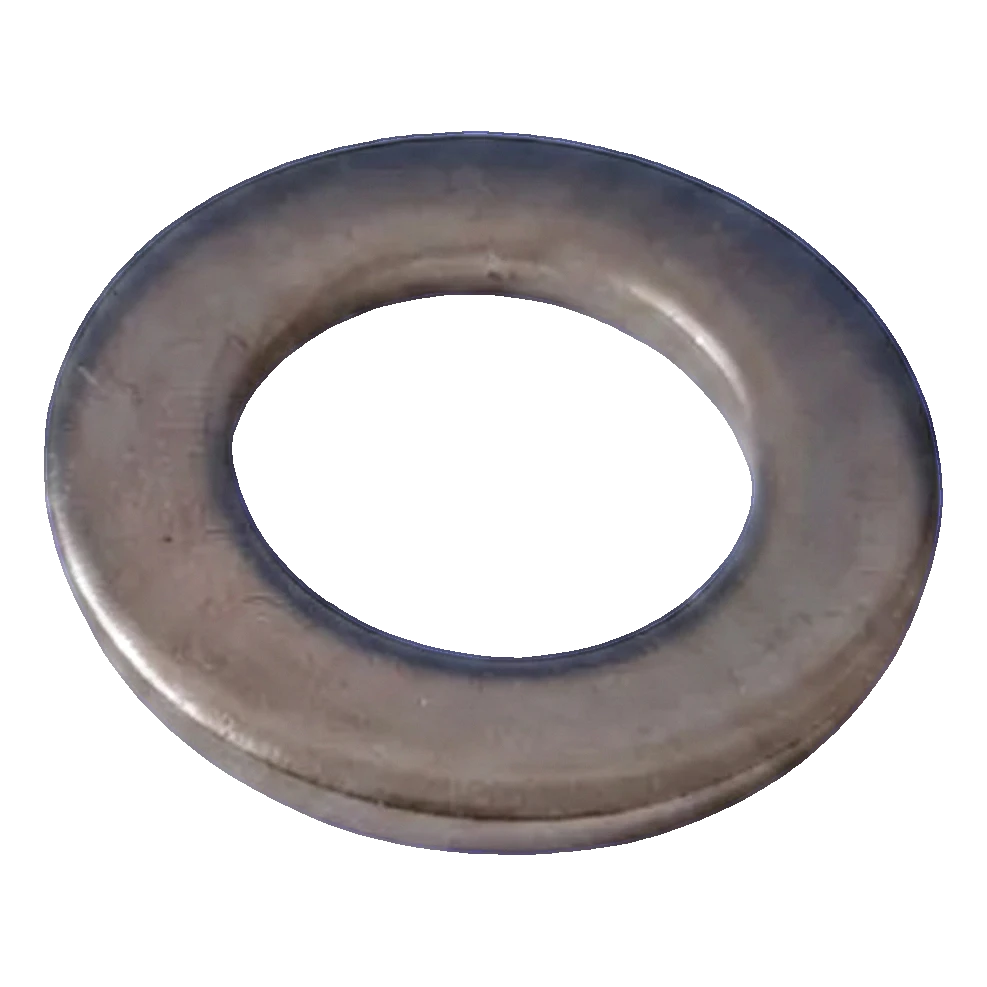

A2 Stainless Steel Washer DIN 125 M8 ⌀8.4 mm
Leave feedback on the product
A2 stainless steel washer DIN 125 M8, ⌀8.4 mm. Material: 1.4301 (grade 304) stainless steel, non-magnetic. Outer diameter 16 mm, thickness 1.6 mm, weight 0.002 kg. For bolted connections in photovoltaic installations.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] Podkładki #42
- Thread type M8
- Steel Grade A2
- DIN DIN 125
Description
A2 Stainless Steel Washer DIN 125 M8 ⌀8.4 mm
DIN 125 M8 washer made of A2 stainless steel (1.4301, grade 304) is a reliable auxiliary component for bolted connections in photovoltaic installations. Made from austenitic stainless steel, it provides exceptional corrosion resistance thanks to the nickel added to the alloy, ensuring uninterrupted use for many years in all weather conditions.
The washer is an essential part of a complete bolted connection — combined with an M8 bolt, it evenly distributes pressure across the joined components, protecting the surface from damage and preventing the connection from loosening. The material is flexible, resistant to stress, and non-magnetic, making it an ideal choice for professional PV mounting systems.
Technical specification
| Parameter | Value |
|---|---|
| Standard | DIN 125 |
| Thread size | M8 |
| Hole diameter | ⌀8.4 mm |
| Outer diameter | 16 mm |
| Thickness | 1.6 mm |
| Material | A2 stainless steel – 1.4301 (grade 304) |
| Weight | 0.002 kg |
Properties of A2 steel – 1.4301 (grade 304)
- Austenitic stainless steel — non-magnetic, flexible and stress-resistant
- Exceptional corrosion resistance thanks to the nickel added to the alloy
- Suitable for all environmental conditions
