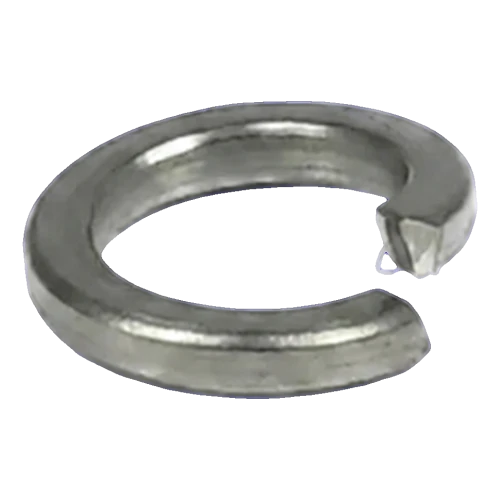

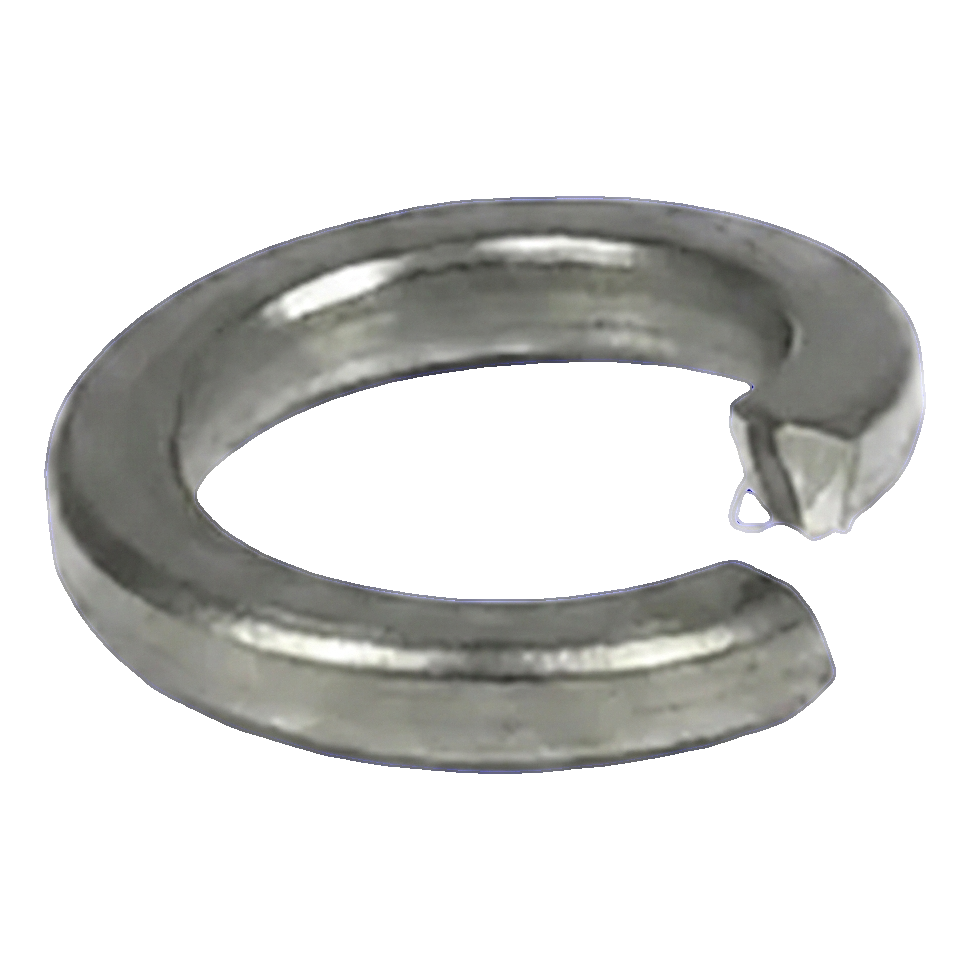

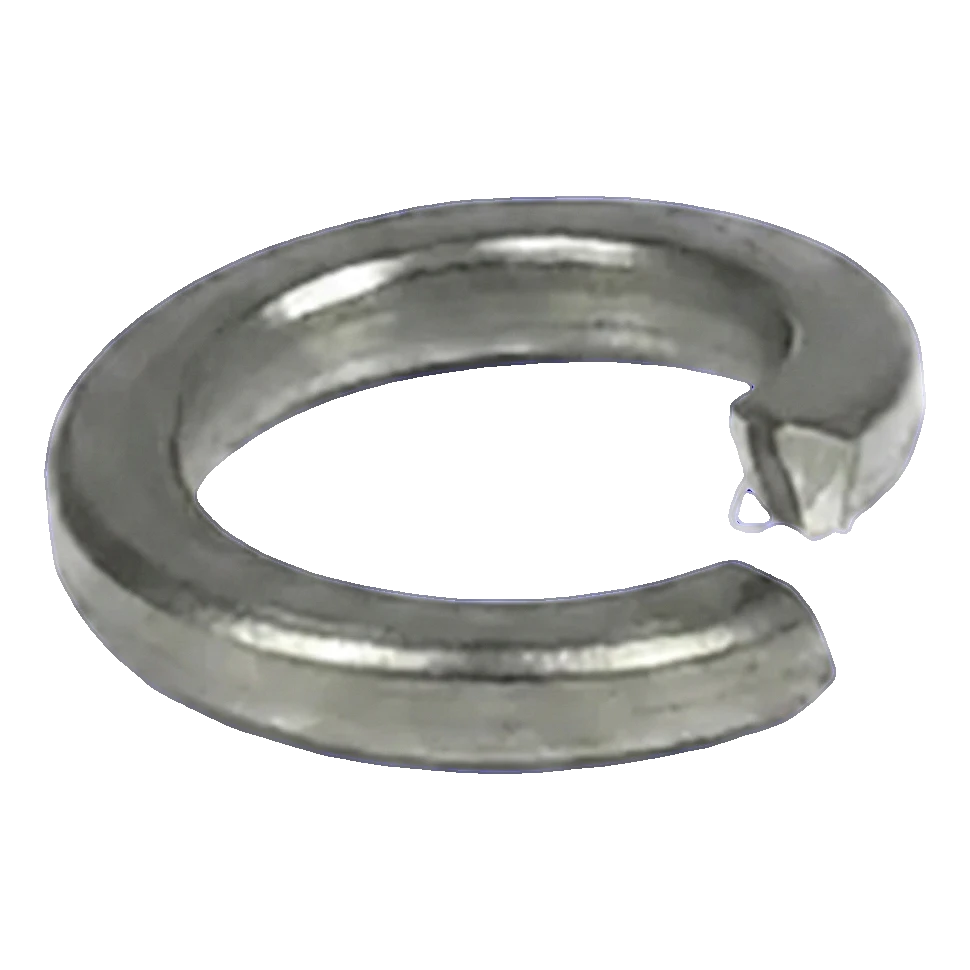

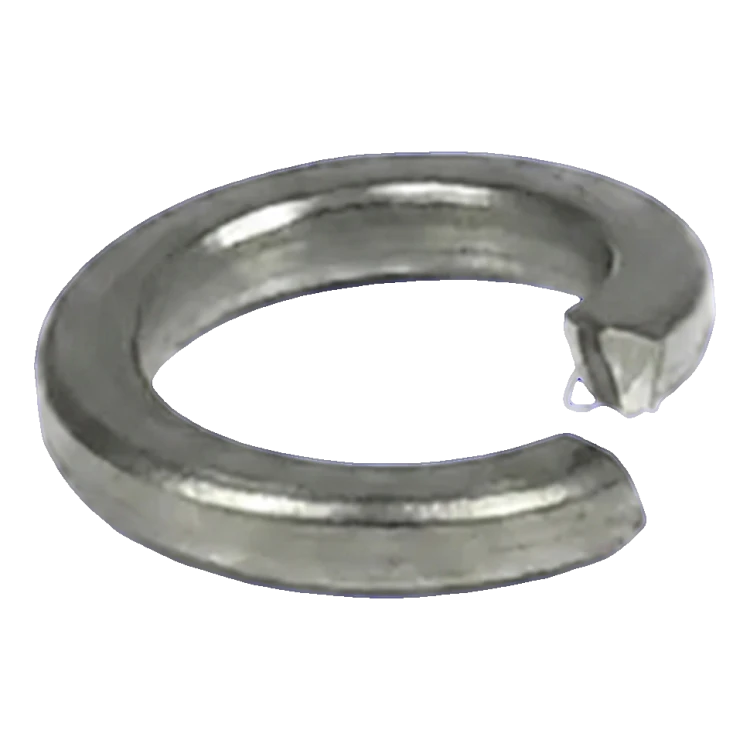

Spring Washer DIN 7980 A2 M8 – Stainless Steel 1.4301
Leave feedback on the product
Spring washer DIN 7980 A2 M8 made of stainless steel 1.4301 (grade 304), non-magnetic. Internal diameter 8.1 mm, external diameter 12.7 mm, height 4 mm, weight 0.003 kg. For bolted connections.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] Podkładki #42
- Thread type M8
- Steel Grade A2
- DIN DIN 7980
Description
Spring Washer DIN 7980 A2 M8 – Stainless Steel 1.4301
Spring washer DIN 7980 made of A2 stainless steel (1.4301, grade 304) ensures a secure connection and constant tension in bolted joints. Its spring action compensates for thermal changes and prevents loosening of the connection due to temperature fluctuations or vibration — which is particularly important in photovoltaic installations exposed to variable weather conditions.
Properties of A2 – 1.4301 (grade 304) steel
- Austenitic stainless steel (non-magnetic), flexible and stress-resistant
- Exceptionally strong corrosion resistance thanks to the addition of nickel to the alloy
- Suitable for all environmental conditions
Technical specification
| Parameter | Value |
|---|---|
| Standard | DIN 7980 |
| Material | Stainless steel A2 – 1.4301 (grade 304) |
| Bolt size | M8 |
| Internal diameter | ⌀8.1 mm |
| External diameter | 12.7 mm |
| Height | 4 mm |
| Weight | 0.003 kg |
