Mounting Triangle 25° Level 890x810x380 mm

Mounting triangle 25 horizontal 890x810x380 PV-09-05

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 1.4 kg

Price / pcs.: £12.49 12.49

excl. shipping costs

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 40 pieces
Package: 375 pieces
Package: 750 pieces

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

4.2

Vendor: Synerga

Product code: PV-09-05

recommend to a friend

Description

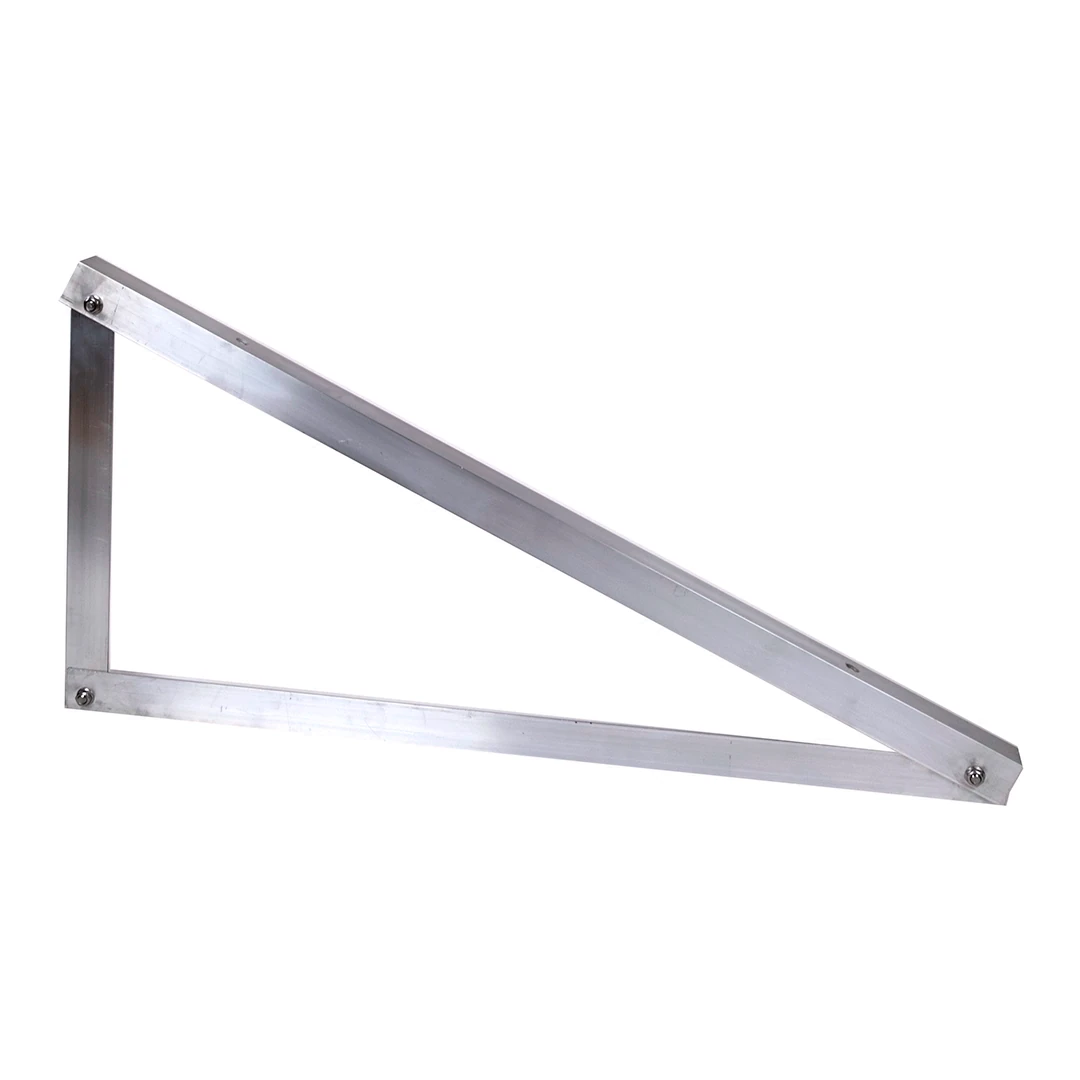

Mounting Triangle - 25° Horizontal 890x810x380

Horizontal mounting triangle 25º 890x810x380 M10 made of Aluminium 6060, for mounting photovoltaic panels.

The mounting triangle, also known as a mounting bracket, is an essential component for installing photovoltaic systems on roofs with a low pitch angle and on flat roofs. Availability in several sizes allows for adjustment of the PV panel tilt angle, and proper selection of this angle is crucial for the correct and efficient operation of the photovoltaic installation.

Triangles made from 40×40×3mm angle sections. The product is manufactured from aluminium 6060, ensuring lightweight construction, resistance to mechanical overload and durability in adverse environmental conditions.

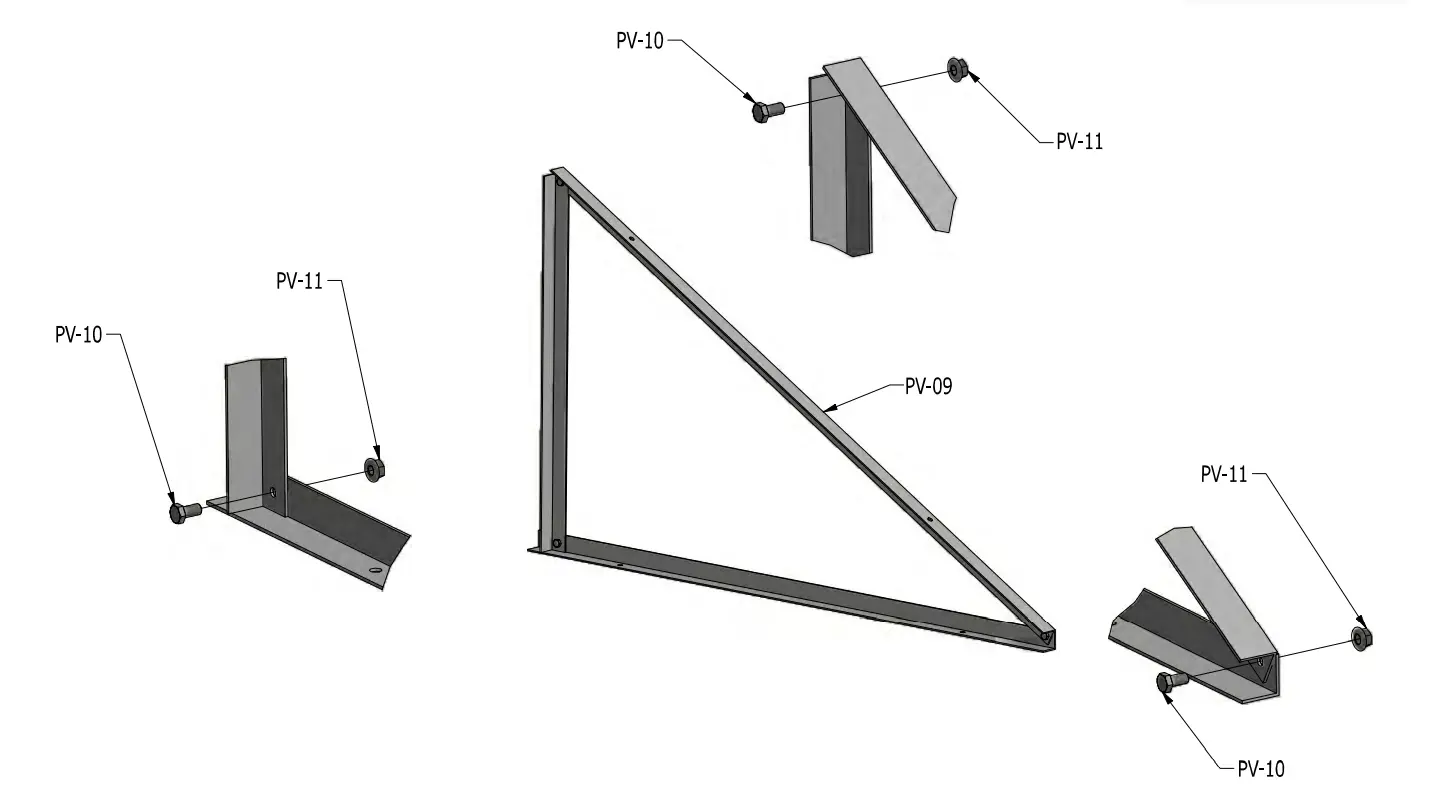

The triangles include integral fastening elements: M8 hexagonal bolt DIN 7380 and M8 flange nut DIN 6923.

Note: All necessary fastening elements are supplied as standard.

Ładowanie tabeli porównawczej...

Ładowanie galerii...

Technical data

Material	Aluminium 6060
Angle	25º
Panel orientation	Horizontal
