Hooks and Mountings for PV Roof Installation
Hooks and Mountings groups the roof-level fixings that hold PV rails and profiles on the building. It covers roof hooks for tile, slate and bituminous roofs, double-thread bolts, brackets and flat roof supports. It is made for installers who must match the fixing to the roof covering and substructure.
What you will find in this category

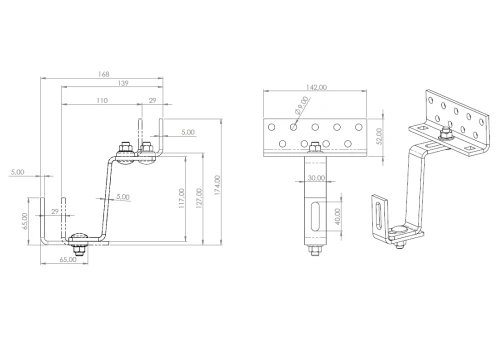

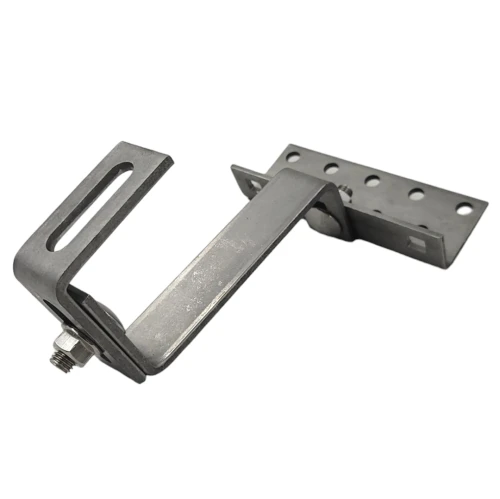

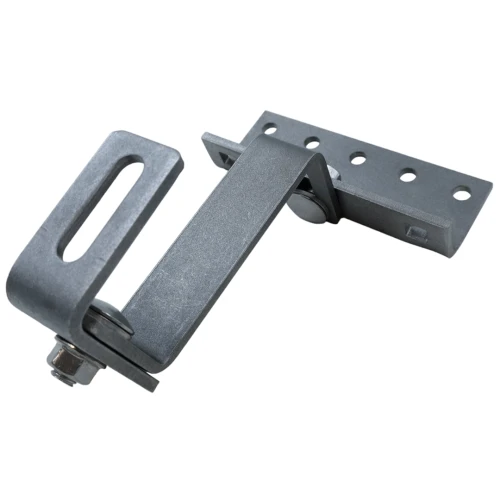

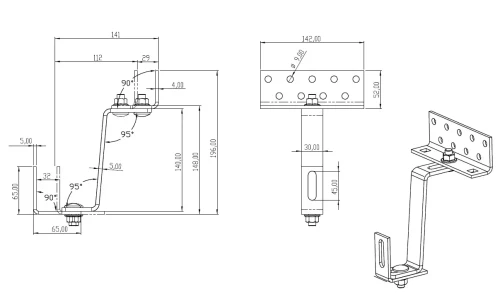

- Vario roof hooks, 3x adjustable, 120 or 145 mm, M10 hole, in stainless steel 1.4016 (H17) or A2 1.4301.

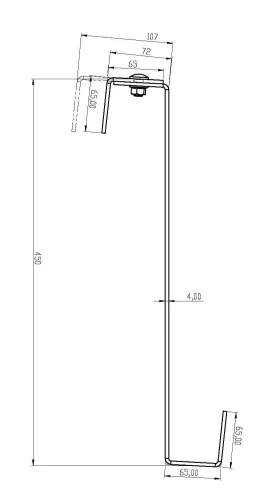

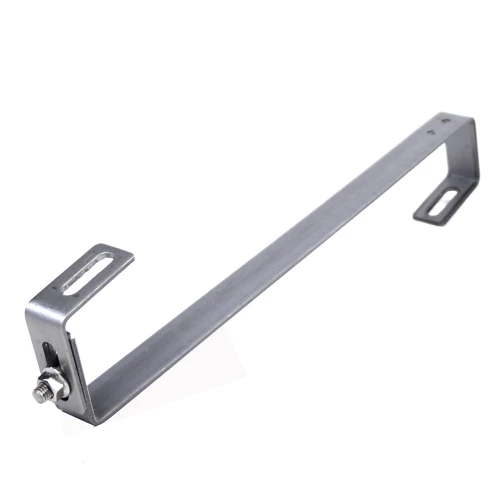

- S roof hooks, 450x30x4 mm to 610x30x4 mm, stainless steel 1.4016, for pitched roofs.
- J roof hooks, 239x30x4 mm, fixed or adjustable, for bituminous and slate roofs.

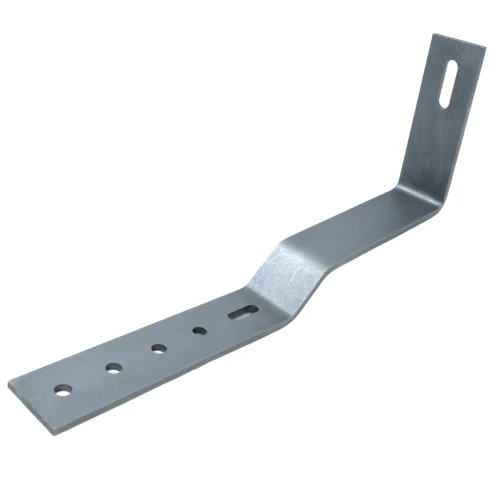

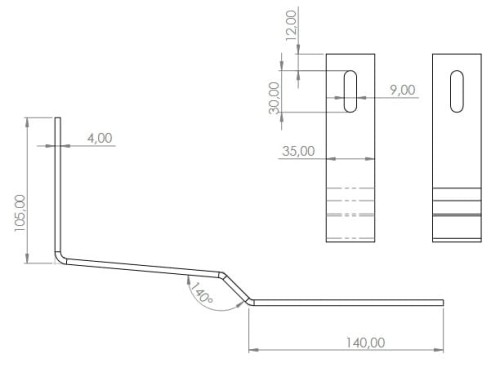

- Pantile and interlocking tile hooks in stainless steel 1.4016.
- Double-thread bolts in A2 1.4301, M10 and M12, with flange nuts and EPDM washer; some sets include an 80x30x4 mm adapter.

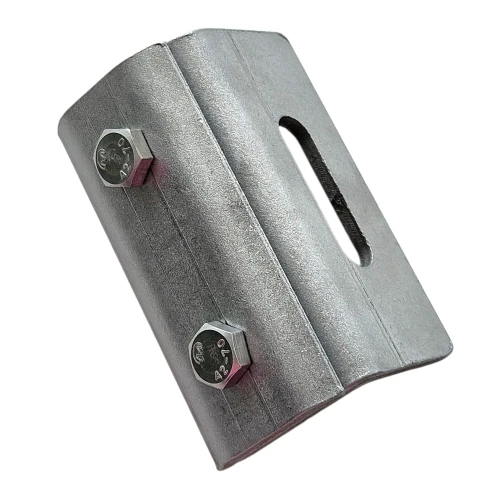

- Brackets for standing seam and trapezoidal sheet roofs, the H-70 aluminium trapezoidal bridge, and CWL flat roof parts.
How to choose
- Roof covering: use S, Vario or pantile hooks for tiles, J hooks for slate and bituminous roofs, and brackets for standing seam or trapezoidal sheet.
- Tile and batten limits: S hooks suit ceramic or concrete tiles up to 60 mm thick, with 40x40 mm rails on battens up to 50 mm.
- Adjustment: Vario hooks are 3x adjustable. Slotted S hooks compensate for roof truss irregularities. Fixed J hooks need a flat surface.
- Material: most hooks are stainless steel 1.4016 (H17), grade 430. A2 1.4301, grade 304, is used in selected Vario hooks and the bolts.
- Bolt thread: choose M10 or M12 and the length to suit the substructure. The wood thread goes into timber rafters.
Typical applications
Roof hooks carry PV rails on pitched roofs with ceramic or concrete tiles, slate and bituminous shingles. Double-thread bolts are driven into timber rafters and take adapters or triangles on the metric end. Standing seam brackets install without penetrating the roof. CWL parts and Z-brackets serve flat roofs.
Frequently asked questions
Which roof hook suits ceramic or concrete tiles?
S hooks and Vario hooks are designed for ceramic and concrete tiles. S hooks suit tiles up to 60 mm thick, with 40x40 mm rails on battens up to 50 mm.
What is a double-thread bolt used for?
One end has a wood thread for timber rafters. The other has a metric thread, M10 or M12, for adapters or triangles. Flange nuts and an EPDM washer are supplied.
Not sure which hook or bolt fits your roof? Contact technical support for help with selection.
