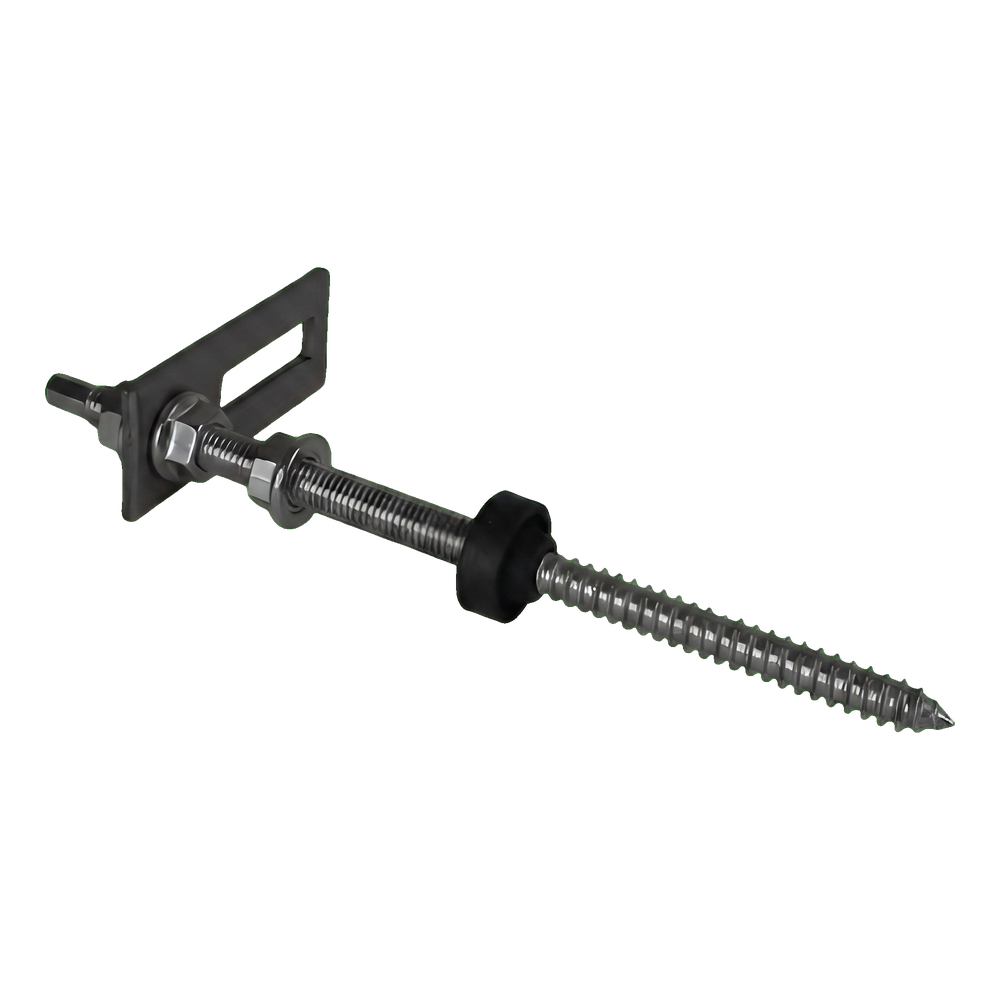

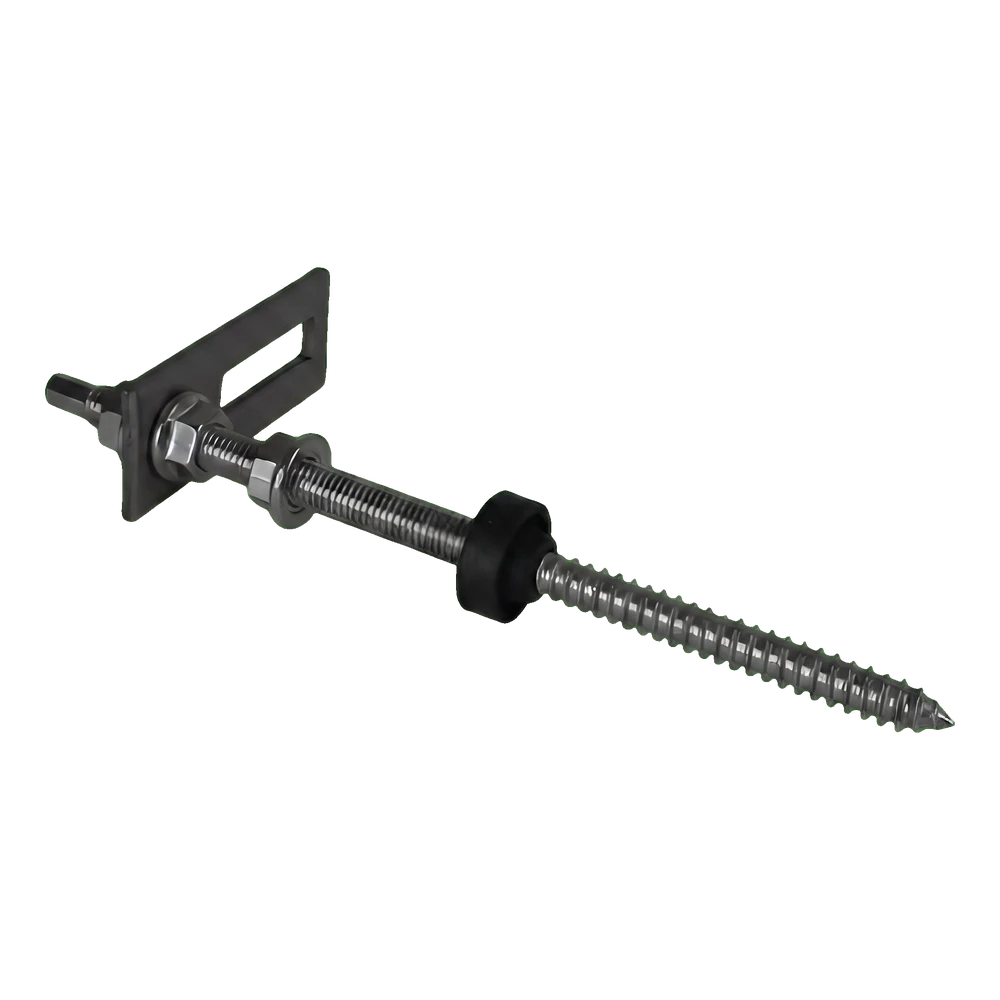

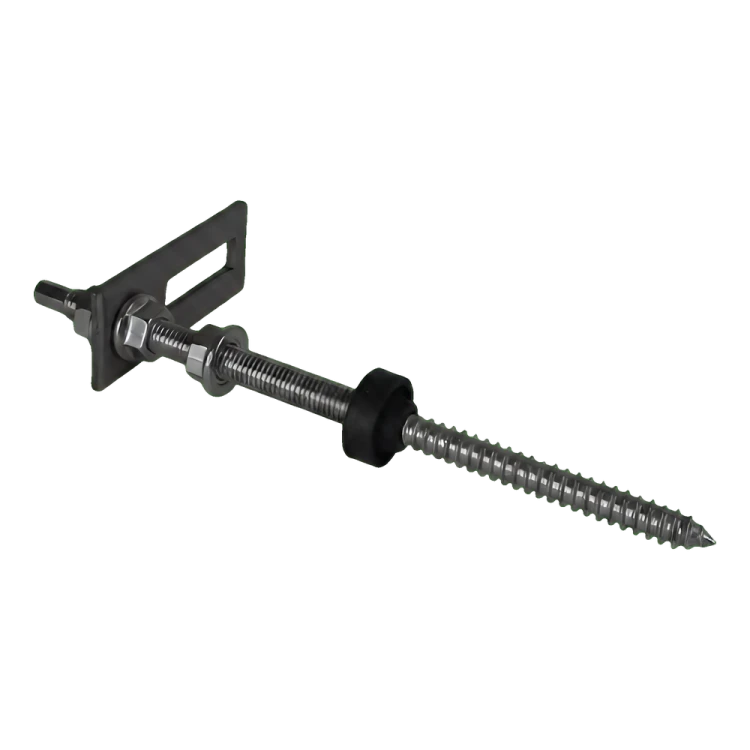

M10×200 Double-Threaded Screw with 80×30 mm Adapter for PV Mounting
Leave feedback on the product
M10×200 double-threaded screw with 80×30×4 mm adapter for PV mounting. Screw made of stainless steel 1.4301 (A2), adapter made of stainless steel 1.4016 (H17). Includes EPDM washer and flange nuts. Adapter hole 10.5 mm. For pitched roofs (metal sheet, shingle, felt) and flat roofs.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] Śruby dwugwintowe, dwugwinty #39
- Product Type Set with Adapter
- Thread type M10
- Length [mm] 200
[PIM] Haki i mocowania #22
- Type Hanger bolt set
- Adjustment No
- Steel Grade H17
Description
M10×200 Double-Threaded Screw with 80×30 mm Adapter for PV Mounting
M10×200 double-threaded screw with adapter is a complete mounting kit designed for solar installations on roofs covered with metal sheet, shingle or felt. The screw's dual thread — wood thread on one side and metric M10 on the other — allows the element to be fixed directly into the rafter while simultaneously accepting the profile adapter via flange nuts. The integrated flange washer with EPDM seal guarantees a watertight seal at the point of penetration through the roof covering, eliminating the risk of leaks. The stainless steel adapter provides a stable attachment point for mounting profiles, and the corrosion-resistant material of both components ensures the kit retains full functionality throughout the entire service life of the installation.
Application and advantages of the kit
- Mounting of PV structures on pitched roofs covered with metal sheet, shingle or felt
- Fastening of mounting triangles on flat roofs
- Complete kit with EPDM seal and flange nuts — no additional purchases required
- Two thread types on a single screw — quick fastening into wood and easy connection with the adapter
- Stainless steel ensures long-lasting corrosion resistance in outdoor conditions
