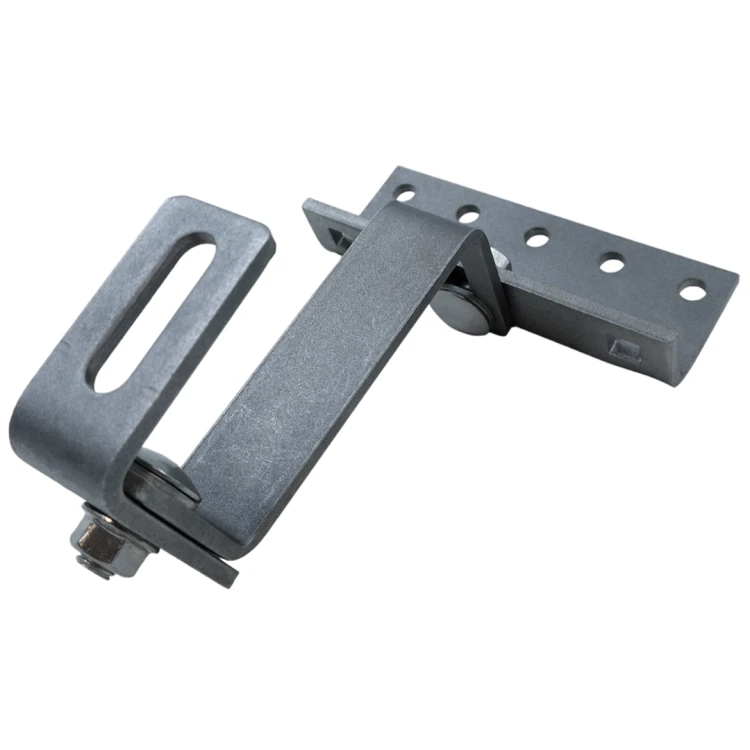

Vario Roof Hook Class 5-5-5 - 3x Adjustable Stainless Steel 1.4016 - 120 mm
Leave feedback on the product
3x adjustable roof hook made of stainless steel 1.4016, dimensions 120x30x5/5mm, M10 hole. For mounting PV rails on ceramic and concrete roof tiles. 5mm sheet metal, flat bar 30x5mm.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
Vario Comparison
- Material Stainless steel 1.4016 (H17) grade 430
- Length of Z element [mm] 120
- Width of Z element [mm] 30
- Z-section element thickness [mm] 5
- Width of adjustable angle bracket [mm] 30
- Thickness of adjustable angle bracket [mm] 5
- Width of wide angle bar [mm] 142
- Wide angle thickness [mm] 5
- Profile mounting method [mm] From above
[PIM] Haki i mocowania #22
- Type VARIO roof hook
- Adjustment Yes
- Steel Grade H17
Description
Vario Roof Hook Class 5-5-5 - 3x Adjustable Stainless Steel 1.4016 - 120 mm
Vario Roof Hook type 5-5-5 3x Adjustable, stainless steel H17/1.4016, with dimensions 120x30x5/5mm and M10 hole for profile mounting in photovoltaic systems.
Roof Bracket for mounting rails of photovoltaic panels on roofs covered with ceramic and concrete tiles. Guarantees proper stability of the entire structure.
Enables connection of profiles to roof covering. Vario Bracket is mounted to the lower channel of the rail using a bolt. Used where standard roof hooks (without adjustment) are too short.
The stainless steel from which the product is made is resistant to weather conditions and will not lose its properties for many years.
- The wide and adjustable bracket is made of 5 mm thick sheet metal, and the Z-profile from 30x5 mm flat bar.

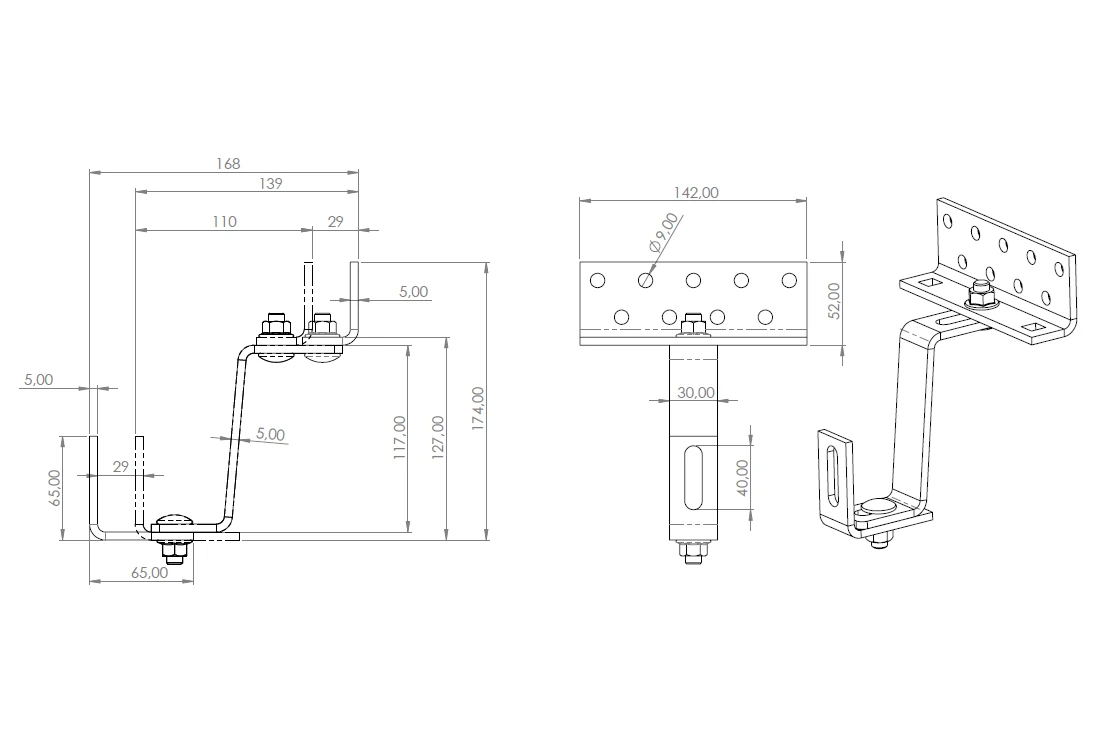

- The mounting method and exact dimensions of the hook are shown in the graphics above.
- H17 steel from which the hooks are made is characterised by high resistance to adverse environmental conditions (stainless steel).
