Synerga

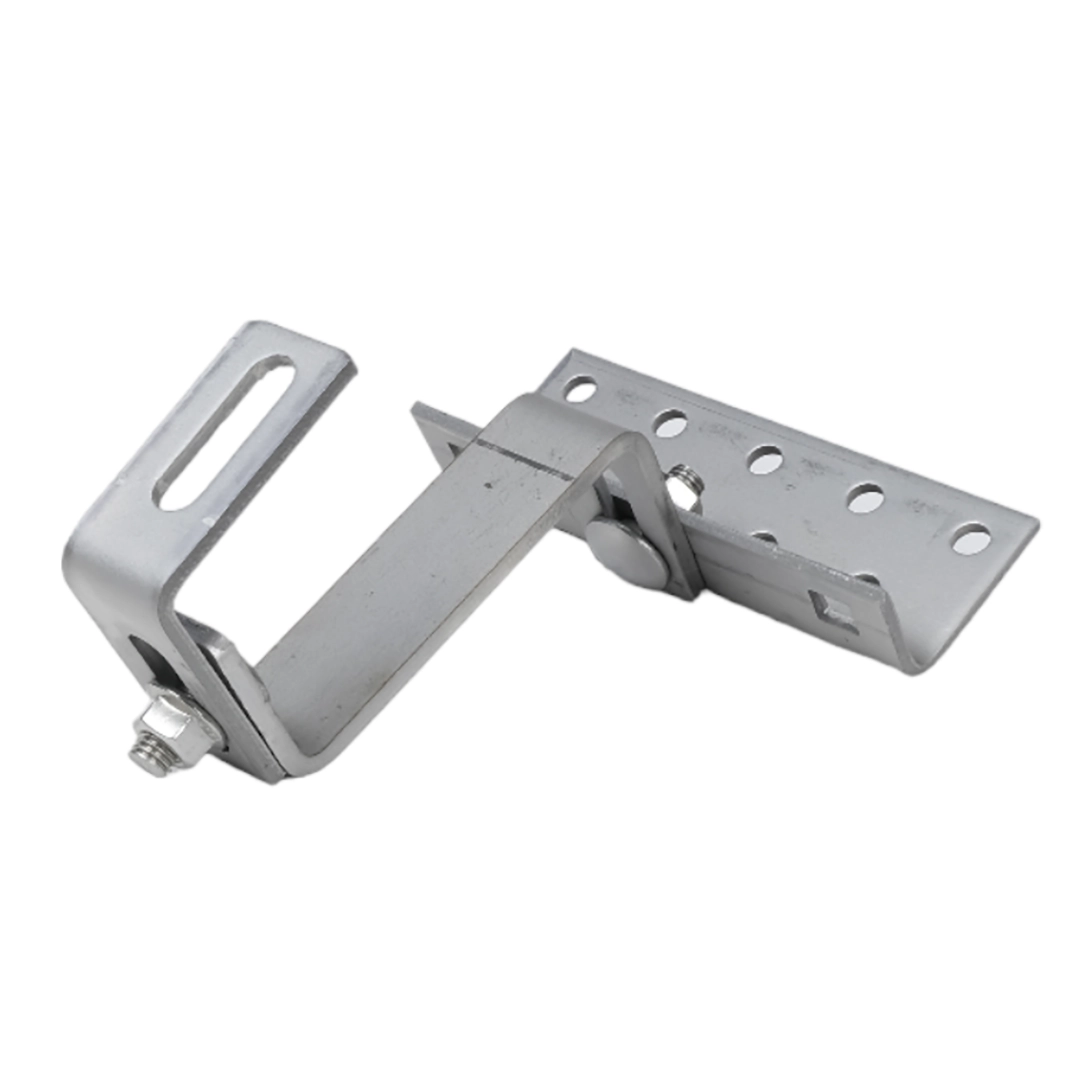

Vario Roof Hook 3x Adjustable Stainless Steel 1.4016/430 120mm

Go to Product feedback

3x adjustable roof hook for mounting photovoltaic profiles, stainless steel 1.4016, dimensions 120x30x5/4mm, M10 hole. Compatible with ceramic and concrete roof tiles, ensures stability of PV construction.

Go to full description
with VAT without VAT
Price €3.89
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

Vario Comparison

  • Material Stainless steel 1.4016 (H17) grade 430
  • Length of Z element [mm] 120
  • Width of Z element [mm] 30
  • Z-section element thickness [mm] 5
  • Width of adjustable angle bracket [mm] 30
  • Thickness of adjustable angle bracket [mm] 4
  • Width of wide angle bar [mm] 142
  • Wide angle thickness [mm] 4
  • Profile mounting method [mm] From above

[PIM] Haki i mocowania #22

  • Type VARIO roof hook
  • Adjustment Yes
  • Steel Grade H17

Description

Vario Roof Hook 3x Adjustable Stainless Steel H17/1.4016/430 120mm

Vario Roof Hook 3X Adjustable, stainless steel 1.4016, with dimensions 120x30x5/4mm and M10 hole for profile mounting in photovoltaic systems.

Roof bracket for mounting rails of photovoltaic panels on roofs covered with ceramic and concrete tiles. Guarantees proper stability of the entire structure.

Enables connection of profiles to the roof covering. The Vario bracket is mounted to the lower channel of the rail using a bolt. Used where standard roof hooks (without adjustment) are too short.

The stainless steel from which the product is made is resistant to weather conditions and therefore will not lose its properties for many years.

  • The wide angle bracket is made of 4mm sheet metal, the flat bar is Zeta 30x5, and the wide angle is 30x4mm.

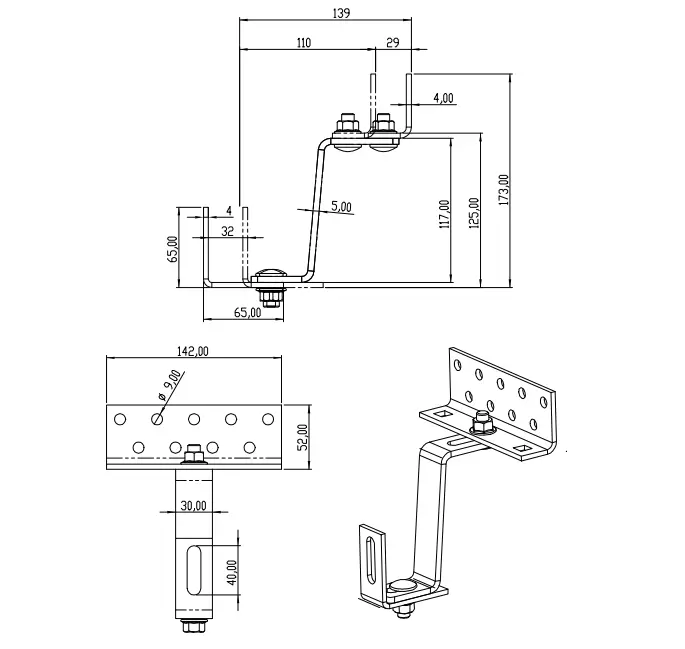

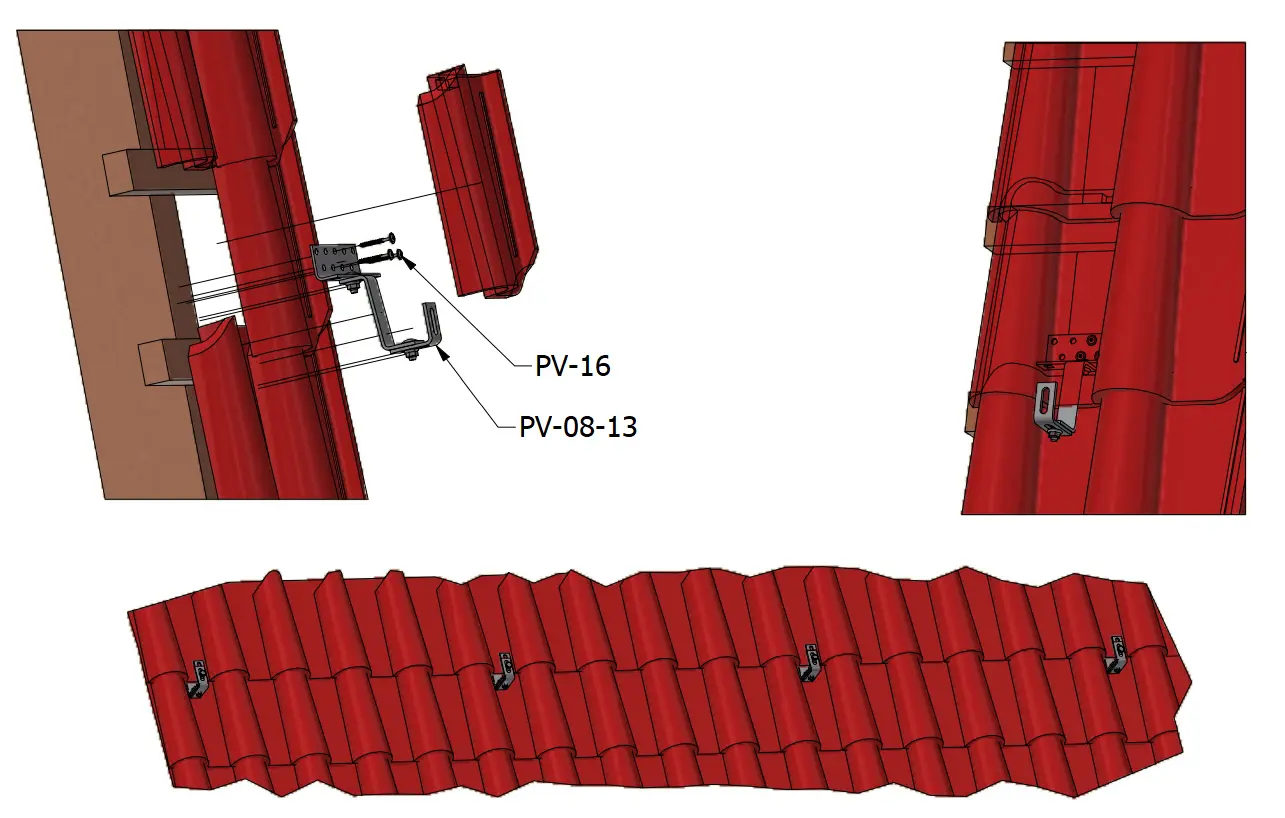

  • The installation method and exact dimensions of the hook are shown in the graphics above.
  • H17 steel from which the hooks are made is characterised by high resistance to adverse environmental conditions (stainless steel).
