Roof Hook S450 for pitched roofs
Leave feedback on the product

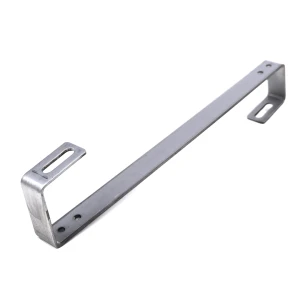

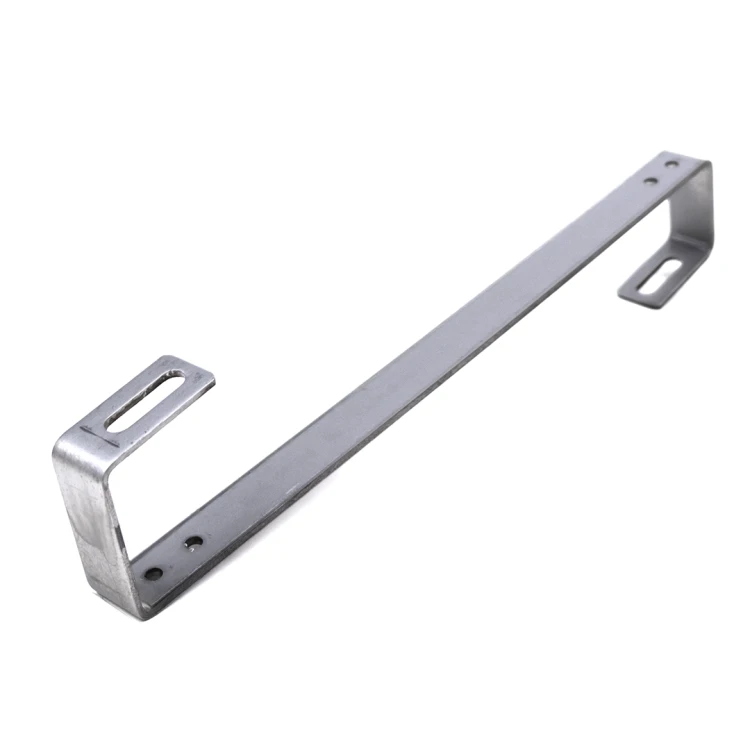

Stainless steel 1.4016 roof hook, dimensions 450x30x4mm with M10 hole for photovoltaic profile. Designed for ceramic and concrete roof tiles up to 60mm thick, mounting 40x40mm rails to battens up to 50mm.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] Haki i mocowania #22
- Type S roof hook
- Adjustment No
- Steel Grade H17
Description
S450 Roof Hook for Pitched Roofs
S Roof Hook for pitched roofs, stainless steel 1.4016, dimensions 450x30x4mm with M10 hole for profile rail in photovoltaic systems.
The S Hook is designed for mounting photovoltaic panels on roofs covered with ceramic or concrete tiles with a maximum thickness of 60 mm. The bracket enables mounting of 40×40 mm mounting rails to battens with a maximum thickness of 50 mm.
Made from stainless steel, guaranteeing protection against adverse weather conditions. The upper part of the element features an M7 hole for an M6 screw, which allows the bracket to be secured to the batten and increases the rigidity of the structure. The elongated hole in the rod allows for adjustment of the mounting rail positioning.

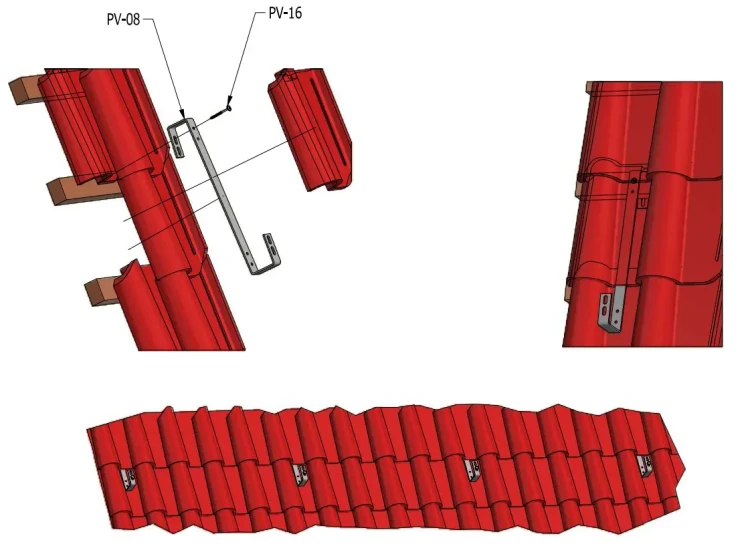

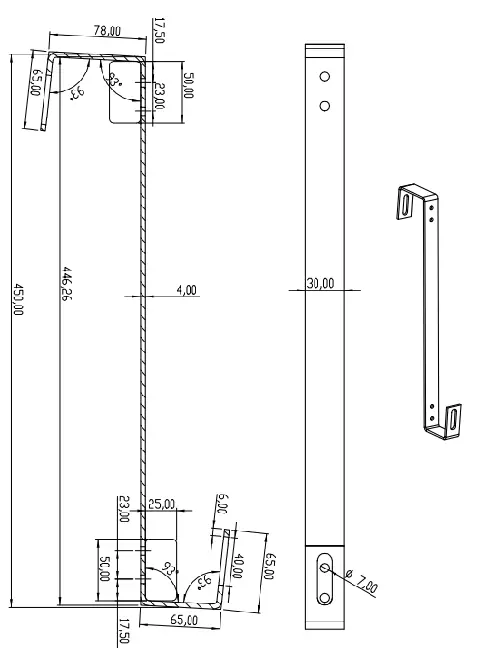

- The installation method and exact dimensions of the hook are shown in the graphics above.
- H17 steel from which the hooks are made is characterised by high resistance to adverse environmental conditions (stainless steel).
