Adjustable Roof Hook S470 for Pitched Roofs

Go to Product feedback

Adjustable roof hook 470x30x4mm | Stainless steel 1.4016 | M10 mounting hole. Designed for mounting PV panels on pitched roofs with ceramic or concrete tiles max. 60mm thick. Enables installation of 40x40mm rails to battens max. 50mm.

Go to full description
with VAT without VAT
Price €3.88
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] Haki i mocowania #22

  • Type S roof hook
  • Adjustment Yes
  • Steel Grade H17

Description

S470 Adjustable Roof Hook for Pitched Roofs

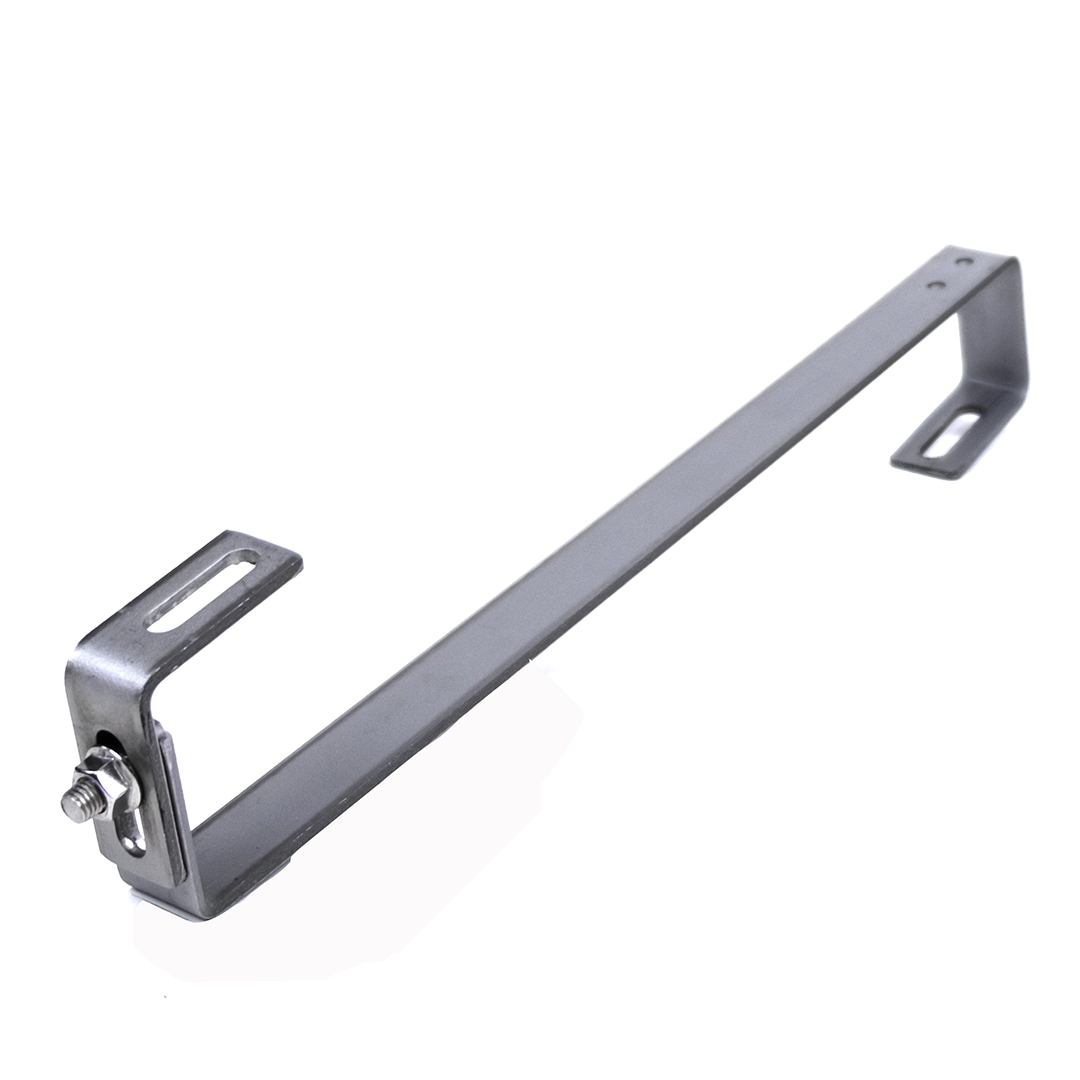

Adjustable S Roof Hook for pitched roofs, stainless steel 1.4016 with dimensions 470x30x4mm and M10 hole for profile mounting in photovoltaic systems.

The S Hook is designed for mounting photovoltaic panels on roofs covered with ceramic or concrete tiles with a maximum thickness of 60 mm. The bracket enables mounting of rails measuring 40×40 mm to battens with a maximum thickness of 50 mm. Made from stainless steel, it guarantees protection against adverse weather conditions. The upper part of the element features an M7 hole for an M6 screw, which allows the bracket to be screwed to the batten and increases the structural rigidity. The elongated hole in the rod allows for adjustment of the mounting rail positioning.

  • The adjustment feature in the hook is used to compensate for irregularities in the roof structure to which the hooks are mounted. In buildings with poorly executed roof framing, this is the only way to precisely prepare a stable support for horizontal structural rails for mounting solar panels.

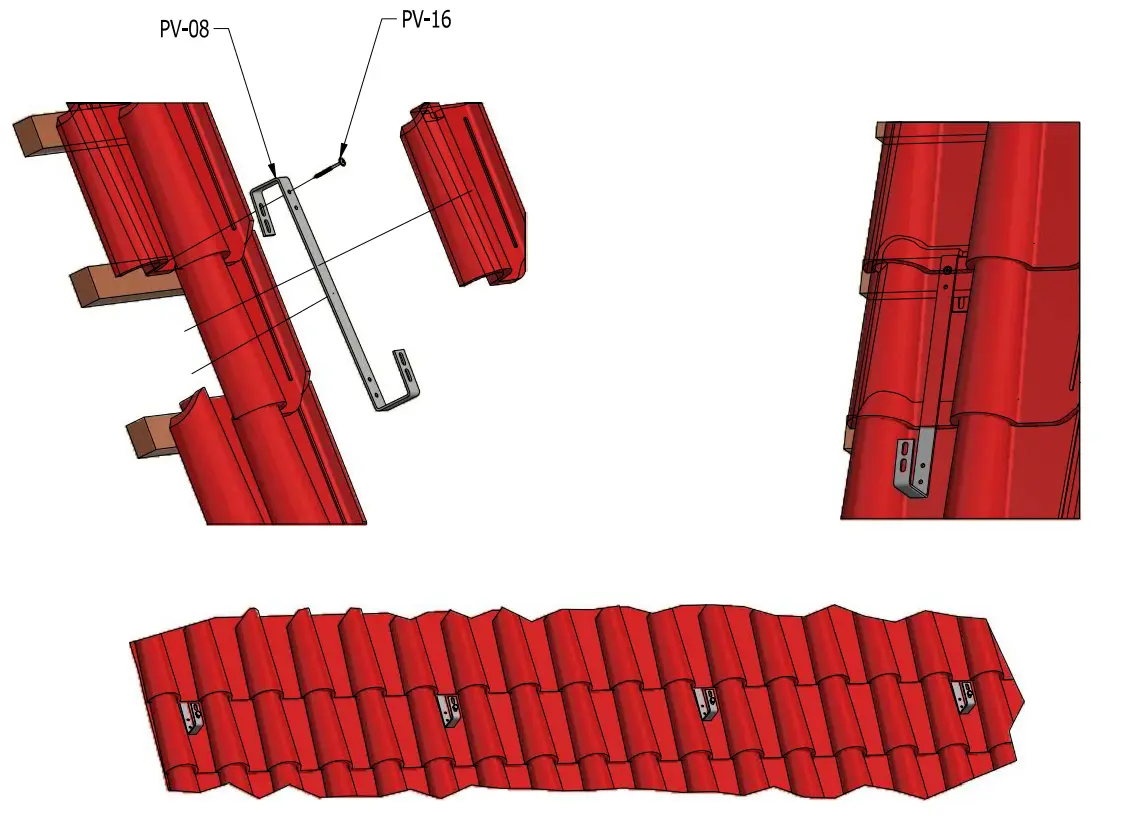

  • The installation method is analogous to the non-adjustable hook. Exact dimensions of the hook are shown in the graphics above.
  • H17 steel from which the hooks are made is characterised by high resistance to adverse environmental conditions (stainless steel).
