Adjustable mounting triangle aluminium 6060 15°-30° 1500x580x1050 mm M10

Mounting triangle, adjustable - 15-30 vertical - 1500x580x1050 PV-09-07

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 2 kg

Price / pcs.: £18.11 18.11

excl. shipping costs

* Packaging options:

Piece
Package: 50 pieces
Package: 200 pieces
Package: 500 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: Synerga

Product code: PV-09-07

recommend to a friend

Description

Adjustable mounting triangle - 15-30 portrait - 1500x580x1050

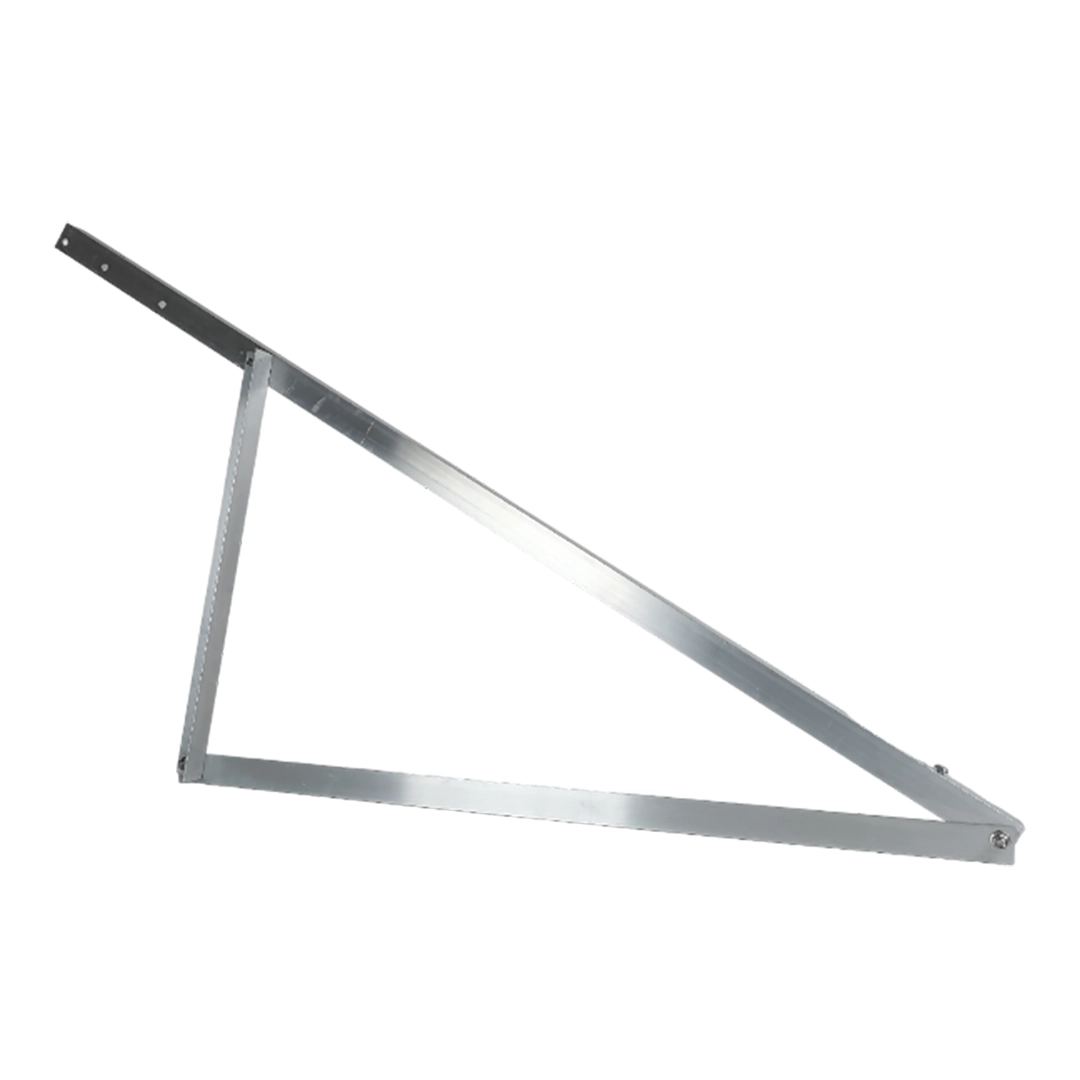

Adjustable mounting triangle - 15°-30° portrait, Aluminium 6060, with dimensions 1500x580x1050 and M10 hole for mounting photovoltaic panels.

The adjustable mounting triangle, also known as a mounting bracket, is an essential component for installing photovoltaic systems on roofs with low pitch angles and on flat roofs. It allows for adjustment of the panel angle, and selecting the correct angle is crucial for proper and efficient operation of the photovoltaic installation.

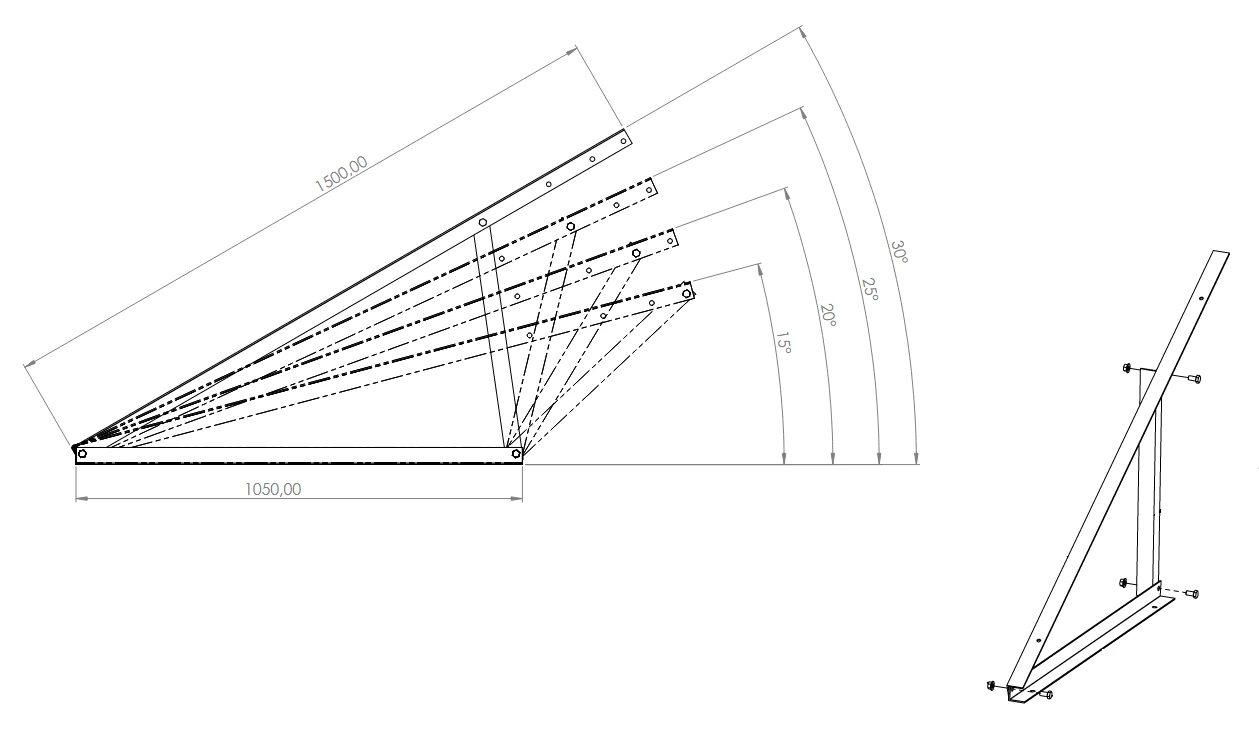

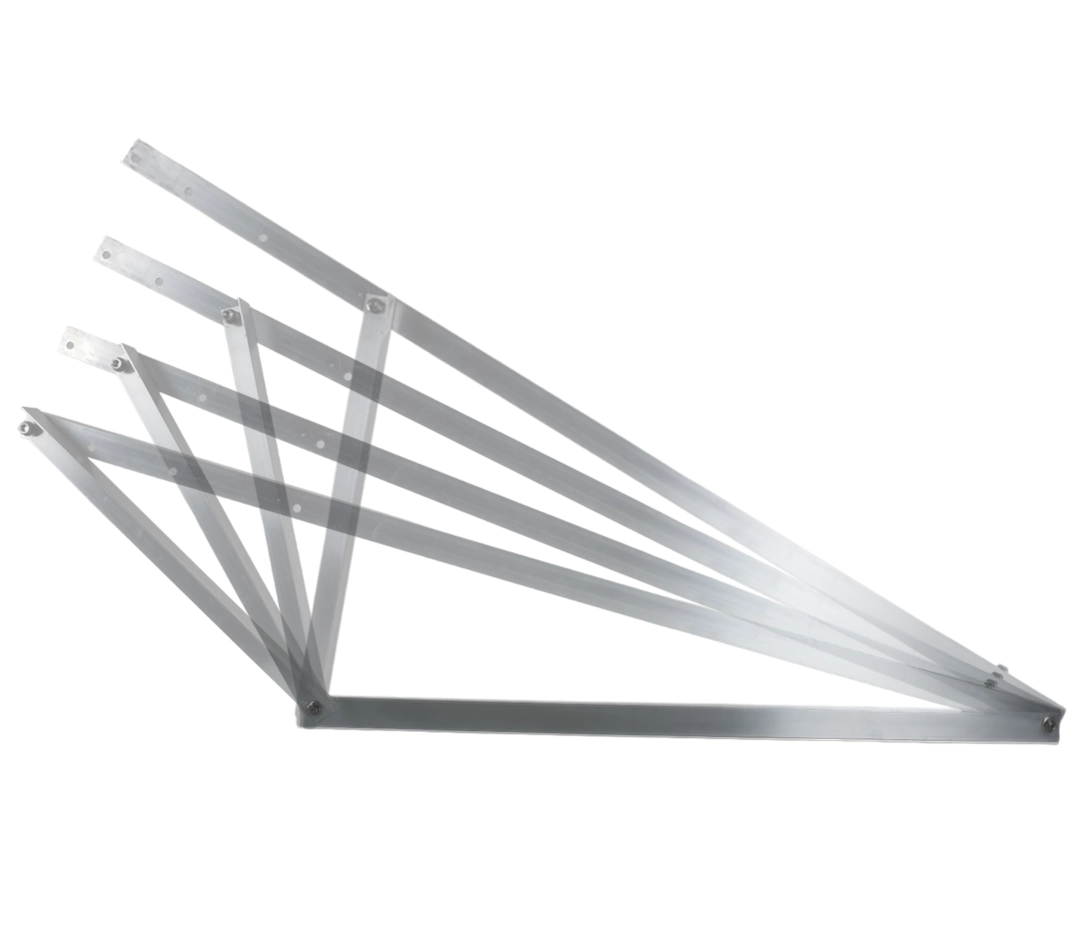

The triangle enables angle adjustment of 15°, 20°, 25° and 30° for easy customisation.

Triangles manufactured from 40×40×3mm angle sections. The product is made from aluminium 6060, guaranteeing lightweight construction, resistance to mechanical overload and durability in adverse environmental conditions.

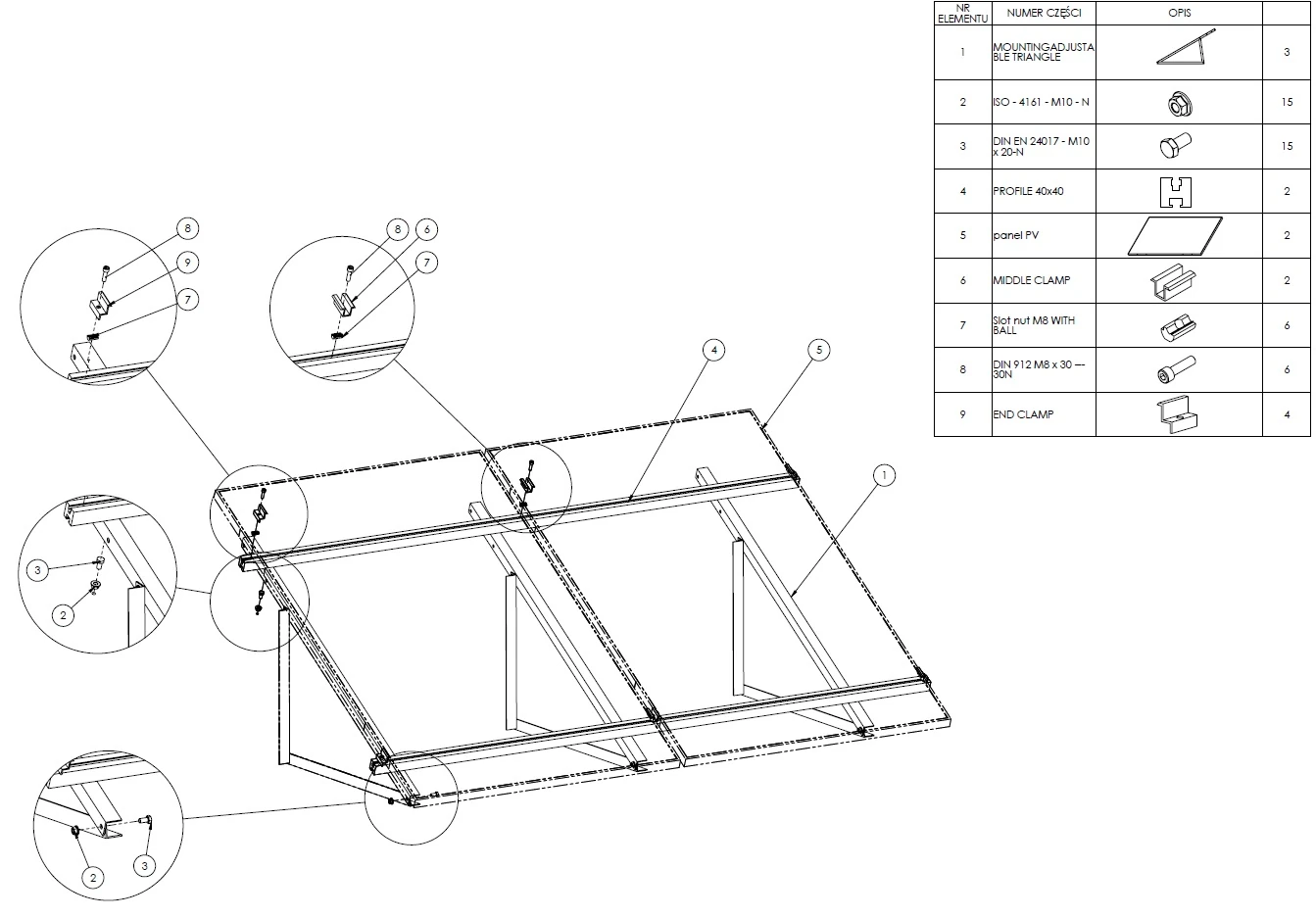

Integral components of the triangles include fastening elements, M10 DIN 933 hexagonal bolt and M10 DIN 6923 flanged nut.

Please note: All necessary fastening elements are supplied as standard.

Ładowanie tabeli porównawczej...

Ładowanie galerii...

Technical data

Material	Aluminium 6060
Angle	Adjustable
Panel orientation	Vertical

Safety

Shipping costs The price does not include any possible payment costs

Shipping country:

Hexagonal flange nuts DIN 6923 with serrated flange - M10

Hex Flange Nut DIN 6923 with Serrated Flange M10, Stainless Steel A2 1.4301, for Photovoltaic System.

Price: £0.05

Hexagon Head Bolt DIN 933 M10x20mm

DIN 933 M10x20mm hexagon head bolt made of A2 1.4301 stainless steel. Full thread, hexagonal head. Designed for photovoltaic systems.

Price: £0.14

Aluminium Profile 220cm 40x40 for Hexagon Bolts

Aluminium 6060 mounting profile, 221 cm length, 40x40 mm, for mounting photovoltaic panels. Installation with M10 hexagon bolts and flange nuts. Compatible with middle and end clamps.

Price: £12.02

End clamp H32 aluminum 6060 hole M8

Side Clamping Bracket made of Aluminium 6060, 32mm, M8 hole, for photovoltaic modules.

Price: £0.25

Middle clamp H24 aluminum 6060 hole M8

Middle clamp in Aluminium 6060, 24mm, M8 screw hole for photovoltaic modules.

Price: £0.23

Roll-in T-nut with ball spring M8 (slot nut)

M8 T-Nut with Ball Spring, Aluminum 6060, for photovoltaic system.

Price: £0.10

Washer A2 DIN 125 M8 - 8.4 mm

Washer DIN 125 M8 stainless steel A2 1.4301, 1,6x16mm ⌀8,4mm, for photovoltaic systems.

Price: £0.01

Spring washer DIN 7980 A2 M8 8.1

Spring washer DIN 7980 A2 M8 8.1 in A2 1.4301 stainless steel, 2x12.7mm ⌀8.1mm height 4mm, for photovoltaic systems.

Price: £0.03

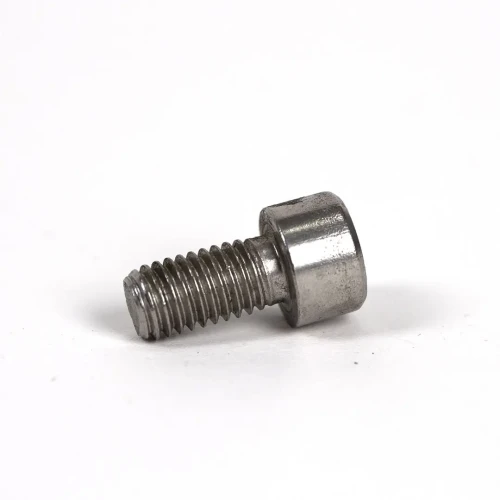

Socket head cap screw DIN 912 M8x16 stainless steel A2

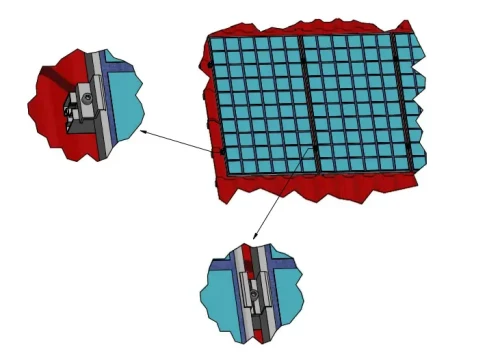

DIN 912 socket head cap screw made of A2 1.4301 stainless steel, M8x16mm, for mounting photovoltaic systems. Weather-resistant, used to connect clamps to mounting profiles.
