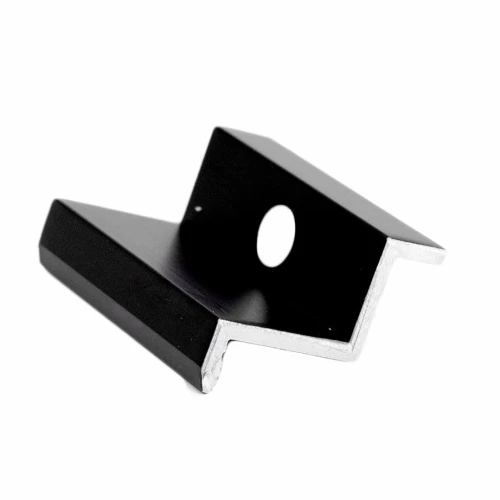

H30 Black Anodised Side Clamp – PV End Clamp L50
Leave feedback on the product
Side clamp for photovoltaic panels, frame thickness 30 mm, made of 6060 aluminium with black anodising. Dimensions: 26.8x32.8x50 mm, hole Ø8.5 mm for M8 bolt. Compatible with T-slot, hexagonal and trapezoidal profiles.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
Filter clamps
- Panel thickness [mm] -
- Colour Black
- Adjustment -
- Additional equipment None
- Grounding pin None
[PIM] Klemy #34
- Clamp Type End
- Panel thickness [mm] 30
- Colour Black
- Grounding pin No
- Additional accessories None
Description
H30 Black Anodised Side Clamp – PV End Clamp L50
H30 side (end) clamp for securing the outer edge of photovoltaic panels with a frame thickness of 30 mm. Made of 6060 aluminium with black anodising, which increases corrosion resistance and gives the installation an attractive appearance.
Application and installation
The side clamp serves as a finishing element at the ends of rows of photovoltaic modules — both on flat roofs and pitched roofs. Mid clamps should be used to secure panels to one another. The set includes only the aluminium clamp — the bolt and nut must be selected separately.
Compatibility with mounting profiles
- Aluminium profiles for hexagonal bolts
- Aluminium profiles for T-bolts
- Trapezoidal profiles for trapezoidal sheet metal roofs

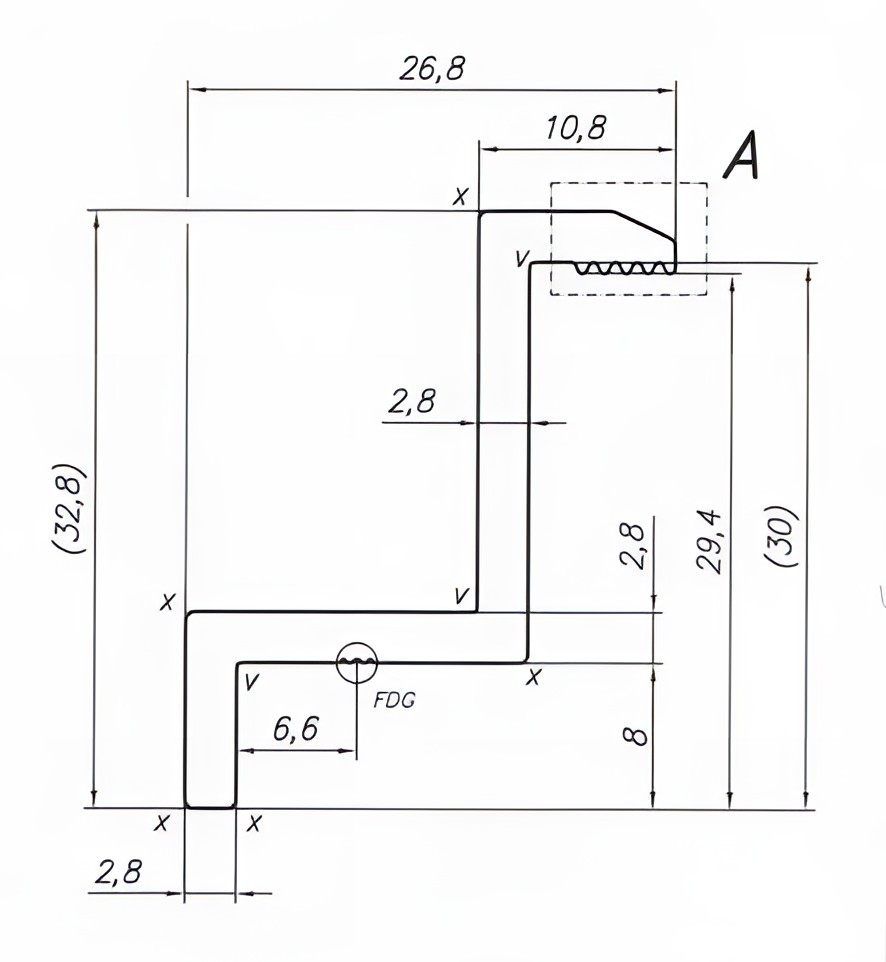

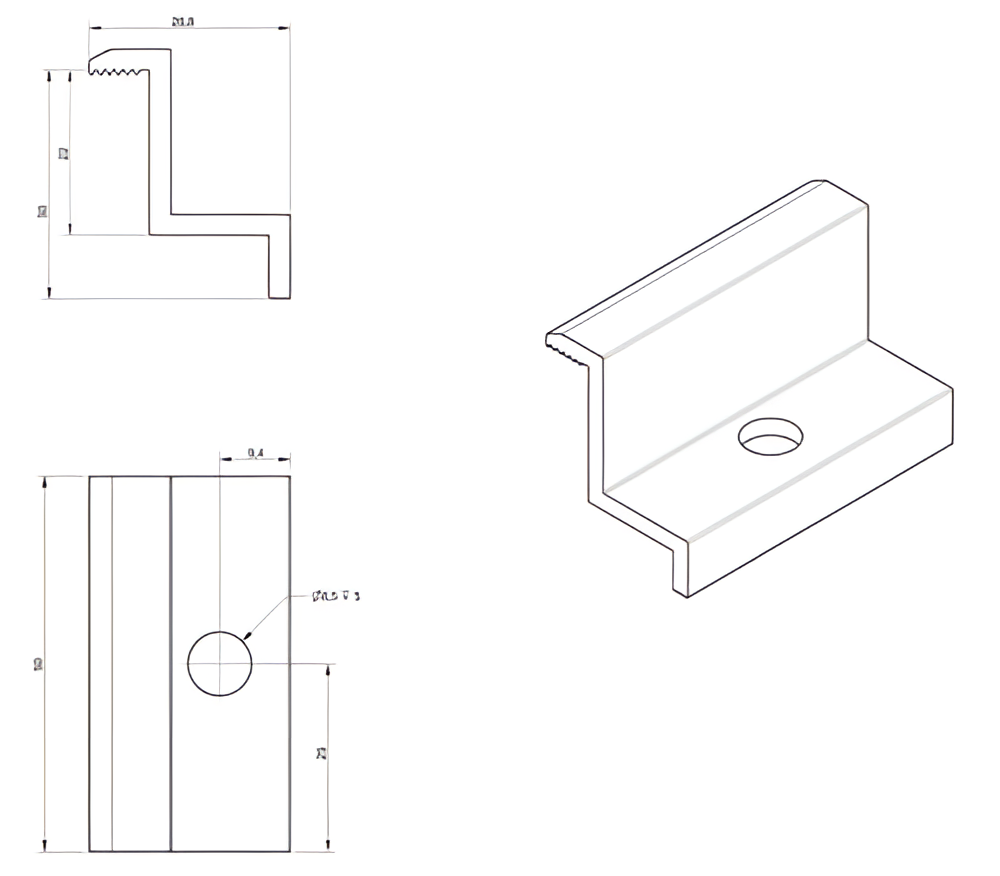

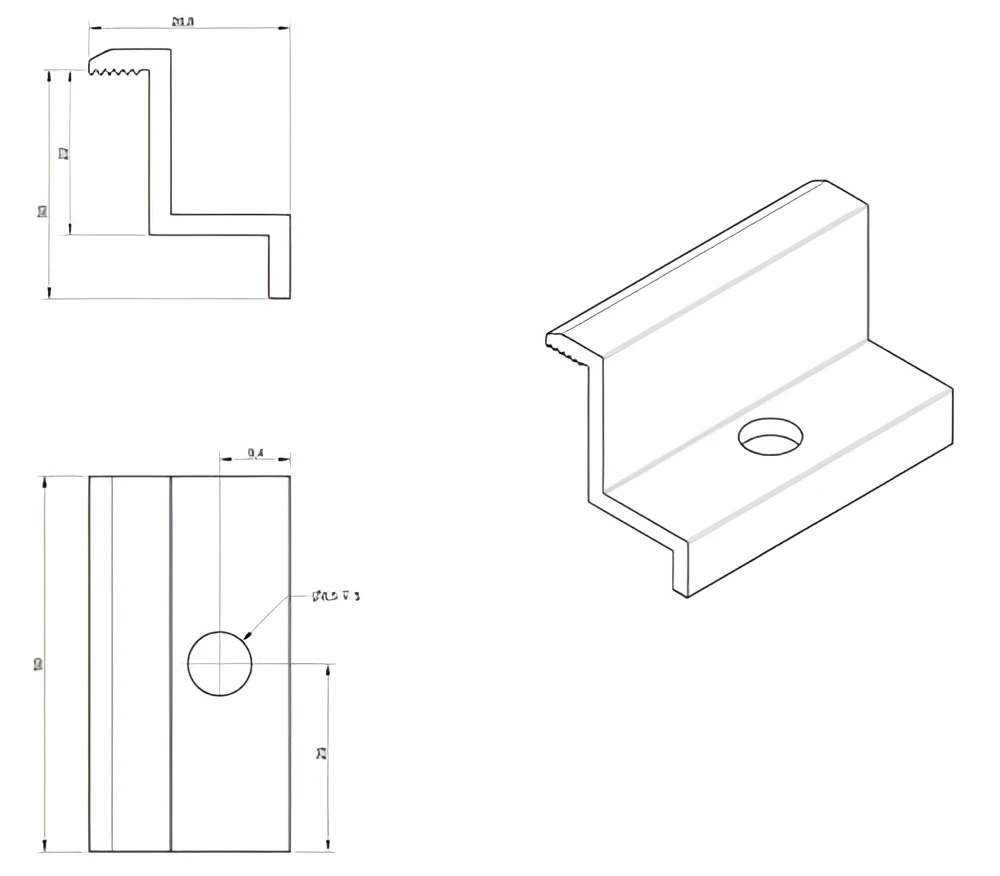

Dimensions and technical parameters
- Width: 26.8 mm
- Overall height: 32.8 mm
- Working height (H): 30 mm
- Length: 50 mm
- Mounting hole: Ø8.5 mm (for M8 bolt)
- Wall thickness: 2.8 mm
- Material: 6060 aluminium
- Finish: black anodising
- Colour: black
Selecting a DIN 912 socket head bolt
| Profile type | Bolt size |
|---|---|
| T-profile | M8x20 |
| Hexagonal profile | M8x20 |
| Trapezoidal bridge (for spline) | M8x20 |
| Trapezoidal bridge (for hexagonal bolt) | M8x20 |
The recommended tightening torque should be selected in accordance with the photovoltaic panel manufacturer's guidelines.

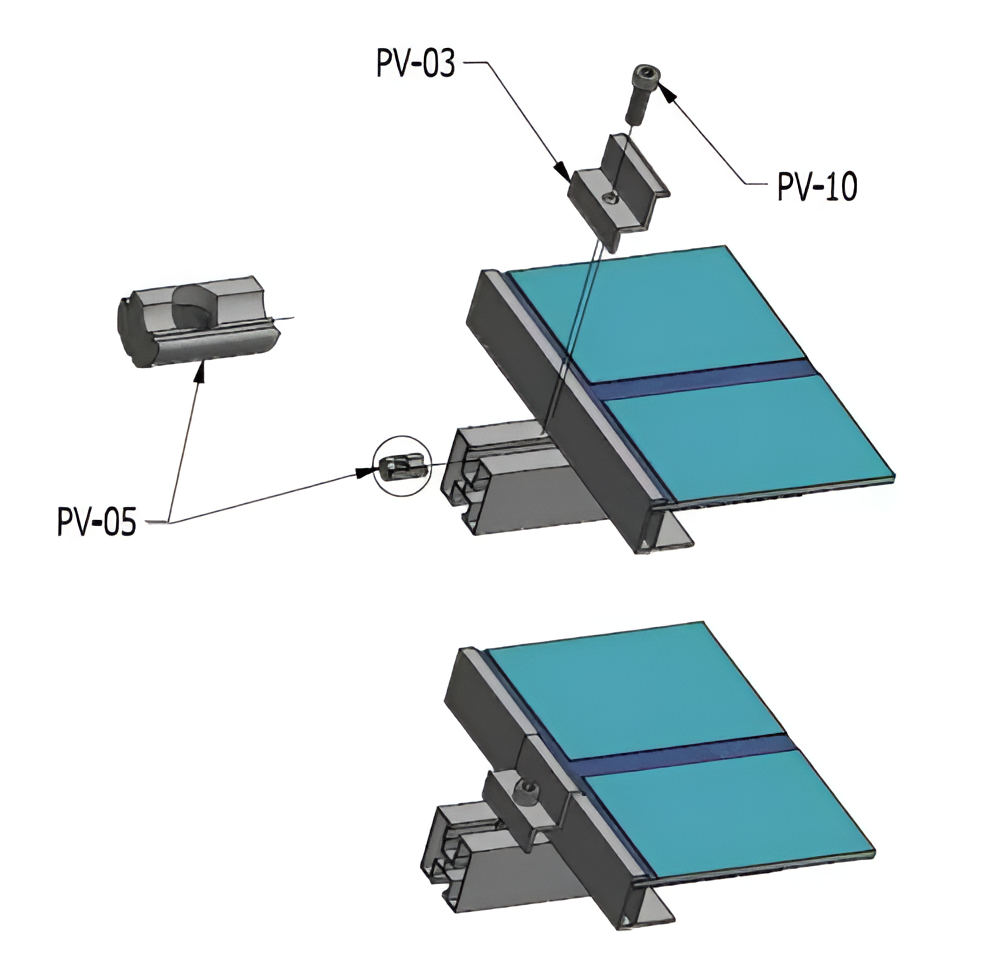

The installation diagram shows how the side clamp is fitted onto the aluminium profile using a sliding spline and a socket head bolt. The clamp presses down on the edge of the photovoltaic module, ensuring a stable and secure fixing.
