PV Round Earthing Washer with Ø44 mm Notch – A2 Stainless Steel

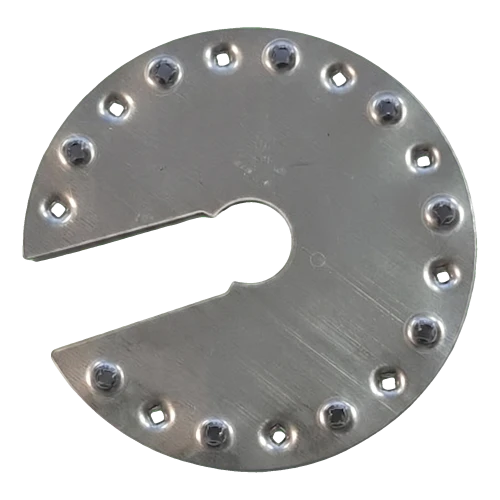

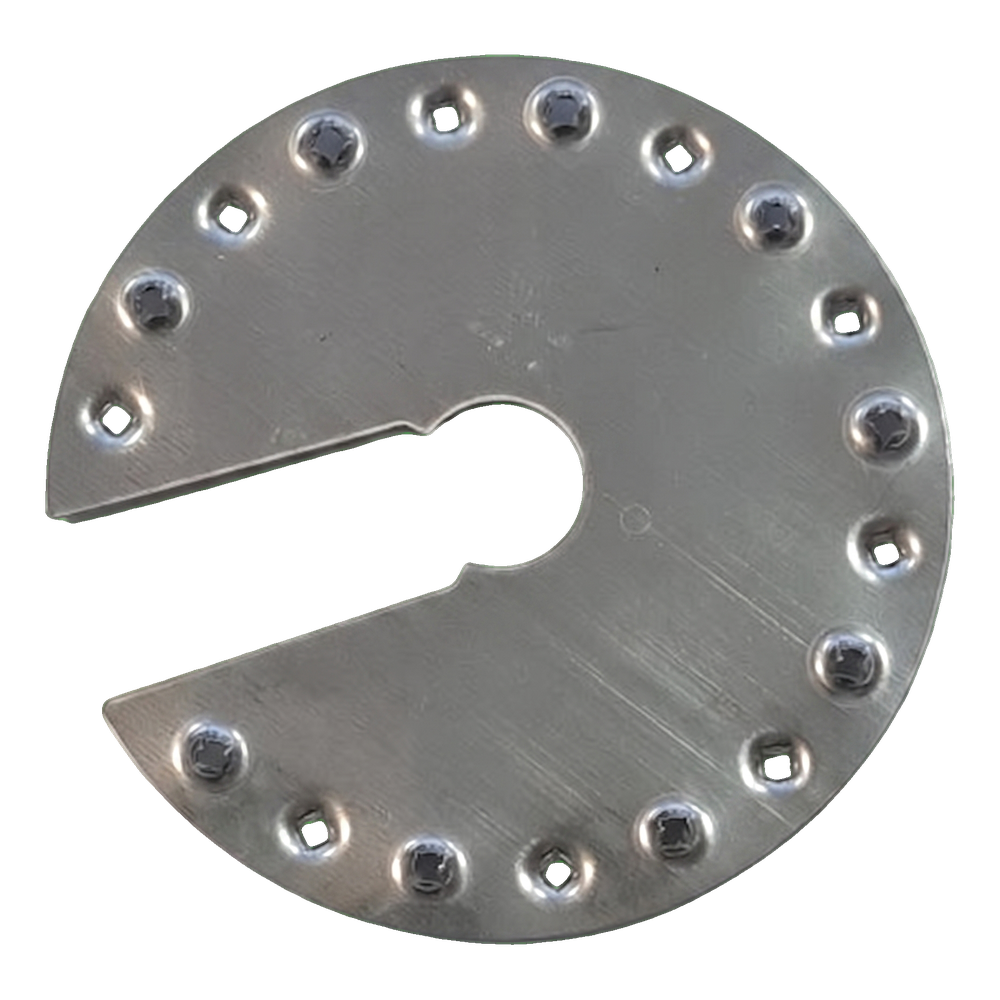

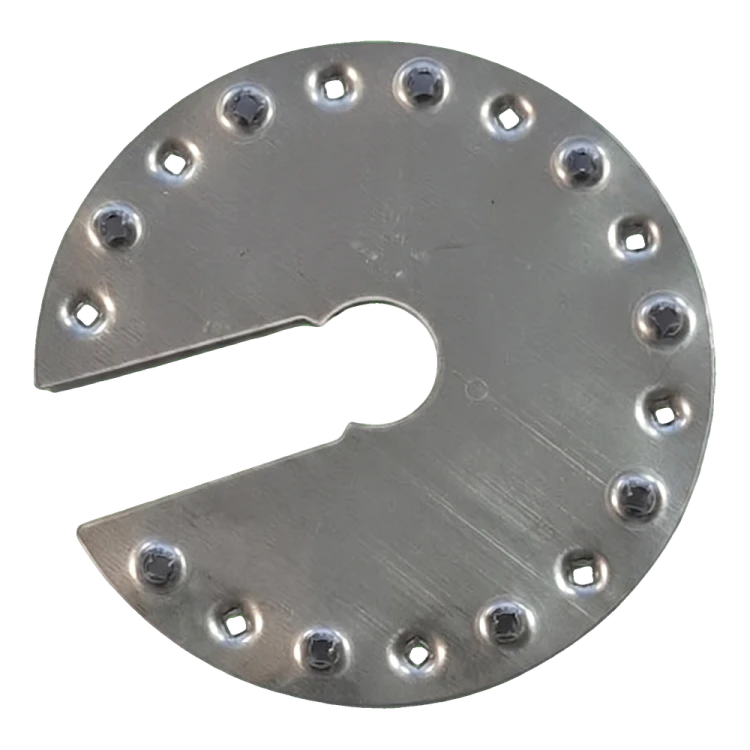

Earthing washer variant IV is a round mounting component with a distinctive notch, designed for potential equalisation in photovoltaic installations. It ensures galvanic continuity of connections between PV module frames and the mounting structure, meeting the requirements for lightning protection and system earthing. The washer is fitted with sharp prongs arranged around its circumference, which, as the bolt is tightened, pierce the thin anodised aluminium layer covering the PV module frames. The anodised layer is an insulator — only once it is breached do the prongs reach the bare aluminium and form a solid, durable electrical connection. Manufactured from A2 stainless steel (1.4301, grade 304), it guarantees exceptional corrosion resistance in all weather conditions, ensuring uninterrupted performance throughout the entire service life of the installation.
Key benefits for the installer
- Prongs piercing the anodised layer — reliable electrical connection without additional surface preparation
- Austenitic non-magnetic steel — flexible and stress-resistant, suitable for operation in all environmental conditions
- The notch allows the washer to be quickly slid onto the bolt without removing it — speeding up installation
- Compact and lightweight design — no impact on the loading of profiles and frames
- High corrosion resistance thanks to the nickel content in the alloy — durability throughout the entire service life of the PV installation

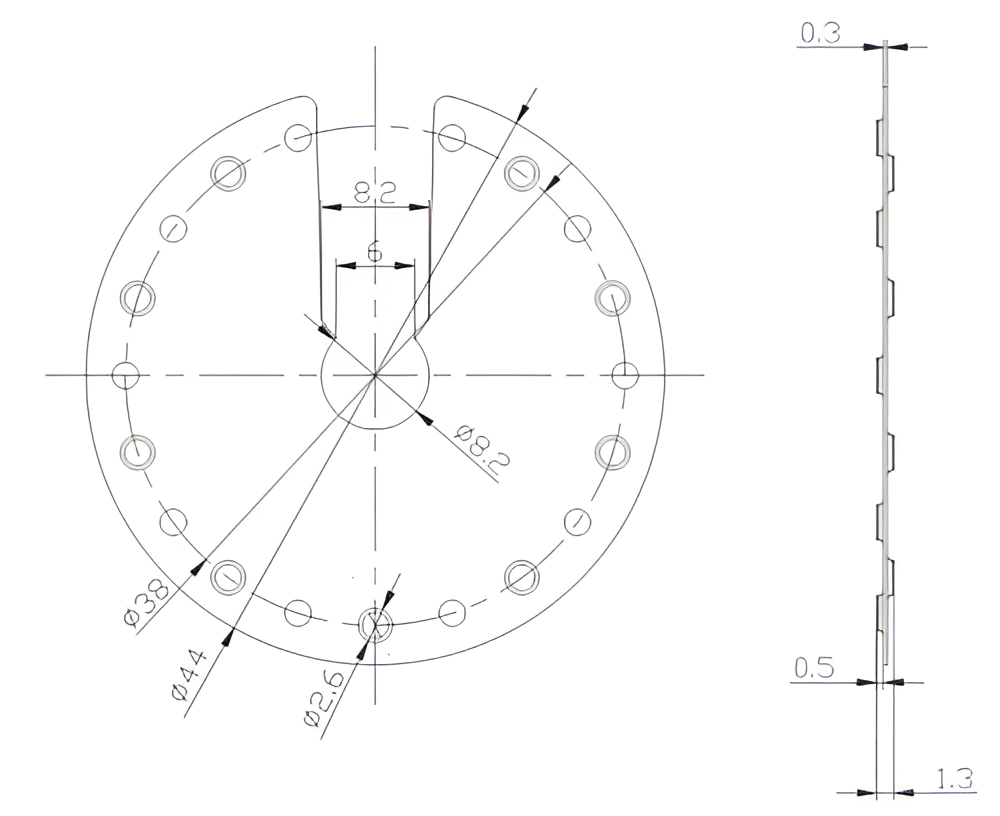

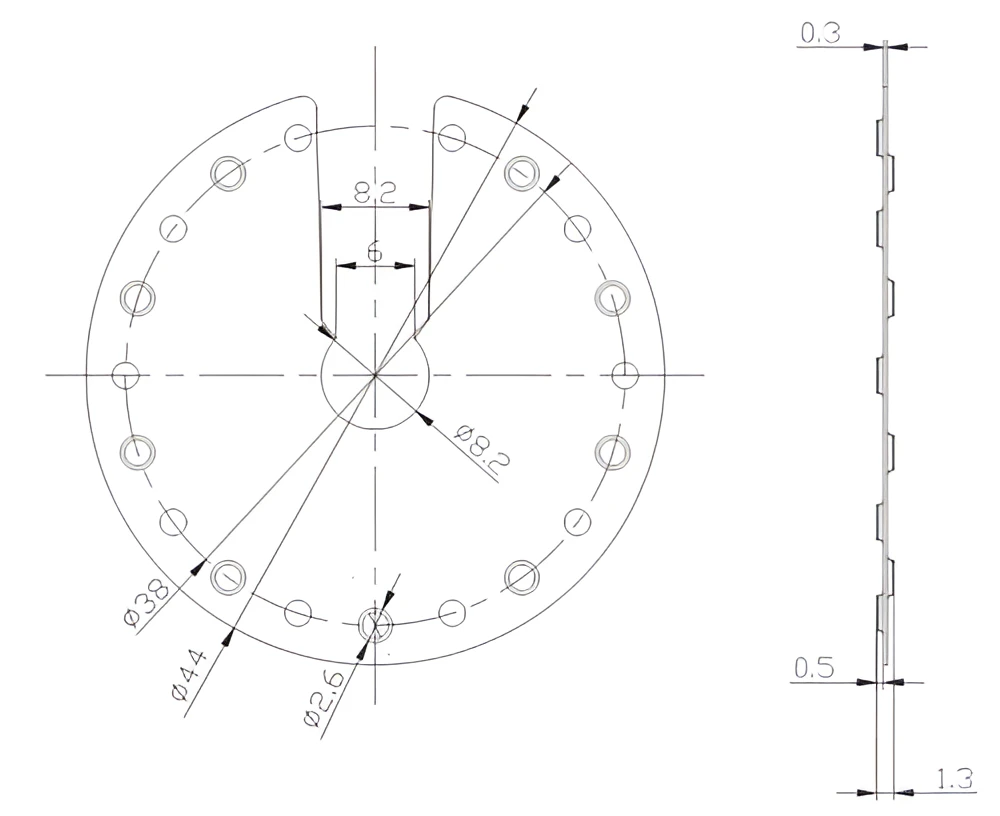

The technical drawing shows a top view and a side cross-section of the washer. The prongs arranged around the circumference are visible, along with the central hole with a keyhole-type notch and the side profile showing the height of the prongs relative to the base plane.
