UFR black end cap for 80×40 mm PV mounting profiles – LLDPE polyethylene

Go to Product feedback

UFR end cap for 80×40 mm PV mounting profiles, black, made of LLDPE polyethylene. Length 80 mm, thickness 32 mm, weight 0.021 kg. Operating temperature range from −100°C. Push-fit installation, no tools required. For finishing profiles in photovoltaic installations.

Go to full description
with VAT without VAT
Price €0.47
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Description

UFR black end cap for 80×40 mm PV mounting profiles – LLDPE polyethylene

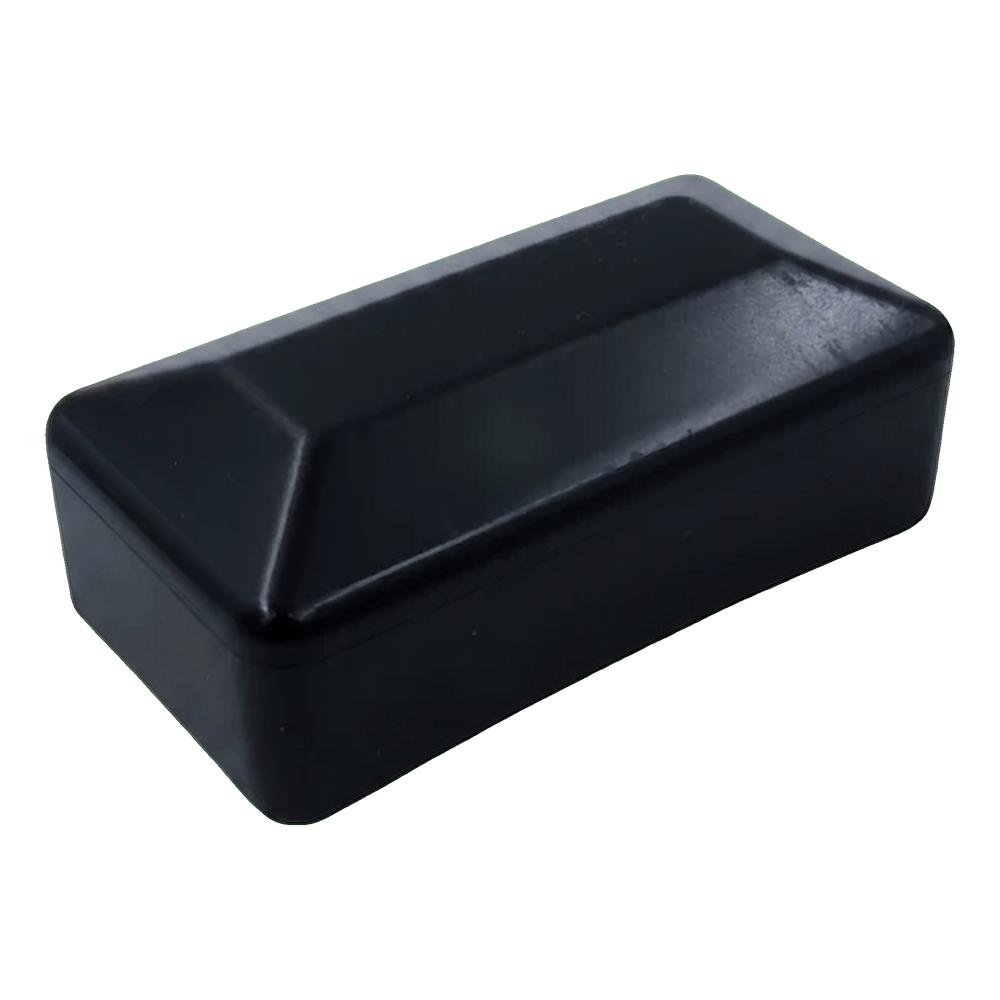

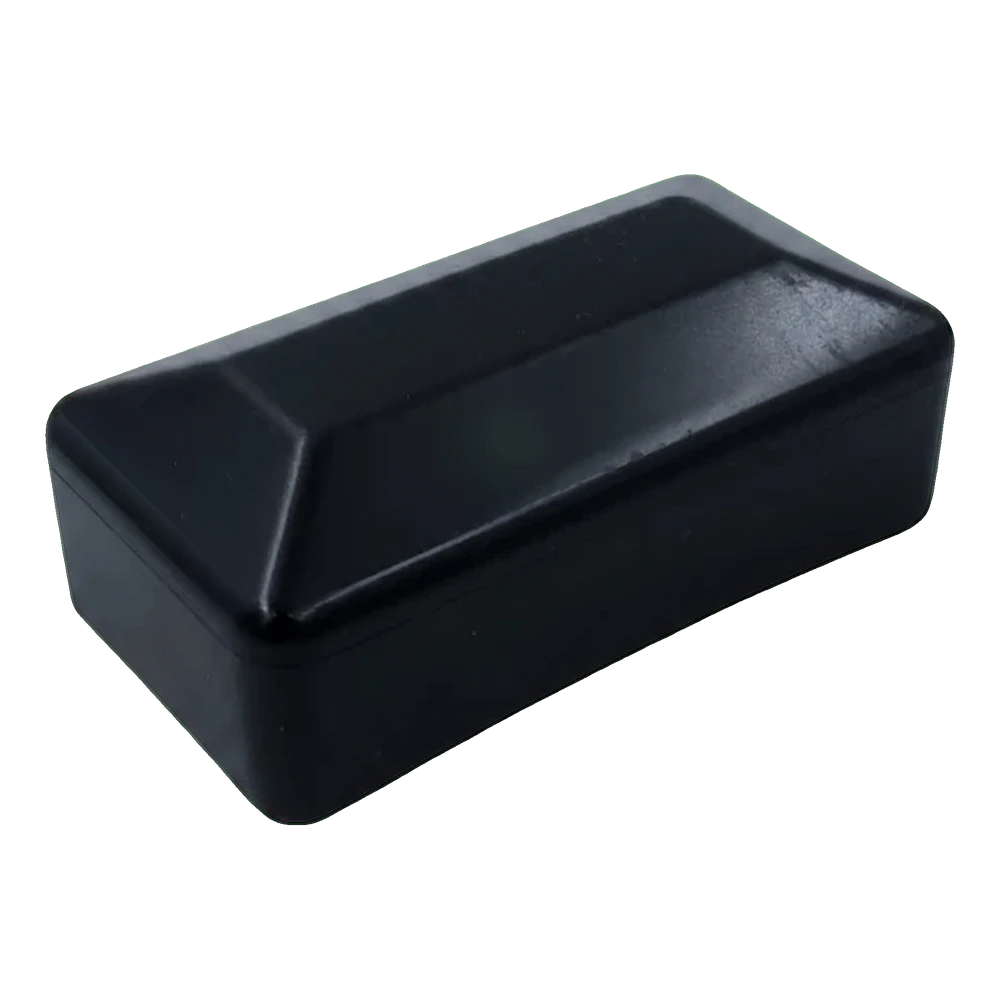

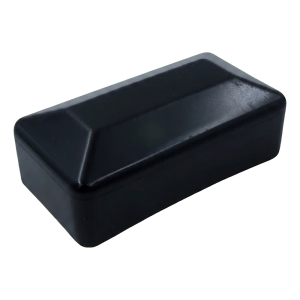

UFR black end cap 80×40 mm – top view
UFR black end cap 80×40 mm – top view

UFR end cap 80×40 mm is a finishing component designed to terminate mounting profiles in photovoltaic installations. Slid onto the open end of a profile with a 80×40 mm cross-section, it effectively protects the interior against the ingress of rainwater, snow, dust and small debris that could accelerate corrosion of the internal aluminium walls. Made of LLDPE polyethylene, it combines flexibility with high mechanical resistance — the material does not crack even in extreme frost and remains stable under prolonged exposure to UV radiation. The black colour of the cap blends discreetly with dark profiles and modules, improving the aesthetics of the entire support structure. Thanks to its low weight and simple push-fit installation, the component requires no additional tools or fasteners — it just needs to be pressed on by hand at the end of the profile.

Why it is worth using UFR end caps

  • Protect the interior of the profile against rainwater, snow and contaminants, extending the service life of the entire support structure
  • Material resistant to UV radiation and environmental corrosion — the cap does not degrade under years of sun exposure
  • Trouble-free push-fit installation speeds up the completion of the installation and requires no additional fittings
  • Black colour provides a discreet, aesthetic finish that harmonises with dark profiles and PV modules
  • Minimal weight has no effect on the structural calculations and does not burden the profile
Video presenting the UFR end cap for PV mounting profiles

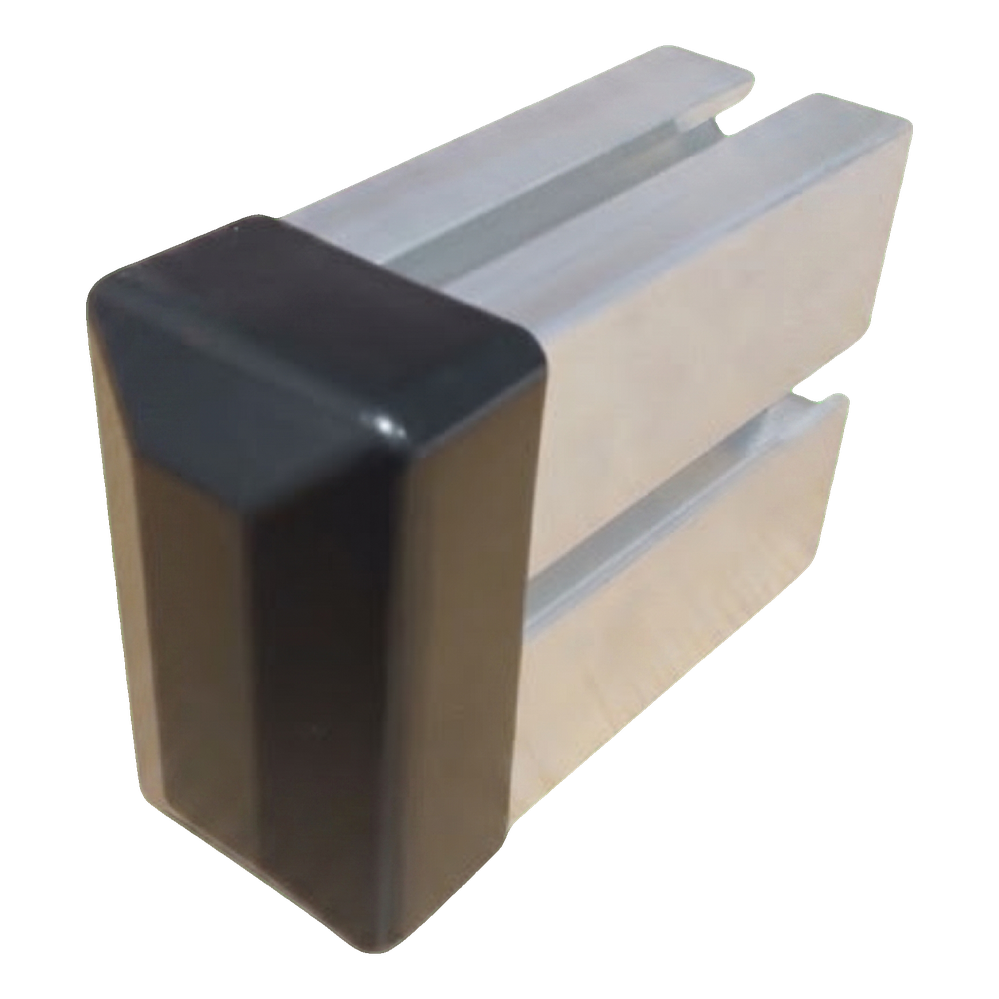

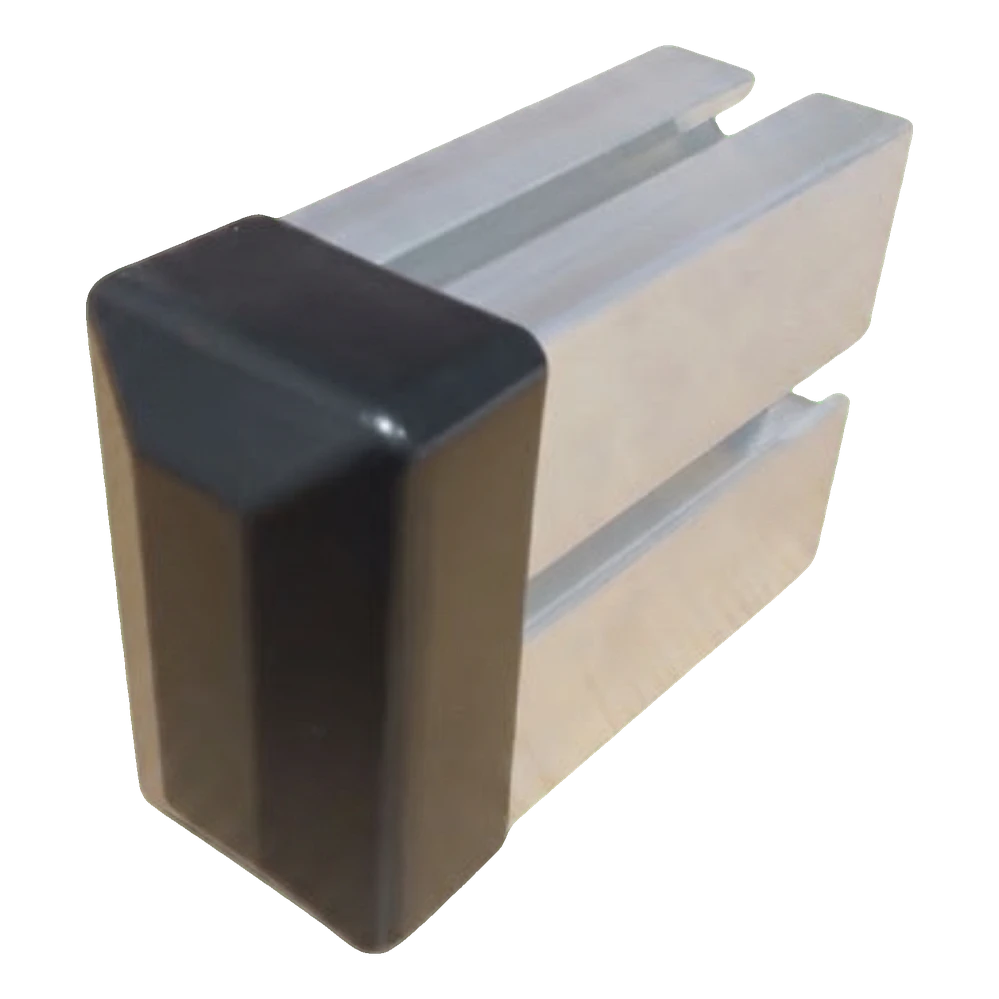

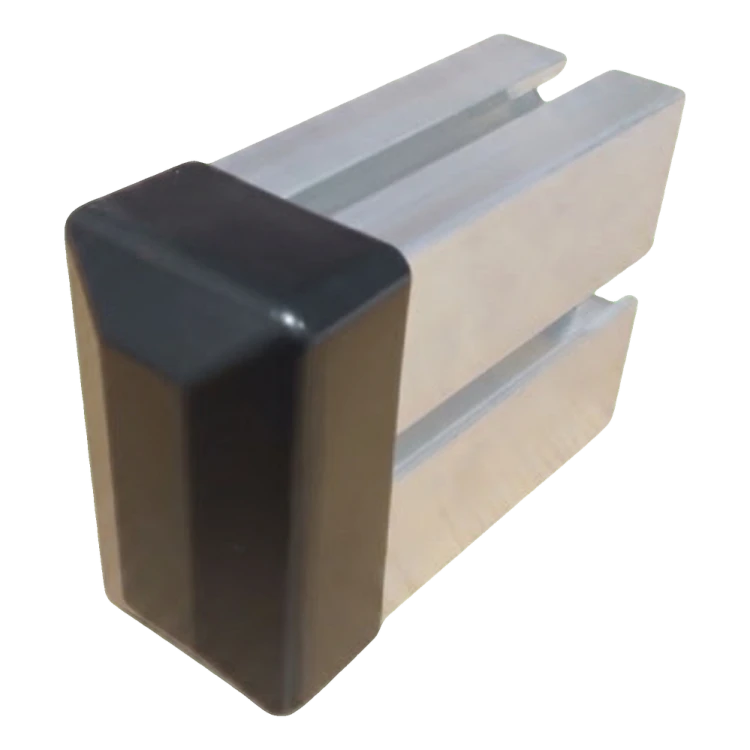

Black UFR end cap fitted onto an 80×40 mm aluminium profile
Black UFR end cap fitted onto an 80×40 mm aluminium profile

Material and properties

MaterialLLDPE polyethylene
Colourblack
UV and weather resistancehigh
Operating temperature rangefrom −100 °C

Dimensions

Fitting size80×40 mm
Length80 mm
Thickness32 mm
Weight0.021 kg (21 g)

Installation and application

Installation methodpush-fit — by hand, no tools required
Compatible profilesPV mounting profiles with a 80×40 mm cross-section
Applicationtermination of mounting profiles in photovoltaic installations — protection against water and contaminants
