Aluminium Profile 221cm 80x40 for Hexagon Bolt 90443

Go to Product feedback

Aluminium mounting rail 80x40x2210mm | 6060 alloy | DIN 933 M10 compatible. Photovoltaic panel mounting profile with 3x M10 hex bolt fixing and M8 sliding T-nut. Compatible with mid and end clamps for solar installations.

Go to full description

€34.83

Choose a variant:

Individual variants may differ in price

Packaging options

Piece

Unavailable

Package: 500 pieces

Unavailable

Package: 5000 pieces

Unavailable

Package: 10000 pieces

Unavailable

Quantity

pcs.

Availability:

Temporarily unavailable

Main parameters

Coating type Raw
Mounting type Hex bolt
Cross-section 80x40
Length [cm] 221
Cable channel None

[PIM] Profile montażowe #6

Length [mm] 2210

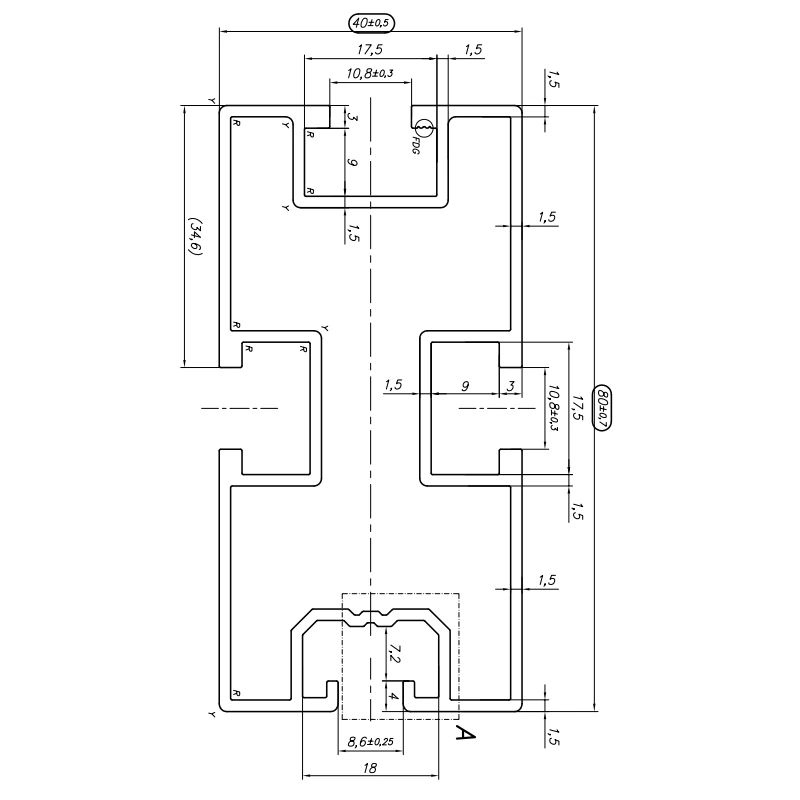

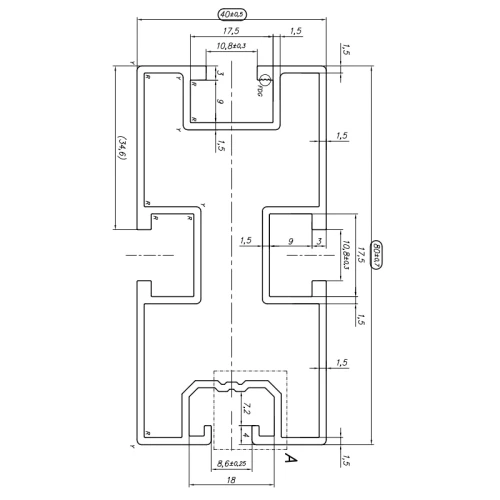

Profile [mm] 80×40
Slot Type For hex bolt
Finish Natural

Description

Aluminium profile 221cm 80x40 for hexagon bolt 90443

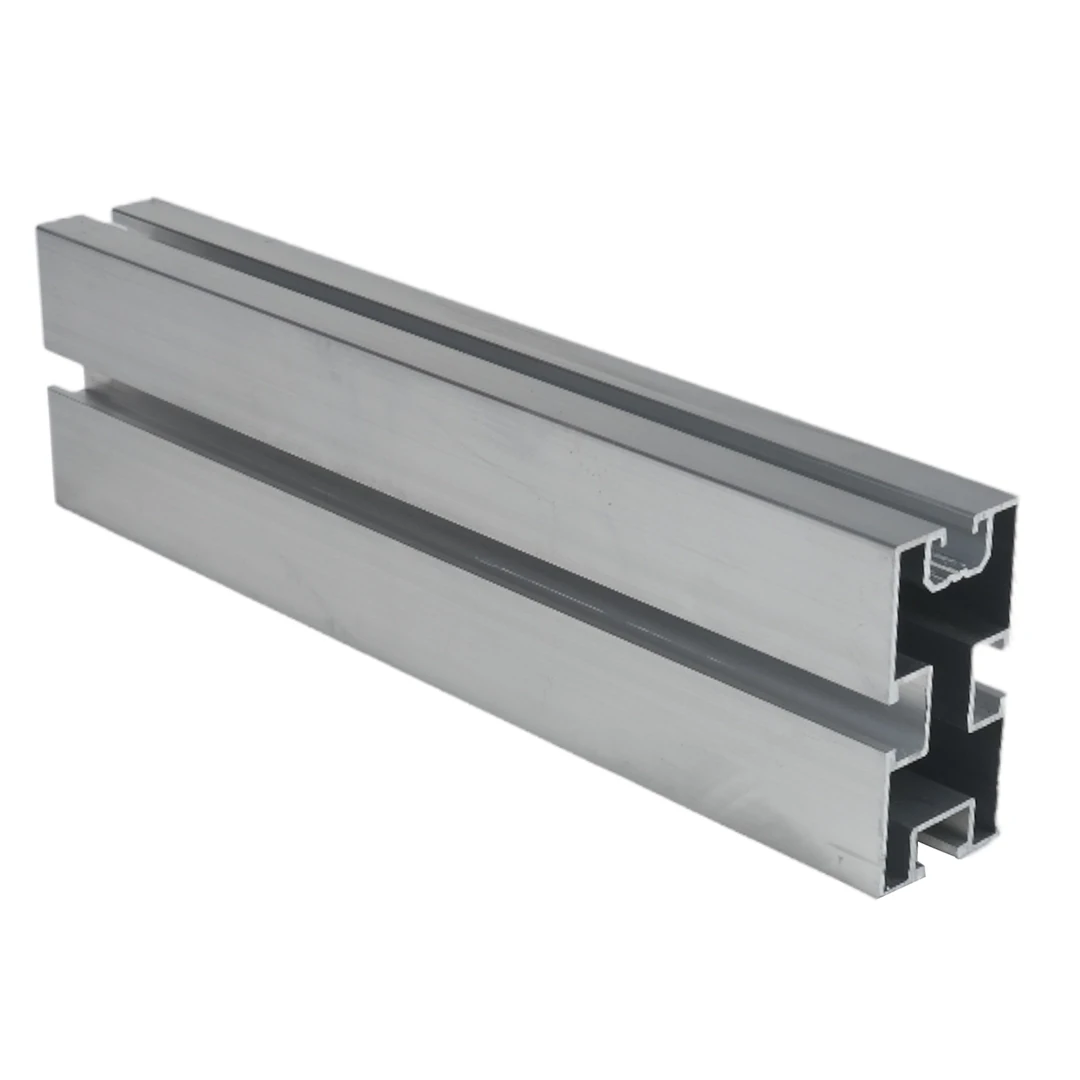

Mounting profile 80x40x2210mm made of Aluminium 6060 for 3x Hexagon head bolt DIN 933 M10 and Sliding block M8, for photovoltaic modules.

The mounting profile is suitable for installing photovoltaic panels with mid and end clamps. The clamps are fixed to the upper channel of the profile rail. The lower rail channel allows the profile to be mounted on adapters, roof hooks or triangles.

Installation is carried out using 3x hexagon head bolt DIN 933 M10 and sliding block M8.

Mounting profiles with dimensions 8x4 cm for hexagon bolts are made of high-quality aluminium 6060.

The length of the profiles can be extended using profile connectors available separately.
