Aluminium profile 240cm 80x40 for hexagon bolt 90443
Availability:
Temporarily unavailable
Weight:
3.72 kg
Description

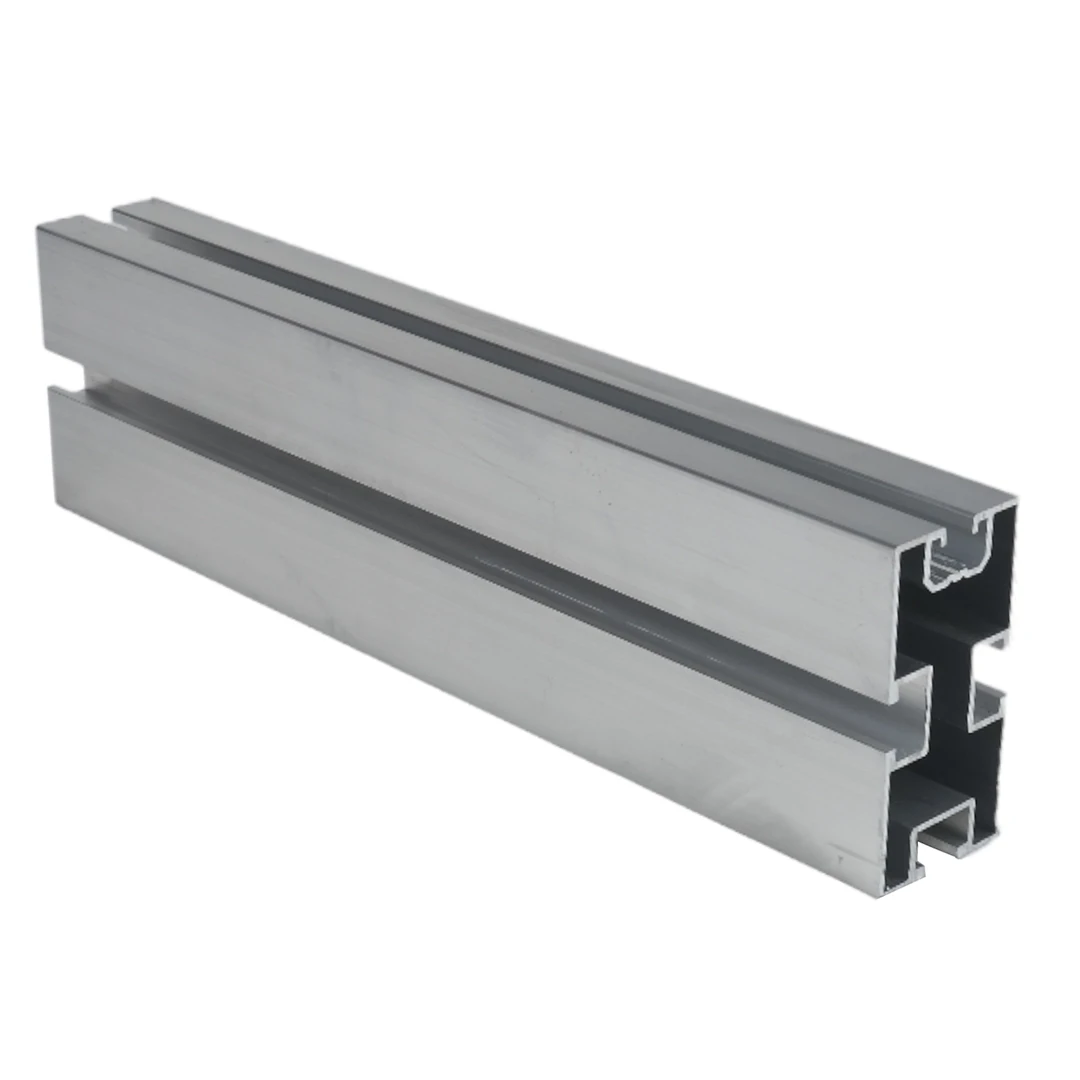

Aluminium profile 240cm 80x40 for hexagon bolt 90443

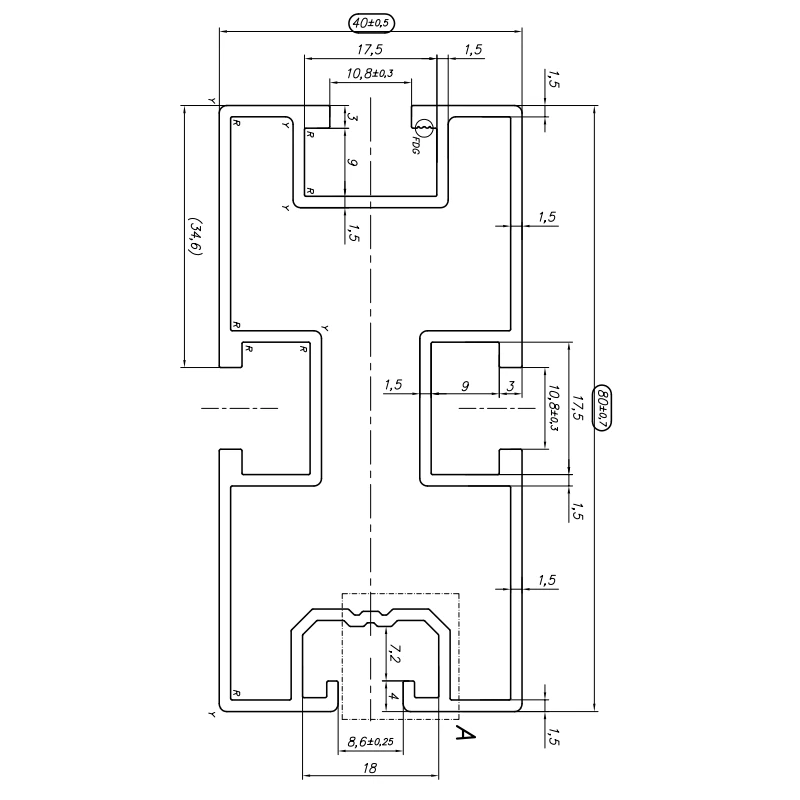

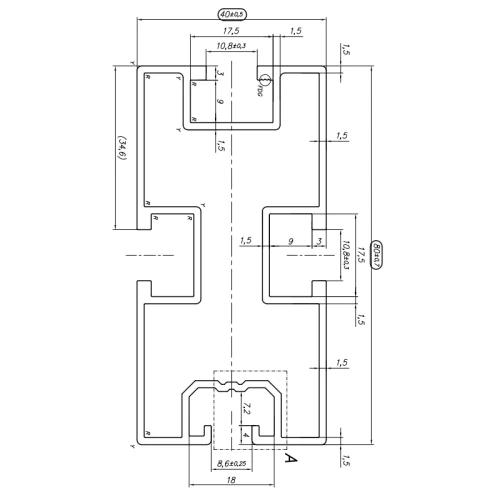

Mounting profile 80x40x2400mm made of Aluminium 6060 for 3x Hexagon head bolt DIN 933 M10 and Sliding block M8, for photovoltaic modules.
The mounting profile is suitable for installing photovoltaic panels with mid and end clamps. The clamps are fixed to the upper channel of the profile rail. The lower rail channel enables mounting of the profile on adapters, roof hooks or triangles.
- Installation is carried out using 3x hexagon head bolt DIN 933 M10 and sliding block M8.
- Mounting profiles with dimensions 8x4 cm for hexagon bolts are made of high-quality aluminium 6060.
- The length of the profiles can be extended using profile connectors available separately.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Coating type | Raw |
| Mounting type | Hex bolt |
| Cross-section | 80x40 |
| Length [cm] | 240 |
| Cable channel | None |
| Length [mm] | 2400 |
| Profile [mm] | 80×40 |
| Slot Type | For hex bolt |
| Finish | Natural |
