Aluminium profile 420cm 80x40 for hexagon bolt

Go to Product feedback

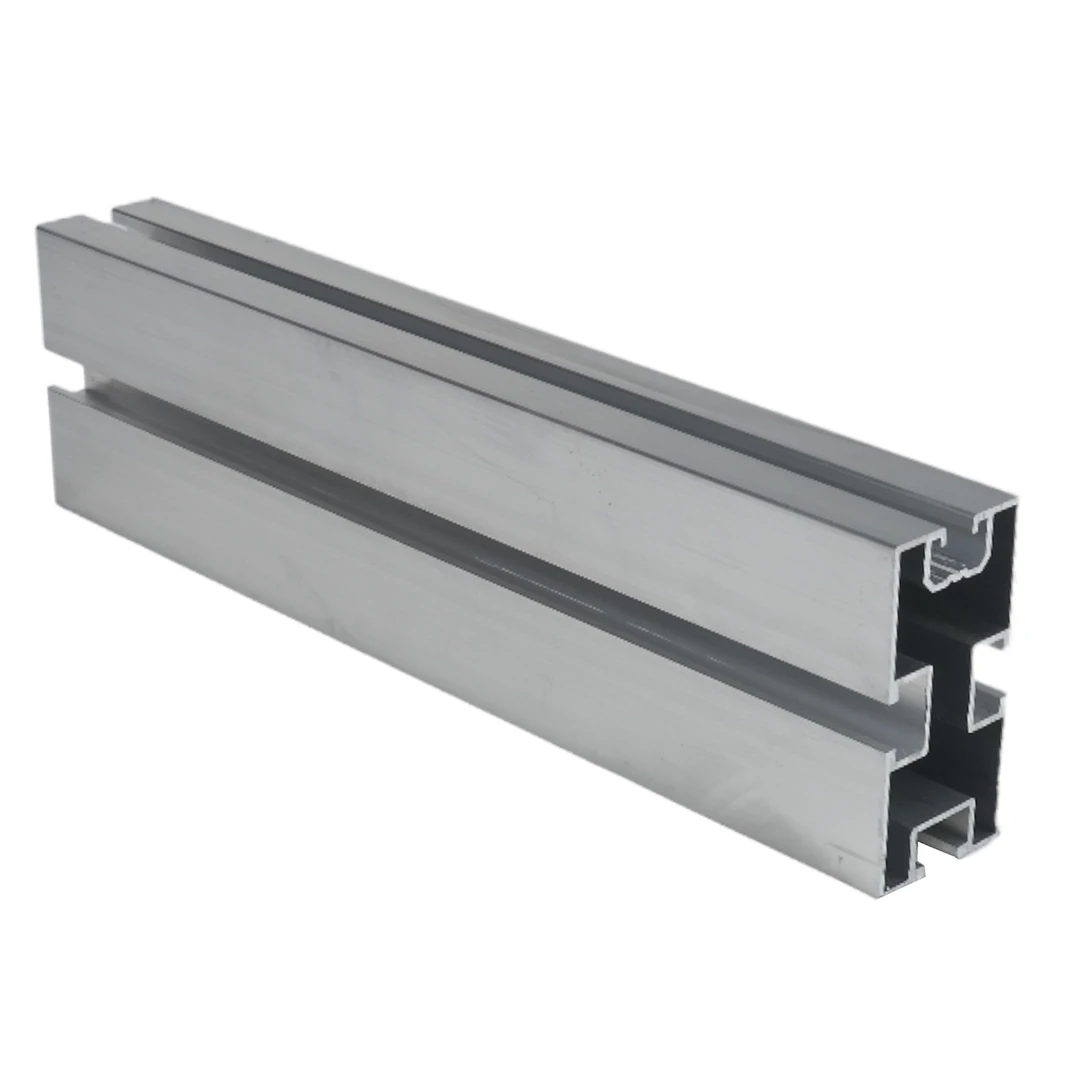

Aluminium mounting rail 80x40x4200mm for photovoltaic panels. Made from aluminium 6060 alloy. Installation using 3x DIN 933 M10 hex bolts and M8 T-slot. Upper channel for mid and end clamps, lower channel for roof mounting adapters.

Go to full description

€63.94

Choose a variant:

Individual variants may differ in price

Packaging options

Piece

Unavailable

Package: 16 pieces

Unavailable

Package: 174 pieces

Unavailable

Package: 348 pieces

Unavailable

Quantity

pcs.

Availability:

Temporarily unavailable

Main parameters

Coating type Raw
Mounting type Hex bolt
Cross-section 80x40
Length [cm] 420
Cable channel None

[PIM] Profile montażowe #6

Length [mm] 4200
Profile [mm] 80×40
Slot Type For hex bolt
Finish Natural

Description

Aluminium profile 420cm 80x40 for hexagon bolt

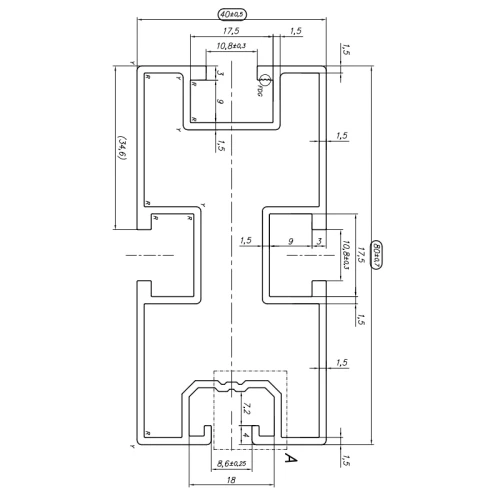

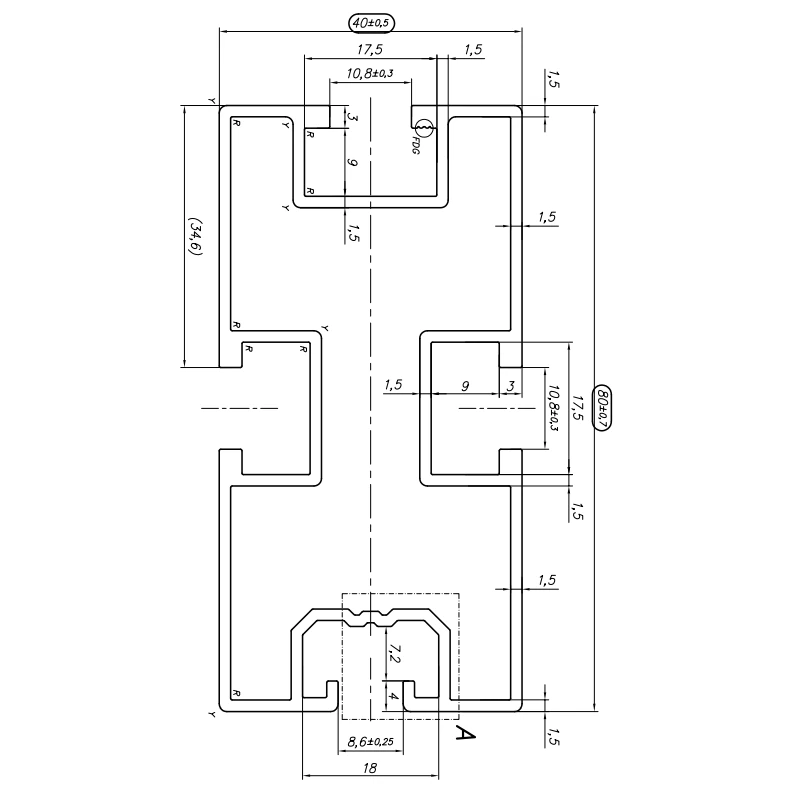

Mounting profile 80x40x4200mm made of Aluminium 6060 for 3x Hexagon head bolt DIN 933 M10 and Sliding T-nut M8, for photovoltaic modules.

The mounting profile is suitable for installing photovoltaic panels with mid and end clamps. The clamps are fixed to the upper channel of the profile rail. The lower rail channel enables mounting of the profile on adapters, roof hooks or triangles.

Installation is carried out using 3x hexagon head bolt DIN 933 M10 and sliding T-nut M8.

Mounting profiles with dimensions 8x4 cm for hexagon bolt are made of high-quality aluminium 6060.

The length of the profiles can be extended using separately available profile connectors.

Available only with "FTL (Full Truck Load)" delivery option.
