Mounting Triangle 30° Level 890x770x450 mm Aluminium 6060

Mounting triangle 30 horizontal 890x770x450 PV-09-06

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 1.4 kg

Price / pcs.: £12.62 12.62

excl. shipping costs

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 40 pieces
Package: 375 pieces
Package: 750 pieces

quantity pcs.

product unavailable

add to wish list

* - Field mandatory

Rating:

4.38462

Vendor: Synerga

Product code: PV-09-06

recommend to a friend

Description

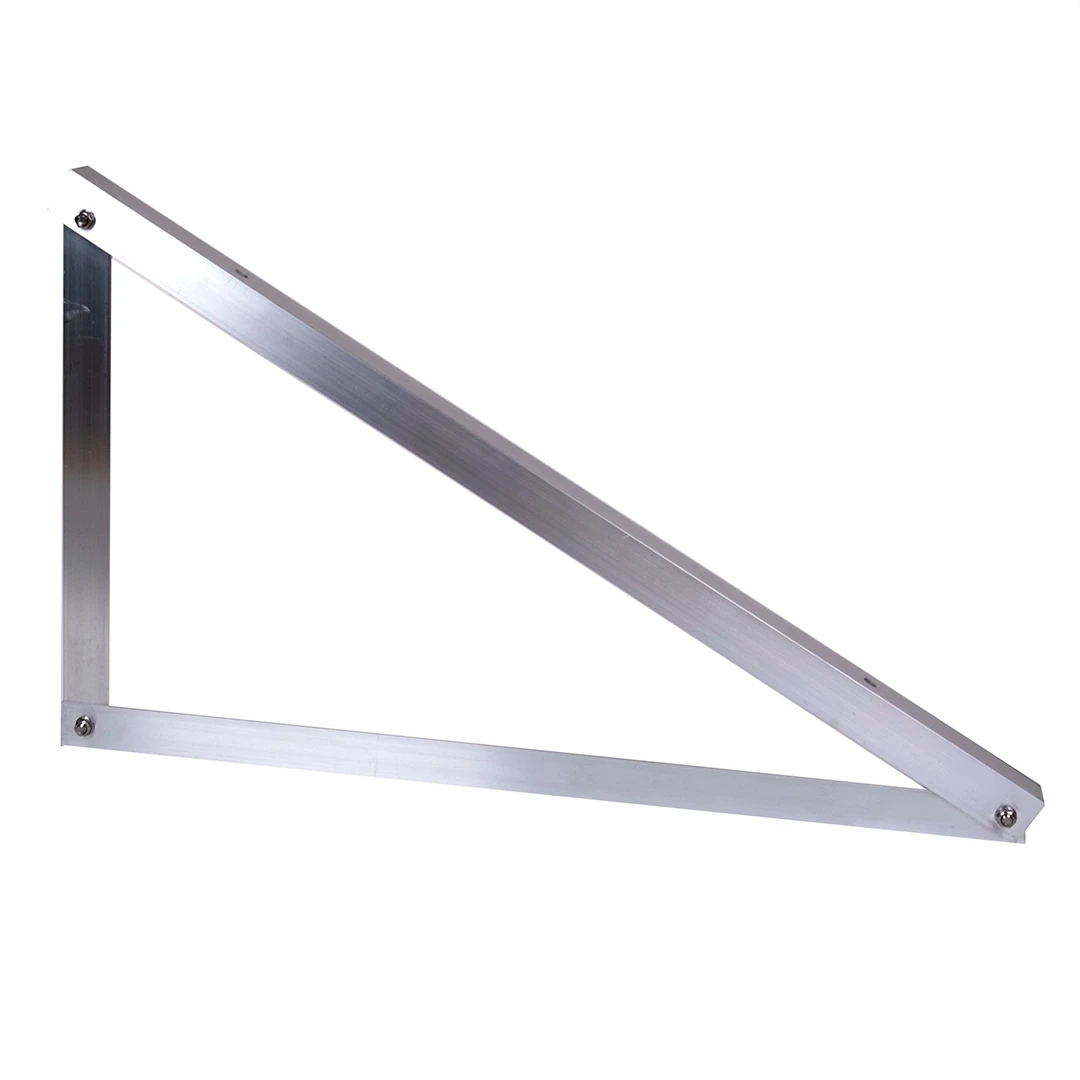

Mounting Triangle 30 Horizontal 890x770x450

Horizontal mounting triangle 30º 890x770x450 M10 made of Aluminium 6060, for mounting photovoltaic panels.

A mounting triangle, also known as a mounting bracket, is an essential component for installing photovoltaic systems on roofs with low pitch angles and on flat roofs. Availability in several sizes allows for adjustment of the PV panel tilt angle, and proper selection of this angle is crucial for correct and efficient operation of the photovoltaic installation.

Triangles made from 40×40×3mm angle bar. The product is manufactured from aluminium 6060, guaranteeing lightweight construction, resistance to mechanical overload and durability in adverse environmental conditions.

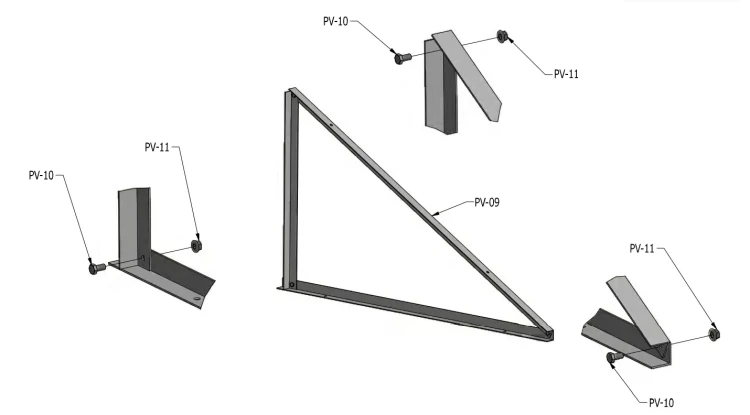

Integral parts of the triangles are fastening elements, M8 DIN 7380 hexagon socket button head screw and M8 DIN 6923 flange nut.

Please note: All necessary fastening elements are included in the set.

Ładowanie tabeli porównawczej...

Ładowanie galerii...

Technical data

Material	Aluminium 6060
Angle	30º
Panel orientation	Horizontal
