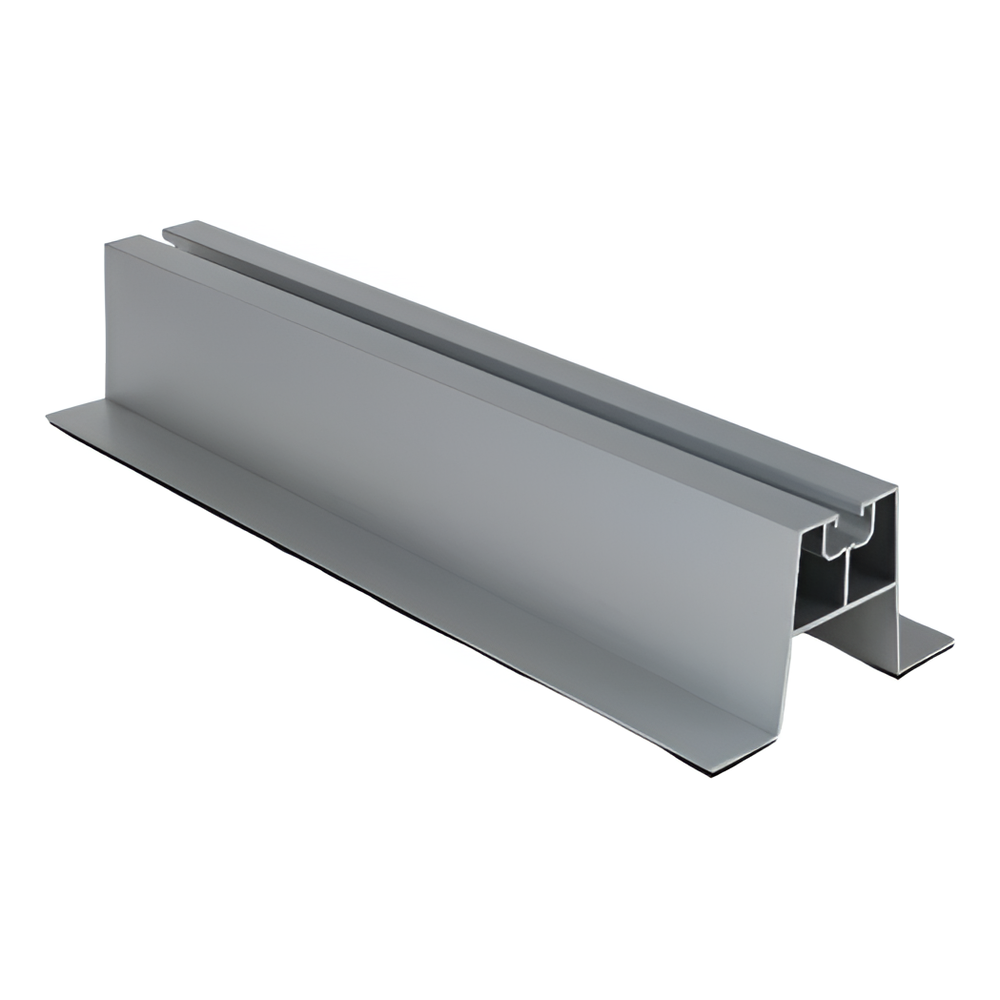

H-60 Aluminium Trapezoidal Roof Bracket with EPDM 330 mm – PV Mounting on Trapezoidal Sheet Metal
The aluminium H-60 trapezoidal roof bracket with EPDM gasket is a structural component designed for direct mounting of photovoltaic modules on roofs covered with trapezoidal sheet metal. The 60 mm high profile provides the appropriate distance between the panel and the roof surface, allowing free air circulation beneath the module — natural cooling increases the efficiency of the installation and extends the lifespan of the panels. The bracket works with mid and end clamps, which are fixed to the top channel of the rail using a sliding nut, threaded insert, or hammer-head bolt. Mounting holes are drilled directly on the roof, providing full flexibility to match the spacing of the trapezoidal sheet metal ribs. The integrated EPDM gasket at the base of the profile protects the roof covering from damage and ensures a tight seal at the point of contact with the sheet metal.
Key benefits for installation teams
- Direct mounting on trapezoidal sheet metal — no need for additional substructures
- 60 mm height guarantees ventilation beneath the panel, resulting in better module cooling and higher energy output on hot days
- Corrosion-resistant 6060 aluminium — long-term use without maintenance
- Included EPDM gasket protects the sheet metal and eliminates the risk of leaks
- Holes drilled on site — full flexibility to match the spacing of roof ribs

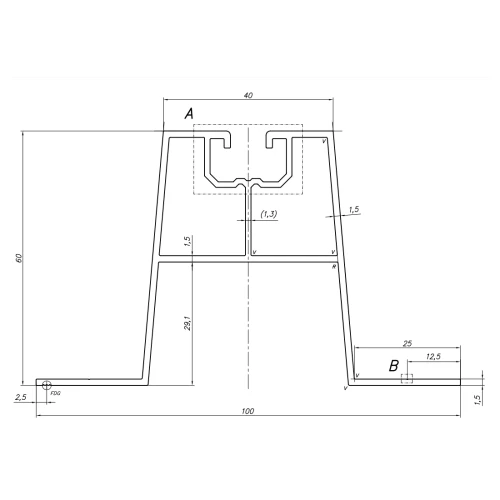

The profile cross-section, with a base width of 100 mm and a top mounting channel of 40 mm, ensures stable seating of the clamps. Walls with a thickness of 1.5 mm maintain an optimal strength-to-weight ratio. The 6060 aluminium is suitable for anodising, allowing additional surface protection and an aesthetic finish if required.
